2010 Volvo C30 S40 V50 C70 Wiring Diagram Manual TP39150202
Original price was: $24.95.$14.95Current price is: $14.95.
Complete factory-style wiring diagram manual (TP39150202) covering the Volvo C30, S40 (2004-), V50 and C70 (2006-) model range, with full circuit diagrams, fuse and relay charts, connector pinouts, ground points, and cable harness routing.
Description
2010 Volvo C30 S40 V50 C70 Wiring Diagram Manual TP39150202
This 2010 Volvo C30 S40 V50 C70 Wiring Diagram Manual TP39150202 is a complete electrical reference covering the Volvo C30, the S40 from the 2004 model year onward, and the V50 and C70 from the 2006 model year onward. It documents circuits for both left-hand drive (LHD) and right-hand drive (RHD) variants, spanning gasoline 4-cylinder and 5-cylinder engines as well as diesel 1.6L, 2.0L and 2.4L variants, including turbocharged applications. Anyone maintaining or diagnosing electrical faults on this Volvo platform will find this wiring diagram manual lays out every distribution box, relay, ground point, and control module connection in a single, consistently formatted document.
File Details
- Manual type: Wiring Diagram (Electrical Circuit Diagram Manual)
- Brand/models: Volvo C30, S40 (04-), V50 & C70 (06-)
- Document number: TP 39150202
- Publication year: 2010
- Language: English
- Page count: approx. 361 pages
- File format: PDF, instant digital download
Chapters Covered in This Wiring Diagram Manual
- Vehicles with SRS (Airbag)/SIPS bag/IC (Inflatable Curtain)
- Abbreviations
- How to use the wiring diagrams

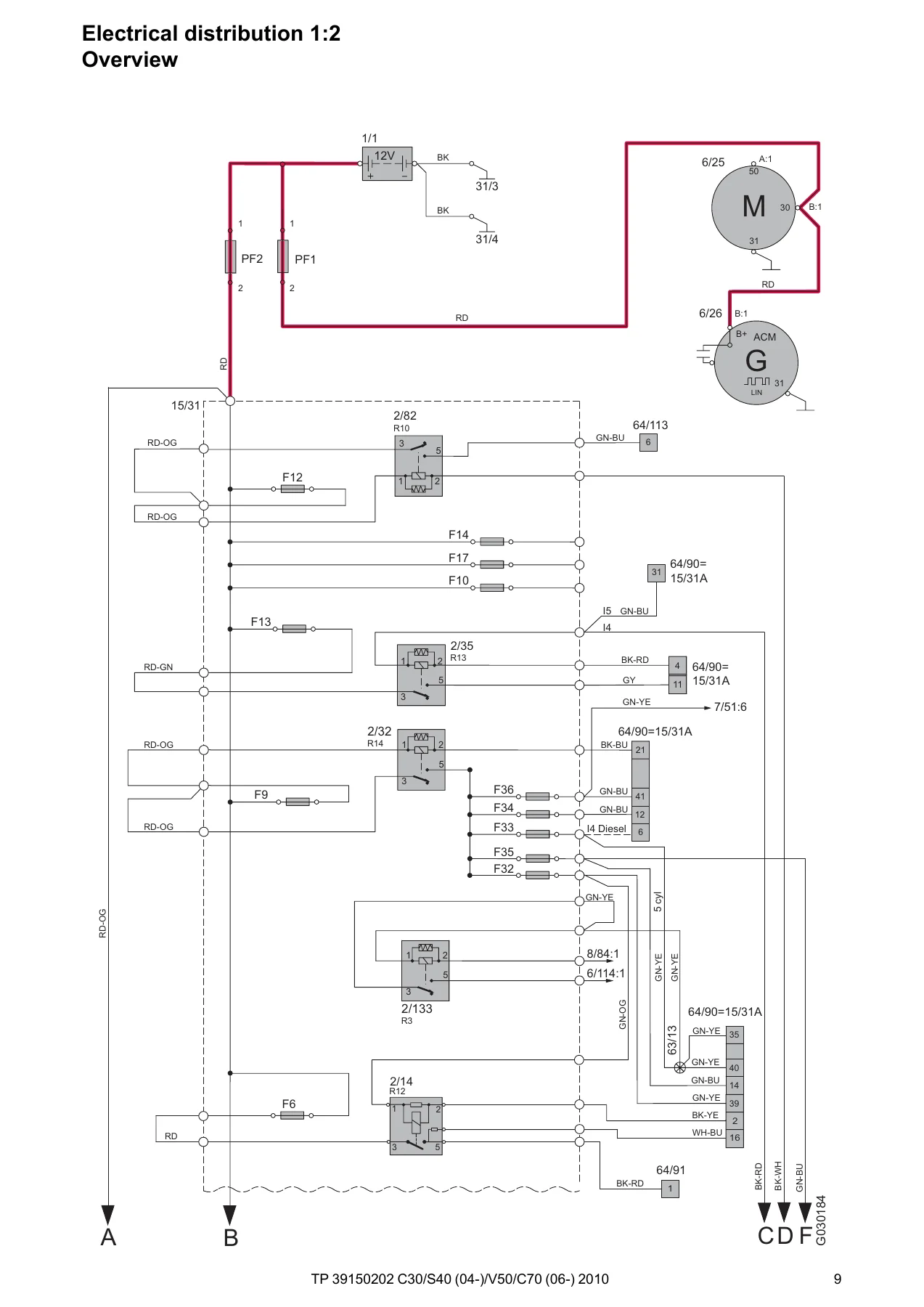

- Electrical distribution overview
- Fuses: Distribution box in engine compartment (F1-F7, F8-F16, F17-F25, F26-F32, F33-F34, F35-FH1)
- Main fuse box battery
- Fuse holder midi

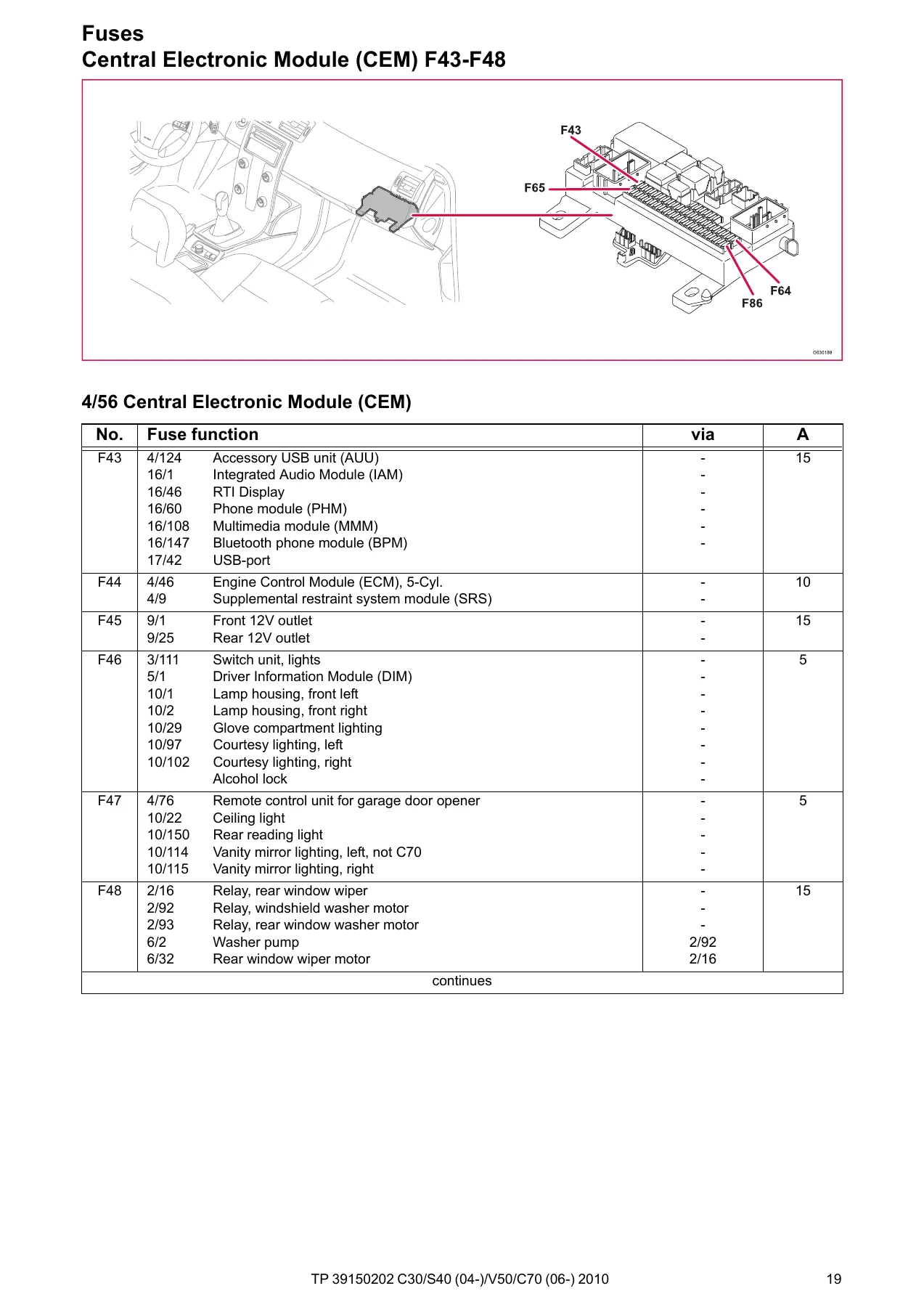

- Central Electronic Module (CEM) fuses F43-F48, F49-F61, F62-F69, F73-F85, F86
- Battery PF1-PF2
- Relays: Ignition switch and relays, Distribution box relays R1-R14, Engine compartment, CEM relays R15-R18 and R1-R11B, Other relays
- Ground connections (overview and multiple point ranges, including chassis grounds)
- Control modules: overview locations and designations, Central electronic module (CEM), Data communication (Low speed CAN, High speed CAN, MOST, LIN), Ignition switch (SCU), Accessory electronic module (AEM)
- Group 23 Fuel system: engine management systems for 4-Cyl. and 5-Cyl. gasoline and diesel variants, emission control circuits
- Group 26 Cooling system: Cooling fan
- Group 27 Engine controls: Cruise control, Start/stop function
- Group 32 Alternator and voltage regulator: power supply, 4-Cyl. and 5-Cyl.
- Group 33 Starting system: 4-Cyl. and 5-Cyl.
- Group 35 Lighting: high/low beam, Xenon headlights, running/parking/tail lights, brake lights, reversing lights, fog lights, follow-me-home lighting, interior lighting, instrument illumination, auxiliary lights
- Group 36 Additional electrical equipment: direction indicators and hazard flashers, wiper/washer systems, rain sensor, keyless vehicle system, parking assistance, immobilizer/steering column lock module, horn, anti-theft alarm, Alcolock, Accessory Electronic Module (AEM)
- Group 37 Wiring and fuses: 12V outlets, diagnostics system, towbar/tow hitch cable harnesses, USB unit (AUU)
- Group 38 Instruments: Driver information module, seat belt reminder
- Group 39 Other: Audio systems, High Performance/Premium Sound, cellular phone, multimedia and traffic information, satellite radio, subwoofer, portable navigation, Bluetooth Handsfree configurations
- Group 43 Transmission: Automatic transmission AW55-51, Transmission M66, Automatic transmission MPS6, Differential Electronic Module (DEM)
- Group 59 Brake system: STC and DSTC brake control
- Group 64 Steering: Speed dependent power steering
- Group 83 Doors and openings: central locking, child safety lock, power windows, power sunroof, power roof
- Group 84 Exterior decorative elements: power door mirrors, heated mirrors, rear window defroster, blind spot information system
- Group 85 Interior equipment: power seats with memory function, heated seats
- Group 87 Climate control system: 4-Cyl. and 5-Cyl. systems, PTC elements, parking/auxiliary heater, electric engine heater
- Group 88 Internal equipment: Supplemental restraint system (SRS), remote controlled garage door opening, rear-view mirror with automatic dimming
- Connectors reference section
- Branching points reference list
- Cable harness routing in vehicle: engine, dashboard, floor, roof, tunnel, door, and trunk/tailgate harnesses by model and side
- Component illustrations
- Index and List of components
IMAGES PREVIEW
Together these sections give a technician everything needed to trace a circuit from the battery through every distribution box, relay, module, and connector on the C30, S40, V50 and C70 platform, without having to cross-reference multiple documents.
What This Volvo Wiring Diagram Manual Lets You Do
With this 2010 Volvo C30 S40 V50 C70 Wiring Diagram Manual TP39150202, you can accurately trace circuits for lighting, engine management, transmission, climate control, infotainment, and body electronics, cutting diagnostic time on intermittent electrical faults, blown fuses, or non-functioning modules. Because the diagrams reflect Volvo’s own component designations, ground point numbering, and connector references, working from this manual reduces the risk of misdiagnosis or incorrect repairs compared to guessing from generic circuit information. As an instant PDF download, this wiring diagram manual is available immediately after purchase, with no shipping wait, and can be viewed on a laptop, tablet or phone in the workshop, or printed as needed for quick reference at the bench.
