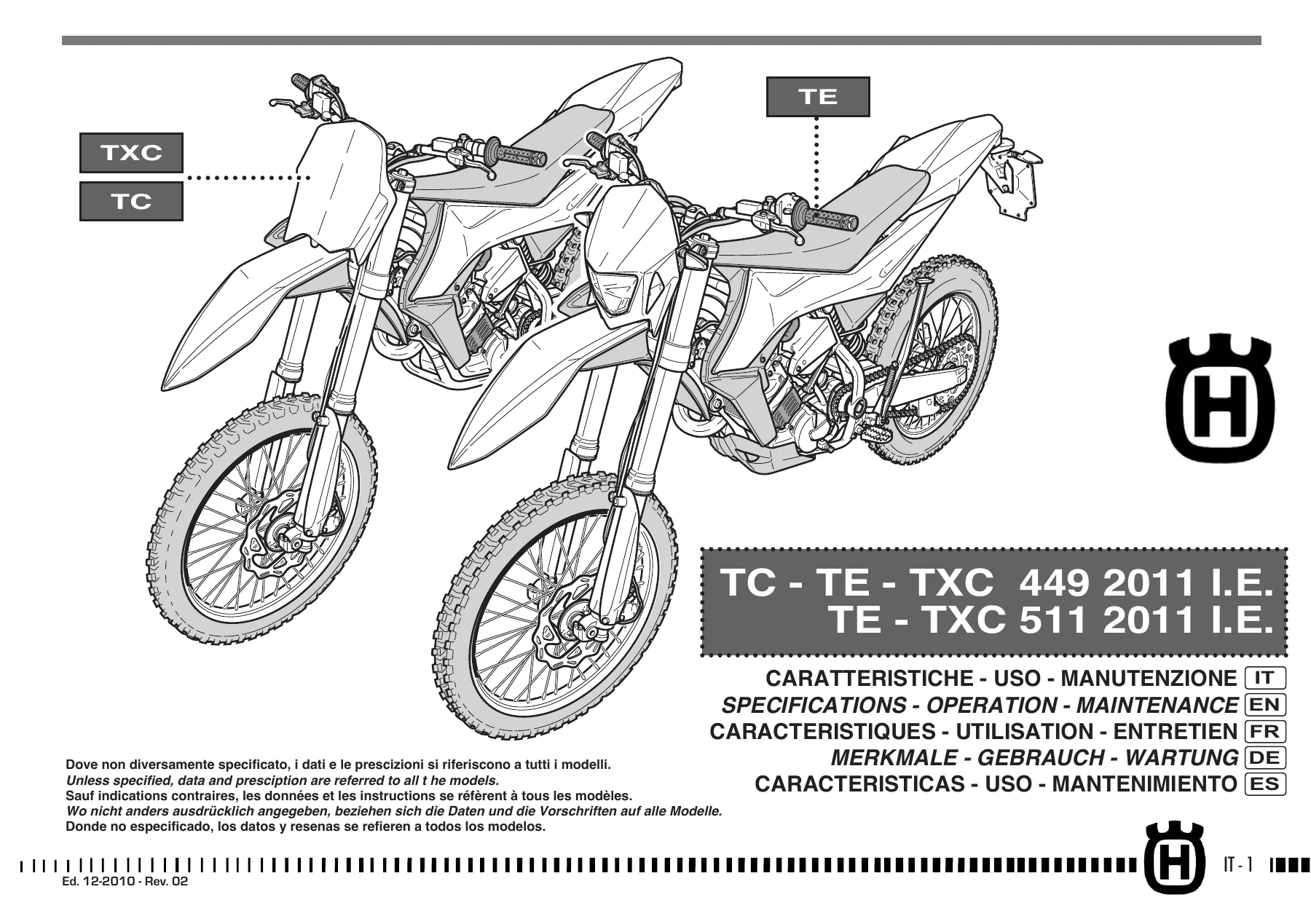

2011 Husqvarna TC TE TXC 449 511 Owner’s Manual & Service Guide

Description

2011 Husqvarna TC TE TXC 449 511 Owner’s Manual & Service Guide

This is the complete factory-issued document set for the 2011 Husqvarna TC 449, TE 449, TXC 449, TE 511 and TXC 511 models, combining the owner’s manual with the workshop-level specification, maintenance and adjustment material for the entire 449/511 platform. It is the same multi-language reference used by owners and technicians who service these fuel-injected four-stroke enduro and motocross machines.

Whether you ride a race-spec TC 449, a road-legal dual-sport TE 449 or TE 511, or a competition enduro TXC 449 / TXC 511, this manual covers the routine service routines, torque values, fluid capacities and system checks that keep the bike reliable. It is written in five languages side-by-side — Italian, English, French, German and Spanish — so you can read the procedure in whichever language you prefer without hunting down a translation.

File Details

• Document type: Owner’s manual combined with specification and maintenance material (multilingual)
• Brand: Husqvarna
• Model year: 2011
• Covered models: TC 449, TE 449, TXC 449, TE 511, TXC 511 (including USA variants)
• Languages: Italian, English, French, German, Spanish
• File format: PDF
• Edition: Ed. 12/2010 – Rev. 02

Chapters Covered

• Presentation and important notices
• Identification data — chassis number and engine number locations
• Technical data — engine, transmission, chassis, dimensions, weight, capacities
• Lubrication and fluid supply table

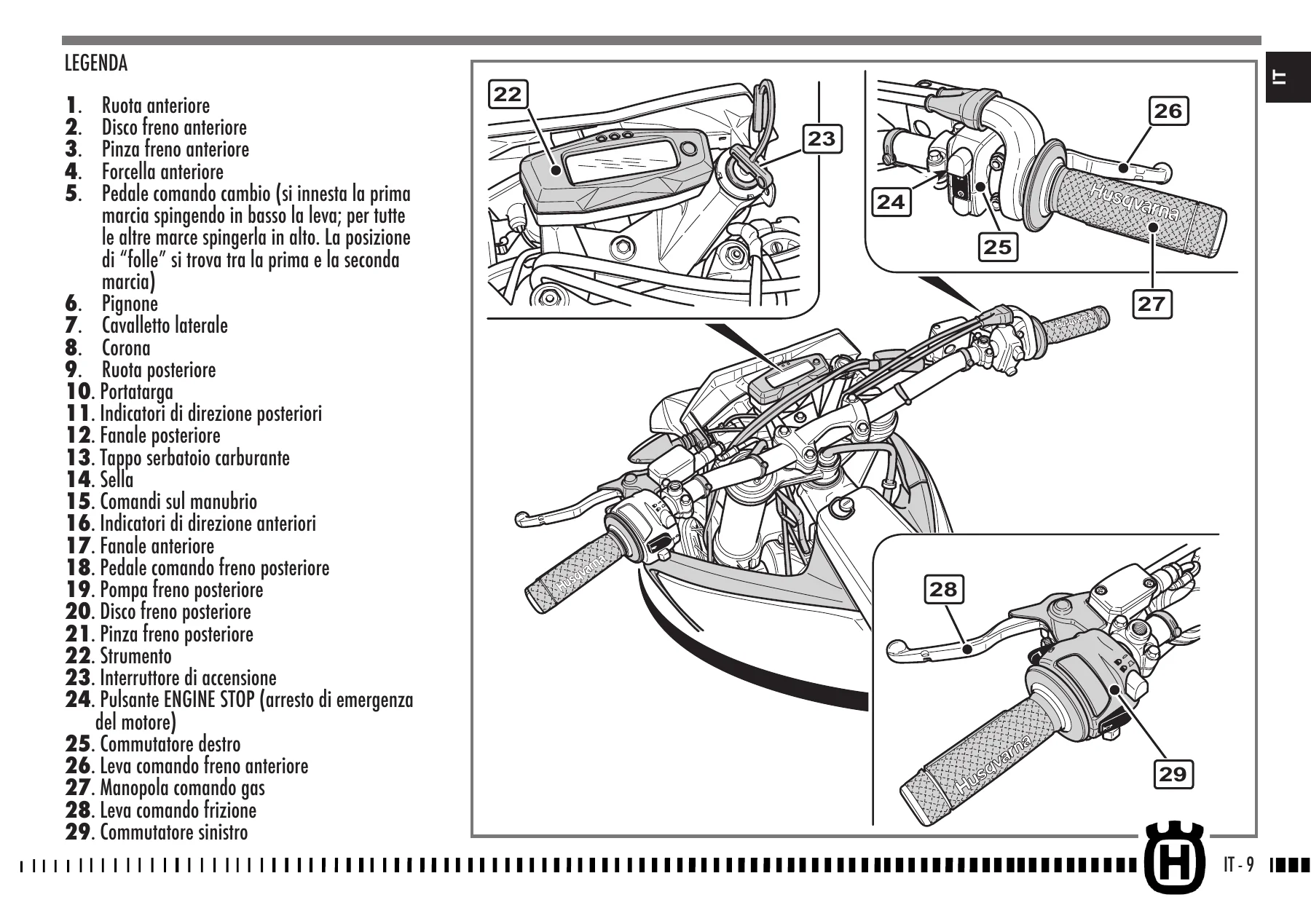

• General motorcycle views (TE and TC/TXC layouts)
• Controls — fuel taps, fuel, side stand, cold start, digital instrument, throttle, brake levers, ignition switch, steering lock, handlebar switches, engine stop, clutch, rear brake, gear shift
• Instructions for use — pre-ride checks, running-in
• Troubleshooting charts
• Engine starting — TE, TXC and TC procedures
• Stopping the motorcycle and engine
• Engine oil level check, oil replacement and mesh/cartridge filter service
• Coolant level check and replacement
• Throttle cable adjustment and idle adjustment
• Spark plug check and removal
• Air filter inspection and cleaning
• Steering angle adjustment
• Front brake lever adjustment and fluid level check
• Rear brake pedal position and free play adjustment, rear brake fluid level
• Hydraulic clutch lever adjustment
• Suspension setup guidance for hard, sandy and muddy terrain
• Front fork adjustment — compression, rebound, air bleeding
• Fork oil level and oil quantity per leg
• Shock absorber spring preload and hydraulic damping adjustment
• Drive chain adjustment and lubrication
• Front and rear wheel removal and reassembly
• Brake pads — removal, wear inspection, cleaning, installation
• Battery charging and battery removal
• Headlamp bulb replacement
• Turn indicator and tail light service
• Number plate light and headlight adjustment
• Long period of inactivity storage procedure
• Cleaning guidance
• Alphabetical index
• Appendix A — periodic maintenance charts (TE/TXC 449/511 and TC 449)

What makes this document useful is the way it combines two jobs in one file. The front half reads like a proper owner’s handbook — pre-ride checks, running-in rules, controls, the digital dashboard functions and starting procedures for cold and warm engines. The back half and the appendix give you the deeper workshop content: fork oil quantities per leg, standard click settings for compression and rebound, shock absorber sag measurements, chain slack, spark plug gap, tyre pressures, brake pad wear limits, oil and coolant capacities, torque values for axle and fork leg bolts, and full scheduled maintenance charts broken out by model type. Instead of guessing at a click count or a torque figure, you work from the values Husqvarna printed for these exact machines.

The maintenance charts in Appendix A are split so you are not applying the wrong interval to the wrong bike: the TE/TXC 449/511 road and competition table is separated from the TC 449 race table, and both are presented alongside the pre-delivery inspection checklist. Troubleshooting covers the common four-stroke complaints — hard starting, erratic running, fouled plugs, overheating, charging faults, clutch slip, dragging gears and brake inefficiency — with the likely cause and the corrective action in the same table.

What You Can Do With This Manual

• Set fork and shock absorber damping to the standard click values and adjust from a known baseline
• Measure and adjust shock absorber spring preload using the printed sag reference dimensions
• Service the engine oil and both mesh filters plus the cartridge filter with the correct partial-fill procedure
• Drain, refill and bleed the cooling system without scalding yourself or trapping air
• Adjust throttle cable free play and idle speed on both the TC and TE/TXC throttle bodies
• Set drive chain slack and re-tension it after wheel removal without disturbing the alignment
• Replace brake pads and check wear against the service limit before they destroy the discs
• Diagnose a no-start or poor-running condition using the printed troubleshooting chart

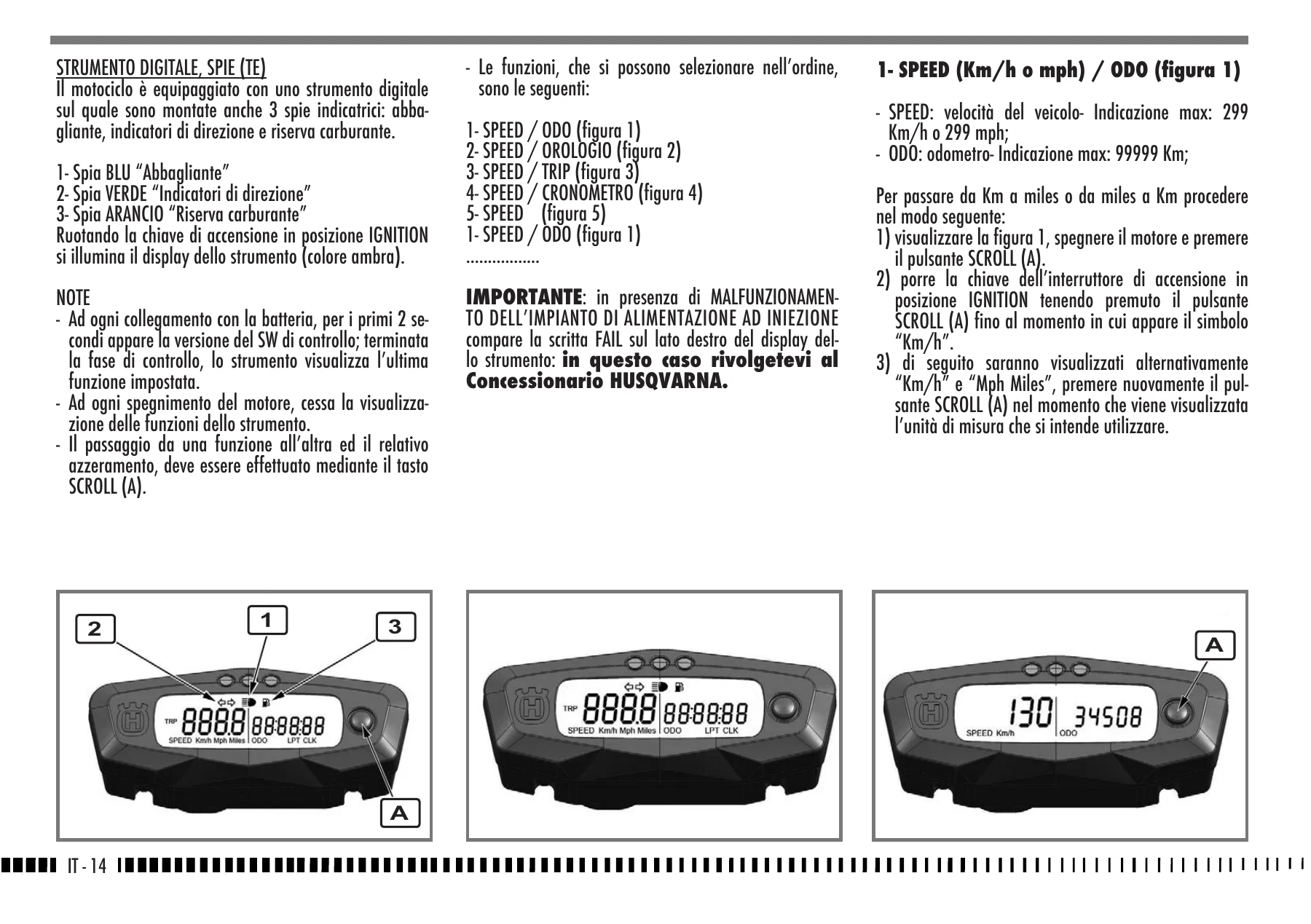

• Read the digital dashboard, reset the trip, set the clock and understand the FAIL injection warning
• Follow the correct running-in procedure for the first four hours of engine life

Getting these details right matters. A fork set a few clicks off, a chain run too tight, or a brake pedal without the specified free play will cost you grip, chain life or braking performance — and on a competition machine that can mean a very expensive repair. The specified clearances, torques and intervals in this manual are the difference between a bike that works and a bike that eats its own components.

Delivery

IMAGES PREVIEW

The file is delivered as an instant PDF download — no shipping, no waiting. Read it on a laptop, tablet or phone in the workshop or on the trail, and print the pages you need for the job in front of you. Because the manual covers all five 2011 449/511 variants in one document, one download covers every machine in the range.
