2011 Jeep Wrangler JK Parts Catalog – Exploded Diagrams & Part Numbers PDF
This 2011 Jeep Wrangler JK Parts Catalog – Exploded Diagrams & Part Numbers PDF is a detailed illustrated component reference for the 2011 Wrangler JK platform. Across 673 pages, the catalog organizes Jeep Wrangler parts by vehicle system and assembly, pairing exploded illustrations with item numbers, part numbers, quantities, descriptions and application information. It covers both 72 body 2-door and 74 body 4-door configurations, along with left-hand-drive and right-hand-drive applications shown throughout the catalog.
The catalog identifies the major 2011 Wrangler series including Wrangler Sport, Wrangler Unlimited Sport, Wrangler Sahara, Wrangler Unlimited Sahara, Wrangler Rubicon and Wrangler Unlimited Rubicon. Engine application information includes the EGT 3.8L V6 SMPI Engine and ENS 2.8L 4 Cyl Turbo Diesel Engine. Transmission references appearing throughout the parts listings include the DEH 6-Speed Manual NSG370, DGV 4-Spd. Automatic VLP 42RLE and DGJ 5-Speed Auto W5A580.
File Details
- Manual type: Parts Catalog
- Brand: Jeep
- Model: Wrangler (JK)
- Model year: 2011
- Language: English
- Pages: 673
- File format: PDF
Vehicle and Application Identification
The opening VIN decoding information helps distinguish the vehicle configurations used by the catalog. Wrangler vehicle-line codes cover left-hand-drive and right-hand-drive configurations, while body designations distinguish the 2-door and 4-door versions. The catalog repeatedly supplies application columns for line, series, body, engine, transmission and trim, allowing a part-number entry to be read together with the configuration for which it is listed.
This is especially useful because many illustrated assemblies contain several alternatives rather than one universal component. Depending on the group, the parts tables distinguish engine type, transmission, drive configuration, body style, equipment or sales-code application. The exploded diagrams provide the visual relationship between components while the corresponding tables identify the individual parts.
Chapters Covered
- Mopar Accessories – Component Parts: carriers and cargo hauling, trailer and off-road wiring, driving convenience, exterior appearance and protection, engine-block heater, winch and mounting equipment, and electronic stabilizer bar kit.
- Front Suspension: front springs, shocks, control arms, stabilizer bar and track bar.
- Front Axle – Dana 186 MM: axle assembly, housing and vent, differential assembly, axle shafts and front drive shaft.
- Front Axle – Dana 226 MM: axle assembly, housing, differential, axle shafts, drive shaft and locker-related components where applicable.
- Rear Axle – Dana 226 MM: rear drive shaft, axle assembly, housing and vent, differential configurations and rear axle shafts.
- Brakes: front and rear disc brakes, vacuum power brake booster, master cylinder, hydraulic control unit, brake tubes and hoses, brake pedal, parking-brake lever, cables and rear disc parking-brake assembly.
- Clutch: clutch assembly, hydraulic clutch controls and clutch pedal components.
- Cooling: radiator and related parts, radiator support, charge-air cooler, water pumps, thermostats, coolant recovery bottles, pulleys, belts and transmission oil cooler lines.
- Electrical: starters, alternators, wiper and washer systems, vehicle modules and controllers, power distribution, fuses and relays, sensors, switches, horns, battery components, lamps, wiring groups and wiring repair components.
- Electrical equipment and communication: instrument cluster, radios, antenna, satellite radio, speakers, navigation, telecommunication and speed-control components.
- 3.8L Gas Engine [EGT]: engine identification, engine assembly and service long block, gasket kits, cylinder heads, cylinder block, crankshaft and piston components, camshaft and valvetrain, timing system, lubrication components, manifolds, crankcase ventilation and engine mounting.
- 2.8L Turbo Diesel Engine [ENS]: engine identification, engine assembly and service long block, gasket kits, cylinder head, cylinder block, crankshaft and piston assemblies, camshafts and valvetrain, timing system and related engine component groups.
- Restraints: occupant-restraint component groups and related hardware.
- Exhaust: exhaust-system assemblies and associated components.
- Frame, Bumper and Fascia: complete frame, front fascia, rear bumper, body hold-down components, front tow hooks and rear tow hooks and hitches.
- Fuel: fuel tank, filler tube, fuel lines, fuel rail and injectors, fuel-pump and sending-unit components, fuel-injection pump, fuel filter, throttle body, air cleaners and accelerator pedal.
- Rear Suspension: rear suspension components, rear stabilizer bar and rear track bar.
- Steering: steering wheel, steering column and intermediate shaft, ignition lock cylinder, steering gear box, steering linkage, steering shock, power-steering pump, reservoir and hoses.
- NSG370 6-Speed Manual Transmission: transmission assembly, case and related parts, sensors, switches and vents, input/main/output/counter shafts, gear train, shift forks, rails and gearshift controls.
- NAG1 W5A580 5-Speed Automatic Transmission: automatic-transmission component groups and associated assemblies.
- 42RLE 4-Speed Automatic Transmission: automatic-transmission component groups and associated assemblies.
- NV241 Transfer Case: transfer-case assemblies and related components.
- NV241HD / NV241OR Transfer Case: transfer-case assemblies and component breakdowns for the listed applications.
- Wheels: wheels and hardware, wheel covers and center caps, jack stowage, spare wheel equipment, emergency kit and tire-monitoring system components.
- Air Conditioners and Heaters: LHD and RHD heater and A/C units, heater and A/C plumbing for 2.8L and 3.8L applications, controls, compressor and mounting components, and air ducts.
- Emission Controls: EGR system components, vapor canister and leak-detection equipment, and emission-control vacuum harness components.
- Labels: interior, under-hood, door and cargo-area label locations and components.
- Glass: glass, glass hardware and interior rear-view mirror components.
- Doors and Door Mirrors: front and rear full-door and half-door shells, hinges and hardware, lock-cylinder components, exterior mirrors, weatherstrips and seals.
- Exterior Ornamentation: nameplates, emblems, moldings, exterior ornamentation, running boards, side steps, decals, tape stripes and grilles.
- Interior Trim: headliners and visors, interior moldings and pillars, carpets and floor components, front and rear door trim, front and rear seats, seat adjusters and shields, floor console and instrument panel.
- Body Sheet Metal Except Doors: 2-door and 4-door floor pans, plugs, front fenders and shields, hood components, cowl and dash panels, aperture panels, pillar supports, weatherstrips and seals, hard tops, soft tops, Targa top panels, tailgate and sport bar.
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “2011 Jeep Wrangler JK Parts Catalog – Exploded Diagrams & Part Numbers PDF” are as follows:
+2011JKp. 1
Return to Model Year Index
Return to 2011 Vehicle Family Index
VIN PLATE DECODING INFORMATIONp. 1

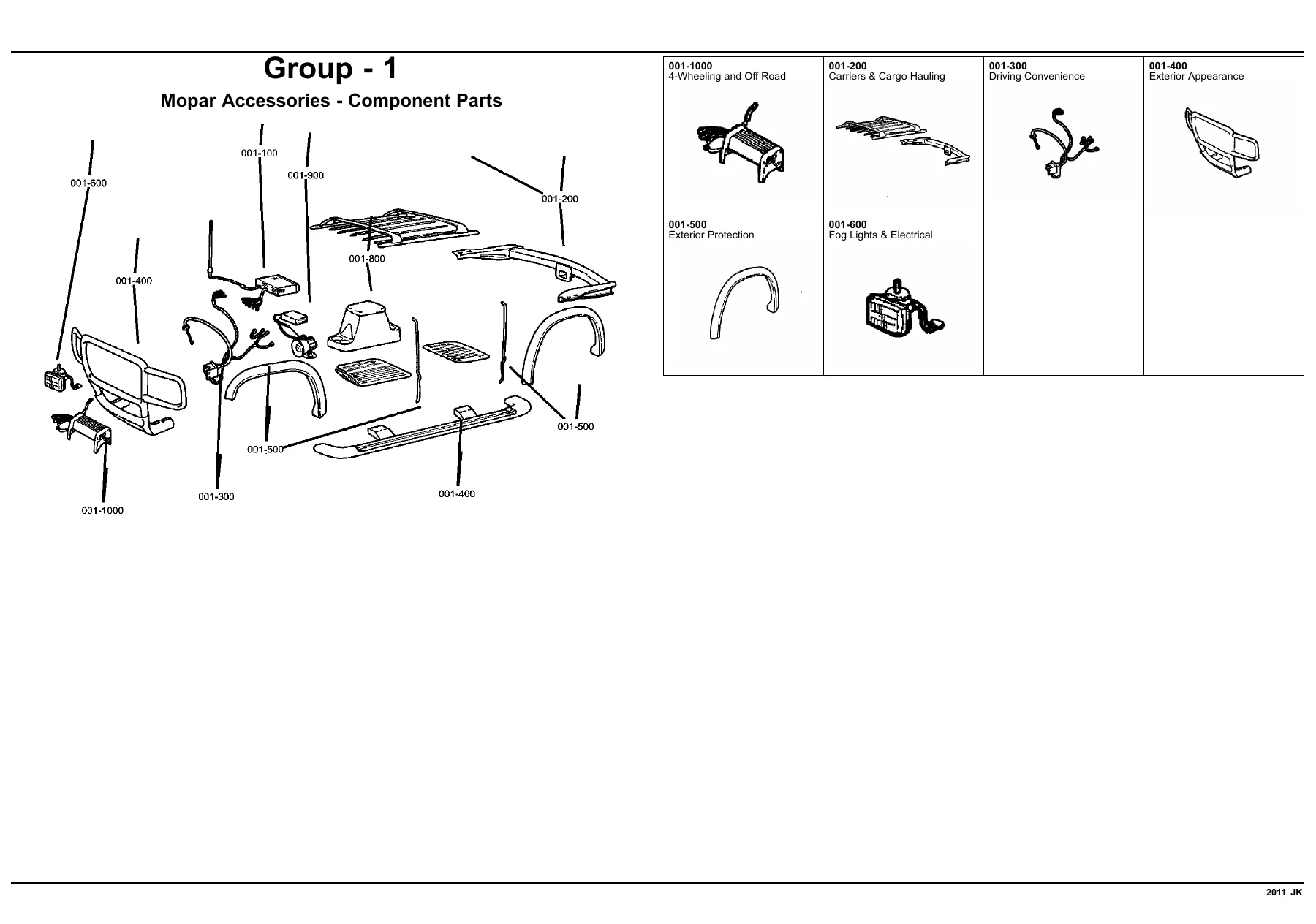

+Group – 1 Mopar Accessories – Component Partsp. 2
+Carriers & Cargo Haulingp. 3
Fig. 1-243 –> Wiring Kit -Trailer Tow-7-Wayp. 4
Fig. 1-264 –> Wiring Kit – Off Roadp. 5
+Driving Convenience
Fig. 1-312 –> Blue-Toothp. 6
+Exterior Appearance
Fig. 1-408 –> Bumper Kit – Tubularp. 7
Fig. 1-409 –> Bumper Kit – Frontp. 8
Fig. 1-436 –> Board Kit – Running – Fullp. 9
Fig. 1-440 –> Step Kit – Sidep. 10
Fig. 1-448 –> Wheel Kitp. 11
+Exterior Protection
Fig. 1-510 –> Guard Kitp. 12
Fig. 1-530 –> Decor Kit – Grille & Headlampp. 13
+Fog Lights & Electrical
Fig. 1-605 –> Heater Kit – Engine Blockp. 14
+4-Wheeling and Off Roadp. 14
Fig. 1-1002 –> Winch & Mounting Kitp. 15
Fig. 1-1022 –> Electronic Stablizer Bar Kitp. 16
+Group – 2 Front Suspensionp. 17
+Front Suspension, Strut and Cradlep. 17

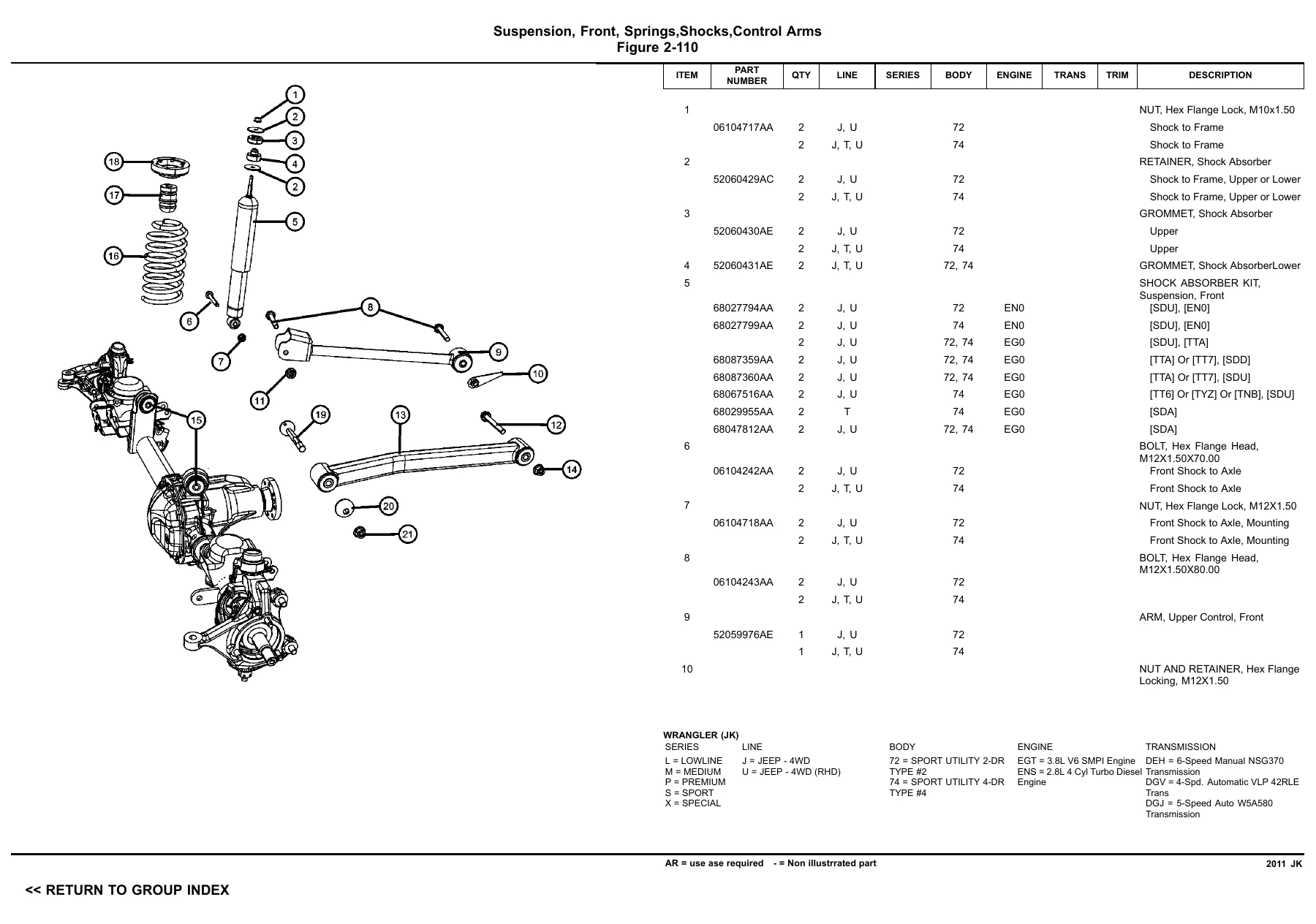

Fig. 2-110 –> Suspension, Front, Springs,Shocks,Control Armsp. 18
+Front Stabilizer Bar
Fig. 2-210 –> Stabilizer Bar, Front,p. 22
Fig. 2-220 –> Bar,Trackp. 24
+Group – 003DJR Front Axle; Dana 186 MM; Differential and Drive Lp. 25
+Front Axle Assemblyp. 25
Fig. 003DJR-105 –> Axle Assemblyp. 26
+Front Axle; Housing, Differential and Vent
Fig. 003DJR-205 –> Housing and Ventp. 27
Fig. 003DJR-210 –> Differential Assembly, With [DS7]p. 29
+Front Axle Drive Shafts
Fig. 003DJR-305 –> Shafts, Axlep. 37
+Drive Shaftp. 37
Fig. 003DJR-605 –> Shaft, Drive, Frontp. 38
+Group – 003DJS Front Axle; Dana 226 MM; Differential and Drive Lp. 39
+Front Axle Assemblyp. 39
Fig. 003DJS-105 –> Axle Assemblyp. 40
+Front Axle; Housing, Differential and Ventp. 40
Fig. 003DJS-205 –> Housing and Ventp. 41
Fig. 003DJS-210 –> Differential Assembly, With [DSE]p. 43
+Front Axle Drive Shaftsp. 46
Fig. 003DJS-305 –> Shafts, Axlep. 47
+Drive Shaftp. 47
Fig. 003DJS-605 –> Shaft, Drivep. 48
+Group – 003DRZ Rear Axle; Dana 226 MM; Differential and Drive Lip. 49
+Drive Shaftp. 49
Fig. 003DRZ-605 –> Shaft, Drive, 1 Piecep. 50
+Rear Axle Assembly
Fig. 003DRZ-705 –> Axle Assemblyp. 52
+Rear Axle; Housing, Differential and Vent
Fig. 003DRZ-805 –> Housing and Ventp. 53
Fig. 003DRZ-810 –> Differential Assembly, With [DSA] or [DS8]p. 55
Fig. 003DRZ-815 –> Differential Assembly, With [DSE] or [DSH]p. 60
+Rear Axle Shafts
Fig. 003DRZ-905 –> Shafts, Axlep. 64
+Group – 5 Brakesp. 65
+Front Brakesp. 65

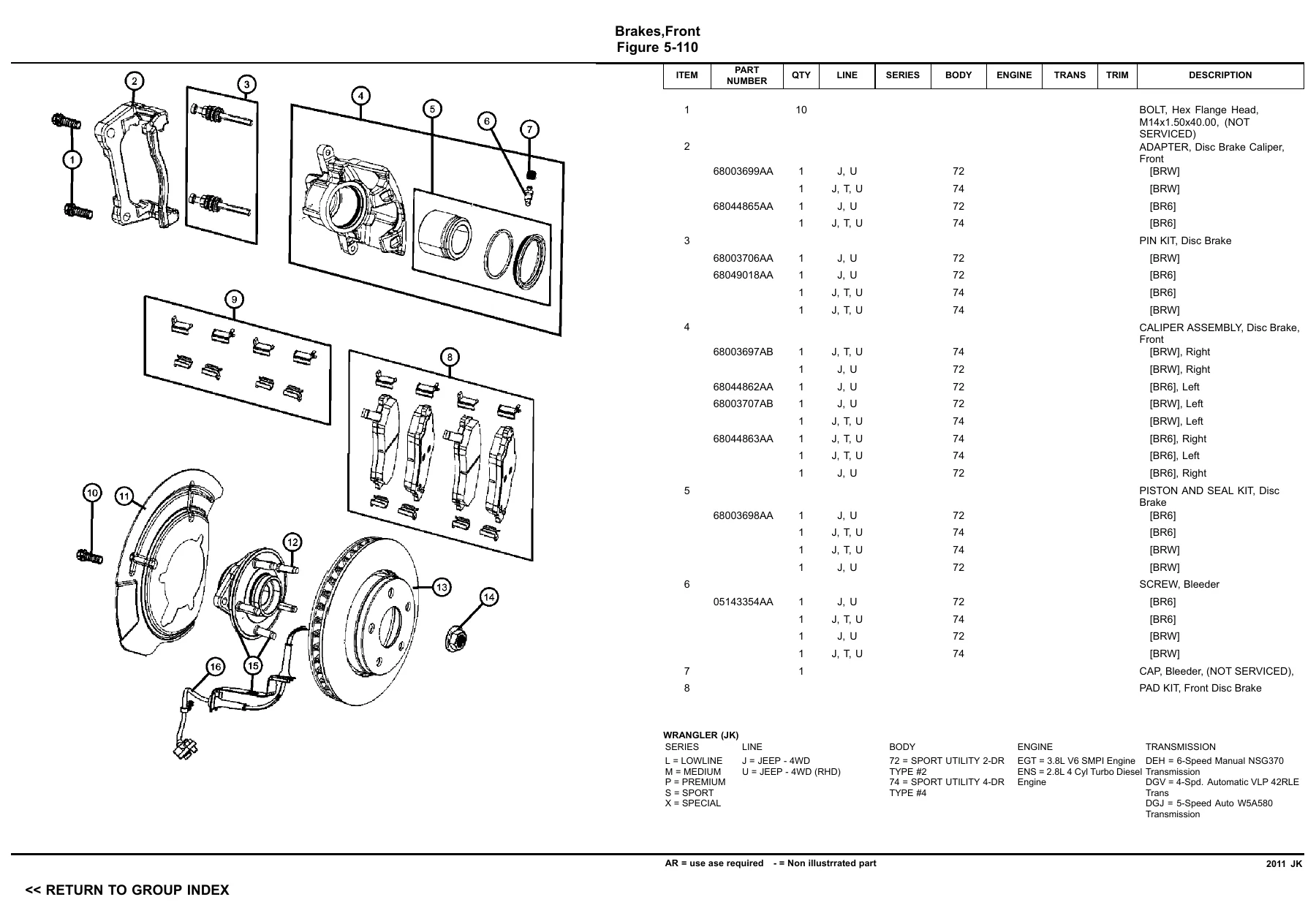

Fig. 5-110 –> Brakes,Frontp. 66
