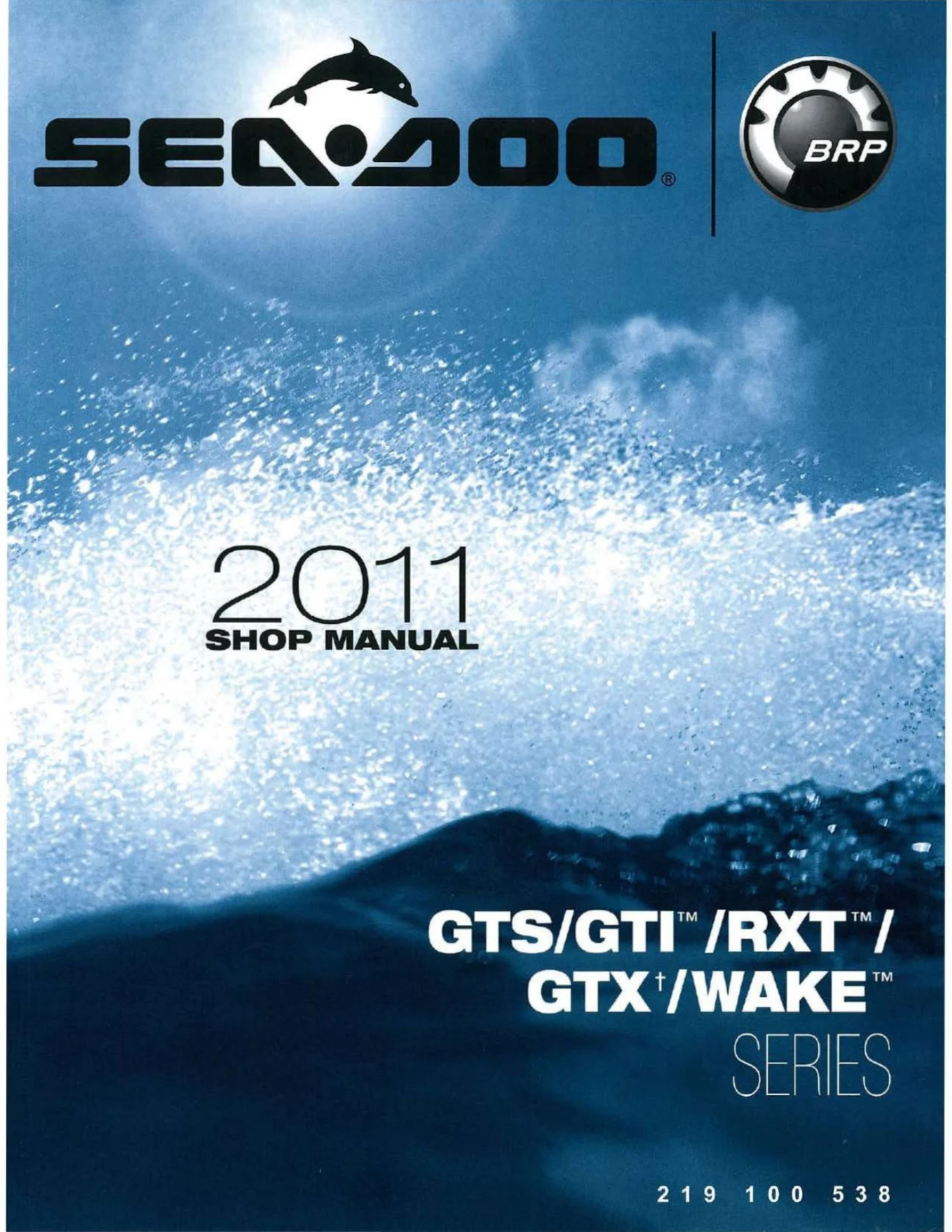

2011 Sea-Doo GTS GTI RXT GTX WAKE Series Shop Manual & Technical Updates

Description

2011 Sea-Doo GTS/GTI/RXT/GTX/WAKE Series Shop Manual & Technical Updates

This is the complete 2011 Sea-Doo shop manual covering the GTS, GTI, RXT, GTX and WAKE series of personal watercraft, bundled with the 2011 Technical Update Book. The 968-page document is the same service and repair reference used by professional marine technicians to maintain, diagnose and overhaul these machines, with detailed procedures, exploded views, torque values, wiring diagrams and fault-code diagnostics for every major system on the watercraft.

File Details

• Manual Type: Factory Shop Manual + Technical Update Book
• Brand: Sea-Doo / BRP
• Model Series: GTS, GTI, RXT, GTX, WAKE
• Model Year: 2011
• Language: English
• Page Count: 968 pages
• File Format: PDF

Chapters Covered

• 01 Maintenance — Break-In Inspection, Maintenance Schedule, Storage Procedure, Preseason Preparation, Special Procedures

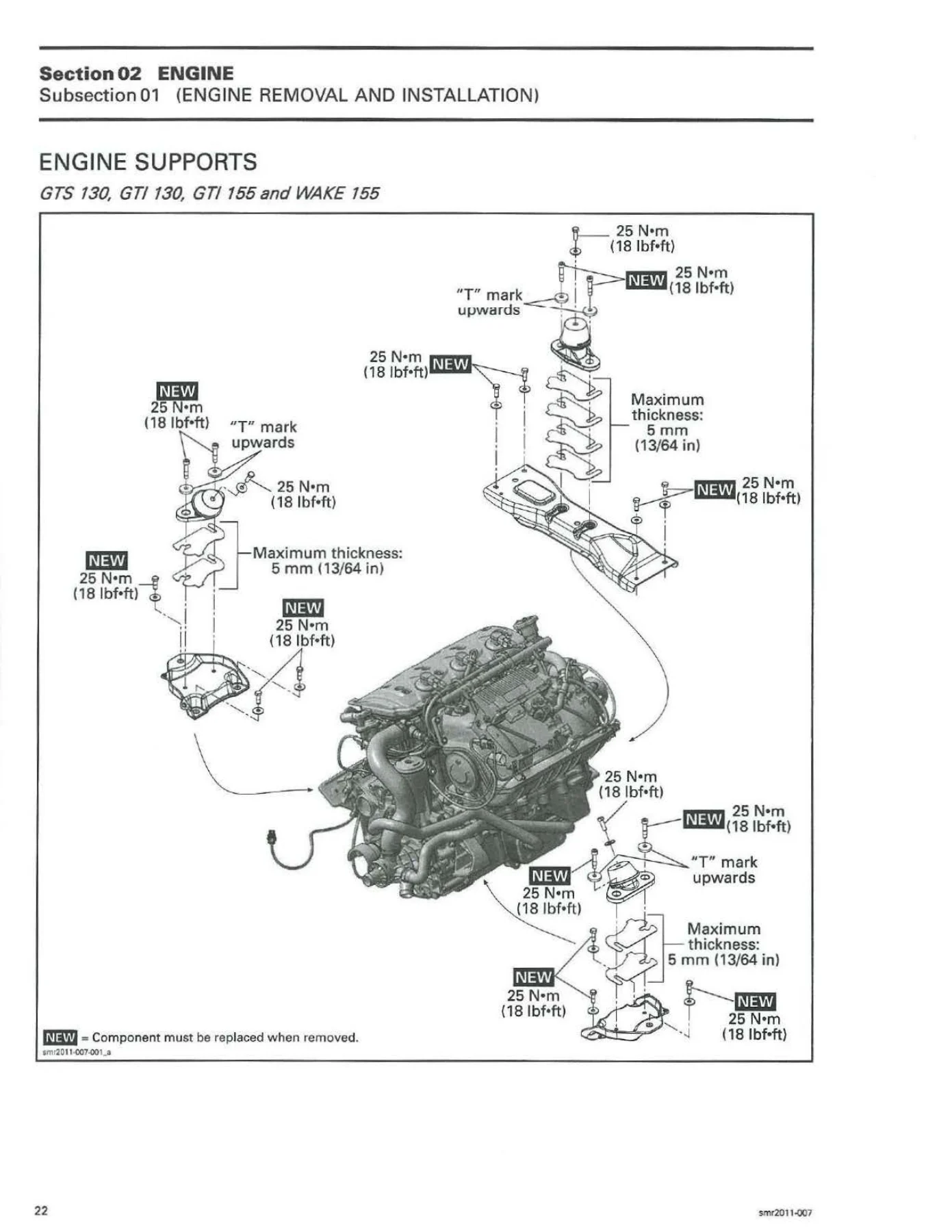

• 02 Engine — Engine Removal and Installation, Engine Mounts, Air Intake System (except iS/aS models), Air Intake System (iS and aS models), Intake Manifold, Supercharger (215 and 260 engines), Intercooler (215 engine), Intercooler (260 engine), Exhaust System, PTO Housing and Magneto, Lubrication System, Cooling System, Cylinder Head, Cylinder Block
• 03 Electronic Management Systems — Engine Management System, iControl System (iTC, iBR, iS), Controller Area Network (CAN), Communication Tools and B.U.D.S., Diagnostic and Fault Codes
• 04 Fuel System — Intelligent Throttle Control (iTC), Electronic Fuel Injection (EFI), Fuel Tank and Fuel Pump
• 05 Electrical System — Power Distribution and Grounds, Ignition System, Charging System, Starting System, Digitally Encoded Security System (D.E.S.S.), Information Center (Gauge)
• 06 Steering and Propulsion — Steering and O.T.A.S., iBR and VTS, Jet Pump, Drive Shaft
• 07 Body and Hull — Suspension (aS), Suspension (iS), Body (GTS/GTI/WAKE), Body (RXT/GTX/WAKE PRO), Hull (GTS/GTI/WAKE), Hull (GTX/RXT/WAKE PRO)
• 08 Technical Specifications — GTS 130 and GTI 130, GTI 155 and WAKE 155, GTX 155/215/260, RXT 260, WAKE PRO 215

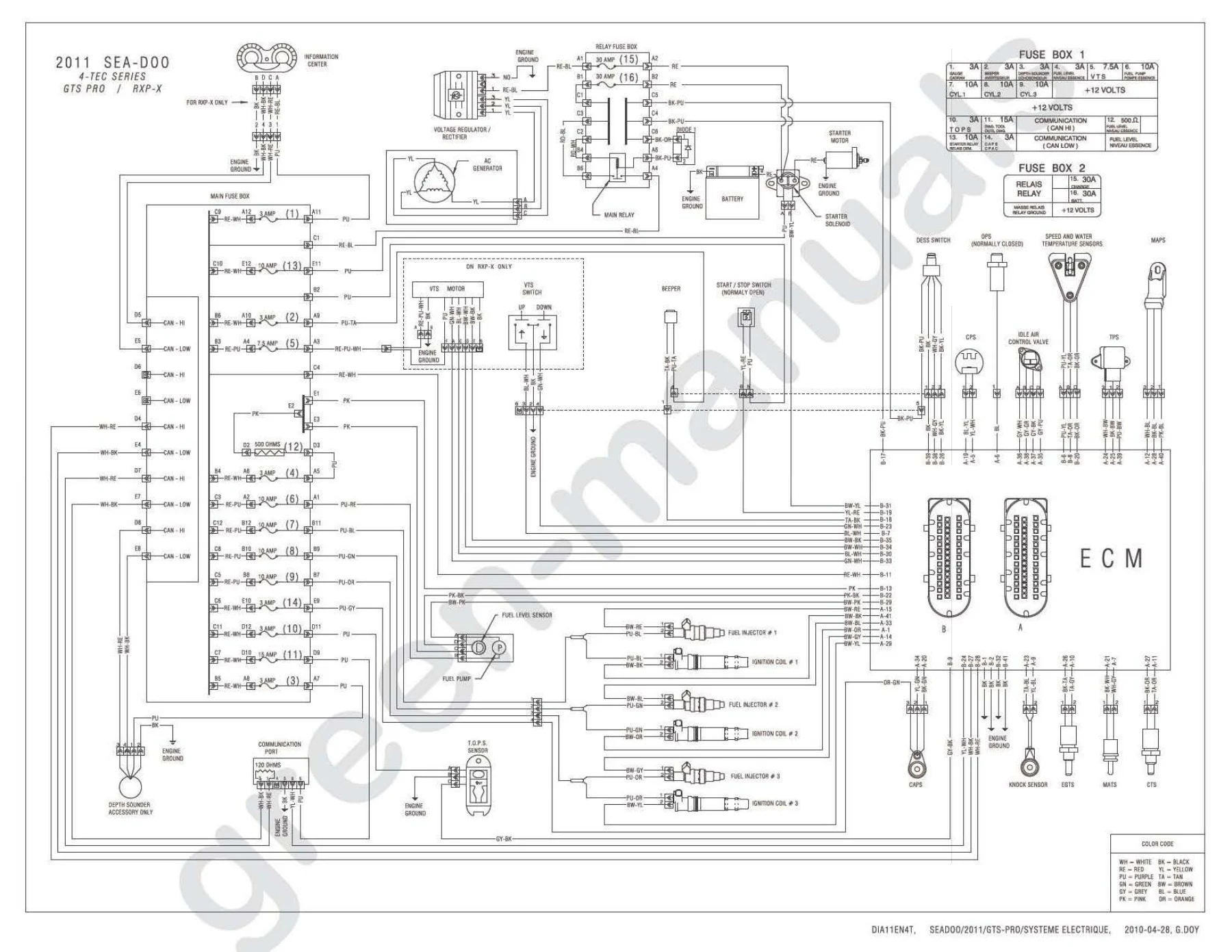

• 09 Wiring Diagram — Wiring Diagram Information, Connector Information

Across those nine sections the manual gives a technician the full factory procedure set for the 1503 4-TEC engine family, from air-intake silencer removal down to cylinder block splitting and crankshaft end-play measurement. It covers the electronic side as well — iTC throttle-by-wire, iBR brake-and-reverse, iS intelligent suspension, the CAN bus between the ECM, iBR, iS and gauge cluster, and the diagnostic fault codes that the modules store and report through B.U.D.S. The specification chapters provide the wear limits, clearances, torque values and fluid capacities you need to decide whether a part can be reused or must be replaced. The wiring-diagram and connector subsections document the harness pin-outs, terminal positions and the APEX ERGOMATE 24-pin steering connector for model-by-model circuit tracing.

Models Covered

• GTI — 23BA, 23BB
• GTI SE — 24BA, 24BB, 24BC, 30BA, 30BB
• GTI Limited — 39BA, 39BB
• GTS — 25BA, 43BA, 43BB
• GTX — 38BA, 38BB, 42BA, 42BB
• GTX iS — 33BA
• GTX Limited iS — 18BA, 18BB
• RXT — 17BA, 17BB
• RXT iS — 34BA, 34BB
• RXT X — 31BA
• RXT XRS — 31BB
• RXT-X aS — 41BA
• RXT-XRS aS — 41BB
• WAKE — 35BA, 35BB
• WAKE PRO — 26BA, 26BB

Engines Covered

• 130 HP — ROTAX 1503 4-TEC, naturally aspirated
• 155 HP — ROTAX 1503 4-TEC, naturally aspirated
• 215 HP — ROTAX 1503 4-TEC, supercharged and intercooled
• 260 HP — ROTAX 1503 4-TEC, supercharged and intercooled

What This Shop Manual Enables You to Do

This 2011 Sea-Doo service manual supports the complete workshop lifecycle of the GTS, GTI, RXT, GTX and WAKE families. In the engine section alone it gives you the removal and installation sequence for the 1503 4-TEC, engine alignment with the alignment shaft and adapter, cylinder head and camshaft service, valve and valve guide replacement, piston and connecting-rod measurement, crankshaft and balancer-shaft procedures, and the timing chain setup with camshaft locking tool. The supercharger section covers the clutch slipping-moment test both on the engine and on the bench, disassembly, bearing replacement and reassembly torque sequences. The cooling section covers the closed-loop system, water pump, thermostat, rotary seal and leak testing. The fuel section walks through the EFI system, fuel rail, injectors, throttle body, TPS, CPS, CAPS, MATS, CTS, MAPS and EGTS diagnostics. The electrical section covers the charging, starting and ignition systems, D.E.S.S. key programming, information center functions and the fault-code reading path through the gauge or B.U.D.S. The iBR and VTS section covers the brake-and-reverse actuator, gate backlash check, friction sleeves, U-arm, support plates and fitting plate. The jet pump and drive-shaft section covers impeller/wear-ring clearance, shaft radial play, leak testing, impeller removal and installation, wear-ring replacement and impeller shaft bearing service. The body and hull section covers both aS and iS suspension variants, body covers, front body module, boarding platform, moving deck, bumpers, hull inserts and repair guidance for the composite hull.

Technical Specifications and Torque Data

The specification chapters give the working numbers for every 2011 engine variant. That includes cylinder bore, stroke, displacement, compression ratio, maximum RPM, oil capacity, coolant capacity, fuel tank capacity, recommended fuel octane, idle speed, valve-stem dimensions, valve-guide dimensions, valve-seat contact width, cam-lobe height, camshaft bearing dimensions, piston/cylinder clearance, ring end gap, ring/piston groove clearance, crankshaft journal diameter, crankshaft axial clearance, connecting-rod big-end axial play, connecting-rod small-end diameter, piston-pin diameter, balancer-shaft dimensions and supercharger clutch component thicknesses. The torque tables in the exploded views list the values for engine mounts, cylinder head screws, intake manifold screws, exhaust manifold screws, supercharger retaining screws, oil cooler screws, jet pump nuts, ride-plate screws, steering column screws and body fasteners. These are the values that let you decide whether a component is still within service limit or must be replaced.

Diagnostics, Fault Codes and Wiring

Fault codes are documented with their reporting module, possible causes and service actions. The manual covers the P, C, B and U code categories, limp-home mode strategy, the low-oil-pressure and high-temperature triggers, the D.E.S.S. key beeper codes and the O.T.A.S. off-throttle assisted steering diagnostics. The CAN bus section explains how the ECM, iBR, iS and gauge cluster communicate, and how to check continuity from a suspected module to the CAN bus bars in the fuse box. The wiring-diagram section documents the wire color codes, connector terminal identification and the main harness connectors including the 48-pin Molex ECM connectors, the Deutsch magneto and engine connector, the Delphi BRLS/TAS/starter solenoid connectors, the iBR and iS power connectors, the Bosch SPS connectors, the Delphi information-center connector, the VTS/iS/MODE-SET and UP/DOWN switch connectors, the APEX ERGOMATE 24-pin steering connector and the Furukawa voltage regulator/rectifier connector.

IMAGES PREVIEW

How the Manual Is Organized

Each of the nine major sections is broken into subsections, and each subsection is further divided into general information, inspection, troubleshooting, procedures and service-tool references. The exploded views name the specific part, the torque that applies to it and the service product (threadlocker, sealant, grease) that belongs on it. The service-tools tables at the start of each subsection list the part numbers of the special tools called out in the procedures, and the service-products tables list the part numbers of the Loctite, grease, oil and cleaner products referenced in the text. The wiring-diagram section is included as the final chapter, with the connector pin-out details grouped by the harness family.

The 2011 Technical Update Book

The bundled Technical Update Book adds the model-year change documentation for the 2011 lineup. It walks through the new engine control module and electric throttle body changes, the double-spring oil pressure regulator, the updated ball bearing with bellows assembly, the oil filler tube revision, the molybdenum-coated supercharger friction washer, the new iBR actuator module keyed shaft, the updated U-arm, the stainless-steel drive shaft, the redesigned venturi, the new muffler hose barb, the single fuse box, the redesigned battery support plate, the 2011 model-year impeller charts for sea level and high altitude, the GTI platform introduction, the iS and aS suspension changes, the VTS switch variants, the seat corner protectors, the rear access panel rubber bumper and the O.T.A.S. wire identification correction. It also contains the current service and warranty bulletin overview for the 2011 model year, B.U.D.S. version notes, and the electrical diagnostic updates the shop manual text does not yet include.

Who This Manual Is For

This is a professional-level reference for technicians already familiar with personal watercraft service. It assumes access to the special tools listed in the service-tool tables and to the B.U.D.S. diagnostic software referenced throughout the electronic management, fuel, electrical and iBR/VTS sections. It is not a consumer maintenance booklet. The 2011 Sea-Doo shop manual covers all variants of the GTS, GTI, RXT, GTX and WAKE platforms sold in that model year, including the naturally aspirated 130 and 155 HP machines and the supercharged 215 and 260 HP machines, and the aS and iS suspension models. Where the procedure differs by model, the text and exploded views call out the specific variant, so a technician working on a WAKE PRO 215 will find the supercharged-intercooled 215 procedure, while a technician working on a GTI 130 will find the naturally aspirated 130 procedure in the same section.

Delivery

The 2011 Sea-Doo GTS/GTI/RXT/GTX/WAKE shop manual and technical updates are delivered as an instant-download PDF after payment. There is no shipping, no waiting for a physical book and no packaging to dispose of. The file can be opened on any device that reads PDF — laptop, desktop, tablet or phone — and can be printed for the workshop or left on screen for reference at the bench. The page layout, exploded views, tables and wiring diagrams are preserved exactly as published, so torque values, clearances, fault-code tables and connector pin-outs remain readable at the machine. Whether you are servicing a single 2011 Sea-Doo in a home garage or running a full workshop that handles multiple models from the same platform, the complete 2011 Sea-Doo service manual gives you the correct procedure, the correct specification and the correct tool reference in one document.
