The 2012 Caterpillar D7R Series II Dozer Repair Parts & Special Tools Manual TM 5-2410-241-24P is a detailed U.S. Army Repair Parts and Special Tools List (RPSTL) for two D7R Series II configurations: Type I with Winch and Type II with Ripper. Across 640 PDF pages, the publication organizes illustrated parts information by functional group, linking figure and item numbers with NSNs, CAGEC entries, part numbers, descriptions, usable-on codes, quantities, and Source, Maintenance, and Recoverability (SMR) codes. It also includes bulk material, repair kits, special tools, an NSN index, and a part-number index.

This is specifically a parts-identification and support publication. It is not the separate step-by-step field maintenance manual; instead, it is designed to help maintenance personnel identify the correct component, determine applicability, locate supply information, and cross-reference parts and special tools used on the D7R Series II Dozer.

File Details

• Manual type: Repair Parts and Special Tools List (RPSTL)
• Equipment: D7R SERIES II DOZER
• Models/configurations: Type I with Winch; Type II with Ripper
• NSNs: Type I 2410-01-565-2605; Type II 2410-01-565-2603
• Technical manual: TM 5-2410-241-24P
• Publisher: Headquarters, Department of the Army
• Date: 15 February 2012
• Language: English
• Page count: 640
• File format: PDF

Parts Identification and Cross-Reference System

The manual is arranged around illustrated functional groups rather than a simple alphabetical parts list. Each applicable illustration is followed by a parts listing that can show the item number, SMR code, National Stock Number, CAGEC, part number, item description, usable-on code, and quantity. The RPSTL introduction explains how these columns work and how to locate a part when the NSN is known, when only the part number is known, or when neither number is known and the technician must work from the assembly illustration.

Two usable-on codes distinguish configuration-specific parts: WNC for the D7R Dozer Type I with Winch and RPR for the D7R Dozer Type II with Ripper. Uncoded items apply across the listed models. This makes the 2012 Caterpillar D7R Series II Dozer Repair Parts & Special Tools Manual TM 5-2410-241-24P particularly useful when a shared assembly contains both common and configuration-specific components.

Chapters Covered

• LCN Table
  • D7R dozer with winch and D7R dozer with ripper; major engine, powertrain, chassis, cab, blade, winch, ripper, and special-purpose-kit groups.

  IMAGES PREVIEW







• Repair Parts and Special Tools List Introduction
  • Scope and organization; repair-parts and special-tools columns; SMR codes; NSN, CAGEC, part-number and quantity fields; usable-on codes; cross-reference indexes; methods for locating repair parts.
• LCN AA – Engine Installation
  • Radiator lines and radiator assembly; hydraulic and transmission oil coolers; coolant tank; cooling fan and fan drive; fan hub and pulley.
  • Engine wiring harnesses, engine mounting, engine assembly, engine block, ECM and engine-control wiring.
  • Turbocharger, exhaust manifold, water aftercooler, fuel injection lines, primary fuel filter, injector and fuel transfer pump.
  • Temperature regulator, engine water lines and water pumps; crankshaft and damper; front and rear engine gears; oil filter, oil cooler, oil pan and oil pump.
  • A/C compressor, alternator, flywheel housing and flywheel, valve mechanism, cylinder head, piston assembly, air cleaner, yoke assembly and implement pump.
• LCN AB – Drivetrain Installation
  • Powertrain oil lines and filter; axle assembly, drive shaft, pump coupling and guard, and equalizer bar.
  • Track assembly, single- and double-flange track rollers, idler, track adjuster and recoil, and track roller frame.
  • Final drive, brake and planetary, brake and differential drive, hydrostatic drive components, transmission and torque-converter groups.
• LCN AC – Chassis Installation
  • Ripper and winch control-valve groups, pilot lines, hydraulic tank and enclosure, counterbalance and quick-drop valves, blade hydraulic lines, pump lines and fuel lines.
  • Radiator guard, platform wiring and fuse panel, engine enclosure, fenders, pivot-shaft lubrication, battery box, bottom guards, batteries and cables, fuel tank, frame and flood lamp.
• LCN AD – Cab Installation
  • A/C and heater lines, cab mounting, washer tank, cab pressurizer and heater, rearview mirror, wiper system and cab liners.
  • Instrument panel, cab assembly and glass, left- and right-hand doors, ripper/winch/bulldozer pilot controls, armrests and seat assembly.
  • Governor and brake pedal, flood lights, rollover protective structure (ROPS), steering and transmission control, air-conditioner coil, floor plates, platform/fire-extinguisher mounting, antenna and messenger mounting.
• LCN AE – Bulldozer Blade Installation
  • Blade lift cylinder and mounting, lift and tilt cylinder lines, blade push arm and trunnion, tilt cylinder assembly with RH blade push arm, and blade assembly.
• LCN AF – Winch Installation
  • Winch lines, winch assembly and mounting, winch housing and fairlead, brake and overrunning clutch assemblies, carrier clutch, input shaft, secondary and output planet carriers, cable drum and winch motor.
• LCN BF – Ripper Installation
  • Ripper assembly and mounting, ripper lines, lift cylinder and tilt cylinder.
• LCN KA – Arctic Kit Installation
  • Arctic kit heater and wiring harnesses, lines and fittings, batteries and battery cables with box and mounting, temperature regulator and V-belt.
• LCN Q – Bulk Material
  • Bulk materials referenced by parts entries for fabrication or cut-to-length applications.
• LCN R – Repair Kits
  • Repair-kit listings associated with supported assemblies and maintenance parts.
• LCN TD – Special Tools
  • Illustrated special-tool kit and individual special support items, including tool and adapter entries with supply identifiers.
• NSN Index
  • National Stock Numbers arranged for cross-reference to the applicable figure and item number.
• Part Number Index
  • Part numbers arranged in alphanumeric sequence with references back to figure and item numbers.

Taken together, these work packages provide a structured illustrated reference for the major D7R Series II systems and attachments. The engine section reaches from cooling, intake, fuel and lubrication components into internal engine assemblies and electrical controls; the drivetrain section follows powertrain plumbing, undercarriage and final-drive groups; and the chassis and cab sections cover the hydraulic, electrical, structural and operator-station assemblies surrounding them. Separate blade, winch, ripper and Arctic-kit work packages make configuration-specific parts easier to isolate rather than forcing the user to search one undifferentiated list.

Illustrated Assembly-Level Parts Reference

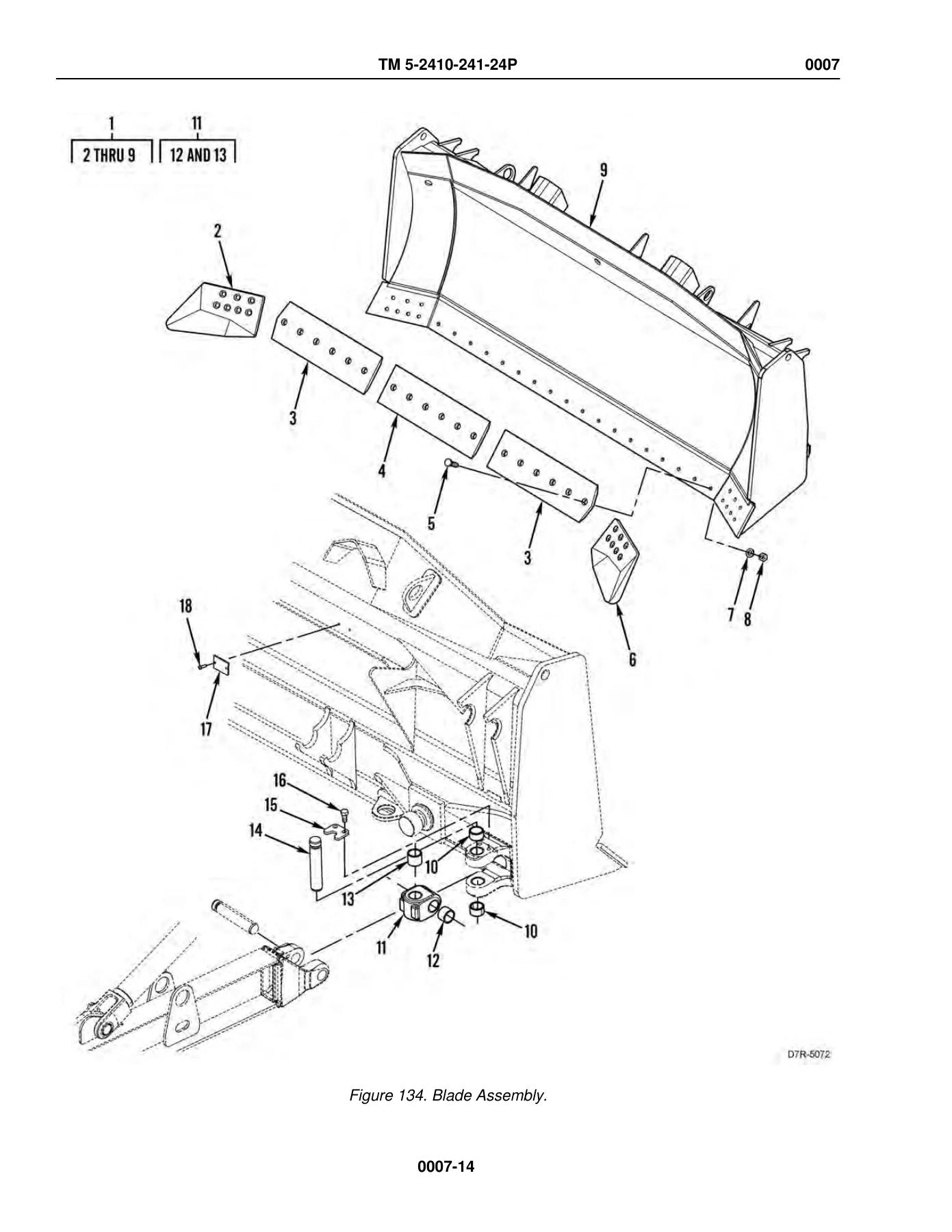

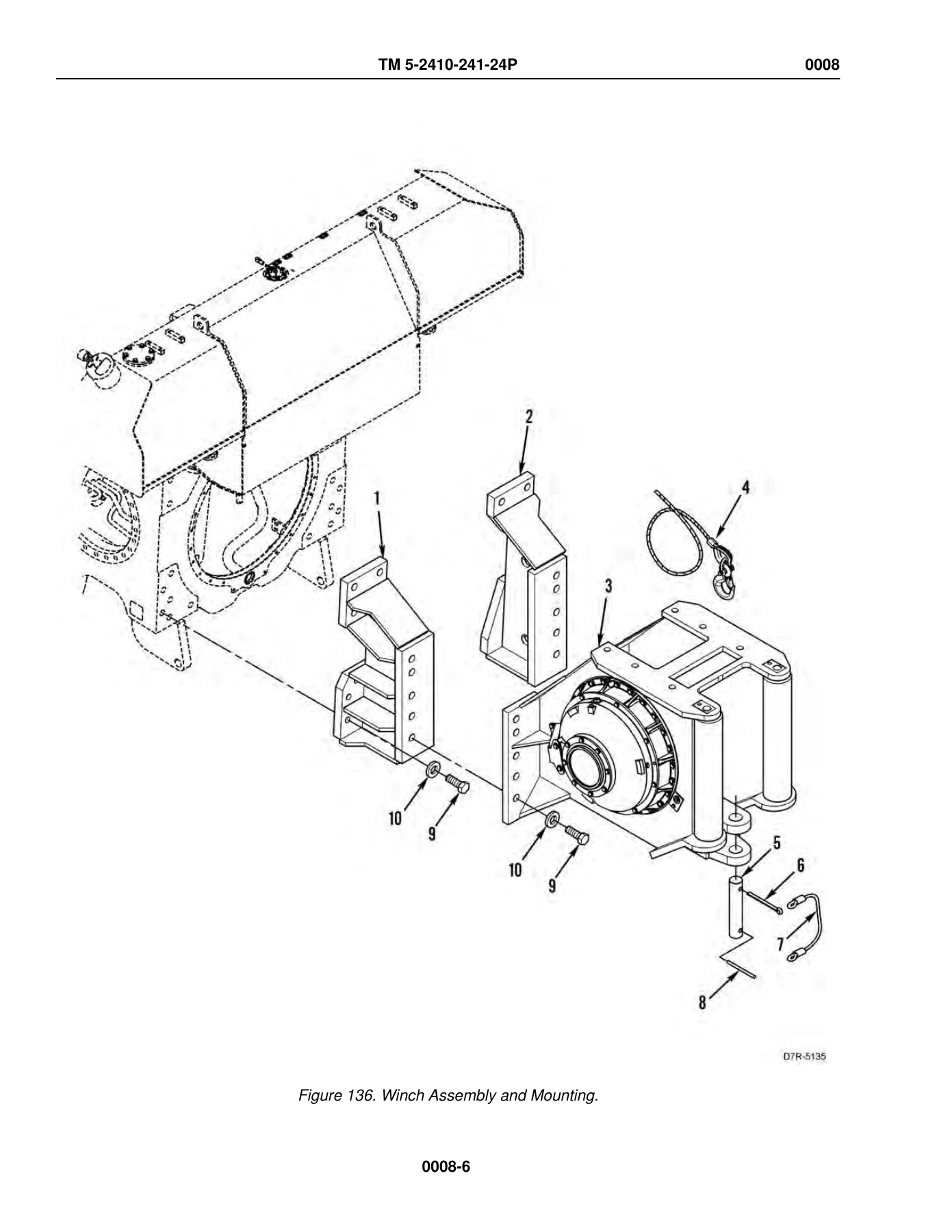

A major strength of this D7R Series II parts and special tools manual is the quantity of exploded and installation illustrations paired with itemized lists. Examples include the engine block and cylinder head, piston and valve mechanism, implement pump, track and track-adjuster assemblies, final drive, brake and differential drive, blade assembly, winch assemblies, ripper components and Arctic-kit hardware. These drawings help the user identify a component by its physical location or relationship to surrounding parts before moving to the corresponding supply line.

The manual also preserves supply and maintenance context through SMR coding. The introduction explains how the code positions indicate how an item is obtained, the maintenance level authorized to remove or replace it, the level capable of complete repair, and the required disposition of an unserviceable item. For users working from military supply references, the combination of NSN, part number, CAGEC, UOC and figure/item cross-references can significantly reduce ambiguity when identifying a replacement component.

Special Tools, Repair Kits and Indexes

Beyond ordinary repair parts, TM 5-2410-241-24P includes a dedicated special-tools work package. Figure 156 spans five illustrated sheets, followed by the tool listing, including a special tools kit and individual adapter/test-tool entries. The bulk-material and repair-kit work packages are separated as their own references, while the final NSN and part-number indexes provide two different routes back to the illustrated parts figures.

If you already have an NSN, the NSN index points toward the figure and item number. If you have a manufacturer part number instead, the part-number index provides the corresponding figure and item reference. If neither is known, the manual directs the user to identify the correct assembly group and figure first, then match the illustrated item to its repair-parts listing.

Get the D7R Series II Parts Reference Immediately

The 2012 Caterpillar D7R Series II Dozer Repair Parts & Special Tools Manual TM 5-2410-241-24P is suited to technicians, parts personnel and owners who need to identify D7R Series II components, distinguish winch and ripper applications, trace an illustrated item to an NSN or part number, check SMR and usable-on coding, or find the special tools and support items associated with field maintenance. Correct part identification matters when closely related assemblies use different hardware, service parts or configuration-specific components, and the illustrated figure/item system gives you a direct way to verify what you are looking at before ordering or planning the job.

Purchase provides instant PDF delivery after payment, with no physical book and no shipping delay. Open the manual on a computer, tablet or phone, keep it available in the workshop, and print the pages or figures you need for the job.
