2012 Toyota Prius C Service & Repair Manual Compilation – PDF Download
This 2012 Toyota Prius C Service & Repair Manual Compilation brings together an extensive body of repair, diagnostic, service-data and component information for the Prius C in one PDF. The material covers the Prius C across mechanical, hybrid, electrical, chassis, body and accessory systems, with dedicated information for the 1NZ-FXE engine and P510 hybrid vehicle transaxle. Throughout the compilation, procedures are supported by component-location illustrations, system and wiring diagrams, inspection steps, diagnostic trouble-code information, specified conditions, torque values and service data.
File Details
- Manual type: Service and repair manual compilation
- Brand / model: Toyota Prius C
- Engine identified in the manual: 1NZ-FXE
- Hybrid transaxle identified in the manual: P510
- Language: English
- Page count: 8,348 pages
- File format: PDF
- Vehicle year shown: 2012
Repair and Diagnostic Scope
The scale of this Prius C service and repair compilation is useful when a job crosses more than one vehicle system. Engine work, for example, can involve fuel, ignition, cooling, emissions, electrical checks and hybrid-related precautions. The manual places those subjects alongside chassis, steering, braking, transmission, HVAC, body and electrical information rather than limiting the reference to a single subsystem.
Many procedures are written as practical workshop sequences: preparation and precautions, component locations, removal, inspection, disassembly or reassembly where applicable, installation and post-repair checks. Diagnostic articles use DTC descriptions, trouble areas, wiring diagrams, connector and terminal checks, resistance or voltage measurements, Techstream Data List and Active Test procedures, and step-by-step decision paths. The manual also contains service-data and torque-specification material, making it useful not only for identifying a fault but for carrying the repair through to reassembly and verification.
Chapters Covered
- GENERAL INFORMATION
- Commonly used abbreviations and emission-control abbreviations
- Precautions, service terminology and general repair information
- MAINTENANCE
- General maintenance inspections
- Brake, steering, suspension, drive-shaft, transaxle and body checks
- ENGINE – 1NZ-FXE
- Ignition system, spark testing, ignition coils and spark plugs
- Fuel system, fuel-pressure checks and fuel injector service
- Cooling and lubrication-related service information
- Engine mechanical removal, installation and component procedures
- ENGINE PERFORMANCE / EMISSION CONTROL
- EGR valve and related emission-control service
- Engine-control diagnostics, DTC procedures and electrical checks
- HYBRID CONTROL SYSTEM
- Power management control, inverter/converter and high-voltage circuit diagnosis
- Hybrid battery, service plug, frame wire and high-voltage connection procedures
- MG1 / MG2, inverter and hybrid-system DTC troubleshooting
- TRANSMISSION – P510
- Hybrid vehicle transaxle components and illustrated replacement information
- Transaxle removal, installation, motor cable and cooling-pipe procedures
- Hybrid transaxle fluid and service information
- DRIVELINE / AXLES
- Axle and differential service data
- Front and rear hub checks, drive shafts and torque specifications
- BRAKES / DYNAMIC CONTROL
- Electronically controlled brake system and ABS diagnostics
- Brake inspection, brake fluid, pads, discs, linings, drums and parking-brake checks
- STEERING
- Power steering inspection and diagnostic codes
- Steering effort, ECU diagnosis, wiring checks and calibration-related procedures
- SUSPENSION
- Front and rear suspension component service
- Shock absorber procedures, stabilization checks and wheel-alignment references
- HVAC / AIR CONDITIONING
- Air-conditioning diagnostics, sensors, damper servos, blower and PTC heater circuits
- Electric inverter compressor, refrigerant-pressure diagnosis and high-voltage A/C precautions
- System diagrams, DTCs, Techstream tests, customization and servomotor initialization
- ELECTRICAL
- Auxiliary battery and charging-related service information
- Power supplies, connectors, terminals, circuit checks and wiring diagrams
- BODY / INTERIOR
- Seats, trim and body-component removal and installation
- Body maintenance and fastener checks
- SRS / AIRBAG
- Airbag sensor inspection, replacement precautions and collision-related checks
- ACCESSORIES & EQUIPMENT
- Horn and other equipment service procedures
- Audio / visual diagnostic information and related circuit checks
- SERVICE SPECIFICATIONS
- Torque specifications, capacities, service limits and specified conditions
- Recommended tools, equipment and lubricant information where provided
Taken together, these sections give a technician a broad repair path from symptom or DTC to component testing, removal, replacement, tightening and confirmation. The 2012 Toyota Prius C Service & Repair Manual Compilation is especially detailed in areas where hybrid-system safety and electrical diagnosis matter: high-voltage isolation, inverter and motor circuits, service-plug handling, compressor high-voltage precautions, CAN/LIN communication, and measured voltage or resistance checks are integrated into the relevant procedures rather than treated as generic background.
Illustrations, Wiring and Measured Checks

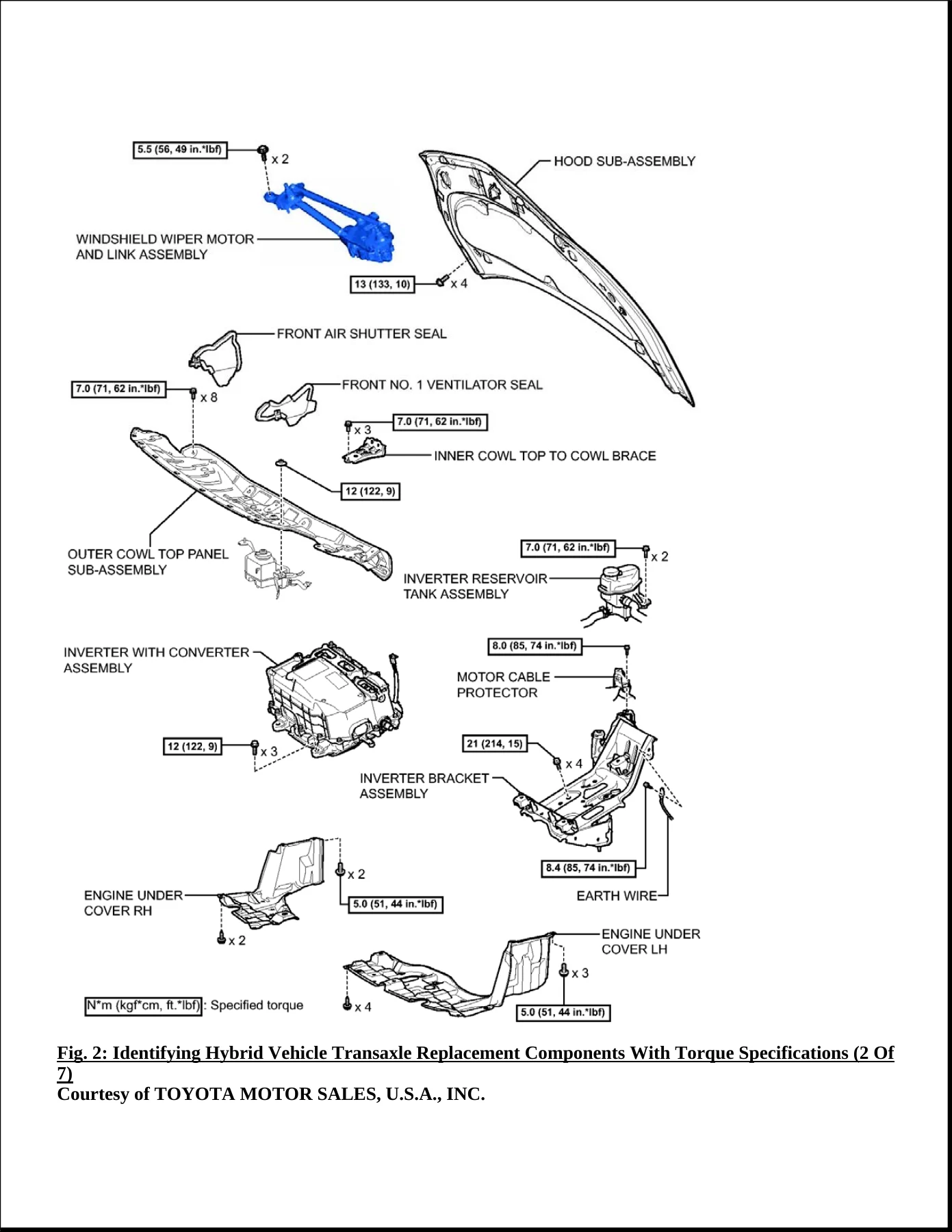

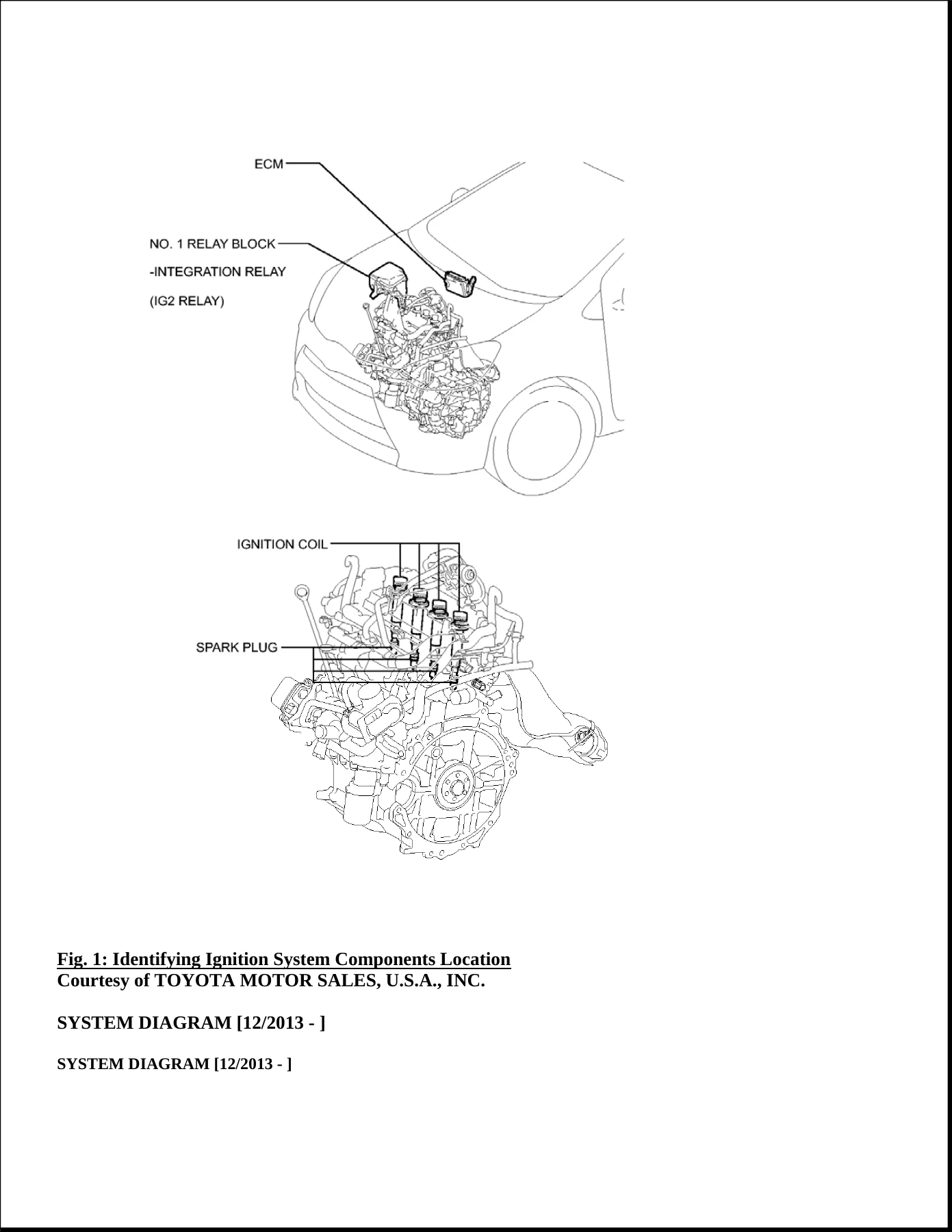

The manual contains a large number of pictorial references. Component-location drawings show where parts sit in the vehicle; exploded and replacement-component illustrations identify fasteners and assemblies; system diagrams explain circuit relationships; and wiring diagrams support diagnosis of sensors, ECUs, motors, relays and communication lines. This is complemented by tables of specified conditions for resistance, voltage, pressure, clearances and other checks wherever the individual procedure provides them.
For electronic diagnosis, the compilation repeatedly uses Toyota Techstream-based workflows such as reading Data List values, running Active Tests, checking stored DTCs and following branching inspection procedures. Examples within the HVAC material include room, ambient, evaporator and solar sensor circuits, refrigerant pressure diagnosis, damper servo motors, the electric inverter compressor, blower control, PTC heater control and communication faults. Hybrid-control material likewise includes detailed circuit and connection checks involving the inverter with converter assembly, hybrid battery circuits, motor/generator systems and the power management control ECU.
IMAGES PREVIEW
Mechanical Service Information
The 1NZ-FXE engine material is not limited to fault codes. It includes hands-on inspection and component service information such as ignition checks, spark-plug and ignition-coil work, fuel-pressure testing, fuel injector procedures, EGR service and engine-related removal and installation steps. The P510 hybrid transaxle coverage includes illustrated components, torque information, removal and installation sequences, wiring and cable disconnection, motor cooling-pipe work and the specified hybrid transaxle fluid capacity and classification.
Chassis information extends the same practical approach to brakes, steering, axles and suspension. Inspection criteria and torque specifications appear alongside repair procedures, including wheel and hub service data, steering checks, shock absorber installation, suspension stabilization and wheel-alignment references. This makes the Toyota Prius C repair manual useful for both diagnosis-driven work and conventional mechanical maintenance or component replacement.
Hybrid and High-Voltage Service Detail
Because this Prius C combines conventional vehicle systems with high-voltage hybrid hardware, the manual repeatedly identifies procedures that require insulated gloves, service-plug removal, waiting periods before touching high-voltage terminals, and checks that must be completed before reconnecting or energizing circuits. Those precautions appear alongside the actual repair information for the inverter, compressor, transaxle, hybrid battery connections and related high-voltage wiring, helping the technician follow the procedure in the same context as the job.
The air-conditioning system is a good example of that integration. The compilation explains the electrically driven inverter compressor, its high-voltage supply, compressor-speed control, refrigerant-pressure diagnosis and the use of high-insulation compressor oil. It also links cooling performance, sensor inputs, blower operation, damper positions and system communication into the diagnostic process instead of treating each part in isolation.
Get the 2012 Toyota Prius C Service & Repair Manual Compilation
Use this 2012 Toyota Prius C Service & Repair Manual Compilation when you need to diagnose faults, test circuits and sensors, service the 1NZ-FXE engine, work on the P510 hybrid transaxle, inspect brakes and suspension, troubleshoot steering or HVAC problems, service body and electrical components, or follow hybrid high-voltage procedures. Having the correct procedure, specified condition, torque value, wiring path and inspection sequence in front of you helps reduce guesswork and makes it easier to complete repairs methodically. This is an instant PDF download after purchase – there is no physical book and no shipping delay. Open it on a computer, tablet or phone, and print the pages you want for workshop use.
