2015 Ducati 1299 Panigale S Workshop Manual – Complete Service & Repair Guide

Description

File Details

• Manual type: Workshop Manual
• Brand: Ducati
• Model: 1299 Panigale S
• Model year: 2015
• Language: English
• Page count: 1312
• File format: PDF
• Document sections: SBK.01 through SBK.08, plus full engine disassembly and reassembly procedures

Chapters Covered

• SBK.01 – General Symbols, Abbreviations, References; Product Specifications; Hazardous Products; Warnings; General Maintenance Instructions; General Safety Rules

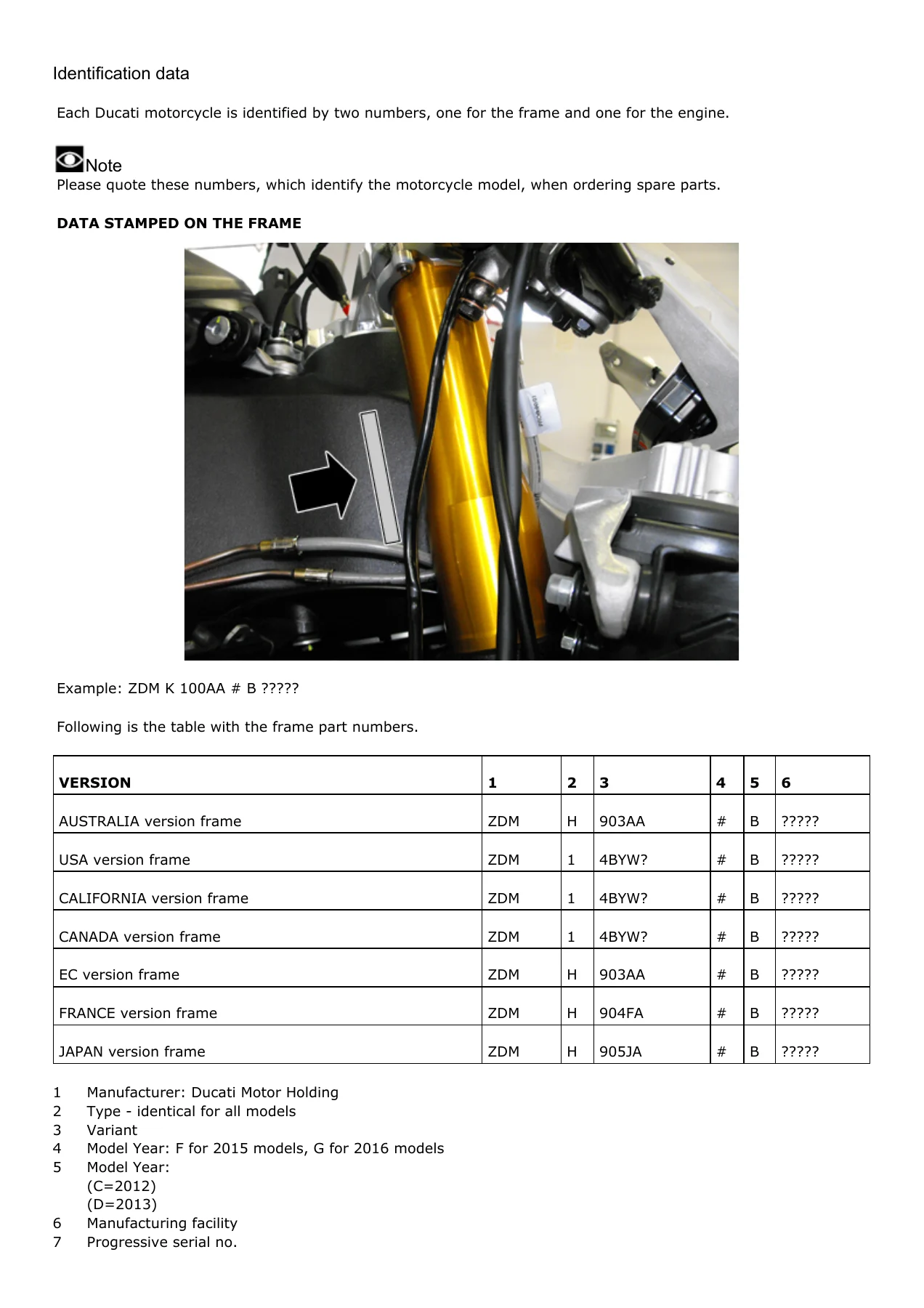

• SBK.02 – Information about the Model; Identification Data
• SBK.03 – Technical Data; Technical Specifications; Lights/Instrument Panel; Injection System; Fuel System; Ignition System; Charging System/Alternator; Hydraulic Brakes; Rear Suspension; Rear Wheel; Front Suspension; Front Wheel; Cooling System; Gearbox; Cylinder/Piston; Crankshaft; Timing System/Valves; Transmission; Colours; Dimensions; Fuel, Lubricants and Other Fluids; Torque Settings (Engine and Frame); Service Tools
• SBK.04 – Maintenance Operations; Vehicle Pre-Delivery; Scheduled Maintenance Chart; Operations to be Carried Out by the Customer; Operations to be Carried Out by the Dealer; Adjusting the Steering Damper; Adjusting Vehicle Setup
• SBK.05 – Fairings; Rear-View Mirrors; Headlight Fairing; Fairing Panels; Seat, Seat Cowling and Side Panels; Front and Rear Mudguard
• SBK.06 – Electric System and Engine Control System; Wiring Diagram; Battery Charging System; Rectifier-Regulator; Alternator; Battery; Lights and Indicating Devices; Instruments; Vehicle Release Through PIN CODE; Duplicate Keys; Immobilizer System; Light Control; Display Background Colour; Tire Set-Up; Units of Measurement; LAP; Date; Clock Setup; Changing the PIN CODE; DDA; Battery Voltage; Engine RPM Digital Indication; Auxiliary Button Function Setting; Riding Mode Customisation; MENU 2 Functions; MENU 1 Functions; DTC-DWT-EBC Function Level Quick Change; ABS; DWC; EBC; DTC; DQS; Riding Mode; Technological Dictionary; Instrument Panel
• SBK.07 – Chassis; Front Wheel; Rear Wheel; Front Brake Control; Rear Brake; ABS System Information; ABS System Components; ABS Components Maintenance; Handlebar Unit: Throttle Twistgrip; Handlebar Unit: Hydraulic Clutch Control; Steering Damper; Gearchange Mechanism; Front Fork; Rear Shock Absorber Assembly; Rear Suspension System; Swingarm; Final Drive; Footrest Brackets; Frame Inspection; Tail Light and Number Plate Holder
• SBK.08 – Fuel/Exhaust System; Fuel Tank; Replacing the Tank Flange and Fuel Sensor; Refitting the Fuel Tank; Refitting the Filler Cap
• Engine Overhaul – Cylinder Head Assemblies (camshafts, rocker arms, timing system, valves); Sleeve-Piston Set; Crankcase Assembly (external components, crankcase halves, connecting rods); Clutch Assembly; Primary Drive Gears; Water Pump; Oil Pressure Pump; Oil Sump; Flywheel/Generator Assembly; Generator Cover; Gearbox Selector; Gearbox Drum; Gearbox Shafts

The 2015 Ducati 1299 Panigale S Workshop Manual is the definitive technical document for the flagship Bologna superbike, spanning 1312 pages of factory-derived procedures, specifications, and system descriptions. Unlike a generic third-party repair book, this manual is structured exactly as the Ducati service department intended: every chapter begins with safety warnings and required tools before walking through removal, inspection, overhaul, and refitting steps in sequence. For the technician working on a Panigale S, this means no guesswork about bolt sequences, torque values, or electronic recalibration procedures.

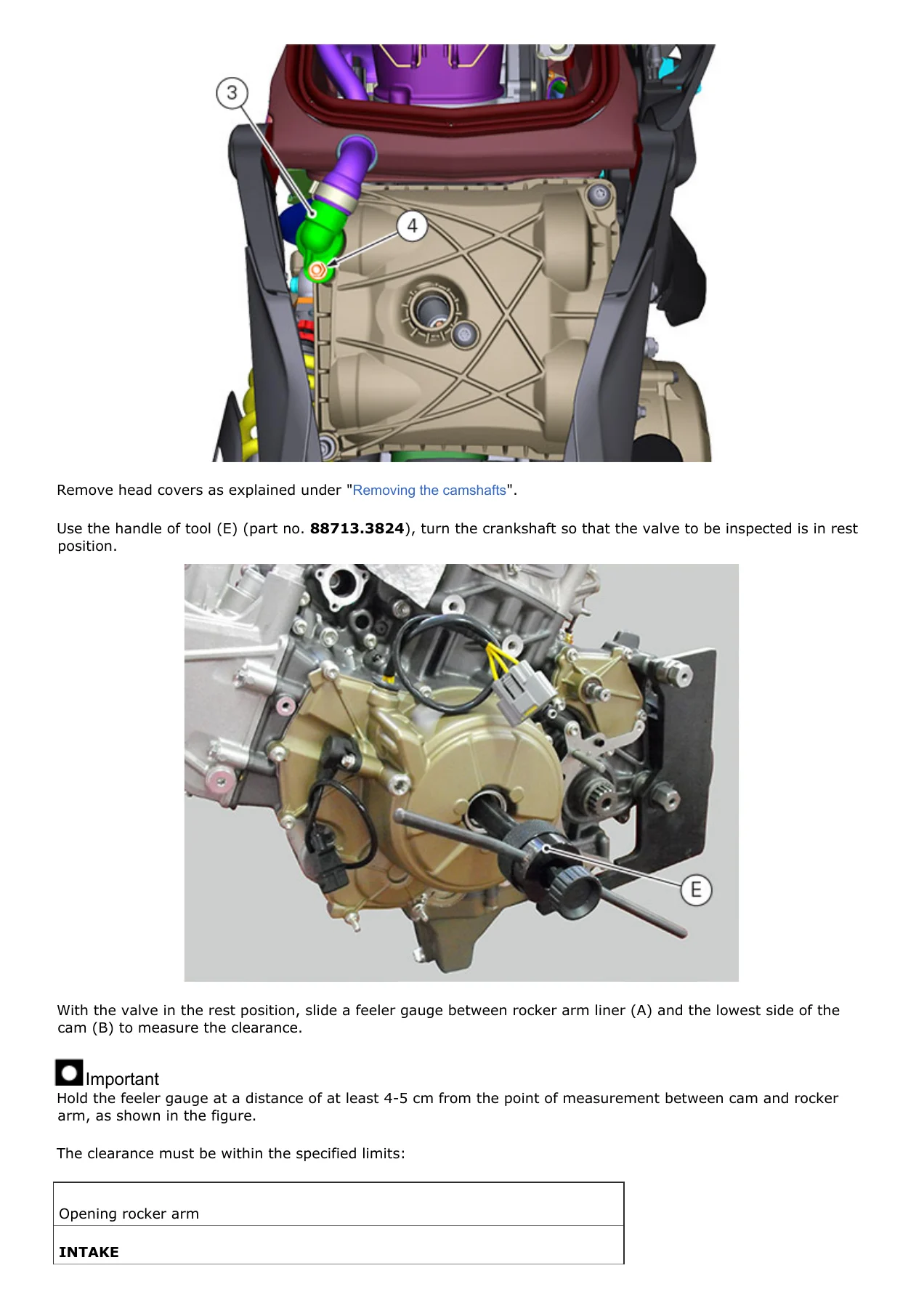

The engine section is exhaustive. The 1285 cc Superquadro L-twin is covered from crankshaft to cam covers: cylinder head removal with and without timing chain removal, valve clearance checking and adjustment with the complete shim selection charts, camshaft removal and refitting with decompressor system reassembly, rocker arm shaft identification by diameter and length, piston-to-bore clearance measurement, connecting rod big-end bearing class selection (X, Y, Z classes matched to crankshaft A, B, C classes), crankshaft ovality and taper limits, and crankcase separation and reassembly with main bearing shell colour-coding. The manual includes the full engine torque settings table with thread pitch, torque values, and notes on threadlocker and grease application.

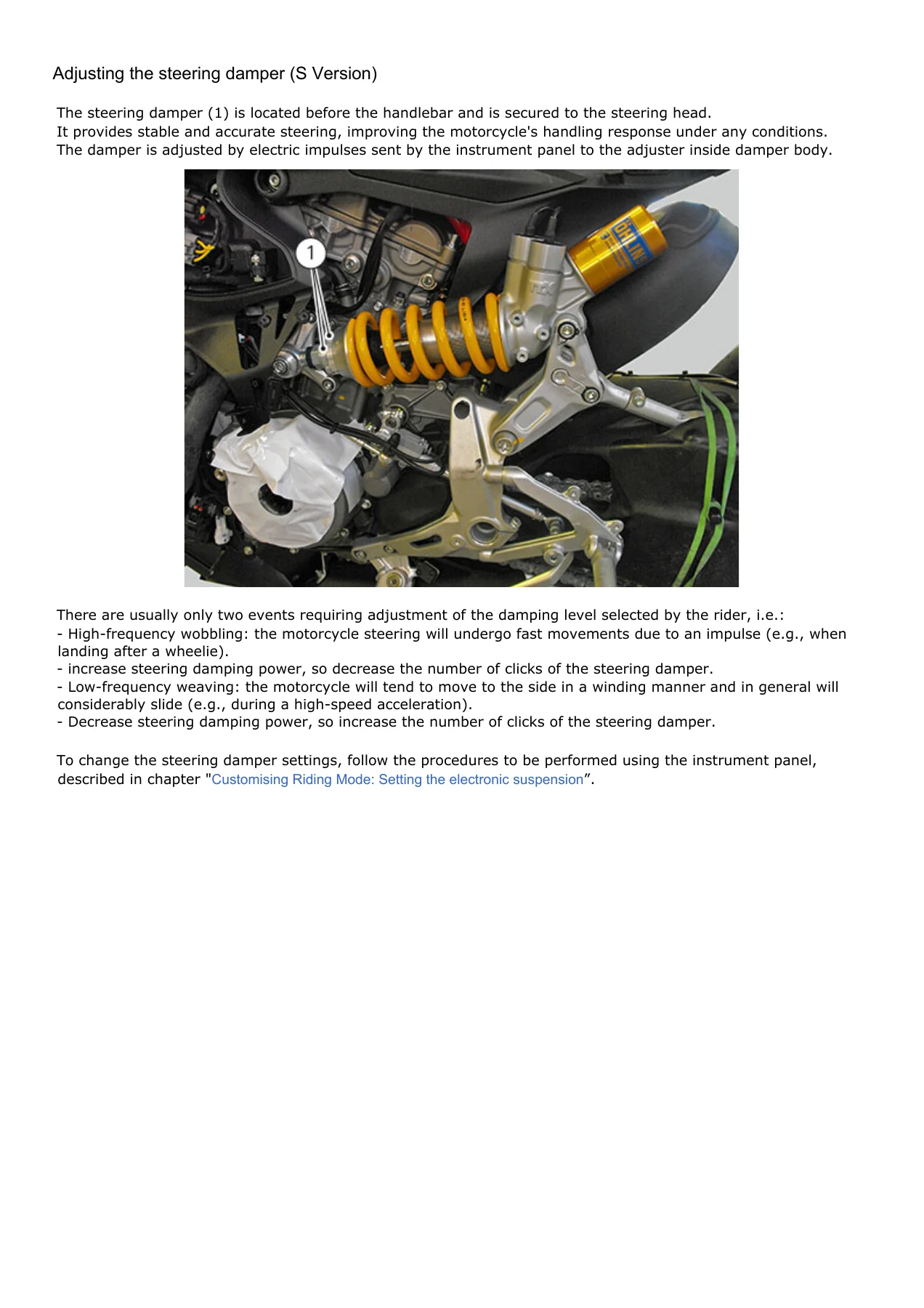

Chassis coverage is equally detailed. The Ohlins electronic suspension system on the S version is addressed through the instrument panel menus as well as mechanical procedures: fork leg removal and refitting with height measurement tolerance (0.1 mm difference maximum between legs), rear shock absorber removal and overhaul, spring preload adjustment, and the dynamic and fixed damping configuration pages. The steering damper is covered as an electronically controlled unit with its own diagnostic and adjustment menu path. The monocoque aluminium frame is treated as a load-bearing component, with explicit procedures for supporting the engine block before removing frame or subframe components.

The ABS 9.1 MP system receives comprehensive treatment: operating principle with hydraulic flow diagrams, error code tables with descriptions and warning light behaviour, DDS 2.0 diagnostic connection, air-gap adjustment for phonic wheel sensors (1.3 mm to 1.9 mm), bleeding procedure including the dedicated DDS 2.0 activation function for the ABS pump and outlet valves, and hose routing tables. The rear phonic wheel sensor and front phonic wheel sensor replacement procedures include torque values and cable routing references.

Electrics and electronics are not an afterthought. The wiring diagram chapter breaks the harness into branches (Branch 1 through Branch 9) with position tables and tie-down instructions. The instrument panel chapter covers every rider-facing function: Riding Mode customisation (RACE, SPORT, WET), DTC levels 1-8 plus OFF, DWC levels 1-8 plus OFF, EBC levels 1-3 plus OFF, ABS levels 1-3 plus OFF, DQS UP/UP-DOWN/OFF, DES Dynamic and Fixed modes, engine power HIGH/MED/LOW, display layout ROAD or TRACK, backlight DAY/NIGHT/AUTO, units (km/h or mph, °C or °F, L/100km, km/L, mpg UK, mpg USA), clock and date setting, PIN CODE entry and change, DDA activation and memory management, battery voltage display, and RPM digital indication. Error and warning tables list every displayable fault with the corresponding warning light behaviour.

Maintenance schedules are separated into customer-performed checks (engine oil level, brake and clutch fluid, tyre pressure and wear, chain tension and lubrication, brake pad wear) and dealer-performed operations with kilometre and month intervals. The manual includes the scheduled maintenance chart with operations listed at 1,000 km, 12,000 km, 24,000 km, 36,000 km, and 48,000 km intervals. Fluid capacities, tyre pressures, chain tension (40-42 mm), valve clearance inspection values, and service limits are all tabulated for quick reference.

Bodywork and fairing procedures cover the removal and refitting of every panel: rear-view mirrors, headlight fairing, side fairings, seat release mechanism, side body panels, rider and passenger seats, front and rear mudguards, tail light, number plate holder, and the complete front subframe. The manual documents the quick-release fastener locations, clip positions, and the routing of wiring harnesses through the fairing supports.

For the professional technician or the dedicated owner-mechanic, the 2015 Ducati 1299 Panigale S Workshop Manual is the single most valuable tool in the workshop. It provides the correct torque for every critical fastener, the service limit for every wear component, the diagnostic path for every electronic system, and the exact sequence for every disassembly and reassembly operation. The PDF format means instant delivery after purchase, no shipping delays, and the ability to print only the pages needed for the job at hand, whether that is a routine oil change or a complete engine rebuild.
