2016 New Holland Boomer 24 Tier 4B Compact Tractor Service Manual 47827505

Description

2016 New Holland Boomer 24 Tier 4B Compact Tractor Service Manual 47827505

The 2016 New Holland Boomer 24 Tier 4B Compact Tractor Service Manual 47827505 is a comprehensive 749-page English service reference for the Boomer 24 compact tractor. The manual identifies the linked market product as Boomer 24, 4-Wheel Drive, ROPS, HST for North America and links the tractor to the S3L2 engine. It combines general machine specifications with system descriptions, technical data, troubleshooting information, pressure and electrical tests, illustrated removal and installation procedures, component disassembly and assembly, adjustment data, torque information, hydraulic schematics, and detailed views.

File Details

• Manual type: Service Manual
• Brand / model: New Holland Boomer 24
• Configuration shown: Boomer 24, 4-Wheel Drive, ROPS, HST
• Engine: S3L2
• Language: English
• Page count: 749 pages
• File format: PDF
• Part number: 47827505
• Edition: 1st edition
• Date: January 2016

Service Data for the Boomer 24

Early in the manual, the Boomer 24 Hydrostatic is documented with general specifications that give the technician a baseline before component-level work begins. The S3L2 diesel engine is listed as a three-cylinder unit with a 78 mm bore, 92 mm stroke, 1.319 l displacement and 22.0:1 compression ratio. The same introductory material brings together fluid capacities, cooling-system information, electrical data, fuel-system information, brake and steering specifications, PTO information, hydraulic lift data, hydrostatic transmission speeds, tires, wheel and ROPS fastener torques, dimensions, weights and approved consumables.

The service sections go considerably deeper than the introductory specification pages. Engine data includes inspection standards, wear limits, clearances and torque values for components such as the cylinder head, rocker system, valves, piston and rings, connecting rods, crankshaft and timing gears. The front axle sections give steering geometry, backlash and pinion end-play procedures, while hydrostatic-drive sections include HST construction, hydraulic flow diagrams, charge-pressure and high-pressure relief testing, neutral-position checks and troubleshooting. Hydraulic-system chapters add system schematics, pump and valve procedures, pressure testing and hitch-related diagnosis. Electrical chapters cover circuits and individual components with connector, test and service information.

IMAGES PREVIEW

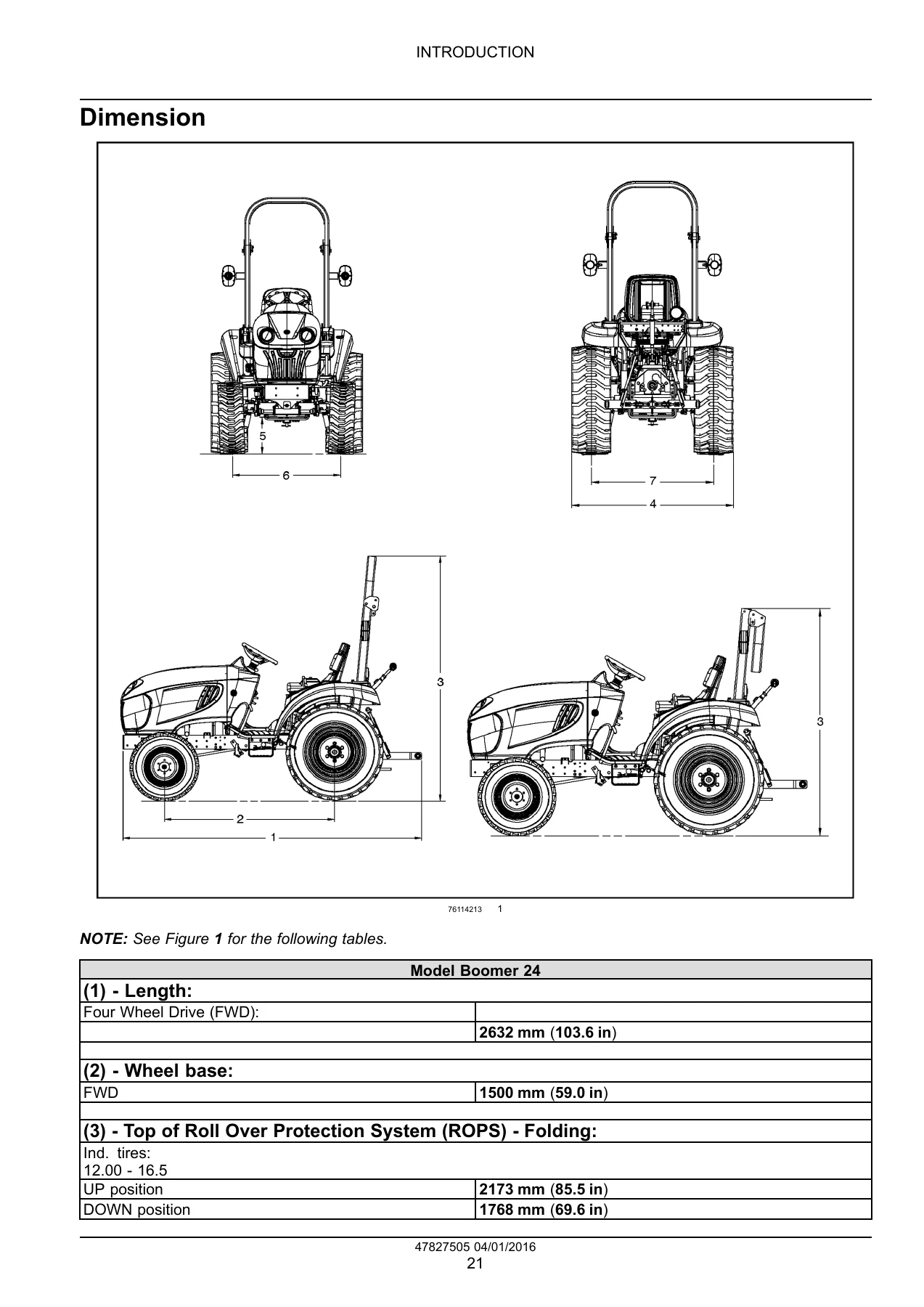

Illustrated Repair and Diagnostic Procedures

This New Holland Boomer 24 service manual is organized around service operations rather than only theory. For example, the engine chapter includes engine removal and installation with step-by-step illustrations. The powered front axle material covers axle removal and installation, steering-knuckle disassembly and assembly, differential service, pinion preload, end play and backlash checks. Rear axle coverage includes differential and differential-lock details plus axle-shaft and final-drive work. The hydrostatic transmission portion explains pump and motor operation, shows neutral, forward and reverse oil flow, and then continues into transmission removal, overhaul, HST-unit disassembly and assembly, installation and pressure testing.

Diagnostic information is integrated where the system needs it. The engine lubrication section includes troubleshooting for oil-pressure indication. The HST material provides troubleshooting and measured pressure-test procedures. Mechanical brakes, hydraulic lifting, hitch operation and electrical systems also include fault-finding material in their respective sections. The manual frequently pairs a symptom with possible causes, checks or corrections, helping the technician move from a complaint to the system or component that needs inspection.

Chapters Covered

• INTRODUCTION
  • Foreword – Important notice regarding equipment servicing
  • International symbols
  • Safety rules
  • Safety rules – Ecology and the environment
  • Basic instructions – Shop and assembly
  • Basic instructions hardware
  • Torque specification tables
  • General specification
  • Capacities
  • Dimension
  • Consumables
  • Product identification
  • Product identification machine orientation
• Engine
  • [10.001] Engine and crankcase
  • [10.304] Engine lubrication system
  • [10.400] Engine cooling system
• Transmission
  • [21.120] Gearbox
• Front axle system
  • [25.100] Powered front axle
  • [25.102] Front bevel gear set and differential
  • [25.108] Final drive hub, steering knuckles, and shafts
  • [25.310] Final drives
• Rear axle system
  • [27.106] Rear bevel gear set and differential
  • [27.120] Planetary and final drives
• Hydrostatic drive
  • [29.100] Transmission and steering hydrostatic control
  • [29.202] Hydrostatic transmission
  • [29.204] Reservoir, cooler, and lines
  • [29.218] Pump and motor components
• Power Take-Off (PTO)
  • [31.101] Rear mechanical control
  • [31.104] Rear electro-hydraulic control
  • [31.110] One-speed rear Power Take-Off (PTO)
  • [31.120] Central Power Take-Off (PTO)
• Brakes and controls
  • [33.110] Parking brake or parking lock
  • [33.120] Mechanical service brakes
• Hydraulic systems
  • [35.000] Hydraulic systems
  • [35.104] Fixed displacement pump
  • [35.114] Three-point hitch control valve
  • [35.116] Three-point hitch cylinder
  • [35.204] Remote control valves
  • [35.300] Reservoir, cooler, and filters
  • [35.350] Safety and main relief valves
• Hitches, drawbars, and implement couplings
  • [37.110] Rear three-point hitch
• Steering
  • [41.106] Tie rods
  • [41.200] Hydraulic control components
  • [41.216] Cylinders
• Wheels
  • [44.511] Front wheels
  • [44.520] Rear wheels
  Complete PDF Bookmark Tree

  Complete Bookmarks

  The complete bookmarks in the “2016 New Holland Boomer 24 Tier 4B Compact Tractor Service Manual 47827505” are as follows:

  Contentsp. 4

  INTRODUCTIONp. 9

  Engine – 10p. 35

  Transmission – 21p. 63

  Front axle system – 25p. 75

  Rear axle system – 27p. 139

  Hydrostatic drive – 29p. 163

  Power Take-Off (PTO) – 31p. 267

  Brakes and controls – 33p. 333

  Hydraulic systems – 35p. 357

  Hitches, drawbars, and implement couplings – 37p. 451

  Steering – 41p. 461

  Wheels – 44p. 537

  Electrical systems – 55p. 551

  Platform, cab, bodywork, and decals – 90p. 741

  SPECIAL TOOL INDEXp. 748

• Electrical systems
  • [55.000] Electrical system
  • [55.010] Fuel injection system
  • [55.011] Fuel tank system
  • [55.012] Engine cooling system
  • [55.013] Engine oil system
  • [55.031] Parking brake electrical system
  • [55.048] Rear Power Take-Off (PTO) control system
  • [55.100] Harnesses and connectors
  • [55.201] Engine starting system
  • [55.202] Cold start aid
  • [55.302] Battery
  • [55.404] External lighting
  • [55.405] External lighting switches and relays
  • [55.408] Warning indicators, alarms, and instruments
• Platform, cab, bodywork, and decals
  • [90.120] Mechanically-adjusted operator seat

Taken together, these chapters make the manual useful across the tractor rather than restricting it to one assembly. A technician can move from identification and baseline specifications into engine, driveline, axle, HST, PTO, brake, hydraulic, hitch, steering, wheel and electrical work while retaining the procedures, diagrams and service data that tie those systems together.

What the Manual Helps You Service

The 2016 New Holland Boomer 24 Tier 4B Compact Tractor Service Manual 47827505 supports jobs ranging from inspection and testing through major component removal and overhaul. It shows how assemblies fit together with section views and exploded or detailed component illustrations, and it records adjustment targets where a repair depends on measured setup. Examples include front final-drive backlash, axle-pinion end play and preload, steering and wheel settings, HST pressures, hydraulic relief pressure, valve and engine clearances, fastener torques, and electrical switch or circuit tests.

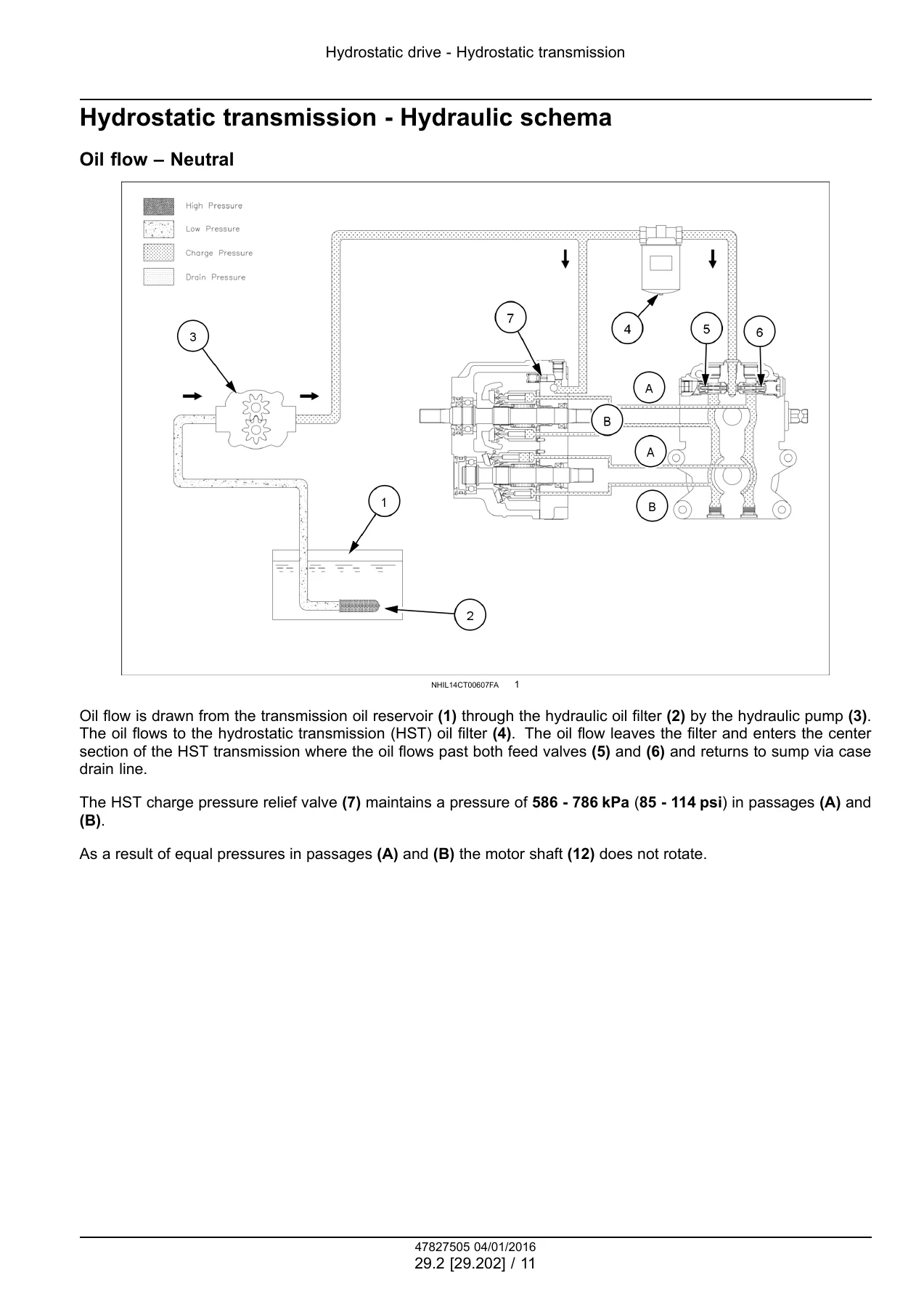

Hydraulic and hydrostatic sections are particularly useful when diagnosis depends on understanding oil flow. The manual illustrates HST oil flow in neutral, forward and reverse and provides a separate HST charge-pressure schematic. The tractor hydraulic system is described from the pump and priority valve through steering, PTO, remote valves and the hydraulic power lift. Three-point hitch coverage explains the control valve and lift cylinder, while remote-control material includes front two-spool and rear remote-valve information where applicable. These sections help connect a symptom to the pressure, flow path, valve, cylinder, pump or control that should be checked.

Electrical coverage extends beyond a single wiring overview. Separate sections address fuel injection, fuel tank, engine cooling and oil circuits, parking-brake electrical functions, rear PTO control, harnesses and connectors, starting, cold-start aid, battery, external lighting, switches, relays, warning indicators, alarms and instruments. Service and test procedures for components such as safety controls and alarms are presented alongside system information, which is valuable when a problem involves both mechanical operation and an electrical interlock.

Get the Boomer 24 Service Information in One PDF
