2017-2021 Suzuki DL650A DL650XA V-Strom Service Manual
Original price was: $34.95.$21.95Current price is: $21.95.
Comprehensive factory workshop service manual for 2017-2021 Suzuki DL650A, DL650XA, and DL650XAA V-Strom adventure motorcycles. Features in-depth engine overhaul, fuel injection diagnostics, electrical schematics, torque specifications, and scheduled maintenance procedures.
Description
2017–2021 Suzuki DL650A / DL650XA
V-Strom Factory Service Manual
⚙️ Complete Workshop Coverage for the 645cm³ V-Twin Adventure Platform
| Type | Factory Service Manual (Inspection, Service & Overhaul) |
| Brand | Suzuki Motor Corporation |
| Applicable Models | DL650A, DL650XA, DL650XAA (L7 through M1 updates) |
| Publication # | 99500-36250-03E |
| Revision Date | January 15, 2021 |
| Language | English |
| Pages | 683 |
| Format | Digital PDF (Instant Download) |
📂 Complete Chapter Coverage
| Section 00 — Precautions (Safety, Electrical, Probing) | Section 0 — General Information (VIN, Wiring, Labels) |
| Section 0B — Scheduled Maintenance & Lubrication | Section 0C — Service Data (Specs, Torque, Fluids, Tools) |
| Section 1A — Engine Diagnosis (EFI, DTC Trees, Fail-Safe) | Section 1B — Emission Controls (PAIR, EVAP, PCV) |
| Section 1C — Engine Electrical (Sensors, ISC Reset, ECM) | Section 1D — Engine Mechanical (Valves, Timing, Rebuild) |
🏍️ Engine Mechanical & Valvetrain Specifications
645cm³ Liquid-Cooled, DOHC, 90° V-Twin
| Compression (Standard) | 1,300 – 1,700 kPa (188 – 246 psi) |
| Compression (Service Limit) | 1,100 kPa (159 psi) |
| Max Cylinder Variation | 200 kPa (29 psi) |
| Intake Valve Clearance (Cold) | 0.10 – 0.20 mm (0.0040 – 0.0078 in) |
| Exhaust Valve Clearance (Cold) | 0.20 – 0.30 mm (0.0079 – 0.0118 in) |
| Tappet Shim Sizes | 1.20 mm → 2.20 mm (0.05 mm increments) |
Camshaft Timing: Precise alignment of rotor index marks, exhaust cam arrows, and 16-pin roller count for perfect synchronization.
⚡ EFI & Electrical Diagnostics
Comprehensive dealer-mode diagnostics using coupler 09930-82720. Fault code coverage includes:
| Code | Fault Description |
|---|---|
| C12 | CKP Sensor Failure |
| C14 | TP Sensor (P0120/P0123) |
| C28 | Secondary Throttle Valve Actuator (P2100) |
| C44 | Heated Oxygen Sensor |
Full diagnostics include: Dual IAP sensors, IAT, ECT, TP, HO2, CKP peak voltage, Tip-Over sensor, STP sensor, and STV actuator testing. ISC learned value reset procedure included for throttle body service.
🔩 Critical Torque Values
| Cylinder Head Bolts (M10) — 25 N·m → 42 N·m (two-step, diagonal) | Camshaft Journal Holder — 10 N·m (7.5 lbf-ft) |
| Cam Chain Tensioner — 10 N·m (7.5 lbf-ft) | Tensioner Plug — 23 N·m (17.0 lbf-ft) |
| Front Fork Upper Clamp — 23 N·m (17.0 lbf-ft) | Front Fork Lower Clamp — 21 N·m (15.5 lbf-ft) |
| Front Axle — 65 N·m (48.0 lbf-ft) | Front Axle Pinch Bolt — 23 N·m (17.0 lbf-ft) |
| Rear Axle Nut — 100 N·m (74.0 lbf-ft) | Front Brake Caliper Mount — 39 N·m (29.0 lbf-ft) |
| Engine Mounting Bracket — 35 N·m (26.0 lbf-ft) | Swingarm Pivot Nut — 100 N·m (74.0 lbf-ft) |
🛢️ Fluids & Capacities
| Fluid | Capacity |
|---|---|
| Engine Oil (Change) | 2,400 ml (2.5 US qt) |
| Engine Oil (with Filter) | 2,600 ml (2.7 US qt) |
| Engine Oil (Overhaul) | 3,000 ml (3.2 US qt) |
| Coolant (Engine Side) | ~1,700 ml |
| Coolant (Reservoir) | 250 ml |
| Fuel Tank | 20.0 L (5.3 US gal) |
✅ Why This Manual?
- Factory-authorized — no guesswork, no third-party inaccuracies
- Step-by-step disassembly, inspection, and reassembly instructions
- Precise electrical limits and structural clearances
- Torque specs for every critical fastener
- Instant delivery — download and start working immediately
📱 Instant Digital Access
Compatible with: 💻 Windows / Mac • 📱 iPad / Android tablets • 📲 Smartphones
Print specific pages for the garage or keep the full manual on your device for reference anywhere you ride.
🛠️ Get the job done right — with factory precision.
2017–2021 Suzuki DL650A / DL650XA V-Strom Service Manual
Your complete guide to maintenance, diagnostics and engine rebuilds

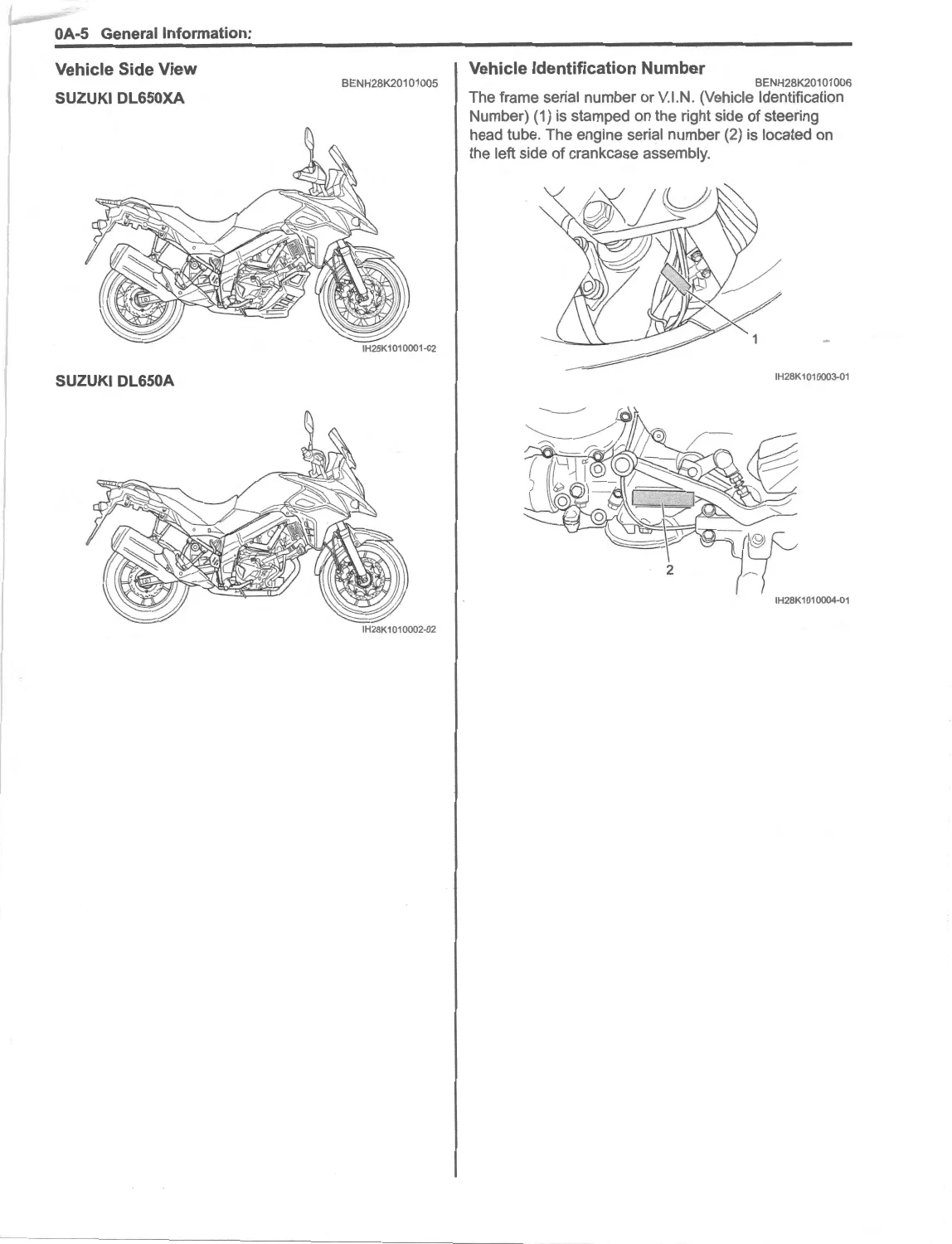

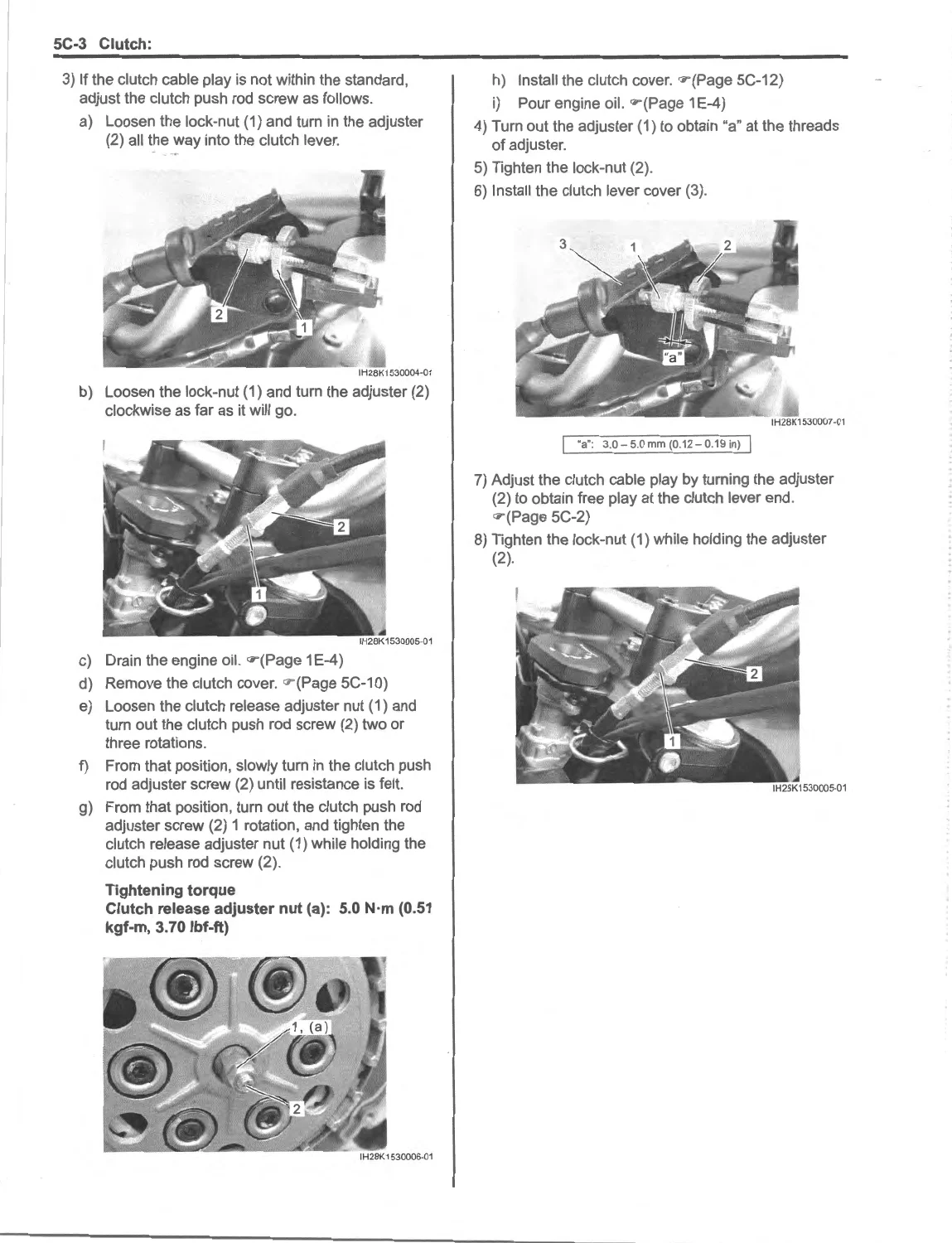

IMAGES PREVIEW
