2018 Sea-Doo Spark 2up 3up Trixx 900 ACE Factory Shop Service Manual

Description

2018 Sea-Doo Spark 2up, 3up & Trixx Factory Shop Service Manual

This 2018 Sea-Doo Spark 2up 3up Trixx 900 ACE Factory Shop Service Manual is the complete factory-style shop manual covering the full 2018 Sea-Doo Spark lineup, including 2up, 3up and Trixx variants powered by the Rotax 900 ACE and 900 ACE HO engines. Running 458 pages, this Sea-Doo Spark shop manual is built for technicians and serious owners who need genuine factory-level procedures, torque specs, and wiring information rather than a generic owner’s handbook.

File Details

• Manual type: Factory Shop/Service Manual (Volume 1)
• Brand/Model: Sea-Doo Spark (2018), covering 2up, 3up and Trixx variants
• Engines covered: Rotax 900 ACE and Rotax 900 ACE HO
• Language: English, with a French-language vehicle specifications section
• Page count: 458 pages
• File format: PDF, instant digital download

Chapters Covered

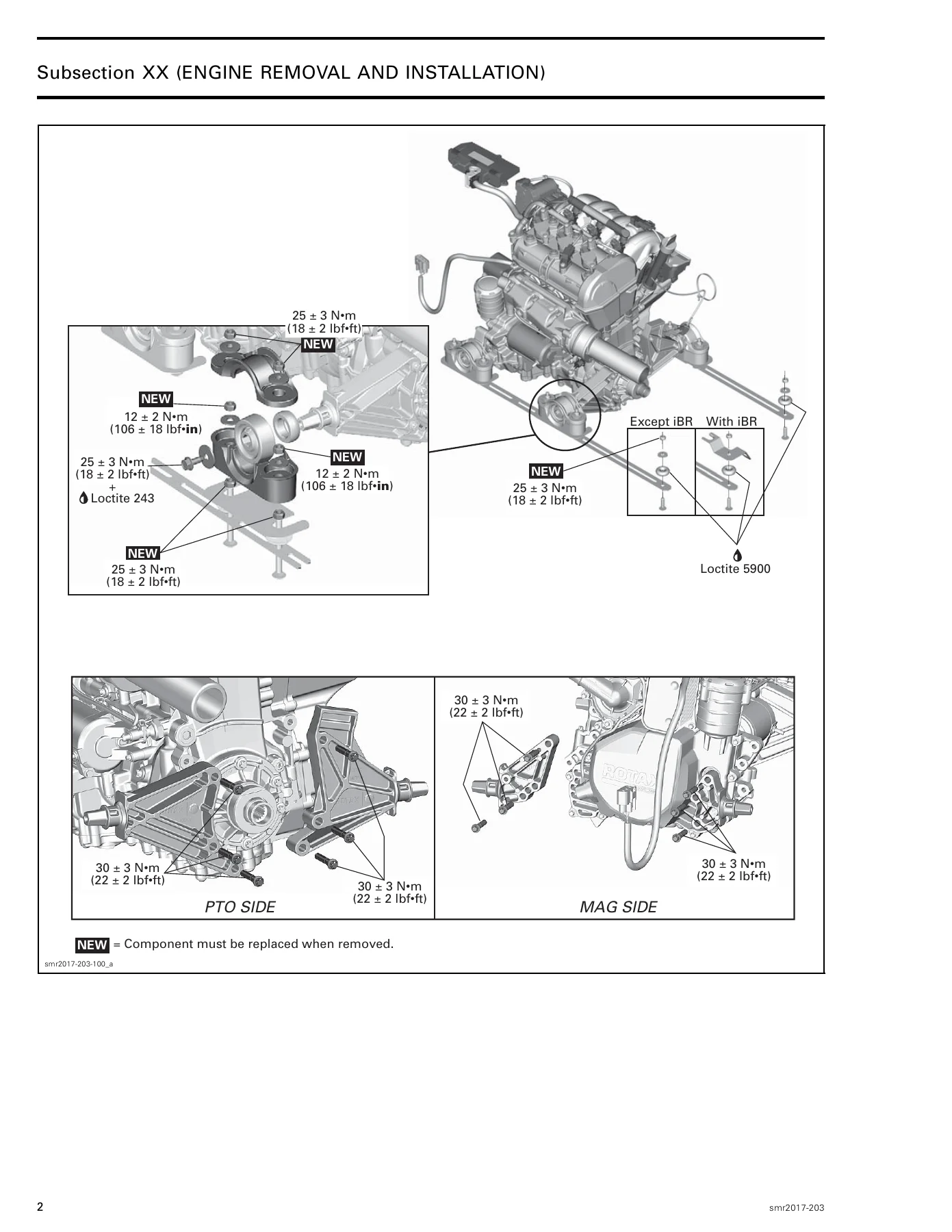

• Maintenance – periodic maintenance schedule, periodic maintenance procedures, storage procedure, preseason preparation, special procedures, engine removal and installation
• Engine – exhaust system, cylinder head, cylinder block with replaceable PTO sleeve, full engine specifications
• Electronic Management Systems – iControl system, Controller Area Network (CAN), communication tools and B.U.D.S., diagnostic and fault codes
• Fuel System – electronic fuel injection (EFI), fuel tank and fuel pump (900 ACE engines)
• Electrical System – power distribution and grounds, wiring harness and connectors, RF digitally encoded security, multifunction gauge, accessories
• Steering and Propulsion – steering and O.T.A.S. systems, telescopic steering and O.T.A.S., jet pump (Spark series), iBR, reverse and VTS (Spark series), drive shaft
• Body and Hull – cleaning and repair procedures, hull and body materials
• Wiring Diagram – complete circuit diagrams including the 2018 Sea-Doo sound system and USB charger wiring

Taken as a whole, this 2018 Sea-Doo Spark shop manual gives a technician everything needed to move from routine servicing through full engine teardown on the Rotax 900 ACE platform, without having to piece together information from forums or partial photocopies.

IMAGES PREVIEW

Rotax 900 ACE Engine Specifications

The engine chapter of this Sea-Doo Spark 900 ACE manual is unusually thorough. It documents the 3-cylinder, DOHC, dry-sump, liquid-cooled 899.31 cm³ Rotax 900 ACE and 900 ACE HO in factory detail: bore and stroke, compression ratio, valve timing, valve stem and guide dimensions with service limits, piston and cylinder wall clearances, ring end gaps, camshaft and crankshaft journal diameters and radial play, connecting rod dimensions, oil pump clearances, and more. Lubrication data (dry-fill and oil-change capacities, recommended XPS synthetic oil, oil pressure specs), cooling system specs (thermostat opening temperature, coolant type), fuel system data (fuel injector count, throttle body type, idle speed), and ignition specs (NGK CR8EB spark plug and gap, ignition coil resistance, engine speed limiter) round out the section.

Steering, Propulsion and Electrical Coverage

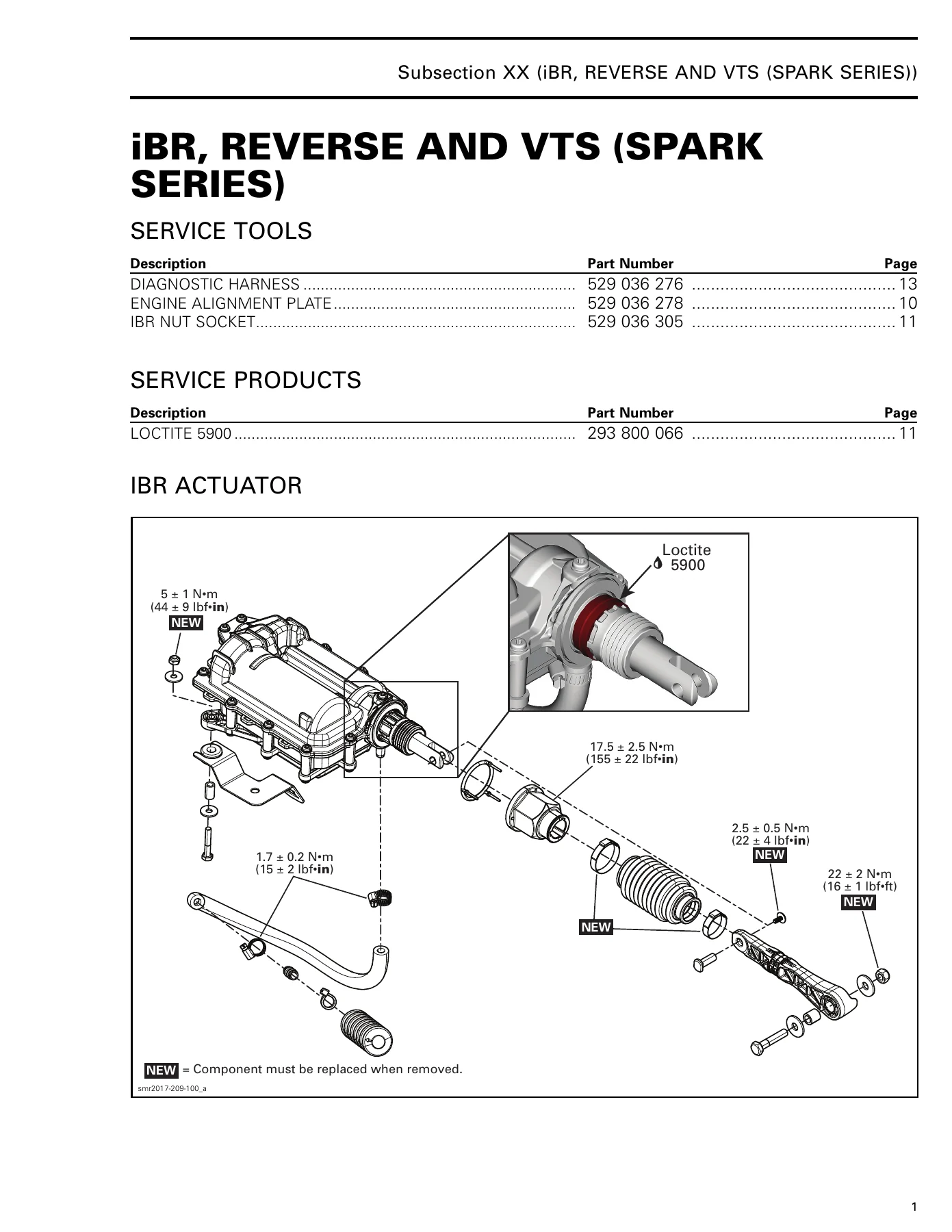

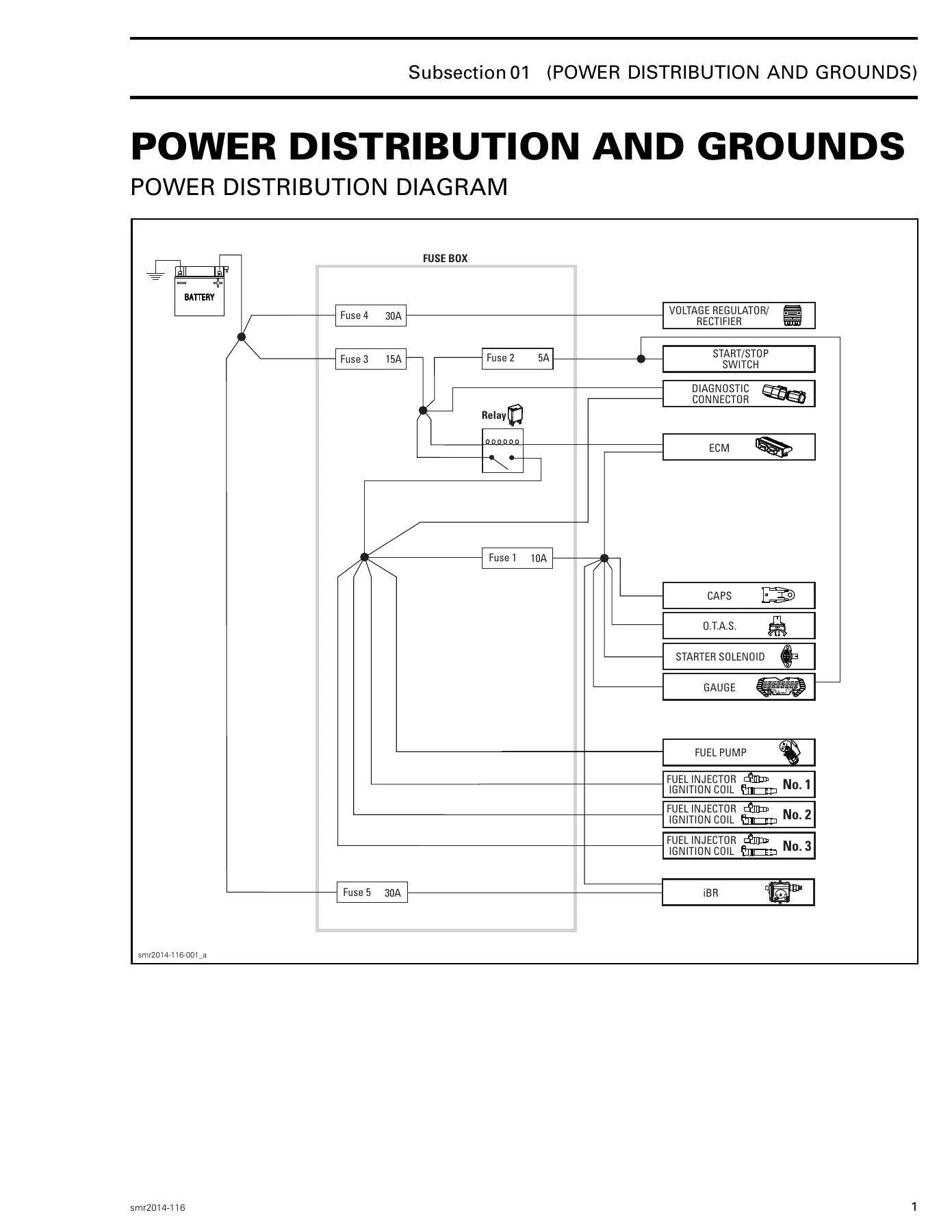

Because this Sea-Doo Spark repair manual is written specifically for the Spark platform, it includes dedicated Spark-series subsections for the jet pump and the iBR (intelligent Brake and Reverse), reverse and VTS system, with full exploded views and torque values, plus the telescopic steering and O.T.A.S. (Off-Throttle Assisted Steering) system used on later Spark models. The electrical system chapters cover the fuse box layout, power distribution diagram, wiring harness routing and connectors, the multifunction gauge, and the RF digitally encoded (D.E.S.S.) security system, supported by full wiring diagrams at the back of the manual.

Who This Manual Is For

This 2018 Sea-Doo Spark 2up 3up Trixx service manual suits independent mechanics, marine dealers, and Spark owners who service their own watercraft and want factory torque values and tolerances instead of guesswork. Whether the job is a routine oil and filter change, spark plug replacement, iBR actuator service, wiring troubleshooting, or a full engine removal and rebuild, this manual documents the procedure the way BRP intended it to be done.

Get Instant Access

With this Sea-Doo Spark shop manual you can diagnose engine and electrical faults, carry out scheduled maintenance to factory intervals, rebuild the Rotax 900 ACE top end and bottom end with correct clearances, and service the jet pump, iBR and steering systems with confidence — all backed by the exact torque values and specifications BRP technicians use. Correct procedures and specs matter on a personal watercraft: getting a torque value or a clearance wrong can mean an engine failure or a safety issue out on the water, and this manual removes that guesswork. As an instant PDF download, there’s no shipping and no waiting — the file lands in your inbox after checkout, ready to view, search, or print on any computer, tablet, or phone.
