2019 Husqvarna TE 250i TE 300i Repair Service Manual PDF

Description

2019 Husqvarna TE 250i TE 300i Repair Service Manual PDF

The 2019 Husqvarna TE 250i TE 300i Repair Service Manual PDF provides detailed repair, inspection, adjustment and overhaul procedures for the 2019 TE 250i and TE 300i model range. It applies to TE 250i EU (F2303S7), TE 250i US (F2375S7), TE 300i EU (F2403S7) and TE 300i US (F2475S7). The manual is structured for workshop repair work and includes step-by-step procedures, component illustrations, measured limits, tightening torques, fluid specifications, suspension settings, electrical checks, service schedules and model-specific technical data.

Coverage extends well beyond routine maintenance. The manual explains removal and installation of major assemblies, complete engine disassembly and reassembly, crankshaft and transmission work, piston and cylinder inspection, clutch servicing, suspension overhaul, fuel-system diagnosis, brake servicing, charging-system tests and wiring-diagram reference. Separate technical data is provided for the TE 250i and TE 300i engines where their specifications differ.

File Details

• Manual type: Repair Manual
• Brand: Husqvarna Motorcycles
• Models: TE 250i and TE 300i
• Applicable versions: TE 250i EU (F2303S7), TE 250i US (F2375S7), TE 300i EU (F2403S7), TE 300i US (F2475S7)
• Model year: 2019
• Language: English
• Pages: 363
• File format: PDF
• Document number: 3403080en
• Date: 05/2018

Engine Repair and Internal Component Work

A substantial portion of this 2019 Husqvarna TE 250i TE 300i repair manual is devoted to engine work. It covers complete engine removal from the motorcycle and installation back into the chassis, followed by a detailed engine-disassembly sequence. Procedures include removal of the injection valves, cylinder head, cylinder, piston, water-pump cover, clutch cover, clutch discs, clutch basket, balancer shaft, kick-starter shaft, shift mechanism, rotor, starter motor, reed-valve housing, engine-case sections, transmission shafts and crankshaft.

The individual-parts section goes further into inspection and repair of the engine cases, crankshaft bearing inner race, connecting rod, conrod bearing and crank pin. It includes crankshaft run-out checking, cylinder measurement, piston measurement, piston-ring end-gap inspection, piston-to-cylinder mounting clearance, reed-valve inspection, clutch checks, shift-mechanism checks, transmission checks and electric-starter drive inspection. Engine assembly is then presented as a complete sequence, including crankshaft and transmission installation, engine-case assembly, starter and rotor installation, clutch assembly, piston and cylinder installation, X-distance and Z-distance procedures, cylinder-head installation and injection-valve installation.

TE 250i and TE 300i Technical Data

The manual identifies both motorcycles as single-cylinder, two-stroke, water-cooled designs with reed intake, exhaust control and transfer-duct injection. The TE 250i specification lists 249 cm3 displacement with 66.4 mm bore and 72 mm stroke, while the TE 300i specification lists 293.2 cm3 displacement with 72 mm bore and 72 mm stroke. Both use a six-gear claw-shifted transmission, hydraulically activated multidisc clutch in an oil bath, electronic Continental ignition and kick plus electric starting.

Workshop limits are provided for pistons, cylinders, piston-to-cylinder clearance, piston-ring end gaps, connecting-rod axial play, crankshaft run-out, clutch facing-disc thickness and shift-shaft play. This data is particularly useful during an overhaul because parts can be measured against the manual’s stated limits instead of being assessed only by appearance.

Suspension Setup and Rebuild Procedures

Front suspension coverage includes adjustment of compression damping, rebound damping and spring preload as well as fork-leg bleeding, dust-boot cleaning, fork-leg removal and complete fork servicing. The manual shows disassembly and assembly of the fork cartridges and compression components, inspection of tubes and bushings, oil filling and installation procedures. Technical data identifies the fork as WP Suspension Xplor 48 PA, with fork oil quantity, spring rates and comfort, standard and sport adjustment values.

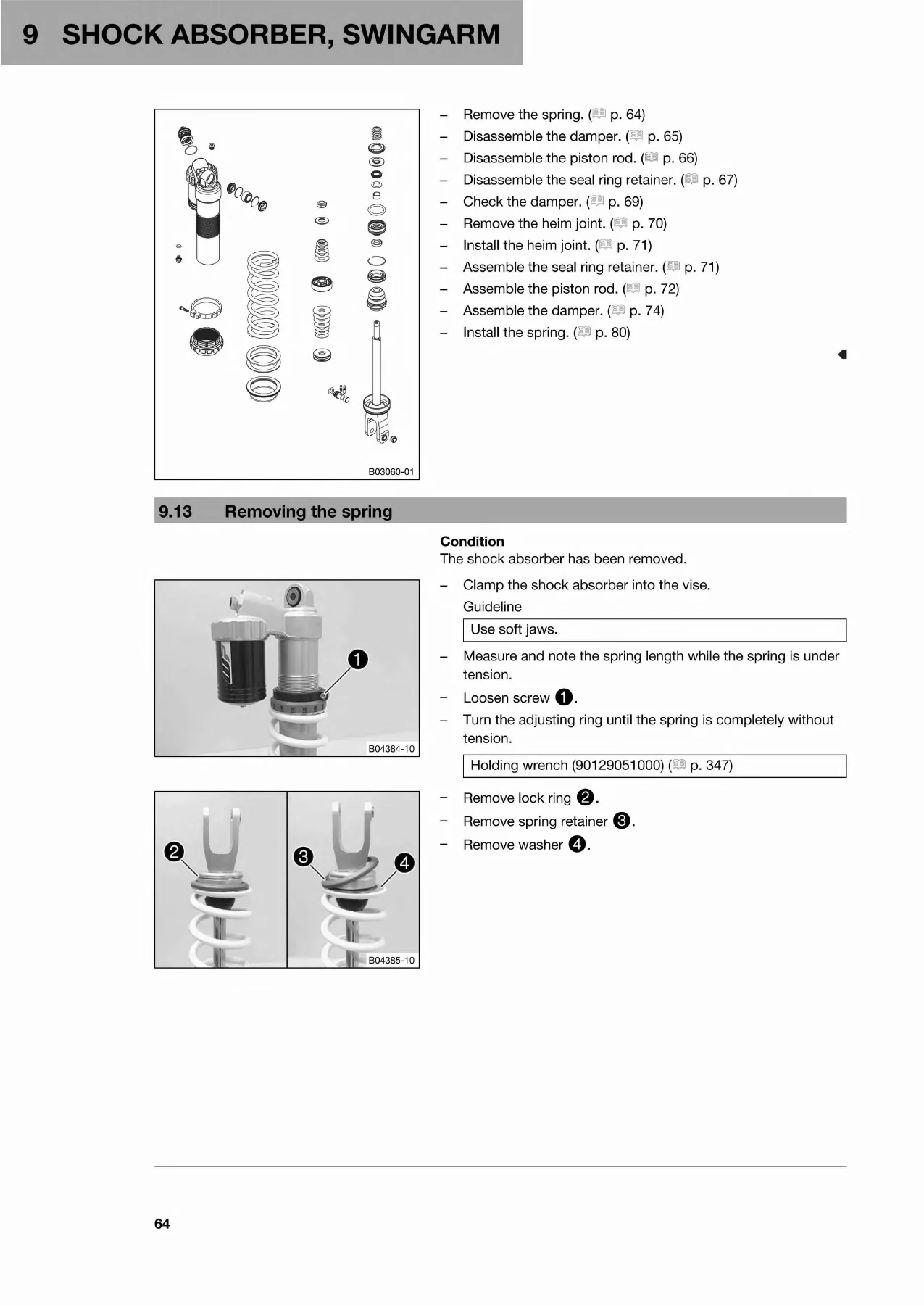

The rear suspension section covers high-speed and low-speed compression damping, rebound damping, static sag, riding sag and spring preload. It also contains removal, disassembly, inspection, filling, bleeding and reassembly procedures for the shock absorber, including nitrogen filling. The shock is identified as WP Suspension 5018 DCC Link. Swingarm, linkage, bearings and heim-joint inspection and replacement procedures are included as part of the same repair section.

Fuel Injection, Intake and Exhaust

The TE 250i and TE 300i fuel-system chapters cover fuel-tank removal and installation, fuel-pressure testing, fuel-screen replacement, fuel-filter replacement and fuel-pump replacement. The fuel-pressure test specifies use of the diagnostics tool and provides the expected pressure range while the pump is active. The throttle-valve-body section covers idle-speed adjustment, ambient-pressure programming and operation of the cold-start button.

Air-filter removal, installation, cleaning and airbox sealing are also covered. Exhaust work includes main-silencer removal and installation, manifold removal and installation for EU and US models, and replacement of the glass-fiber yarn filling in the silencer. Exhaust-control inspection and adjustment is included later in the manual as a dedicated repair area.

Electrical System and Diagnostics

The 2019 Husqvarna TE 250i TE 300i Repair Service Manual PDF contains extensive electrical-system information. Procedures include main-fuse and individual-fuse replacement, battery removal and installation, battery charging, charging-voltage testing, open-circuit-current testing, starter-relay testing and identification of the diagnostics connector. Charging voltage is checked at 5,000 rpm, and the manual supplies electrical specifications for the lithium-ion battery, fuses, lighting equipment and combination-instrument battery.

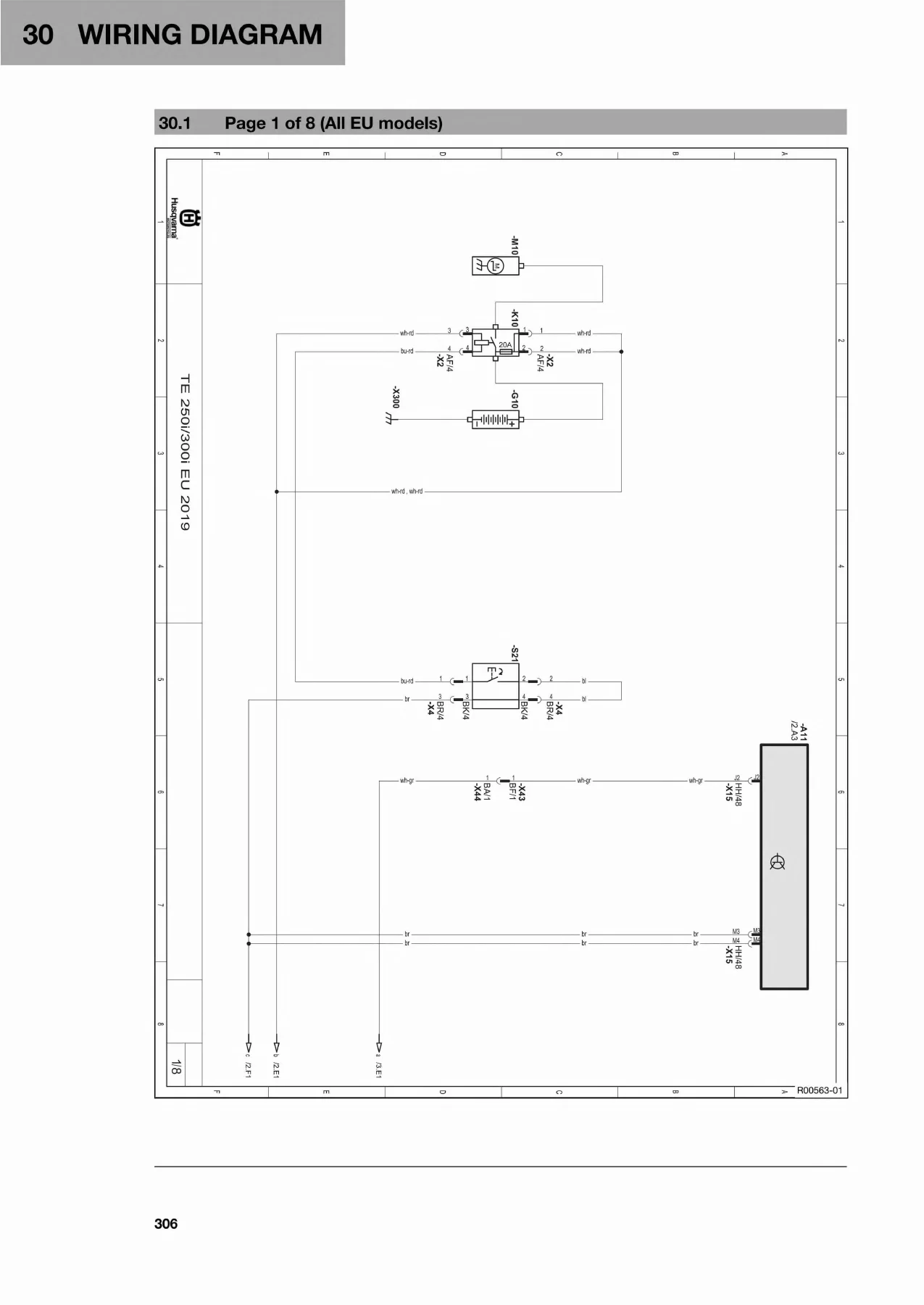

The ignition-system section covers ignition-system checks, ignition-coil primary winding, spark-plug connector, alternator stator winding, crankshaft-position sensor, spark-plug replacement and stator removal and installation. Electric-starter testing is included separately. The manual finishes its electrical reference with multi-page wiring diagrams, including separate diagram sets for EU and US versions.

Chassis, Wheels and Brakes

Chassis procedures cover the frame, handlebar and controls, steering head, triple clamps, swingarm and footrests. Wheel-service information includes tire-pressure checks, tire condition, wheel-bearing play, brake-disc inspection, spoke tension, rim run-out, front and rear wheel removal and installation, wheel-bearing replacement, brake-disc replacement, chain inspection, chain tension, sprocket wear and complete drivetrain-kit replacement.

The brake chapter deals with front and rear brake-lining inspection and replacement, lever free travel, brake-fluid level, brake-fluid replacement and system bleeding. It includes brake-disc wear limits and fluid requirements as well as step-by-step procedures for both front and rear circuits. Hydraulic-clutch fluid inspection, replacement and clutch checks are covered in their own section.

Cooling, Lubrication and Routine Service

Cooling-system coverage includes coolant-level checks, antifreeze checks, draining and refilling. The lubrication section explains gear-oil replacement and level checking, two-stroke oil-level checks, filling the two-stroke oil tank, priming the oil pump and replacing the oil pump. Published capacities include 0.80 l gear oil, approximately 0.7 l two-stroke oil-tank capacity, 1.2 l coolant and approximately 9 l total fuel capacity with approximately 1.5 l reserve.

The service schedule provides required and recommended work at defined operating-hour intervals. Items include diagnostic fault-memory checks, brakes, wheel and steering bearings, chain and sprockets, electrical system, battery, chassis, suspension, clutch, coolant, air filter, fuel pressure, spark plug, gear oil and other workshop checks. Recommended work also includes fork and shock service, electric-starter-drive checks, piston and cylinder work, oil-pump replacement and minor or major engine service.

Chapters Covered

• Means of Representation
  • Symbols used and formats used
• Safety Advice
  • Repair manual, safety advice, degrees of risk and work rules
• Important Notes
  • Warranty information, operating substances, spare parts and figures
• Serial Numbers
  • Chassis, type label, engine, fork and shock absorber identification
• Motorcycle
  • Lift-stand procedures and starting checks
• Fork, Triple Clamp
  • Adjustments, fork service, cartridge overhaul and steering-head work
• Handlebar, Controls
  • Handlebar position, clutch lever, throttle cables and throttle-response map
• Frame
  • Engine guard, frame checks and footrests
• Shock Absorber, Swingarm
  • Damping, sag, shock overhaul, swingarm and linkage service
• Exhaust
  • Silencer, manifold and glass-fiber filling
• Air Filter
  • Removal, installation, cleaning and airbox sealing
• Fuel Tank, Seat, Trim
  • Fuel tank, fuel pressure, screen, filter and pump
• Mask, Fender
  • Front fender and headlight mask
• Wheels
  • Tires, bearings, discs, spokes, chain, sprockets and drivetrain
• Wiring Harness, Battery
  • Fuses, battery, charging tests, starter relay and diagnostics connector
• Brake System
  • Front and rear linings, brake fluid, lever adjustment and bleeding
• Lighting System, Instruments
  • Instrument settings, bulbs and headlight adjustment
• Engine
  • Engine removal, complete disassembly, inspection and assembly
• Clutch
  • Hydraulic clutch fluid and clutch checks
• Water Pump, Cooling System
  • Coolant checking, draining and refilling
• Exhaust Control
  • Checking and adjustment
• Lubrication System
  • Gear oil, two-stroke oil and oil pump
• Ignition System
  • Coil, stator, crankshaft-position sensor and spark plug
• Electric Starter
  • Starter-motor checking
• Throttle Valve Body
  • Idle speed, ambient-pressure programming and cold start
• Technical Data
  • Engine data, wear limits, capacities, chassis, electrical system, tires and tightening torques
• Cleaning, Care
  • Motorcycle cleaning and winter operation
• Storage
  • Storage and return-to-use procedures
• Service Schedule
  • Required and recommended workshop work
• Wiring Diagram
  • EU and US wiring-diagram sets
• Substances and Auxiliary Substances
• Special Tools
• Standards, Special Terms, Abbreviations and Index

Taken as a whole, the manual combines routine service information with the procedures required for major chassis, suspension and engine repairs. It gives technicians the sequence of work, inspection points, adjustment values, service limits, torque settings, fluids and special-tool references needed to carry out jobs on the specified 2019 TE 250i and TE 300i versions.

Repair Your 2019 TE 250i or TE 300i with the Correct Workshop Information

IMAGES PREVIEW

The 2019 Husqvarna TE 250i TE 300i Repair Service Manual PDF supports everything from brake and chain servicing to fork and shock rebuilding, fuel-system testing, electrical diagnosis, engine removal and complete internal engine overhaul. Having the specified procedures, wear limits, capacities, suspension settings and tightening torques available during a repair helps parts go back together according to the documented specifications rather than guesswork. The manual is supplied as an instant PDF download after payment, with no physical shipping required. It can be opened on compatible computers, tablets and phones and pages can be printed when a paper workshop reference is more convenient.
