2024-2025 Yamaha MT-09 MT-09 SP Service Manual PDF – LIT-11616-37-68

Description

2024-2025 Yamaha MT-09 MT-09 SP Service Manual PDF – LIT-11616-37-68

The 2024-2025 Yamaha MT-09 MT-09 SP Service Manual PDF – LIT-11616-37-68 is the detailed Yamaha service reference for MT-09 and MT-09 SP motorcycles identified in the manual as MT09R, MT09RC, MT09SPR and MT09SPRC. The title page also identifies model codes BME3, BME4, BMM4 and BMM5. With 788 PDF pages, this first-edition February 2024 manual brings together specifications, maintenance procedures, chassis work, engine overhaul information, cooling and fuel-system service, electrical troubleshooting and self-diagnostic material in one extensive reference.

The manual is structured for mechanical service work. Removal and disassembly sections use exploded diagrams and job-order charts, while procedures describe checks, repair steps, installation and assembly in sequence. Technical data appears alongside procedures where needed, including tightening torques, service limits, adjustment values, electrical measurements, capacities and special-tool references. It is therefore useful both when planning routine maintenance and when a repair has progressed to component removal, inspection or diagnosis.

File Details

• Manual type: Service Manual
• Brand: Yamaha
• Models: MT-09 and MT-09 SP
• Model identifiers: MT09R, MT09RC, MT09SPR, MT09SPRC
• Document numbers: LIT-11616-37-68 / BME-28197-10
• Edition: First edition, February 2024
• Language: English
• Page count: 788 pages
• File format: PDF

Service Data and Model-Specific Technical Information

This Yamaha MT-09 and MT-09 SP service manual contains a substantial specifications section before the repair chapters. General specifications distinguish the MT09R/MT09RC and MT09SPR/MT09SPRC variants where values differ. The engine is listed as a liquid-cooled, DOHC, inline 3-cylinder, 4-stroke unit with 890 cm³ displacement, and the manual provides service values for the engine, clutch, transmission, fuel system, chassis and electrical system.

Examples of the data available include engine-oil quantities for an oil change, oil-filter service and a disassembled engine; coolant quantities; spark-plug type and gap; valve clearances; compression-pressure ranges; engine idling speed; fuel-line pressure; clutch measurements; transmission ratios; tire sizes and pressures; brake-fluid specification; suspension adjustment values; drive-chain slack and wear limits; system voltage; battery specification; charging-system output; sensor resistance and voltage checks; fuse ratings; and numerous engine and chassis tightening torques. These values are integrated with the relevant procedures rather than presented as isolated figures.

Maintenance, Adjustment and Diagnostic Work

The periodic-checks chapter is more than a basic service schedule. It includes the emission-control maintenance chart and general maintenance and lubrication chart, then moves into procedures for checking the motorcycle with the Yamaha Diagnostic Tool, inspecting the fuel line and spark plugs, measuring and adjusting valve clearance, checking idle speed, synchronizing throttle bodies, servicing the air-filter element, adjusting clutch controls, inspecting brakes and bleeding the ABS hydraulic system.

Chassis maintenance covers tires, wheels, wheel bearings, swingarm operation, steering-head adjustment, drive-chain slack and lubrication, front-fork checks, and separate suspension adjustments for MT09R/MT09RC and MT09SPR/MT09SPRC. The same section also explains engine-oil level and oil changes, oil-pressure measurement, coolant checks and replacement, brake-light switch adjustment, control-cable lubrication, throttle-grip service, battery and fuse checks, and headlight-beam adjustment.

Chapters Covered

• General Information
  • Identification: vehicle identification number and model label
  • Features: glossary, display and menu system
  • Basic service information: electrical-system handling
  • Special tools and tool references
• Specifications
  • General, engine, chassis and electrical specifications
  • Engine and chassis tightening torques
  • Cable routing
  • Option coupler location chart
• Periodic Checks and Adjustments
  • Periodic maintenance charts and emission-control maintenance
  • Yamaha Diagnostic Tool checks, fuel line, spark plugs and valve clearance
  • Idle speed, throttle-body synchronization, intake and exhaust checks
  • Clutch, brakes, ABS bleeding, wheels, tires and bearings
  • Drive chain, steering head, chassis fasteners and sidestand
  • Front-fork and rear-shock checks and adjustments
  • Engine oil, oil pressure, cooling-system service, battery, fuses and headlight adjustment
• Chassis

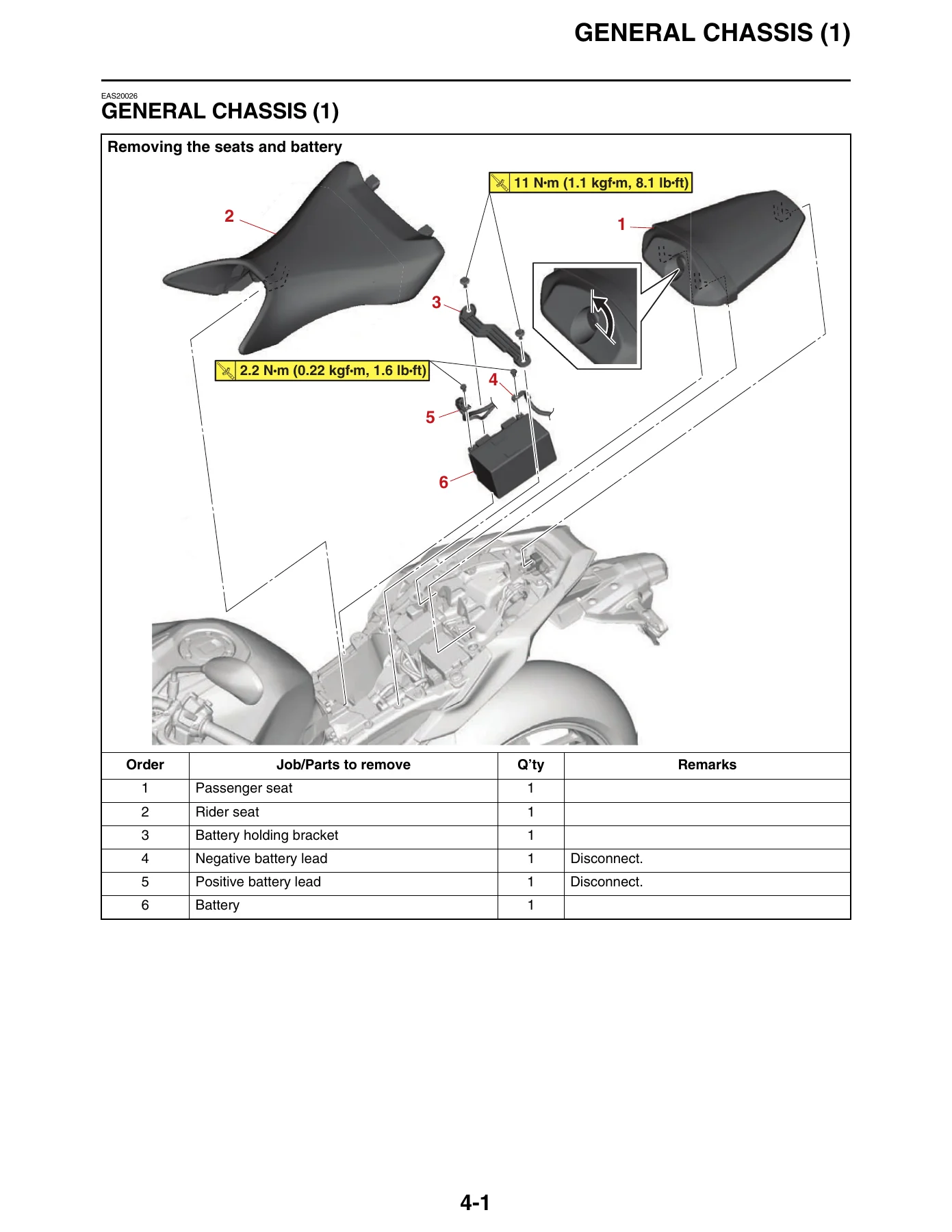

  • General chassis removal and installation, seats, covers and IMU
  • Front and rear wheel removal, inspection, assembly and balancing
  • Front and rear brake discs, pads, calipers and master cylinders
  • ABS hydraulic unit and operation tests
  • Handlebar, front fork and steering head
  • Rear shock absorber, suspension linkage and swingarm
  • Drive chain, sprockets and shift-pedal service
• Engine
  • Lubrication system charts and diagrams; compression inspection
  • Engine removal and installation
  • Camshafts, timing chain, cylinder head, valves and valve springs
  • Generator, starter clutch and electric starter
  • Clutch, shift shaft, oil pump and oil pan
  • Crankcase, connecting rods, pistons and piston rings
  • Crankshaft, balancer shaft and transmission
• Cooling System
  • Cooling-system diagrams
  • Radiator and oil cooler
  • Thermostat assembly
  • Water-pump disassembly, inspection and assembly
• Fuel System
  • Fuel tank and fuel-pump removal, checks and installation
  • California evaporative-emission canister and purge-cut-valve procedures
  • Throttle bodies, injectors and fuel-hose service
  • Injector pressure, fuel pressure and throttle-position-sensor adjustment
• Electrical System
  • Ignition, electric starting and charging systems
  • Lighting, signaling, cooling-fan and fuel-pump systems
  • Smart key system procedures for MT09SPR/MT09SPRC
  • Electrical components, relays, switches, fuses, battery, coils, sensors and actuators
• Self Diagnostic
  • Self-diagnostic function, warning-light checks and YDT
  • ECU, ABS ECU and BCM connections and system diagrams
  • Fuel-injection and cruise-control troubleshooting
  • ABS troubleshooting and warning-light diagnosis
  • DTC tables, sensor-operation and actuator-operation diagnostic codes
  • Event-code and individual fault-code troubleshooting procedures

Taken as a whole, the manual follows the motorcycle from identification and specifications through routine service, mechanical disassembly and complete system diagnosis. The engine chapter reaches major internal components such as camshafts, valves, pistons, connecting rods, crankshaft, balancer shaft and transmission. The chassis chapter supports wheel, brake, ABS, steering, fork, shock, swingarm and final-drive work, while the electrical and self-diagnostic chapters provide circuit-based troubleshooting and diagnostic-code paths for faults that cannot be resolved through mechanical inspection alone.

MT-09 SP and Electronic-System Coverage

The manual distinguishes the SP variants where procedures or components differ. MT09SPR and MT09SPRC-specific material includes TRACK display functions, lap-timer functions, engine brake management settings, rear ABS control, smart key system servicing and variant-specific front-brake and suspension information. The features section also documents Yamaha Ride Control functions such as power delivery, traction control, slide control, lift control, quick shifter and brake control, including the menu paths used to configure supported settings.

Electrical diagnosis is supported with circuit diagrams and component checks for ignition, starting, charging, lighting, signaling, cooling and fuel-pump systems. The smart key section covers self-diagnosis, emergency mode, key registration and disabling, plus remote-control-unit and ECU replacement procedures. The self-diagnostic chapter then extends the troubleshooting path with warning-light checks, Yamaha Diagnostic Tool connections, ECU and ABS ECU diagrams, DTC tables, sensor and actuator operation tables, event codes and detailed fault-code troubleshooting.

Exploded Views, Routing Diagrams and Service Procedures

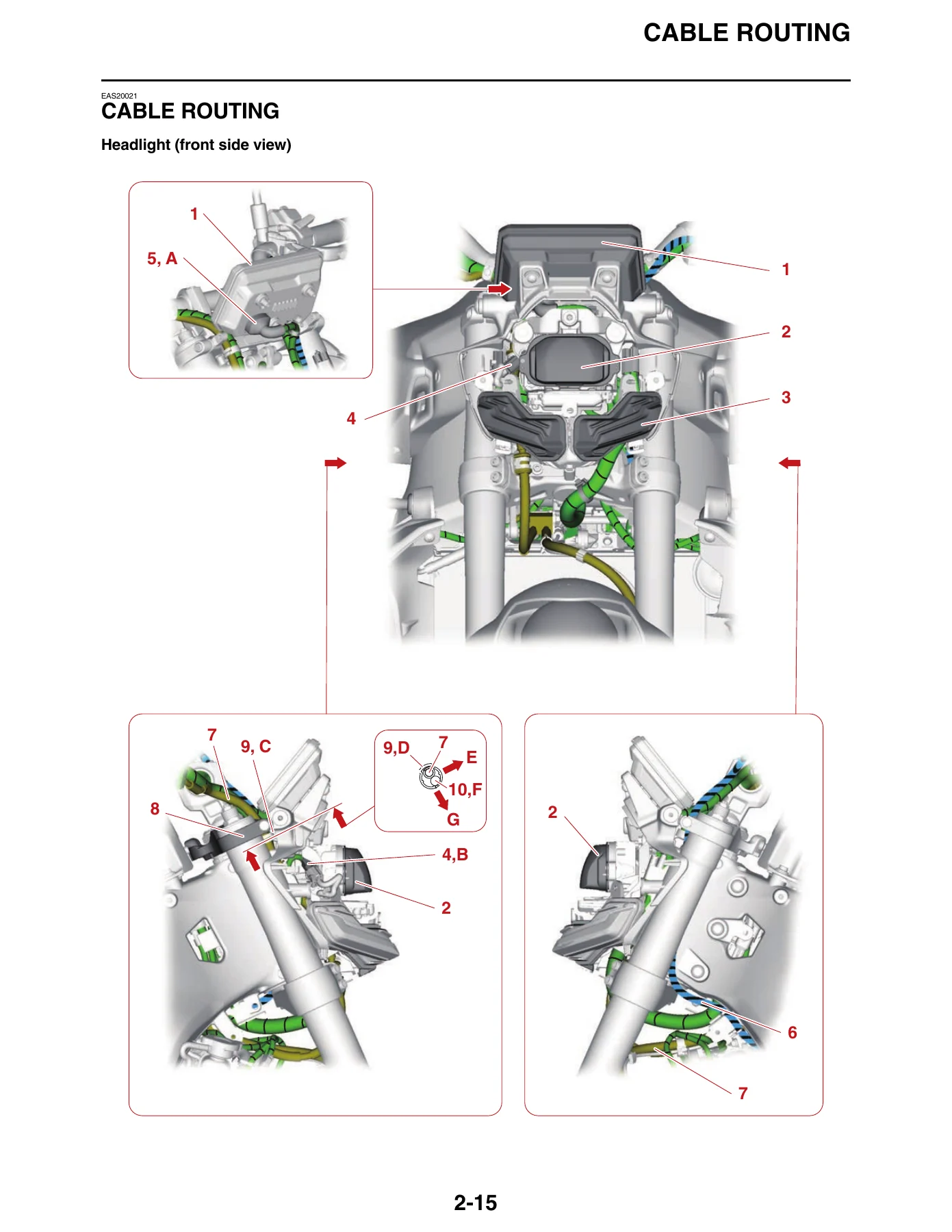

Illustrations are a major part of this 2024-2025 Yamaha MT-09 MT-09 SP Service Manual. Exploded views identify parts and the order of removal, while accompanying job charts show parts, quantities, remarks and tightening information. Cable-routing pages document harnesses, hoses, brake lines, connectors, clamps and model-specific routing around the handlebar, frame, engine, battery box, fuel tank and radiator. This visual detail is particularly valuable after a larger repair where correct routing and component orientation must be restored during assembly.

The repair chapters also connect inspection limits to the actual service sequence. For example, valve-clearance work covers measurement, pad selection and rechecking; engine-oil service includes oil-filter replacement and specified refill quantities; drive-chain procedures cover checking, adjustment and lubrication; and brake service includes pad inspection, hose checks, master-cylinder and caliper work plus ABS bleeding. For deeper engine work, the manual progresses through cylinder-head service, valve and guide inspection, clutch work, crankcase separation, piston and connecting-rod service, crankshaft inspection and transmission removal and assembly.

Get the Correct Procedures for 2024-2025 MT-09 and MT-09 SP Service

The 2024-2025 Yamaha MT-09 MT-09 SP Service Manual PDF – LIT-11616-37-68 supports everything from scheduled maintenance and adjustment work to brake, suspension, fuel, cooling, electrical and internal-engine repairs. It gives the technician the specified procedures, measurements, tightening torques, routing information and diagnostic references needed to carry out service systematically instead of relying on memory or generic values.

Correct specifications matter when adjusting valve clearance, setting suspension, tightening critical fasteners, servicing brakes, measuring engine condition or tracing an electrical fault. This manual keeps those procedures and values tied to the MT-09 and MT-09 SP variants it covers. Your purchase is delivered as an instant PDF download after payment, with no physical shipping required. Open it on a phone, tablet or computer, keep it available in the workshop, and print the pages you need for the job.
