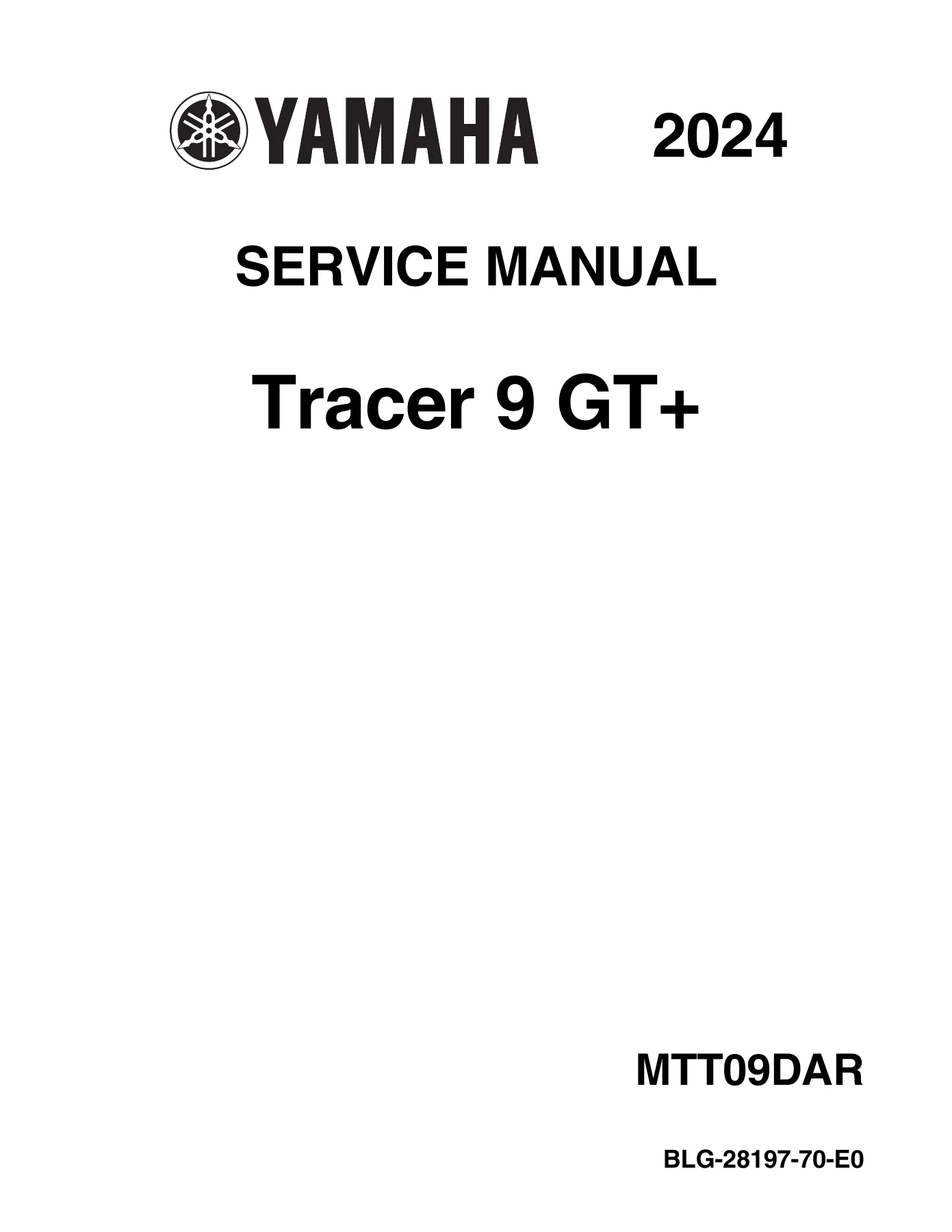

2024 Yamaha Tracer 9 GT+ Service Manual BLG-28197-70-E0

Description

2024 Yamaha Tracer 9 GT+ Service Manual BLG-28197-70-E0

The 2024 Yamaha Tracer 9 GT+ Service Manual BLG-28197-70-E0 is an extensive service reference for the Tracer 9 GT+ identified in the manual as MTT09DAR, with model BLG6 shown in the general specifications. Produced by Yamaha Motor Company, Ltd. primarily for Yamaha dealers and qualified mechanics, this manual lays out installation, removal, disassembly, assembly, repair and inspection work in sequential procedures. Across 892 PDF pages it combines service procedures with exploded diagrams, job instruction charts, torque information, specifications, routing illustrations and diagnostic material for the motorcycle’s mechanical, chassis and electronic systems.

File Details

• Manual type: Service Manual
• Brand / model: Yamaha Tracer 9 GT+ – MTT09DAR / model BLG6
• Language: English
• Page count: 892 pages
• File format: PDF
• Document number: BLG-28197-70-E0
• Edition: First edition, May 2023

Service Information Built for Detailed Workshop Work

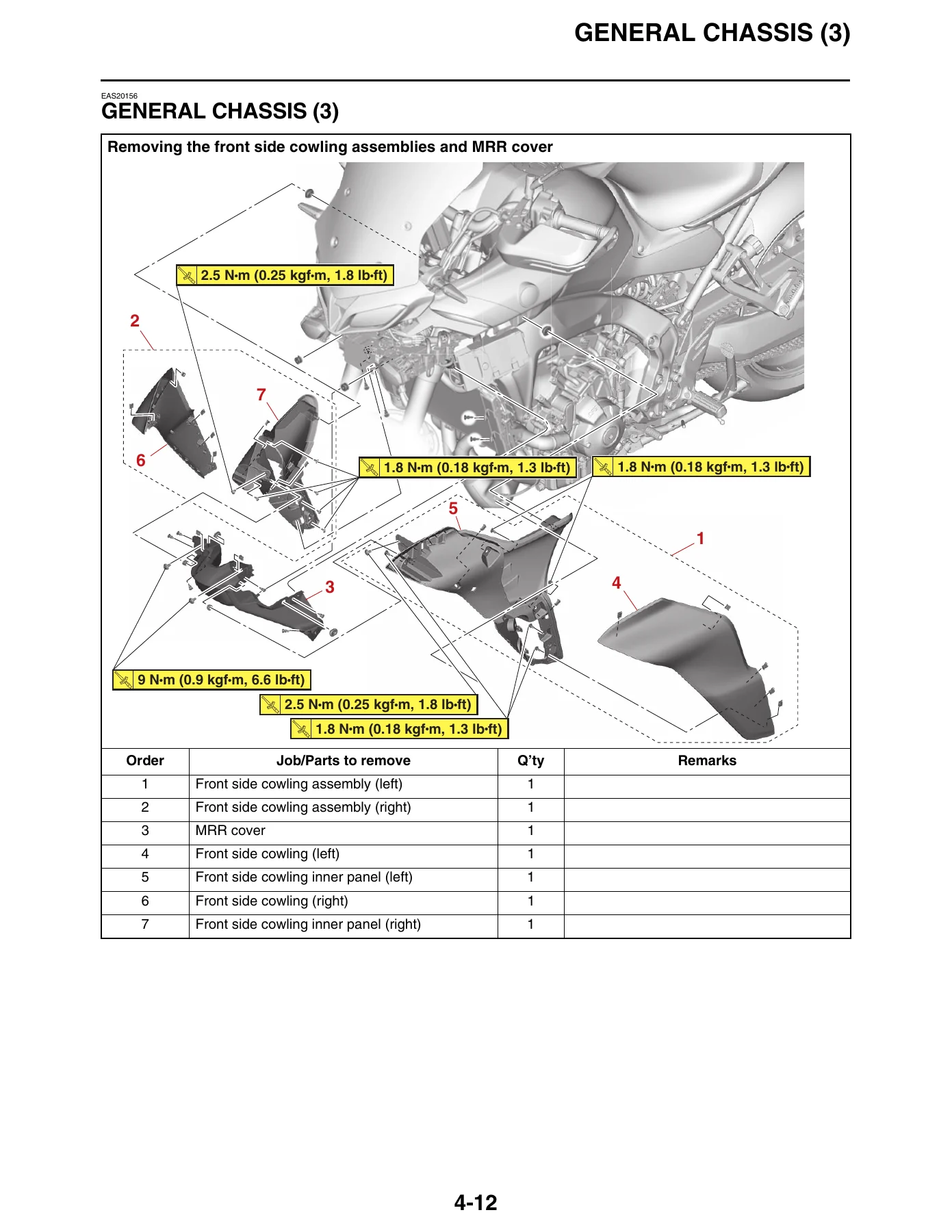

This manual goes far beyond routine owner maintenance. Its procedures are arranged around the actual sequence of a job, with exploded views at the beginning of many removal and disassembly sections, numbered work steps, lubrication and replacement symbols, tightening torque references, and special-tool information where required. That structure is especially useful when a repair involves several layers of disassembly and the technician needs to keep track of component order, fasteners, routing, inspection points and reassembly requirements.

The specification material supports both routine checks and deeper repair work. The manual identifies the machine as model BLG6 and specifies an 890 cm³ liquid-cooled, DOHC inline 3-cylinder engine. It includes general dimensions and weights, engine and chassis specifications, electrical data, tightening torques and extensive cable-routing illustrations. Examples of the service data provided include valve clearances, engine-oil quantities, coolant quantities, fuel pressure, drive-chain measurements, suspension data, wheel and brake limits, battery and charging-system information, sensor values and fuse ratings. These values are integrated with the relevant service procedures so measurements can be compared with the limits and ranges stated for the motorcycle.

Maintenance, Adjustment and Calibration Coverage

The 2024 Yamaha Tracer 9 GT+ Service Manual BLG-28197-70-E0 includes the periodic maintenance schedules as well as the procedures behind them. Coverage includes fuel-line inspection, spark plugs, cold valve-clearance adjustment, throttle-body synchronization, clutch free play, brake inspection and hydraulic brake bleeding, wheel and tire checks, steering-head adjustment, drive-chain slack and lubrication, engine-oil and filter service, engine-oil-pressure measurement, cooling-system service, battery and fuse checks, headlight adjustment and cornering-light beam adjustment.

The suspension and electronic systems receive model-specific attention. The manual describes electronically adjustable suspension settings and rear-suspension sensor calibration after service. It also covers the IMU, SCU, CCU, MRR and related components, along with Adaptive Cruise Control, traction control, slide control, lift control, quick shift, brake control, ABS, cornering-light functions and the TFT display/menu systems. Where diagnostic work requires Yamaha diagnostic equipment, the manual identifies the YDT connection and the applicable diagnostic workflow rather than treating electronic faults as generic electrical problems.

Engine and Chassis Repair Scope

Major mechanical work is covered in dedicated engine sections for lubrication, compression inspection, engine removal, camshafts, cylinder head, valves and valve springs, generator and starter clutch, electric starter, clutch, shift shaft, oil pump, oil pan, crankcase, connecting rods and pistons, crankshaft and balancer shaft, and transmission. Inspection steps include wear limits, clearances and dimensional checks where specified, while assembly procedures provide the order and service data needed to put components back together correctly.

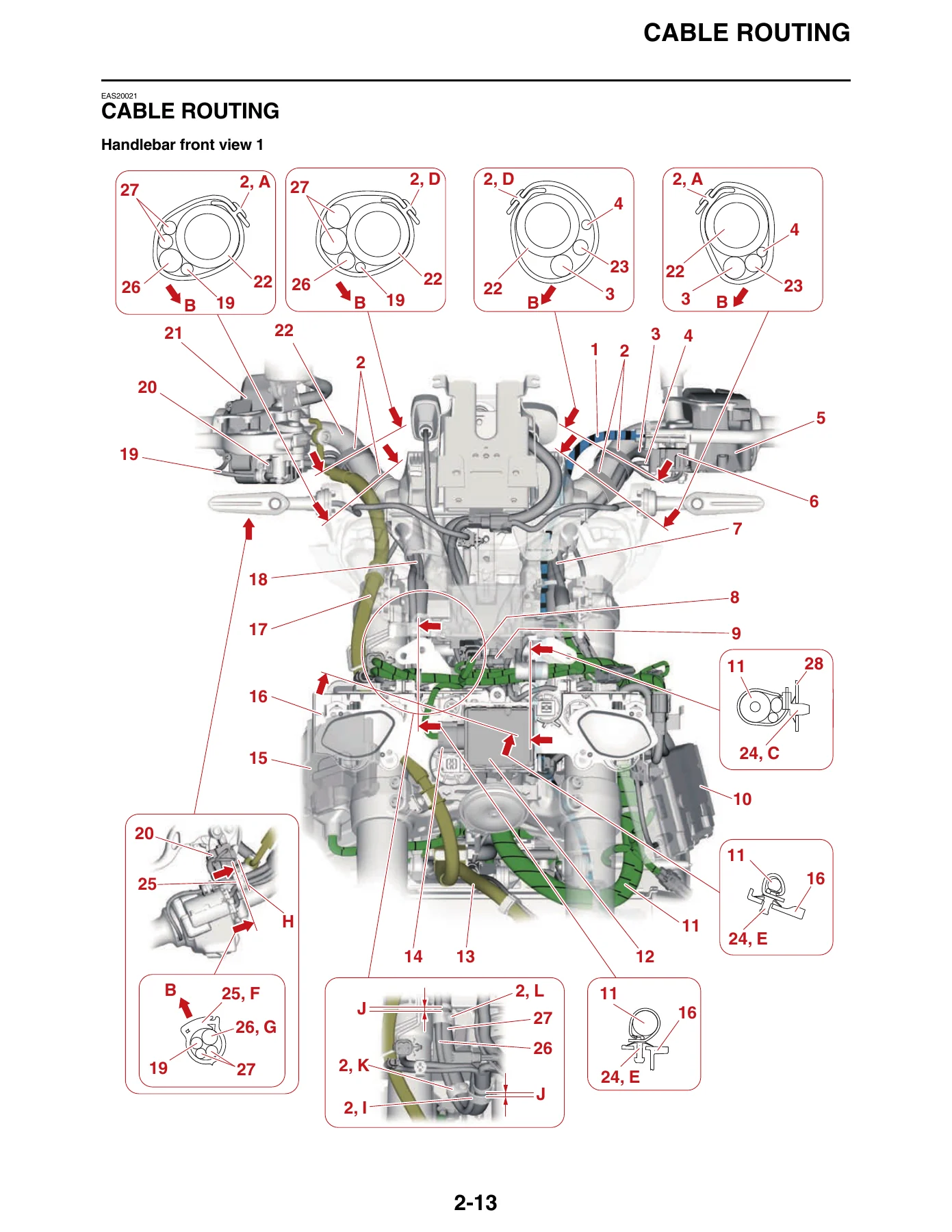

Chassis coverage is similarly broad. The manual provides removal and installation information for seats, bodywork and fuel-tank covers, MRR-related components, wheels, brake assemblies, ABS hydraulic components, handlebar, front fork, steering head, rear shock absorber, swingarm and chain drive. Detailed routing pages show wire harnesses, brake hoses, coolant hoses and other lines from multiple views, helping reduce routing mistakes after major disassembly. Numerous exploded illustrations also make it easier to identify the relationship between brackets, covers, fasteners, sensors, hoses and electrical connectors.

Chapters Covered

• 1 – GENERAL INFORMATION
  • IDENTIFICATION
  • FEATURES
  • BASIC SERVICE INFORMATION
  • SPECIAL TOOLS
• 2 – SPECIFICATIONS
  • GENERAL SPECIFICATIONS
  • ENGINE SPECIFICATIONS
  • CHASSIS SPECIFICATIONS
  • ELECTRICAL SPECIFICATIONS
  • TIGHTENING TORQUES
• 3 – PERIODIC CHECKS AND ADJUSTMENTS
  • PERIODIC MAINTENANCE
  • ADJUSTING THE VALVE CLEARANCE
  • SYNCHRONIZING THE THROTTLE BODIES
  • BLEEDING THE HYDRAULIC BRAKE SYSTEM (ABS)
  • CHANGING THE ENGINE OIL
• 4 – CHASSIS
  • FRONT WHEEL
  • REAR WHEEL
  • FRONT BRAKE
  • REAR BRAKE
  • FRONT FORK
  • CHAIN DRIVE
• 5 – ENGINE
  • LUBRICATION SYSTEM CHART AND DIAGRAMS
  • ENGINE INSPECTION
  • CAMSHAFTS
  • CYLINDER HEAD
  • VALVES AND VALVE SPRINGS
  • CLUTCH
  • CRANKCASE
  • TRANSMISSION
• 6 – COOLING SYSTEM
  • COOLING SYSTEM DIAGRAMS
  • RADIATOR
  • OIL COOLER
  • THERMOSTAT
  • WATER PUMP
• 7 – FUEL SYSTEM
  • FUEL TANK
  • THROTTLE BODIES
• 8 – ELECTRICAL SYSTEM
  • IGNITION SYSTEM
  • ELECTRIC STARTING SYSTEM
  • CHARGING SYSTEM
  • ELECTRICAL COMPONENTS
• 9 – SELF DIAGNOSTIC
  • SELF-DIAGNOSTIC FUNCTION
  • SYSTEM DIAGRAM
  • SELF-DIAGNOSTIC FUNCTION AND DIAGNOSTIC CODE TABLE

Taken together, these chapters provide a single reference for scheduled maintenance, mechanical overhaul, chassis servicing, electrical testing and fault diagnosis. The engine and chassis chapters show how assemblies come apart and go back together; the specification sections provide the measurements and limits used to judge condition; the electrical and self-diagnostic chapters add circuit, component and DTC-based troubleshooting for systems that cannot be diagnosed reliably by mechanical inspection alone.

Electrical and Self-Diagnostic Depth

The electrical section covers ignition, electric starting, charging, lighting, signaling, cooling-system electrics, fuel-pump operation, grip warmers, communication control and electrical components. Component checks extend to items such as switches, fuses, ECU replacement, battery charging, relays, ignition coils, spark-gap testing, crankshaft-position sensing, starter-motor operation, stator and rectifier/regulator checks, horn, fuel sender, radiator fan motor, coolant-temperature sensor, throttle servo motor, intake-air-temperature sensor and fuel injectors.

The self-diagnostic chapter adds system diagrams, ECU coupler information and troubleshooting for the fuel-injection system, Adaptive Cruise Control, ABS, electronically adjustable suspension and cornering-light system. It includes DTC tables, system-specific self-diagnostic function tables, sensor-operation and actuator-operation diagnostic code tables, plus event-code troubleshooting. For a motorcycle with interconnected control units and rider-assistance systems, this diagnostic coverage is a major part of the manual’s practical value.

Use the Correct Procedures and Specifications

The 2024 Yamaha Tracer 9 GT+ Service Manual BLG-28197-70-E0 supports jobs ranging from scheduled servicing and adjustments through brake, suspension, fuel-system, electrical and engine repair, with the procedures, diagrams, torque data, inspection limits and diagnostic references needed to work methodically. Using the model-specific sequence and specifications matters when clearances, routing, calibration or tightening values can affect performance, reliability and safety. This is an instant PDF delivery with no physical shipping required; the manual can be opened on compatible phones, tablets and computers and printed for workshop reference after download.
