1984-1987 Yamaha 40 50HP 2-Stroke Outboards Manual – PDF DOWNLOAD

Description

1984-1987 Yamaha 40 50HP 2-Stroke Outboards Manual

FILE DETAILS:

LANGUAGE:ENGLISH & FRENCH
PAGES:382
DOWNLOADABLE:YES
FILE TYPE:PDF
1984-1987 YAMAHA 40 50HP 2-STROKE OUTBOARDS MANUAL – PDF DOWNLOAD:

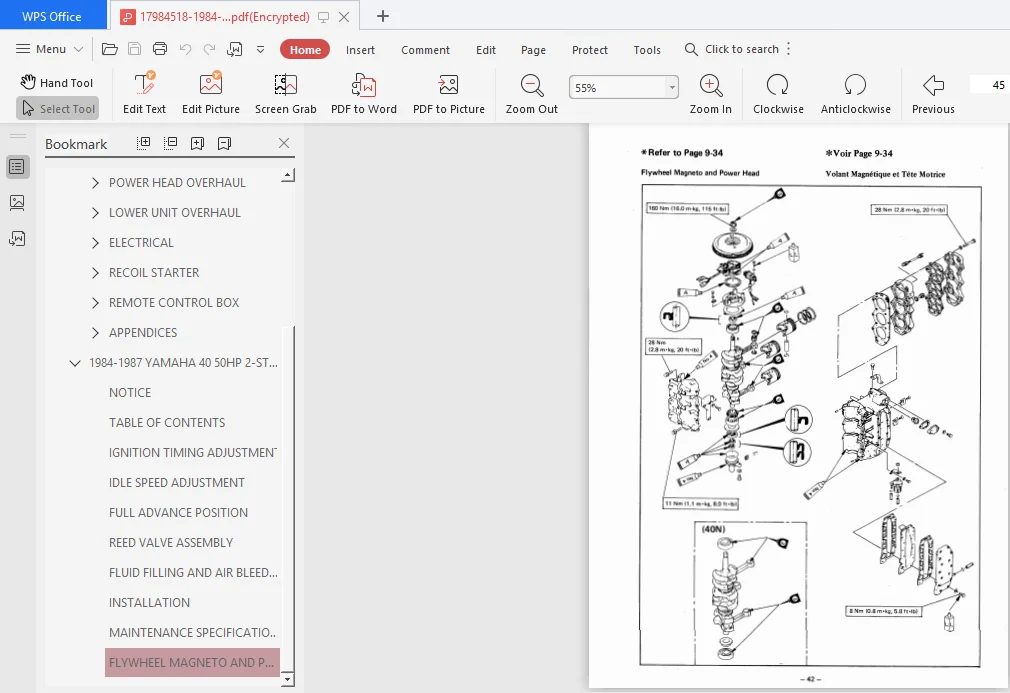

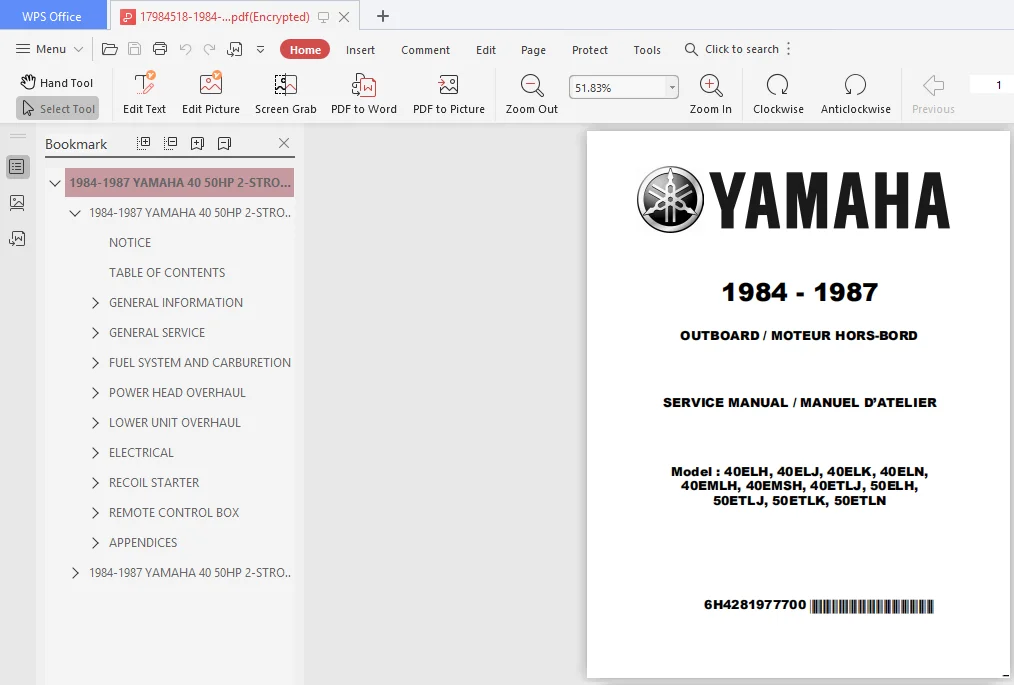

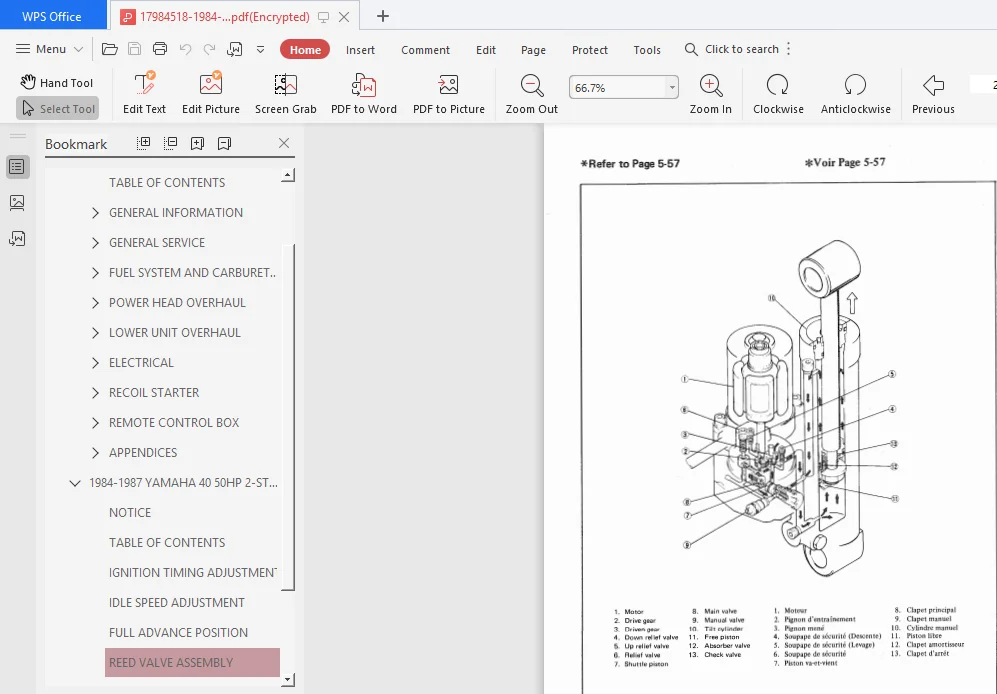

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

1984-1987 Yamaha 40 50HP 2-Stroke Outboards Manual

This Supplementary Manual provides the additional or modified informationand service data required to make the 4ON/40EN/SOETN service manual (6H4-28197-70) up-toldate so that you can better service these outboard meters. 80 you are urged to use this Supplementary Manual when servicing the above engines, together with the previously published service manual. in this manual, many asterisks (‘i forinstance, (‘ Refer to page 00.) are used to indicate the page No. on which the related description is given in the service manual. Please be sure to refer to the page.

Adjusting the pickup timing:
1- Remove the accelerator link.
2. Start the engine. and move the magneto control lever to the lull-retarded side.
3. Move the magneto control lever slightly to the full-advanced side so that ignition timing is set at i’ ATDC. Use a timing light for this adjustment.

TABLE OF CONTENTS:

1984-1987 Yamaha 40 50HP 2-Stroke Outboards Manual

• GENERAL INFORMATION
• GENERAL SERVICE
• FUEL SYSTEM AND CARBURETION
• POWER HEAD OVERHAUL
• LOWER UNIT OVERHAUL
• ELECTRICAL
• RECOIL STARTER
• REMOTE CONTROL BOX
• APPENDICES

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
