Square Shooter SS-836 Parts Manual 235739 – PDF DOWNLOAD

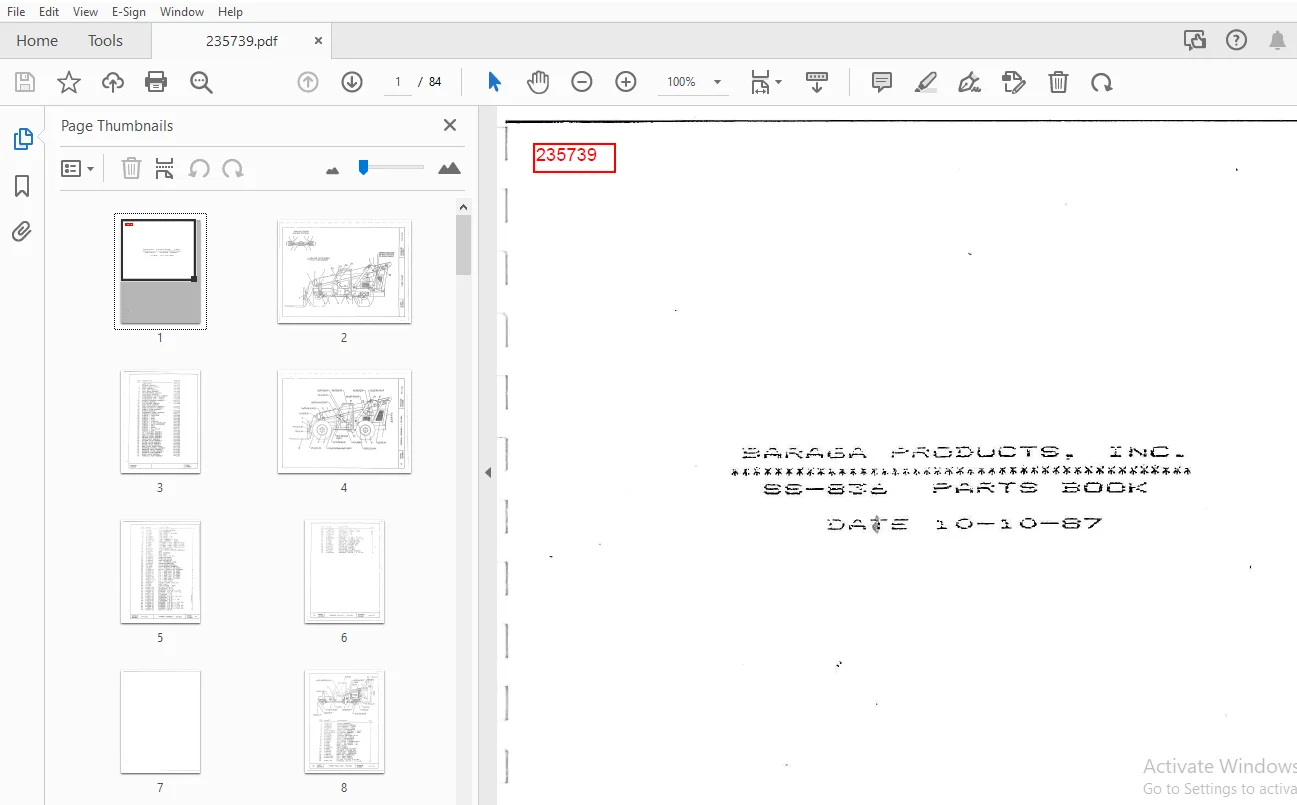

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Square Shooter SS-836 Parts Manual 235739 – PDF DOWNLOAD
Lubrication
- Lube Chart: P4-1100
General Assemblies
- General Assembly: P4-1101
Power Train
- Power Train Assembly: P4-1102
Boom Components
- Boom Assembly: P4-1076
- Small Boom Section: P4-1121
- Middle Boom Section: P4-1122
- Large Boom Section: P5-1002
Lift and Brake Systems
- Lift Copy Assembly: P4-1103
- Foot Brake Assembly: P4-1097
- Parking Brake Assembly: P1-1038
- Hand Brake Assembly: P4-1112
Control Systems
- Transmission Control Assembly: P3-1105
- Accelerator Assembly (Engine): P1-1036
- Accelerator Assembly (Pedal): P1-1037
Engine and Exhaust Systems
- Engine Enclosure Assembly: P4-1111
- Exhaust Assembly: P4-1096
Air and Pump Systems
- Air Cleaner Assembly: P4-1095
- Pump Drive Assembly: P3-1113
Drive Shafts
- Front Driveshaft Assembly: P1-1061
- Rear Driveshaft Assembly: P1-1062
Wheels and Tires
- Wheel and Tire Assembly: P3-1114
Electrical Systems
- Wiring Diagram: P4-1082
- Instrument Panel Assembly: P4-1110
Hydraulic Systems
- Hydraulic Schematic: P4-1114
- Circuit (Pump-Tank): P4-1094
- Circuit (Lift): P4-1093
- Circuit (Boom): P4-1091
- Circuit (Tilt): P4-1089
- Circuit (Steering): P4-1083
- Circuit (4-Way Controller): P4-1115
- Circuit (Auto Controller): P4-1090
- Circuit (Sway): P4-1092
- Circuit (Brake): P4-1041
- Circuit (Oil Cooler): P4-1047
- Circuit (Fuel): P3-1103
- Circuit (Pressure Switch): P3-1118
Cylinders and Valves
- Lift Cylinder Assembly: P4-1055
- Tilt Cylinder Assembly: P4-1049
- Boom Cylinder Assembly: P4-1057
- Sway Cylinder Assembly: P4-1044
- Control Block Assembly: P4-1099
- Logic Block Assembly: P4-1098
- By-Pass Valve Assembly: P3-1099
- Motion Valve Assembly (Head Tilt Cylinder): P3-1097
- Motion Valve Assembly (Base Tilt Cylinder): P3-1098
- Motion Valve Assembly (Lift-Boom Cylinder): P3-1096
- Dual Pilot Check Valve: P3-1100
Additional Components
- Steering Orbital Assembly: P1-1039
- Selector Valve Assembly: P3-1106
- Pressure Filter Assembly: P1-1059
- Return Filter Assembly: P1-1060
- Brake Valve Assembly: P1-1069
- Hydraulic Pump Assembly: P4-1123
- Handle Assembly (4-Way Controller): P1-1081
Optional Equipment
Cab and Doors
- Cab Assembly: P5-1003
- Cab Door Assembly: P4-1130
Fork and Cylinders
- Fork Frame Rotate Assembly: P3-1120
- Cylinder Assembly (Rotate): P4-1119
- Circuit (Fork Rotate): P4-1127
- Hose Roller Assembly: P3-1108
S.S 05/24
