AARD UV80 Cassette Carrier Technical Manual – Serial UV80-0198-CC Workshop & Repair Guide

Description

AARD UV80 Cassette Carrier Technical Manual – UV80-0198-CC

This AARD UV80 Cassette Carrier Technical Manual is the full workshop documentation set issued for machine serial UV80-0198-CC (Job No. U1102131), the Booysendal unit. It combines the carrier-level introduction, operating, maintenance, electrical and hydraulic sections with the manufacturer service manuals for the Deutz engine, the powershift transmission and the Hurth axles, so a single PDF covers the complete machine rather than just one sub-assembly. Everything below is drawn from the original AARD UV80 Cassette Carrier Technical Manual for UV80-0198-CC.

File Details

• Manual type: Technical / Service and Repair Manual
• Brand: AARD Mining Equipment (Pty) Ltd
• Machine: UV80 Cassette Carrier
• Serial number: UV80-0198-CC
• Job number: U1102131
• Language: English
• Page count: 619
• File format: PDF

Chapters Covered

• Section 1 – Introduction and Safe Working (Introduction, Running In, First Fifty Hour Service, Safety, Operation, Steering, Gradients, Hydraulics, Load Carrying, Maintenance, Push Starting and Towing, Machine and Component Identification)
• Section 2 – Technical Specifications (Function, Engine, Transmission, Axles, Wheels and Tyres, Brake System, Steering, Hydraulic System, Electrical System, Instrument Panel, Operator Controls, Canopy, Crane, Optional Extras, Physical Data)

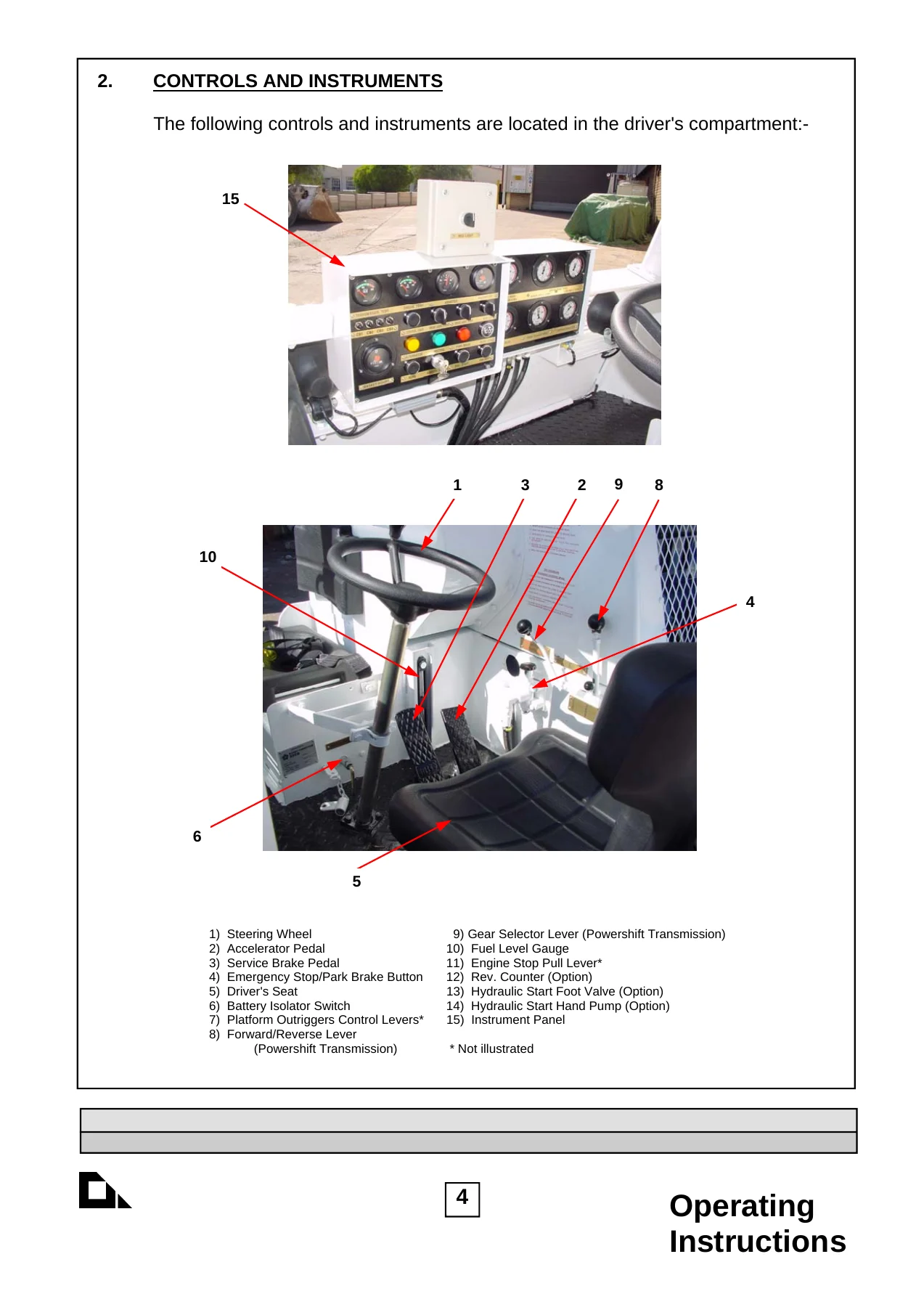

• Section 3 – Operating Instructions (Safety Precautions, Controls and Instruments, Crane Controls, Pre-Start Checks, Starting the Machine, After Start Checks, Driving the Machine, Stopping and Parking, Service Foot Brake Failure, Engine Failure, Loading and Off-Loading a Cassette, Operating the Crane)
• Section 4 – Routine Maintenance (Introduction, Preventive Maintenance, Safety Precautions, Recommended Lubricants, Service and Maintenance Schedules, Maintenance Procedures, Check Lists)
• Section 5 – Electrical Circuit and Crane Remote Circuit (Alternator, Electric Starting System, Battery Isolator, Ignition Switch, Pre-Heat Circuit, Drive Lights, Horn, Rotary Beacon, Emergency Stop Warning Light, Hour Meter, Gauges, Reverse Warning Hooter, Brake Solenoid Valve, Circuit Protection, Wiring Diagram, Crane Remote)
• Section 6 – Hydraulic System (Hydraulic Pump, Brake System and Cassette Lifting Frame Circuit, Steering Circuit, Crane Hydraulic Circuit, Hydraulic Starter Circuit, Trouble Shooting)
• Section 7 – Hurth Axle Service Manual
• Section 8 – Transmission (Clark 1204FT20324 three-speed range shift transmission and Spicer T20000 3 & 6 Speed Long Drop Powershift Transmission: Safety Precautions, Cleaning and Inspection, Technical Specifications, Maintenance, Installation, Operation, Troubleshooting, Sectional Views, Assembly, Disassembly and Reassembly, Options including Hydraulic Actuated Axle Disconnect and Parking Brakes, Service Tools)
• Section 9 – Operation Manual – Deutz Engine (General, Engine Description, Engine Operation, Operating Media, Routine Maintenance, Service and Maintenance, Faults Causes and Remedies, Engine Preservation, Technical Specification)

Read together, these sections take the UV80 from a machine you can only operate into a machine you can fully diagnose and rebuild. The maintenance chapters define the torque figures, pressures, oil grades and inspection intervals; the hydraulic and electrical chapters map every circuit with schematic diagrams and troubleshooting flow charts; the transmission and engine chapters carry the component-level disassembly, cleaning, inspection, assembly and torque data needed for overhaul rather than just adjustment. Machine identification notes point to where the machine, engine, axle and transmission serial numbers are stamped so that the correct parts and settings can be ordered.

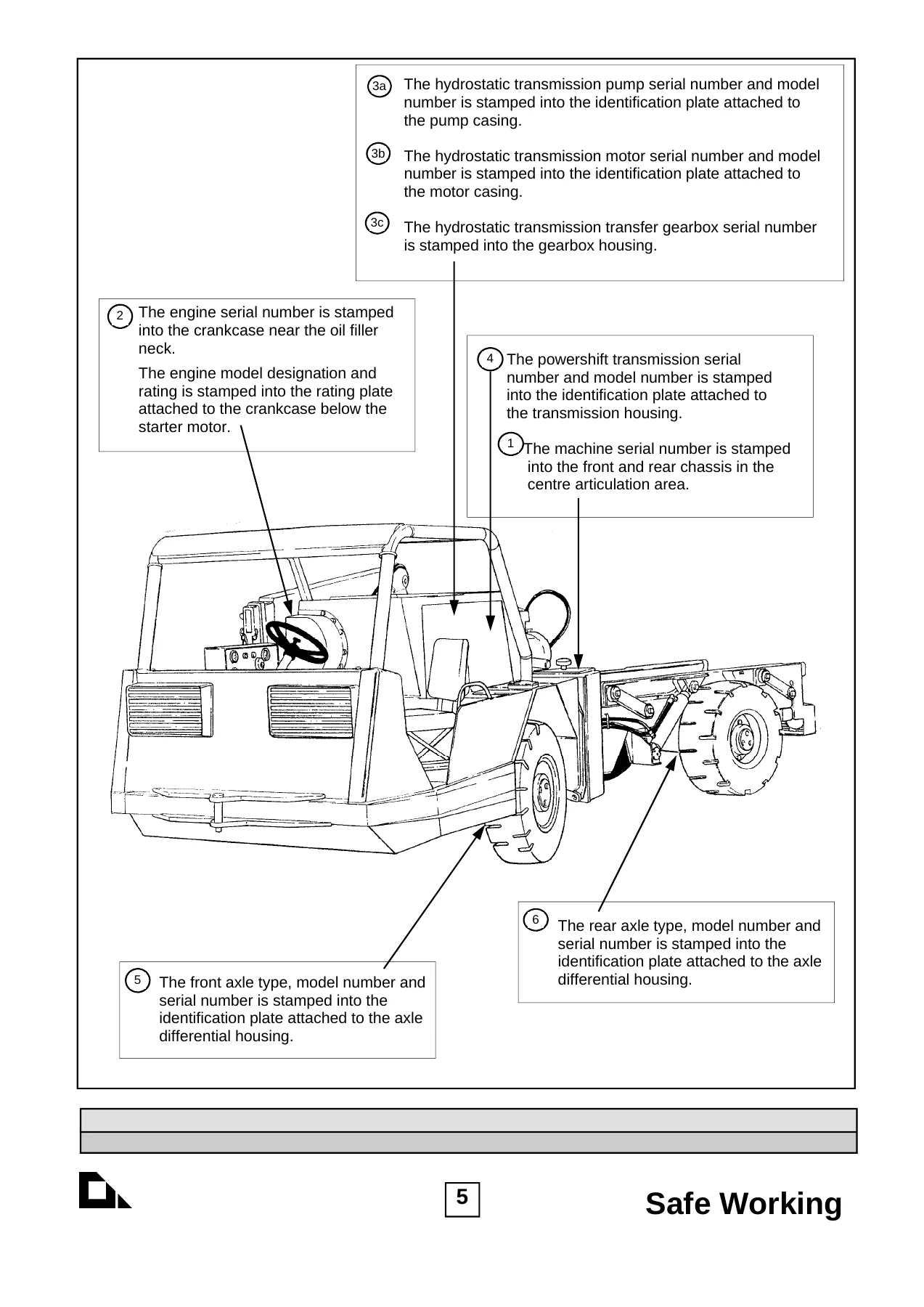

Machine and Component Identification

The manual records the identification data for this specific build. Machine type UV80 Cassette Carrier, Job No. U1102131, Serial No. UV80-0198-CC. Engine is a Deutz F6L914W with serial 088455566. Powershift transmission serial PBE A-398528. Front axle serial P-ITA-748451 and rear axle serial N-ITA-748452. Steering cylinders are listed as 2 x M/34302. Diagram call-outs show where each of these numbers is stamped or plated on the machine, engine, transmission and axle housings, including the hydrostatic transmission pump, motor and transfer gearbox serials.

Service and Maintenance Schedules

Routine maintenance is laid out as a tiered schedule: a daily operator check list, a first 50-hour service, then weekly (50-hour), 125-hour, 250-hour, 500-hour and 1000-hour intervals, with an extended sequence of signed check lists through 2000 hours. Each schedule lists the checks, cleaning, lubrication, changes, drains, adjustments and tightening required, with cross-references to the relevant procedure page. Individual procedures cover engine oil and filter, fuel filters and water separator, powershift transmission oil and filter, transfer gearbox, axle differential and planetary hub oil, hydraulic oil and filters, air cleaner servicing, centre articulation and steering cylinder pins, front axle oscillation, cassette lifting frame, outriggers, crane, propshafts, tyres and wheels, service brakes, emergency stop / park brake, battery, V-belts, fuel feed pump strainer, engine cooling system, valve clearances, injectors, heater plugs, engine and transmission mountings, exhaust purifier and fume diluter, and the hydraulic starter accumulator.

Hydraulic, Electrical and Transmission Coverage

The hydraulic section is split into the pump supply, the brake system and cassette lifting frame circuit, the steering circuit, the crane circuit and the optional hydraulic starter circuit, with circuit diagrams and dedicated troubleshooting charts for low or no service brake pressure, weak service brakes, low emergency stop / park brake release pressure, brakes that will not release, cassette lifting frame faults, hard steering, outrigger and crane faults, and hydraulic starter pressure loss. The electrical section describes the alternator, starting system, battery isolator, ignition, pre-heat, drive lights, horn, rotary beacon, emergency stop warning light, hour meter, temperature and pressure gauges, reverse warning hooter, brake solenoid valve and circuit protection, with a 24V electrical diagram and a separate crane remote control circuit.

Why This AARD UV80 Technical Manual Matters

For a mining carrier working underground, the cost of guessing is high. This manual gives the technician the machine-specific payload limits, brake accumulator pressures, axle brake torque, tyre pressures, cylinder dimensions, oil capacities, torque values and adjustment limits that apply to UV80-0198-CC, rather than generic figures. With the included Deutz engine, Spicer T20000 transmission and Hurth axle material, you can go from fault code or symptom to a defined test, then to a defined repair, then to a signed-off service entry using the check lists at the back.

Get the AARD UV80 Cassette Carrier Technical Manual for UV80-0198-CC

Whether you are servicing the Deutz F6L914W engine, overhauling the Spicer T20000 transmission, repairing the Hurth axles, tracing an electrical fault, rebuilding a hydraulic circuit or simply running the daily and 50-hour checks on the UV80 cassette carrier, this manual contains the procedures, pressures, capacities and tolerances needed to do the job correctly. Working from the correct procedures and specifications protects the machine, the operator and the maintenance budget.

IMAGES PREVIEW

This AARD UV80 Cassette Carrier Technical Manual is delivered as an instant PDF download – no shipping, no waiting, no physical book to lose in the workshop. Download it after payment, open it on any laptop, tablet or phone, and print the pages you need for the job at hand.
