Access SP450 Speed ATV Service Manual

Description

Access SP450 Speed ATV Service Manual Overview

This factory-level workshop manual provides complete technical guidance, procedural walkthroughs, and mechanical tolerances for maintaining, rebuilding, and diagnosing the Access SP450 Speed sport quad. Covering every primary mechanical and electrical assembly from front bumper to rear axle, this manual delivers the exact specifications required by professional technicians and dedicated owners. Whether addressing routine maintenance intervals or executing a complete bottom-end rebuild, having the authoritative Access SP450 Speed ATV Service Manual ensures critical clearances, torque sequences, and electrical checks are performed correctly.

File Details

• Manual Type: Factory Service Manual / Workshop Repair Manual
• Brand: Access Motor
• Model: SP450 Speed (SPEED)
• Language: English
• Page Count: 305 pages
• File Format: Portable Document Format (PDF)

Chapters Covered

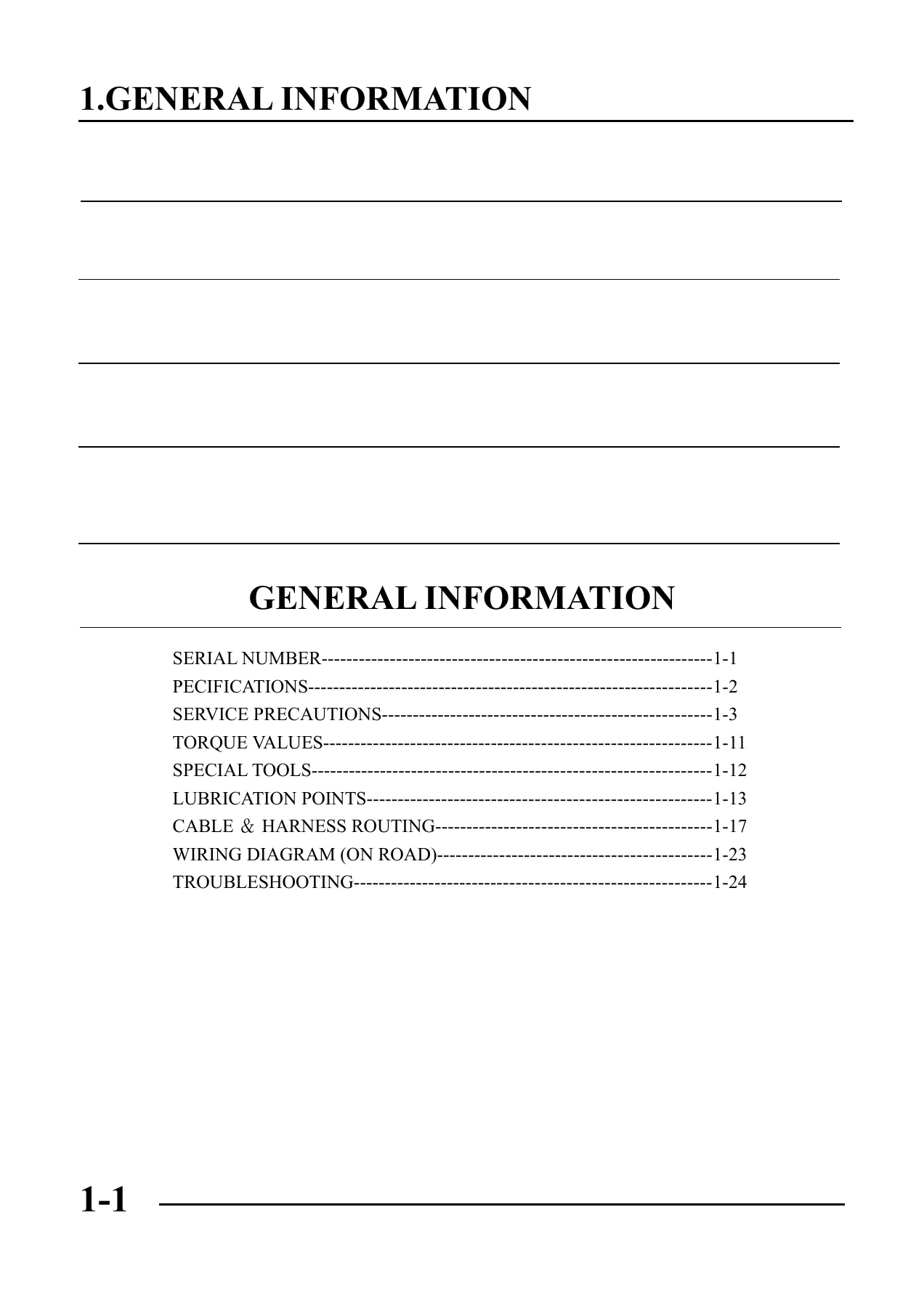

• 1. General Information: Serial number locations (VIN and engine serial number), machine specifications, workshop safety precautions, standard and model-specific torque specifications, special service tools list, complete chassis and engine lubrication charts, cable and wiring harness routing diagrams, on-road full-chassis electrical wiring schematic, and comprehensive symptom-based troubleshooting charts.

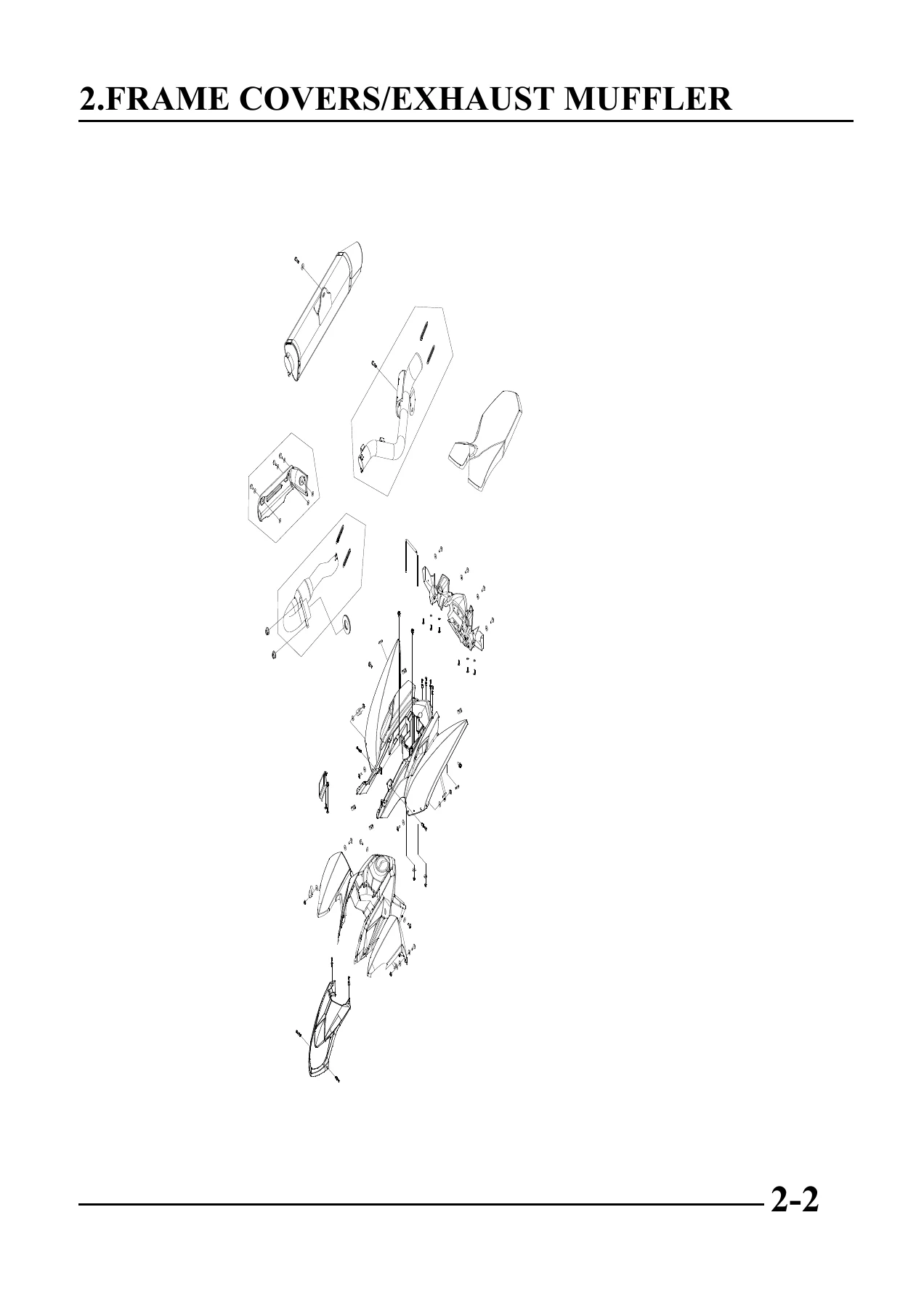

• 2. Frame Covers / Exhaust Muffler: Removal and installation of seat, nerf bars, footrest brackets, engine skid plates, front and rear body plastics, fuel tank surround, headlight shroud, and exhaust pipe/muffler disassembly with mounting torque specs.
• 3. Inspection / Adjustment: Periodic maintenance schedule, fuel line safety, throttle cable free play adjustment (3–5 mm), air filter element cleaning and air box drain service, secondary air supply system verification, CR8E spark plug inspection (0.7–0.8 mm gap), intake and exhaust valve clearance check, BDS42 idle speed (1800 ± 100 rpm), ignition timing check, cylinder compression testing (16 kg/cm²), oil pressure testing (1.0–3.0 kgf/cm² at 3000 rpm), engine oil and oil filter replacement, brake pad wear limits, hydraulic brake fluid inspection, steering play check, front wheel toe-in adjustment (0–10 mm), tire pressure and wear limits, drive chain slack adjustment (30–40 mm), control cable lubrication, rear suspension grease fittings, cooling system inspection, clutch lever cable free play adjustment (10–15 mm), and shock absorber preload/damping settings.
• 4. Lubrication System: Oil pump removal, inspection, and installation, inner and outer rotor wear checks, oil pump reduction ratio data (1.3:1), pressure relief pathways, and primary gear interface.
• 5. Fuel System: Fuel tank and gravity valve removal, complete BDS42 carburetor overhaul, needle jet and main jet specifications, float height adjustment (13 mm), pilot screw baseline settings, diaphragm and piston valve inspection, air vent hose routing, and carburetor synchronizing.
• 6. Engine Removal: Detailed sequence for engine extraction from the left side of the chassis, fluid draining, intake and exhaust removal, electrical disconnects, drive sprocket detachment, reverse linkage disconnect, and mounting bracket fastener removal.
• 7. Cylinder Head / Valves: Cylinder head cover removal, cam chain tensioner deactivation, dual overhead camshaft removal, camshaft journal clearance and runout limits, cam lobe height measurement, valve spring free length and tension testing, valve guide clearance, valve stem deflection and runout tolerances, cylinder head warpage inspection, valve lap and seat reconditioning, reassembly, and camshaft sprocket timing pin indexing.
• 8. Cylinder / Piston: Cylinder barrel removal, cylinder bore measurement for roundness and taper, piston diameter at skirt, piston-to-cylinder clearance (0.050–0.060 mm), piston ring end gap and groove clearance limits, connecting rod small-end bore and deflection checks, big-end side clearance, and staggered ring installation.
• 9. Crankshaft / Balancer Drive Gear / Clutch / Transmission / Crankcase / Clutch Cover: Right crankcase cover disassembly, multi-plate wet clutch tear-down, drive and driven plate thickness and distortion limits, clutch spring free length, primary drive gear left-hand thread nut removal (14 kgf-m), starter one-way clutch overhaul, crankcase splitting using special separator tools, countershaft and driveshaft gear cluster disassembly, shift fork groove clearances, shift drum and cam stopper inspection, crankshaft web spacing (71.0 ± 0.1 mm) and runout checks, bearing and oil seal replacement, crankcase reassembly with sealant application, and full tappet shim selection reference charts.
• 10. Cooling System: Coolant circuit overview, radiator core inspection, pressure cap relief testing (0.75–1.05 kgf/cm²), cooling fan thermo-switch and water temperature sensor operating thresholds, coolant draining and refill air-bleeding procedure, mechanical water pump impeller, bearing, and mechanical seal overhaul, and thermostat temperature testing.
• 11. Brake System: Front dual hydraulic disc brakes and rear single disc brake maintenance, DOT 4 hydraulic fluid replacement and bleeding procedures, handlebar master cylinder rebuild, front caliper disassembly, piston and dust seal renewal, foot brake master cylinder overhaul, rear multi-piston caliper rebuild, and rotor thickness/runout inspection.
• 12. Front Wheel / Front Suspension / Steering System: Front wheel runout, front wheel hub dual bearing and seal replacement, double A-arm upper and lower swing arm bushing inspection, ball joint separator tool usage, steering knuckle service, tie-rod end replacement and length calibration (430 ± 1 mm), handlebar and switchgear assembly, steering stem bearing adjustment, and steering column bushing service.
• 13. Rear Wheel / Axle / Suspension: Rear wheel hub removal, axle runout measurement, rear axle hub dual bearing and dust seal replacement, drive sprocket carrier splines, rear brake rotor holder inspection, rear swing arm pivot shaft overhaul (90 Nm), thrust cover and needle bearing replacement, and progressive rear linkage disassembly.
• 14. Battery / Charging System / Magneto: Maintenance-free 12V 10Ah battery charging and load testing, dark current leakage test (under 1 mA), charging output inspection (13.5–15.5V at 5000 rpm), regulator/rectifier diode resistance matrix, stator coil resistance testing, and alternator AC no-load output verification (over 70V AC at 5000 rpm).
• 15. Ignition System: Transistorized digital ignition circuit troubleshooting, CDI unit pin checks, primary and secondary ignition coil resistance testing, pulser coil impedance inspection, and ignition timing verification.
• 16. Starting System: Starter relay activation checks, electric starter motor disassembly, brush length, commutator undercut and armature inspection, and clutch lever starter interlock circuit.
• 17. Lights / Switches: Bulb replacement for headlights, position lights, and LED tail/brake clusters, ignition key switch continuity matrix, handlebar multi-switch terminal testing, horn circuit, and gear position switch testing.

Together, these technical chapters provide mechanics with an unbroken sequence of genuine procedural steps, from simple fluid renewals to intricate transmission gear rebuilding and electrical diagnosing.

Comprehensive Engine & Transmission Rebuilding Guidance

Working on the high-performance liquid-cooled 4-valve DOHC single-cylinder engine of the Access SP450 Speed requires exact tolerances. The Access SP450 Speed ATV Service Manual details complete engine teardown procedures, including critical torque sequences for the cylinder head bolts (47 Nm), primary drive nut (140 Nm with reverse left-hand threads), and magneto flywheel rotor nut (120 Nm). Technicians will find thorough instructions for measuring piston-to-cylinder clearance, ring gap spacing, camshaft lobe dimensions, and valve guide deflection. Additionally, complete transmission gear exploded views, shift fork thickness tolerances (5.3–5.4 mm), and the specialized 49-size tappet shim calculation matrices allow precise valve train and 5-forward/1-reverse gearbox setup without guesswork.

IMAGES PREVIEW

Chassis, Suspension & Brake Maintenance

Proper chassis handling and braking reliability are paramount on a sport ATV. This service publication delivers complete instructions for servicing the independent double A-arm front suspension and linkage-assisted rear swingarm. It provides full instructions for utilizing ball joint removal tools, replacing pressed wheel hub bearings, setting front wheel toe-in within the factory 0–10 mm range, and adjusting drive chain slack (30–40 mm). Brake maintenance covers both the handlebar-mounted front hydraulic dual-caliper circuit and the foot-operated rear disc system, including master cylinder piston cup assembly, caliper piston seal renewal, rotor runout limits (0.3 mm), and systemic DOT 4 air bleeding.

Professional Electrical Troubleshooting & Schematics

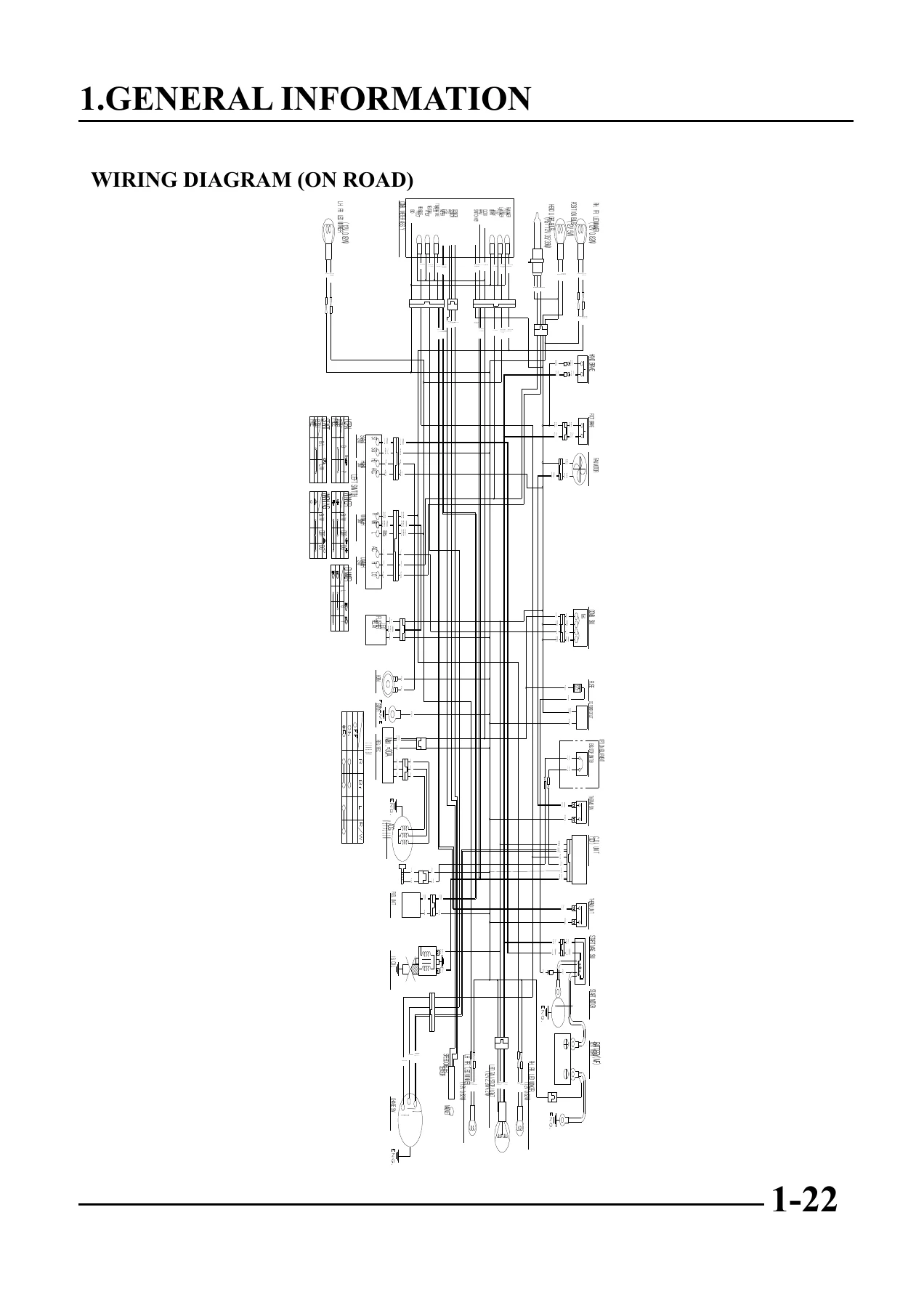

The electrical section contains an edge-to-edge on-road wiring diagram alongside detailed continuity tables for the ignition switch, handlebar controls, starter relay, and gear position sensor. Technicians can quickly diagnose starting issues, weak spark, or battery draw using the stator winding resistance values, ignition coil ohm ranges, and the five-pin regulator/rectifier diode test matrix. Clear cable routing photographs illustrate exactly how wire harnesses and fluid hoses must be secured to avoid chafing, heat damage, and interference with the steering stem.

Job Capabilities & Workshop Value

Armed with this service publication, mechanics and owners have the mechanical data necessary to tackle complete vehicle overhauls, engine blue-printing, carburetor cleaning, electrical fault-tracing, and seasonal maintenance. Adhering to verified factory specifications prevents component damage caused by incorrect fastener torques, misaligned cam timing, or improper hydraulic bleeding. Delivered as an instant high-resolution PDF download, this digital workshop manual offers immediate access across smartphones, tablets, laptops, and desktop computers, and can be printed section-by-section for dirty-hands work in the garage.
