AGCO NA 8702 8704 8706 8708 8716 8718 8722 8738 8762 Planter EFFECTIVE SIN HT & LATER Service Manual 79034273A – PDF DOWNLOAD
$30.95
AGCO NA 8702 8704 8706 8708 8716 8718 8722 8738 8762 Planter EFFECTIVE SIN HT & LATER Service Manual 79034273A – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
AGCO NA 8702 8704 8706 8708 8716 8718 8722 8738 8762 Planter EFFECTIVE SIN HT & LATER Service Manual 79034273A – PDF DOWNLOAD
FILE DETAILS:
AGCO NA 8702 8704 8706 8708 8716 8718 8722 8738 8762 Planter EFFECTIVE SIN HT & LATER Service Manual 79034273A – PDF DOWNLOAD
Language : English
Pages : 569
Downloadable : Yes
File Type : PDF

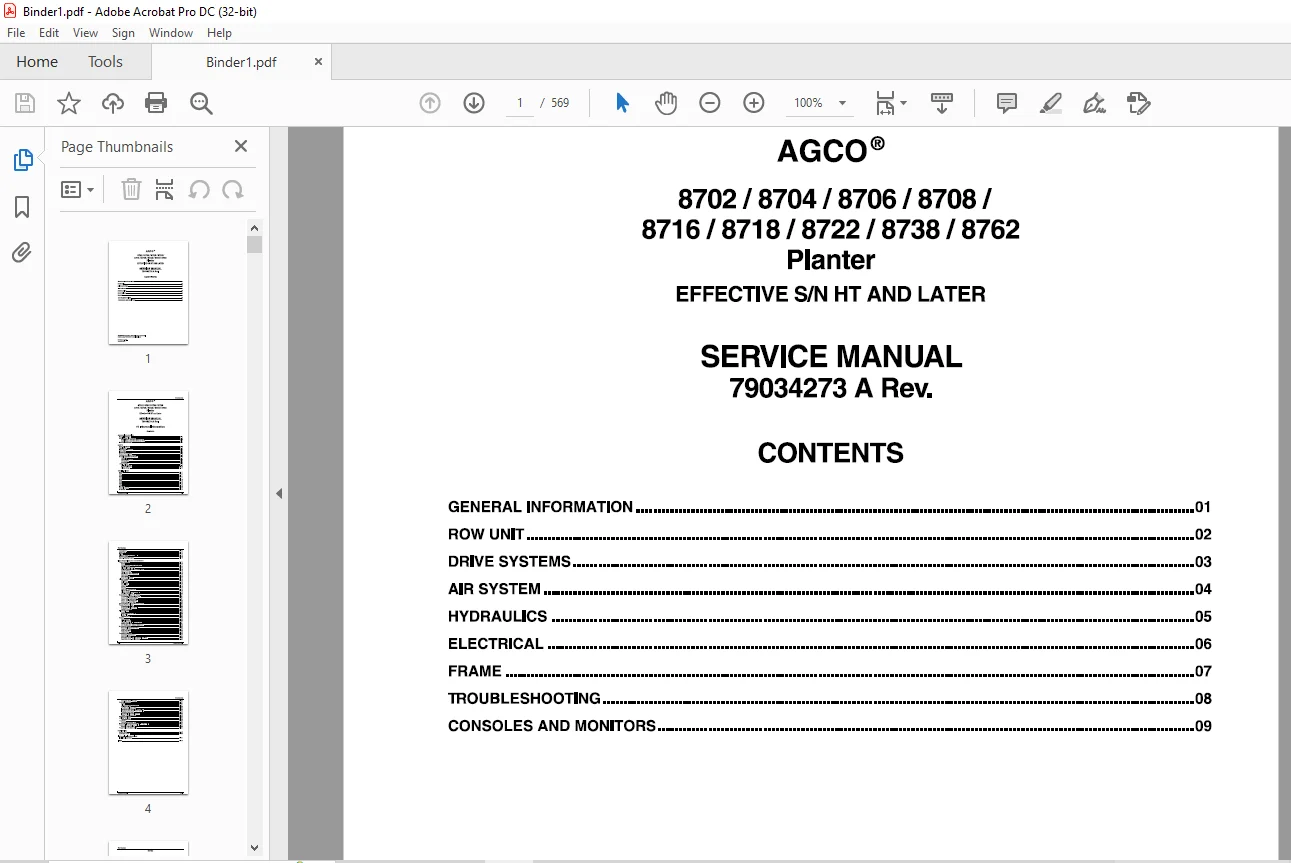

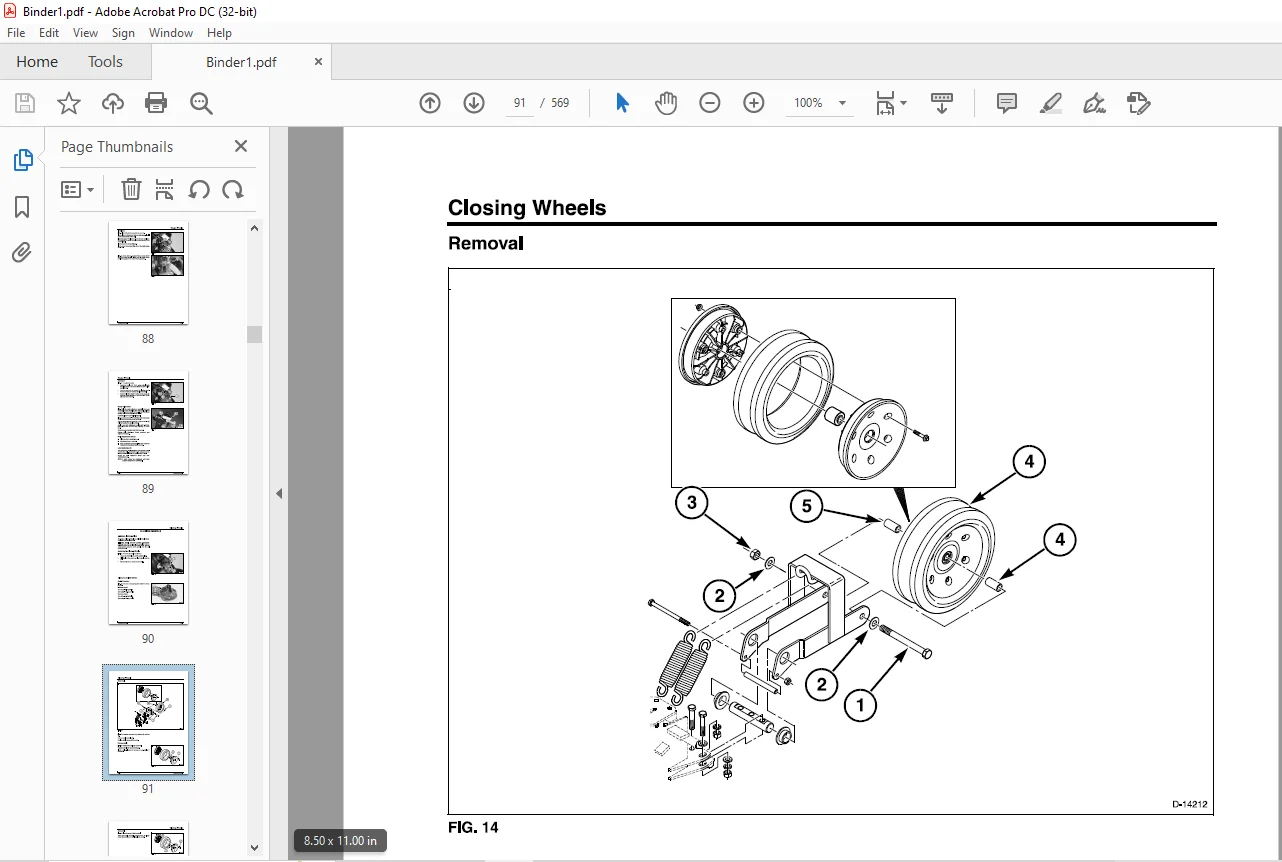

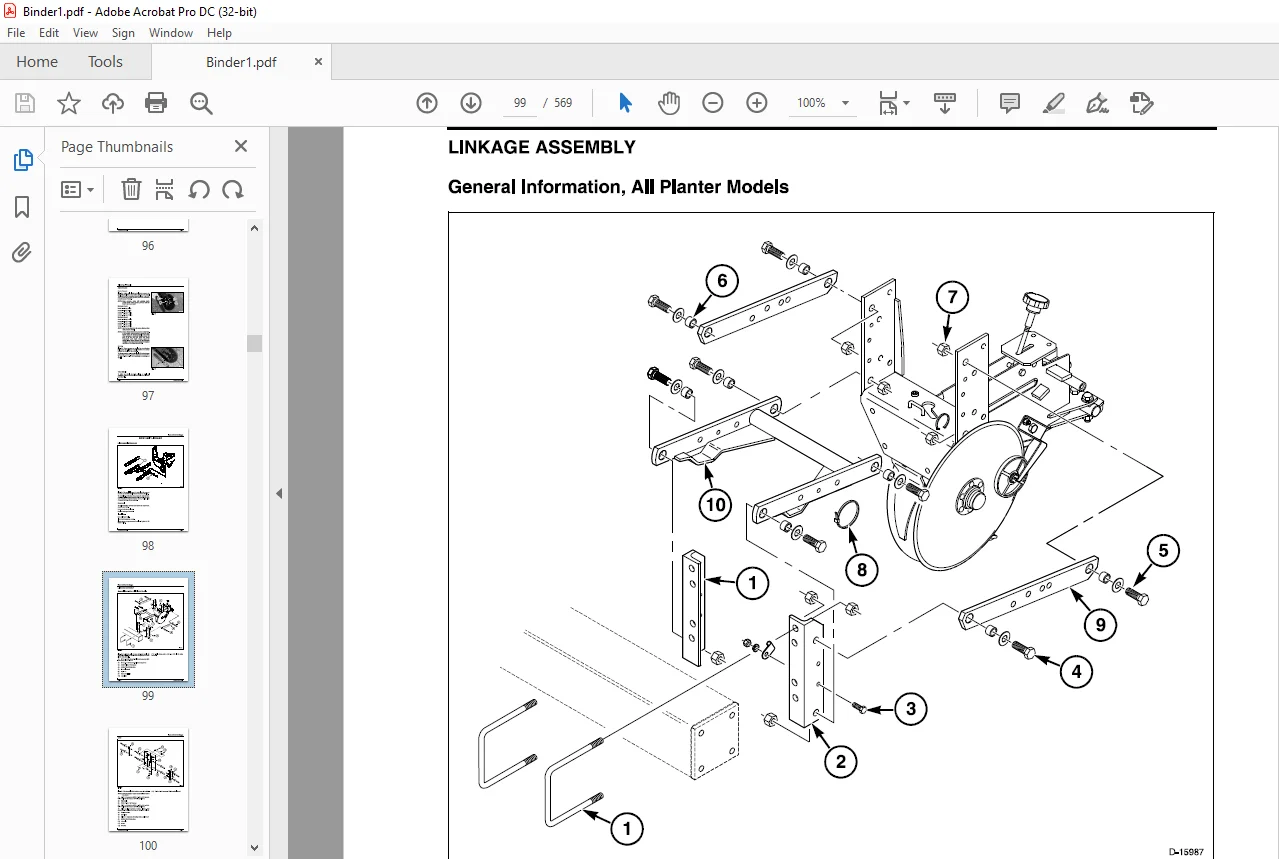

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
AGCO NA 8702 8704 8706 8708 8716 8718 8722 8738 8762 Planter EFFECTIVE SIN HT & LATER Service Manual 79034273A – PDF DOWNLOAD
GENRERAL OPERATION AND SERVICE:
Operating:
• Read and understand all the operating and safety precautions before operating machinery.
• In addition to equipment configuration and design, hazard control and accident prevention depend on awareness, concern, prudence and proper training of personnel in the operation, maintenance, transport and storage of equipment.
• Always raise implement, shut off tractor engine, set the parking brake, shift to park position (or neutral) remove the key and install cylinder lockup channels before working around the machine.
• Avoid working under the planter. However, if it becomes unavoidable to do so, make sure the planter is securely blocked and the cylinder lockup channels are in place.
• Do not attempt to lubricate or adjust the planter while the machine is in operation.
• Machinery operation can be performed only by persons who are responsible and delegated to do so.
• Only the operator must be permitted on the tractor (unless tractor has a factory-installed instructor seat) when the tractor and the planter are moving. Never permit anyone to ride on the planter.
• Avoid wearing loose-fitting clothing and jewelry. Always tie up long hair that can be caught in moving parts.
• Wear personal protective equipment (PPE) such as, but not limited to, protection for eyes, lungs, ears, head, hands and feet when operating, servicing or repairing equipment.
• Make sure bystanders are clear before operating tractor or machine.
• Do not leave tractor or implement unattended with the engine running.
• Never attempt to operate the planter unless seated in the operator’s seat on the tractor.
• Tractor must be equipped with rollover protective structure (ROPS), and a seat belt. Use seat belt during operation.
• Make sure the tractor is in good operating condition, and has adequate braking capabilities.
• Do not dismount from a moving tractor.
• Regulate ground speed to field conditions, and maintain control at all times.
• When working around discs, be careful to not get cut on sharp edges.
• Watch for overhead wires or other obstructions when raising markers, and when moving the planter with marker(s) raised.
• Disconnect and store planter where children do not normally play. Stabilize the planter by using suitable supports, and block the wheels.
• Always lower the planter when not in use and relieve the pressure in hoses and cylinders.
• Do not allow children to ride on, play on, or operate equipment. Always keep children away from equipment operating, servicing, and storage areas.
• Do not stand between the tractor and the planter to install hitch pin when the tractor engine is running.
TABLE OF CONTENTS:
AGCO NA 8702 8704 8706 8708 8716 8718 8722 8738 8762 Planter EFFECTIVE SIN HT & LATER Service Manual 79034273A – PDF DOWNLOAD
GENERAL INFORMATION 01
ROWUNIT 02
DRIVE SYSTEMS 03
AIR SYSTEM 04
HYDRAULICS 05
ELECTRICAL 06
FRAME 07
TROUBLESHOOTING 08
CONSOLES AND MONITORS 09
Need help? Contact: [email protected]
https://vimeo.com/837829560?share=copy
PLEASE NOTE:
- This is the SAME MANUAL used by the dealerships to diagnose your vehicle
- No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
- Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
- So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
