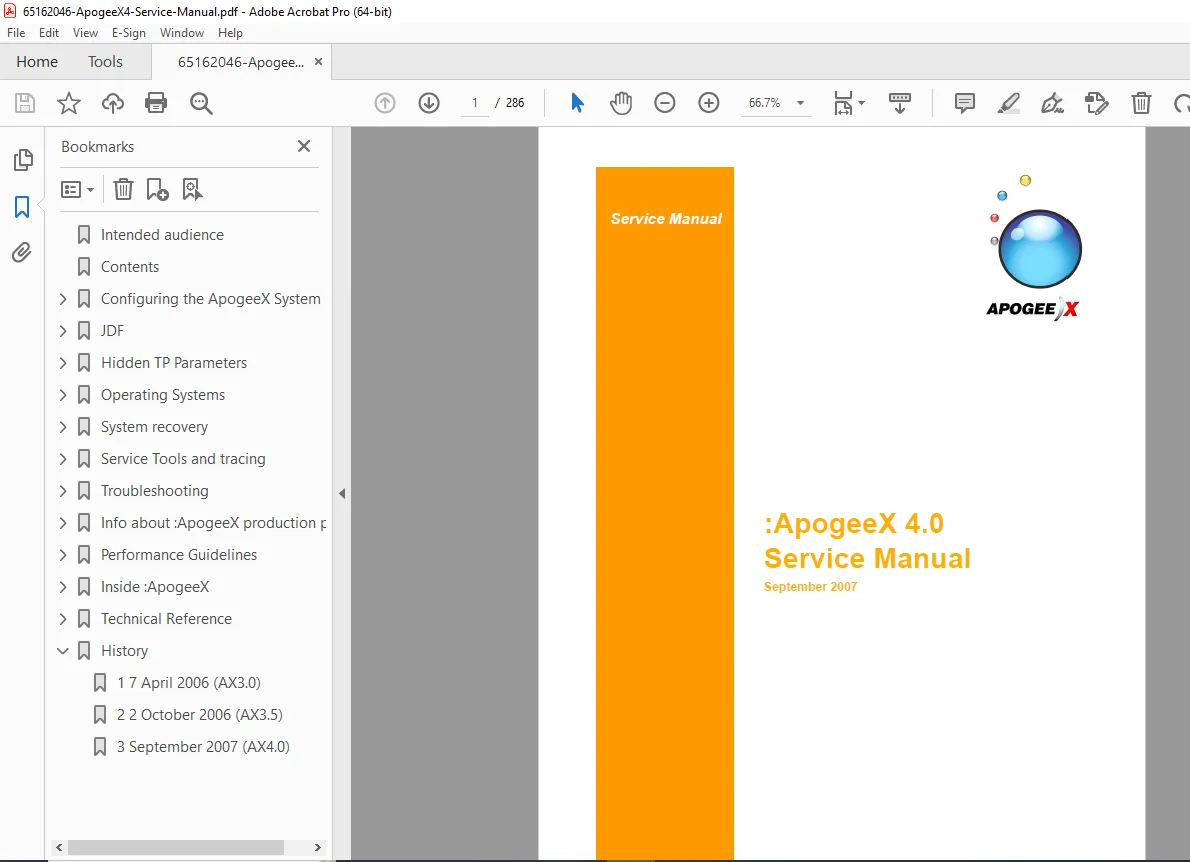

Agfa ApogeeX 4.0 Prepress Workflow Service Manual – PDF

Description

Agfa ApogeeX 4.0 Prepress Workflow Service Manual – Complete Configuration PDF DOWNLOAD

DESCRIPTION

Comprehensive Service Manual for Agfa ApogeeX 4.0 Prepress Workflow System

This professional Agfa ApogeeX prepress workflow service manual provides complete technical documentation for service engineers, IT administrators, and prepress technicians managing Agfa’s advanced workflow automation platform. This ApogeeX 4.0 system configuration troubleshooting guide is the definitive resource for installing, configuring, optimizing, and maintaining the ApogeeX prepress workflow environment used in commercial printing workflow automation operations worldwide.

Overview of ApogeeX 4.0 System

ApogeeX 4.0 represents Agfa-Gevaert’s state-of-the-art prepress workflow automation solution designed for commercial printers, book printers, and high-volume production environments. This JDF workflow server installation and repair manual covers all aspects of the ApogeeX ecosystem, from basic system settings to advanced task processor configurations, enabling complete control over digital prepress operations.

Key System Capabilities:

• Complete PDF/PostScript/EPS workflow processing
• JDF/JMF integration for automated job management
• Multiple task processor architecture for flexible workflows
• High-resolution rendering and RIP capabilities
• Automated imposition and stripping operations
• Advanced color management and proofing
• Multi-platform support (Windows/Macintosh)
• Scalable server architecture with failover capabilities
• Comprehensive job tracking and archiving

Complete Manual Contents – 286 Pages of Technical Documentation

This Agfa ApogeeX prepress workflow service manual contains detailed information organized into 12 major sections:

SECTION 1: CONFIGURING THE APOGEEX SYSTEM (Pages 7-75)

Comprehensive system configuration covering all ApogeeX components:

1.1 System Settings

• Configuration resource management
• ApogeeX administrator mail address setup
• Mail server configuration for system notifications
• Job housekeeping configuration (service mode)
• Job housekeeping advanced settings
• Job housekeeping debug procedures
• Components configuration (service mode)
• Imposition configuration resources

1.2 Disk Storage Resources

• DataStore resource verification and management
• StorageSet disk and volume functionality
• Changing StorageSet disk/volume assignments
• Adding StorageSets to increase capacity
• Deleting StorageSets
• Setting up watermarks for disk management

1.3 Task Processor Configuration Settings Detailed configuration for all task processor types:

• Input Task Processor – Job intake and routing
• Normalizer Task Processor – File normalization and standardization
• PDFReady Task Processor – PDF transparency flattening and trapping
• Preflight Task Processor – Quality control and file validation
• PDFRenderer Configuration – High-quality PDF rendering
• CPSI Renderer Configuration – PostScript rendering engine
• Digital Film Proof, TIFF Render – Film output preparation
• Impose, StepAndRepeat – Page imposition automation
• Export Task Processor – File export and delivery
• Sherpa Configuration – Agfa Sherpa proofer integration
• TIFF Imagesetter and TIFF Platesetter – Imaging device output
• PS Imagesetter – PostScript imagesetter configuration
• TIFF Proofer – TIFF-based proofing systems
• PS Proofer/PDF Proofer – PostScript and PDF proofing
• Accuset, Phoenix, Avantra, Galileo – Agfa imagesetter/platesetter systems
• Palladio – Agfa Palladio configuration
• PrintDrive – PrintDrive RIP integration
• SpiceLink TP – Spice workflow integration
• Spice TP Configuration – Spice system settings
• Press Task Processor – Press output management

SECTION 2: JDF (Job Definition Format) (Pages 77-122)

Complete JDF workflow server installation and configuration:

2.1 JDFServer Configuration

• JDF server setup and initialization
• JDF job intake configuration
• Production plan creation settings
• Resource management for JDF workflows
• Template assignment and management

2.2 Stripping Configuration

• Automated stripping setup
• Signature definition and management
• Page placement automation
• Binding specifications

2.3 Stripping Marks

• Registration mark configuration
• Trim mark settings
• Color bar placement
• Fold mark automation

2.4 JDF/JMF Problem Solving

• Troubleshooting JDF communication issues
• JMF (Job Messaging Format) diagnostics
• Integration testing procedures
• Error resolution strategies

SECTION 3: HIDDEN TP PARAMETERS (Pages 123-126)

Advanced service-level parameters for this PDF rendering task processor configuration manual:

3.1 Renderer – Render Operation Section

• Advanced rendering parameters
• Quality optimization settings
• Performance tuning options

3.2 Generic Proofer Image Quality Settings

• Resolution controls
• Color accuracy parameters
• Screening configurations

3.3 Generic Proofer Quality Settings

• Output quality optimization
• Media-specific adjustments
• Calibration parameters

SECTION 4: OPERATING SYSTEMS (Pages 127-157)

Multi-platform configuration and optimization:

4.1 Optimizing ApogeeX Server OS Performance

• Windows Server optimization
• Memory management
• Process prioritization

4.2 Windows Application Log Cleanup

• Event log management
• Diagnostic log maintenance

4.3 Regional Settings

• Localization configuration
• Date/time format settings
• Language preferences

4.4 Windows Scheduler

• Automated task scheduling
• Maintenance job automation

4.5 Extracting Files on Windows Systems

• File extraction procedures
• Archive management

4.6 Networking

• TCP/IP configuration
• Network optimization
• Bandwidth management
• DNS configuration
• DHCP settings
• Firewall configuration

4.7 Macintosh Operating System Specifics

• Mac OS X client configuration
• File sharing setup
• Network integration

4.8 Windows XP Firewall Issues

• Port configuration
• Exception management

4.9 Windows 2003 Folder Sharing

• Cross-platform file sharing
• Permission management

4.10 How to Measure Network Speed

• Performance testing tools
• Bandwidth verification

4.11 Choose Language for OSX Client

• Localization settings
• Interface customization

4.12 Logon with VNC to OSX 10.4 from PC

• Remote access configuration
• VNC setup procedures

4.13 Create Print Spoolers

• Spooler configuration
• Queue management

SECTION 5: SYSTEM RECOVERY (Pages 159-188)

Critical backup and disaster recovery procedures for commercial printing workflow automation:

5.1 ApogeeX Backup Possibilities

• Full system backup strategies
• Database backup procedures
• Configuration backup
• Job archive backup
• Incremental backup methods

5.2 Disk Mirroring

• RAID configuration
• Mirror setup procedures
• Synchronization management

5.3 Failover Server

• High availability configuration
• Automatic failover setup
• Load balancing
• Disaster recovery planning

5.4 Archiving Jobs

• Job archive creation
• Archive retrieval procedures
• Storage management
• Archive restoration

SECTION 6: SERVICE TOOLS AND TRACING (Pages 189-216)

Comprehensive diagnostic and troubleshooting tools for ApogeeX 4.0 system configuration troubleshooting:

6.1 Tracing Information

• System logging configuration
• Debug trace activation
• Log file analysis

6.2 Monitor Tool

• Real-time system monitoring
• Performance metrics
• Resource utilization tracking

6.3 Providing Job Information for Support

• Support package creation
• Job data extraction
• Diagnostic information gathering

6.4 Logging Information for Macintosh Client

• Mac client diagnostics
• Log file locations
• Debug procedures

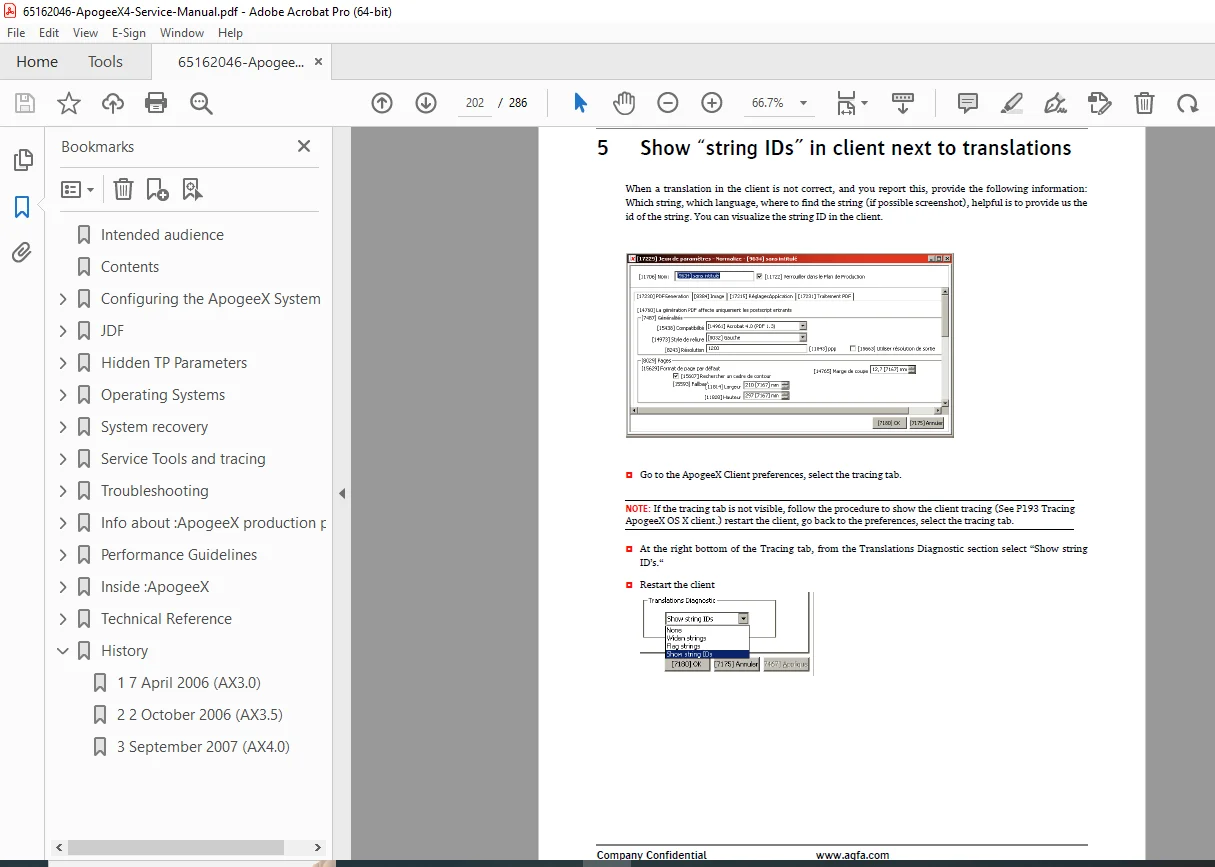

6.5 Show “String IDs” in Client

• Localization debugging
• Translation verification

6.6 ApogeeX System Rename

• System renaming procedures
• Database updates
• Configuration adjustments

6.7 Shrink the SQL Database

• Database optimization
• Space reclamation
• Performance improvement

6.8 Cleanup Dangling Job Resources

• Resource cleanup utilities
• Orphaned file removal

6.9 Cleanup Unused Resources

• System maintenance
• Storage optimization

6.10 ApogeeX Scripts

• Automation scripts
• Utility programs

6.11 Logging Toolkit (MIS Connection)

• MIS integration logging
• Communication diagnostics

6.12 DataStore Recovery Tool

• DataStore repair procedures
• Corruption recovery

6.13 Archive Recovery Tool

• Archive restoration utilities
• Data recovery procedures

6.14 Custom Proofing Mark: Jobparams

• Custom mark configuration
• Parameter customization

6.15 ApoDiag Tool

• Comprehensive diagnostic utility
• System health verification

SECTION 7: TROUBLESHOOTING (Pages 217-250)

Extensive troubleshooting procedures for Agfa imagesetter platesetter service procedures:

Common Installation Issues:

• ApogeeX installer failures
• Satellite installation problems
• Uninstall failures
• System startup issues
• Failover server connection problems

Database and Storage Issues:

• SQL database size reduction
• Disk storage synchronization
• Disabled disk location recovery

Client Issues:

• Login failures
• Empty job windows
• MAC client specific problems
• DNS configuration issues
• PDF viewing problems from Macintosh
• Client animation issues

Workflow Issues:

• Imposition template visibility
• Spot color mapping automation
• Mail server configuration verification
• Message board management
• Linearization curve sharing
• PrintDrive DQS and inkdrive file issues
• Media loading problems
• RIP connection naming
• Double separation issues
• Multiflow CMYK and gray processing
• Trapping artifacts
• Job archiving failures

System Administration:

• Windows event log interpretation
• Auto-start configuration
• Performance optimization

SECTION 8: INFO ABOUT APOGEEX PRODUCTION PLANS (Pages 251-262)

Workflow design and optimization for PDF rendering task processor configuration:

8.1 Render Task Processor

• Rendering workflow design
• Input configuration
• Output optimization

8.2 Second Renderer (Dedicated Proofing Renderer)

• Separate proofing workflows
• Performance optimization

8.3 PDFReady Task Processor

• Transparency handling
• Trapping workflows
• Color normalization

8.4 Normalizer Task Processor

• File normalization workflows
• Format conversion

8.5 Preflight Task Processor

• Quality control workflows
• Error detection

8.6 Impose and Runlist Task Processor

• Imposition automation
• Signature creation
• Runlist management

8.7 Export Task Processor

• Export workflow configuration
• File delivery automation

8.8 Proofing

• Proofing workflow design
• Quality control procedures

8.9 Clipping on (Sherpa) Proofers

• Sherpa-specific configuration
• Clip area definition

8.10 Generic Proofers

• Universal proofer configuration
• Output centering

8.11 Press Task Processor

• Press workflow management
• Output coordination

8.12 Actions

• Automated action configuration
• Hold points and routing

8.13 TIPS

• Best practices
• Performance recommendations

SECTION 9: PERFORMANCE GUIDELINES (Pages 263-272)

System optimization for maximum throughput:

9.1 General Performance

• Virus scanner considerations
• Database backup optimization
• SQL Server tuning
• Scheduling optimization
• Disk defragmentation
• Hyperthreading configuration
• Storage server implementation
• Preflight warning management
• Hotfolder optimization

9.2 Commercial Printer Performance Guidelines

• High-volume workflow optimization
• Resource allocation

9.3 Book Printer Performance Guidelines

• Long-run job optimization
• Memory management

9.4 System Tuning

• Advanced optimization techniques
• Bottleneck identification

SECTION 10: INSIDE APOGEEX (Pages 273-276)

Technical architecture overview:

10.1 ApogeeX Server Components

• Server architecture
• Process management
• Service components

10.2 ApogeeX Service Components

• Background services
• System daemons

10.3 ApogeeX DataStores

• Data storage architecture
• Resource management
• File organization

SECTION 11: TECHNICAL REFERENCE (Pages 277-280)

Essential technical information:

11.1 DNS (Domain Name System)

• DNS configuration
• Name resolution
• Network setup

11.2 Working with Hosts Files (No DNS Server)

• Manual name resolution
• Hosts file configuration

SECTION 12: HISTORY (Pages 281-286)

Version history and updates:

• ApogeeX 3.0 (April 2006)
• ApogeeX 3.5 (October 2006)
• ApogeeX 4.0 (September 2007)
• Major changes and improvements
• Feature additions and enhancements

Who Should Use This Manual?

This Agfa ApogeeX prepress workflow service manual is essential for:

• Agfa Certified Service Engineers performing system installations and maintenance
• Prepress Workflow Administrators managing ApogeeX environments
• IT System Administrators supporting printing operations
• Commercial Printing Service Technicians maintaining workflow systems
• Book Printing Production Managers optimizing workflows
• Digital Prepress Specialists configuring production plans
• MIS Integration Engineers implementing automated workflows
• Graphic Arts Equipment Service Companies supporting Agfa systems

What Makes This Service Manual Invaluable?

✓ Complete System Coverage – Every component, task processor, and configuration option documented ✓ Service-Level Access – Hidden parameters and advanced settings revealed (Service password: CONNECTX) ✓ JDF Integration – Complete JDF/JMF workflow automation setup ✓ Multi-Platform Support – Windows and Macintosh configuration procedures ✓ Disaster Recovery – Comprehensive backup, failover, and recovery procedures ✓ Performance Optimization – Commercial and book printer tuning guidelines ✓ Extensive Troubleshooting – Solutions for common and complex issues ✓ Network Configuration – Complete networking setup and optimization ✓ Database Management – SQL Server configuration and maintenance

Service and Maintenance Capabilities Covered

This ApogeeX 4.0 system configuration troubleshooting guide enables you to:

• Install and configure complete ApogeeX 4.0 systems
• Set up JDF workflow automation with MIS integration
• Configure all task processors for optimal performance
• Integrate Agfa imaging devices (Accuset, Avantra, Galileo, Phoenix, Palladio)
• Set up Sherpa and generic proofer systems
• Implement failover servers for high availability
• Create comprehensive backup and recovery strategies
• Optimize system performance for commercial and book printing
• Troubleshoot complex workflow issues
• Configure advanced PDF rendering and trapping
• Set up automated imposition and stripping
• Manage network configurations across platforms
• Perform database optimization and maintenance

Supported Agfa Imaging Systems

This Agfa imagesetter platesetter service procedures manual covers:

• Accuset imagesetters
• Avantra imagesetters and platesetters
• Galileo platesetters
• Phoenix imagesetters
• Palladio platesetters
• Sherpa proofers
• Generic TIFF and PostScript proofers
• Generic imagesetters and platesetters

FILE DETAILS

Manual Name: ApogeeX 4.0 Service Manual

System Covered: Agfa ApogeeX 4.0 Prepress Workflow System

Version: 4.0 (September 2007)

Document Type: Official Agfa-Gevaert Service Manual (Company Confidential – For Service Engineers Only)

Total Pages: 286 pages

File Size: 8.6 MB

Language: English

Page Format: A4

Manual Authors: Agfa-Gevaert N.V. (Bert Leempoels, Kris Willocx)

Software Covered: ApogeeX Server, ApogeeX Client (Windows/Macintosh)

Operating Systems: Windows 2000/2003/XP, Mac OS X 10.4+

PDF Quality: Excellent – Professionally created PDF from FrameMaker 7.0, searchable text, clear diagrams, well-organized navigation
