Agfa DX-D 600 Table Service Manual Repair, Calibration & Schematics (2022) PDF
Original price was: $120.00.$35.95Current price is: $35.95.
Official Service Manual for the Agfa DX-D 600 RAD Table (Edition 1, Rev 6, 2022). This comprehensive technical guide covers installation, mechanical adjustments (brakes, height), digital detector integration (fixed & portable), and detailed troubleshooting. Includes complete wiring diagrams, motor replacement procedures, and periodic maintenance schedules for the elevating table system. Essential for imaging engineers maintaining Agfa DR rooms.
Description
Agfa DX-D 600 Table Service Manual Repair, Calibration & Schematics (2022) PDF DOWNLOAD
DESCRIPTION
Keep Your Digital Radiography Suite Operational
The Agfa DX-D 600 Table Service Manual is the definitive technical resource for installing, calibrating, and repairing the RAD Table NET component of the DX-D 600 system. Manufactured by SEDECAL for Agfa, this manual provides the deep-level engineering data required to maintain the precise mechanical and digital functions of this premium X-ray table.
Whether you are troubleshooting a vertical movement lock, replacing a lift motor, or retrofitting a new DR detector, this manual guides you through every step with factory-approved procedures and safety warnings.
Detailed Manual Contents:
Installation & Setup:
Pre-installation: Floor preparation, anchorage hole templates, and power line requirements (115-240V).
Assembly: Step-by-step table base anchoring, tabletop installation (orange mark alignment), and cable routing.
Detector Integration: Detailed instructions for installing Fixed DR Detectors with removable grids and setting up Portable Detector configurations.
Mechanical Adjustments:
Brakes: Procedures for adjusting longitudinal and transversal electromagnetic brakes (250N/220N holding force).
Height Calibration: Configuring the Vertical SID Potentiometer and adjusting the Intermediate Height Detent (factory set at 750mm).

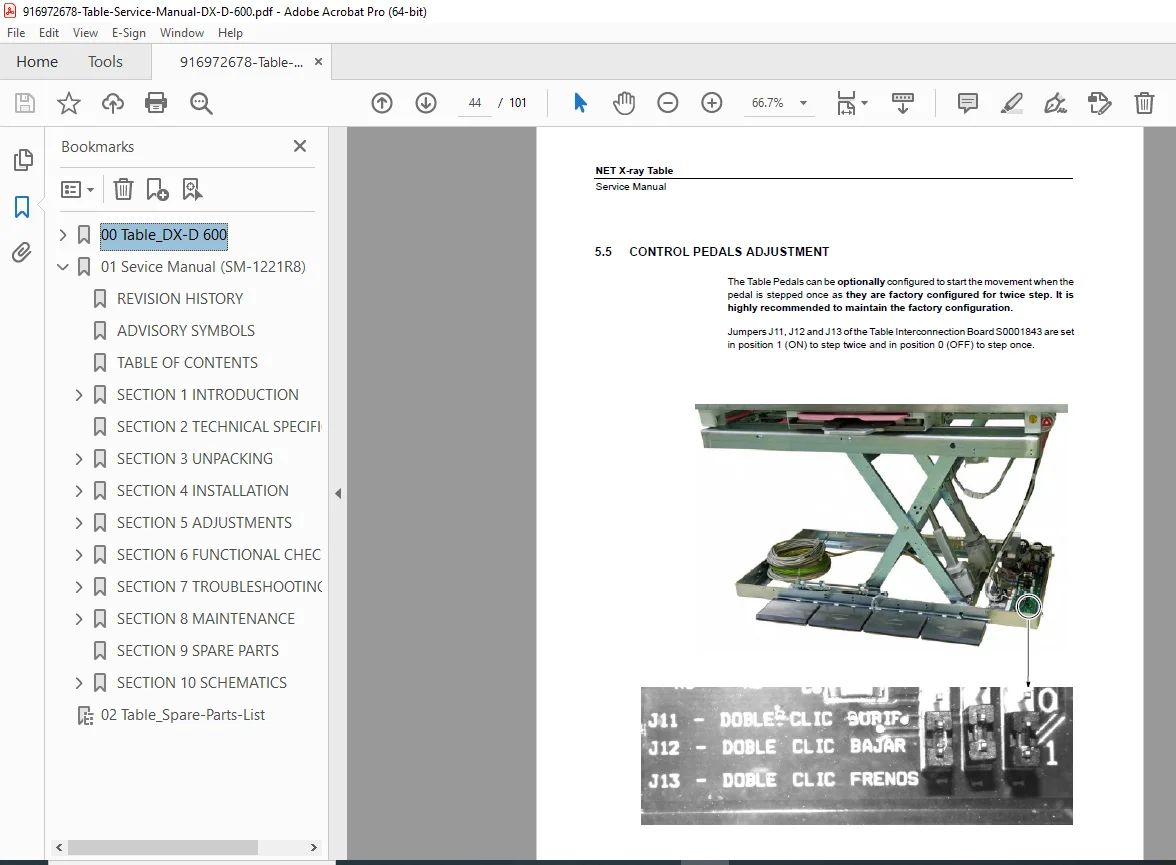

Pedals: Adjusting control pedal height and configuring single/double step activation via jumpers (J11-J13).
Troubleshooting & Repair:
Fault Isolation: “List of Errors” for common issues like “Vertical Movements Blocked” or “Table Cannot Switch ON.”
Component Replacement: Safe procedures for replacing Lift Motors, Gas Springs, and Power Line cables.
Emergency Systems: Testing and resetting the Emergency OFF switch and Anti-collision safety devices.
Preventive Maintenance:
Annual Checklist: Complete schedule for inspecting steel cables, greasing scissors guides, checking motor anchorage, and verifying ground continuity.
Schematics & Wiring:
Full System Diagrams: Interconnection Board (S0001843), LED Power Supply, and Detector Adaptation wiring.
Pinouts: Detailed pin configurations for Double Pedal Interfaces and Doctor/Bucky connections.
Key Technical Specifications:
Lift Range: 575mm (min) to 915mm (max).
Load Capacity: 335 kg (Table weight) + 90 kg test load.
Tabletop Travel: 1100mm Longitudinal / 250mm Transversal.
FILE DETAILS

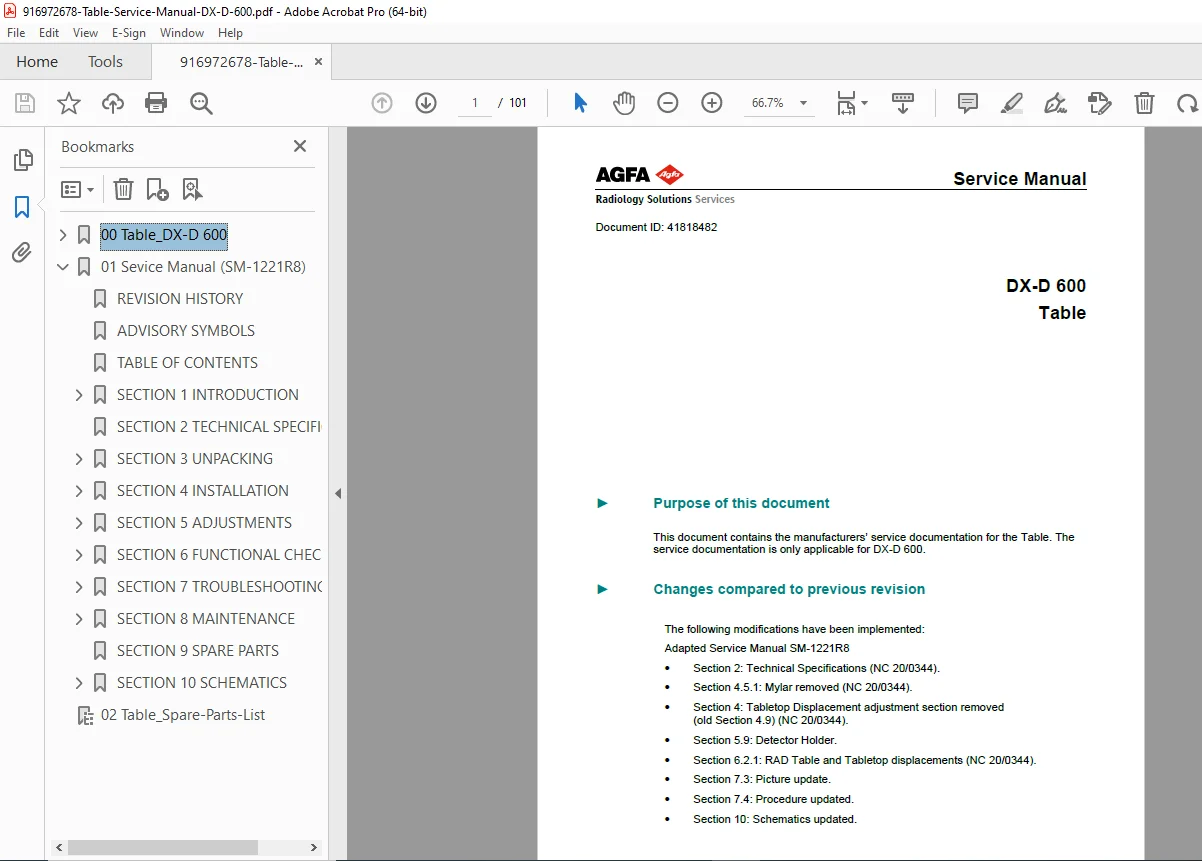

Manual Name: Agfa DX-D 600 Table Service Manual (SM-1221R8)
Models Covered: RAD Table NET (for DX-D 600 System)
Year: 2022 (Edition 1, Revision 6)
File Type: Digital PDF (Searchable, Printable)
Total Pages: 101 pages
Content: Text, Wiring Diagrams, Exploded Views, Logic Trees
⚡ INSTANT DOWNLOAD: Your radiology department cannot afford downtime. Purchase this manual now to instantly access the official wiring diagrams and motor replacement procedures you need to fix your Agfa DX-D 600 table today!
