Description

Airbus A319/A320 Exterior Placards Illustrated Catalogue – GetJet Airlines Minor Change JCAERO/MODC/0728

This comprehensive Airbus A319 A320 Exterior Placards Illustrated Catalogue delivers the complete engineering documentation required to remove, replace, and install alternative exterior English technical placards on GetJet Airlines aircraft. Issued by J & C Aerospace Design and Certification Services EEU Ltd. under EASA.21J.580, the package includes the Minor Change to TC or Minor Repair Design Approval (JCAERO/MODC/0728) alongside two fully illustrated catalogues covering every affected placard and marking.

Whether you are a Part 145 maintenance organisation, a Part 21G production organisation, or an operator responsible for the continued airworthiness of these aircraft, this Airbus A319 A320 exterior placards catalogue provides the part numbers, installation positions, material specifications, and quantity data needed to carry out placard replacement correctly and in full compliance with the approved design.

File Details

• Document Type: Minor Change to TC or Minor Repair to EEU Products Design Approval
• Change/Repair No.: JCAERO/MODC/0728
• Engineering Order: JCAERO/EO/0728-1
• Customer: GetJet Airlines
• Organisation Approval No.: EASA.21J.580
• Issue: 1.0
• Date: 26 April 2021
• Language: English
• Page Count: 375+ pages across the approval package and two illustrated catalogues
• File Format: PDF

Chapters Covered

• Change or Repair Description — Introduction, Definitions, Aircraft Make/Type and Constructor’s Serial Number
• Certification Basis — JAR-25 Change 11, EASA TCDS EASA.A.064 Issue 47, associated Explanatory Notes
• Compliance with Requirements — Certification basis, Environmental requirements, Design requirements for operational approvals, System review and safety analysis, Electrical load analysis, Mass and balance, Tests, Software changes
• Conditions Affecting Approval — Limitations, Concessions, Additional inspection requirements, Configuration definition
• Continued Airworthiness — Influence on Airworthiness Directives, Influence on maintenance program, Manuals and documents affected
• Master Document List — Compliance documents, ECN and drawings, Instructions for continued airworthiness
• Placards Part Number — EPA identification, font type and size, font colour requirements
• General Notes — Dimensional checks, tolerance values, quantity variations, non-customisable parameters
• Standard Colors — Fire Red, Green, Grey, Black, White, Red with RAL and CMYK codes
• Material — 3M Controltac graphic film, SORAMASK stencil film, adhesive types, application tape recommendations
• Lettering — Alte DIN 1451 Mittelschrift font specification
• Part Number and EPA Marking — Part number build-up structure and EASA Part 21 marking requirements
• Placard Installation — Application procedures, edge sealing, adhesive curing times, inspection requirements
• Installation Layout and List of Items Numeric Index — Detailed exploded views and positional data for fuselage, wings, pylons, engines, and landing gear placards
• Kits Identification — Placard and stencil kits by aircraft effectivity, material combinations
• Placards Quantity Table — Full part number quantities per aircraft

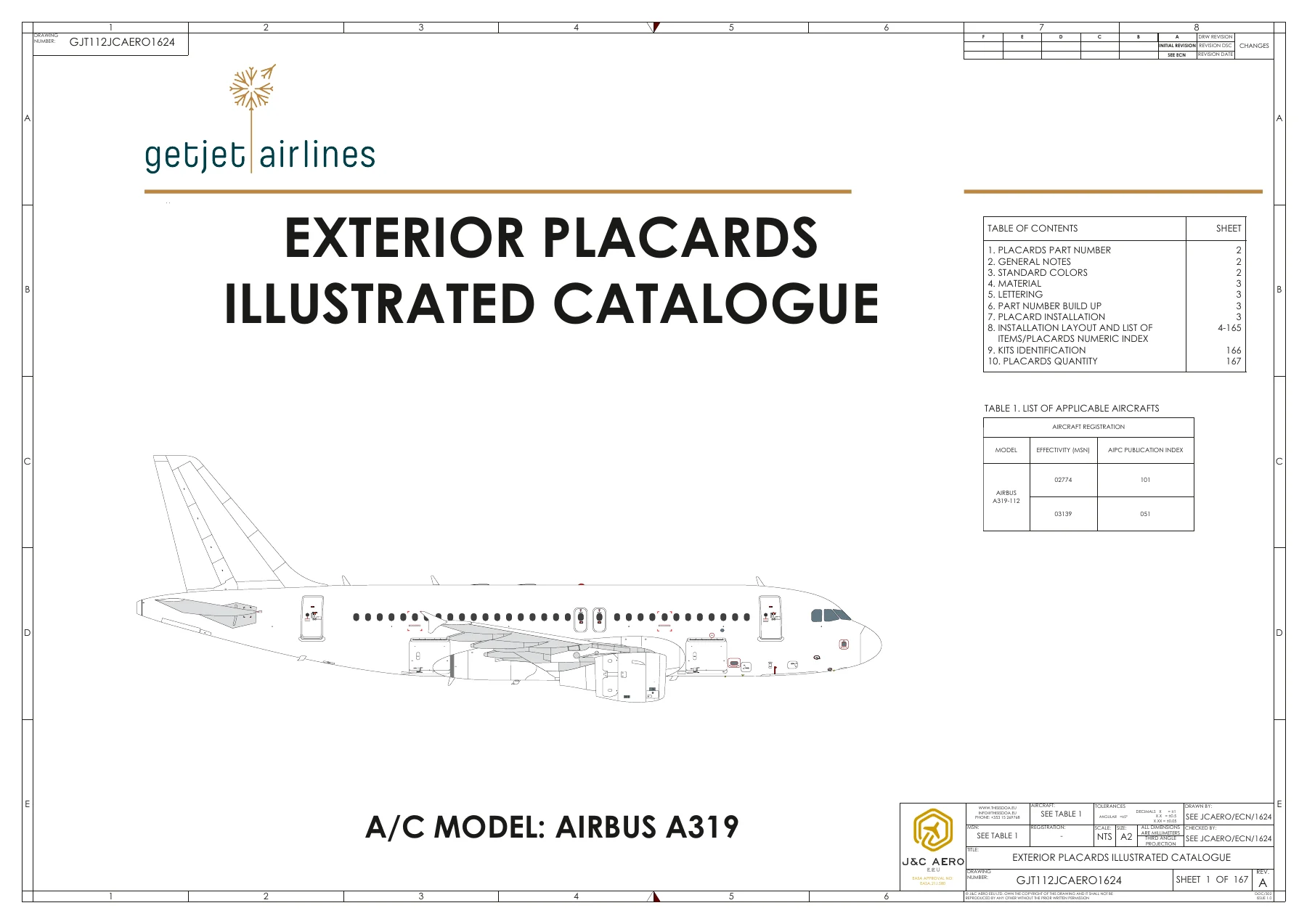

This Airbus A319 A320 exterior placards catalogue is divided into two illustrated catalogues: drawing GJT112JCAERO1624 covering the A319-112 aircraft (MSN 02774 and 03139), and drawing GJT112JCAERO1625 covering the A320-214 (MSN 01087), A320-232 (MSN 00928, 02029, 02077), and A320-233 (MSN 02118). Each catalogue contains its own installation layout views, part number indexes, and quantity tables, giving the technician a complete reference for every placard and stencil on the aircraft exterior.

What This Exterior Placards Catalogue Enables

Replacing exterior placards on an Airbus A319 or A320 is not simply a matter of ordering a decal and sticking it on. Every placard — from the EXIT markings and NO STEP warnings to the CAUTION HIGH AIR FLOW INTAKE and DANGER RESIDUAL CABIN PRESSURE notices — must be positioned correctly, manufactured from approved materials, and applied using the correct procedures to ensure continued compliance with the aircraft’s type certificate. This Airbus A319 A320 exterior placards catalogue provides all the data needed to do exactly that.

The document supports the removal and installation of exterior placards across the entire aircraft. On the fuselage, it covers static port markings, angle of attack sensor markings, avionics equipment vent placards, oxygen discharge markings, ground electric connection labels, potable water service panel identifications, toilet service placards, and emergency cut markings. The wing sections are covered in detail, with water drain valve labels, magnetic fuel level markings, jet fuel specifications, no-walk zone markings, and flap support fairing identifications. Engine placards are also fully addressed, including fire extinguisher locations, fan cowl door warnings, pivoting door instructions, hoist point markings, and thrust reverser cautions. The landing gear sections cover tyre pressure specifications and tow bar angle markings.

The Airbus A319 A320 exterior placards catalogue also provides the part number breakdown for every EPA-marked placard. Each placard carries a unique European Part Approval number that identifies the drawing number, material combination, group number, language, and item number. This makes it straightforward to identify the correct replacement part, order it from an approved manufacturer, and verify that what has been supplied matches what is required by the design approval.

Material specifications are also included, detailing the 3M Controltac graphic film with HP Latex ink and the SORAMASK stencil film used for painted markings. The catalogue specifies edge sealing requirements, adhesive curing times, and application tape recommendations, ensuring that placards remain serviceable in the operational environment. The standard colour table provides RAL and CMYK codes for Fire Red, Green, Grey, Black, White, and Red, so that manufacturers and installers can maintain colour consistency across the placard set.

Why This Document Matters for Maintenance and Continued Airworthiness

Exterior placards are not decorative. They convey essential safety information to ground personnel, maintenance crews, and emergency responders. A missing or illegible placard can compromise safety, invalidate maintenance release, or lead to findings during an audit. The Airbus A319 A320 exterior placards catalogue exists precisely to prevent those situations by providing an approved, documented reference for every external marking on the aircraft.

The document also captures the certification basis for the change, confirming that the replacement placards meet JAR-25 Change 11 requirements as defined in the EASA Type Certificate Data Sheet. It records the influence of the change on Airworthiness Directives and the maintenance program, and confirms that no new instructions for continued airworthiness are required. For a Part 145 organisation, this means the document can be used directly as the engineering reference for placard replacement tasks, with the assurance that the design has been approved under EASA.21J.580.

The Airbus A319 A320 exterior placards catalogue also addresses the practical realities of placard replacement. It notes that placard replacement can be done partially — replacing only affected or damaged placards — or fully, by replacing all introduced placards. It provides guidance on trimming placards around fastener heads and panel edges to suit aircraft configuration, and it records the acceptability of adjusting technical marking positions where necessary. This flexibility is essential for maintenance operations where aircraft configurations may vary.

For operators managing a mixed fleet of A319 and A320 aircraft, the document’s separation into two effectivity-based catalogues makes it easy to identify which placards apply to which aircraft. The A319-112 aircraft with MSN 02774 and 03139 use drawing GJT112JCAERO1624, while the A320-214, A320-232, and A320-233 aircraft use drawing GJT112JCAERO1625. Each catalogue includes its own kit identification, so the correct placard and stencil kit can be ordered for each aircraft without ambiguity.

Coverage Detail

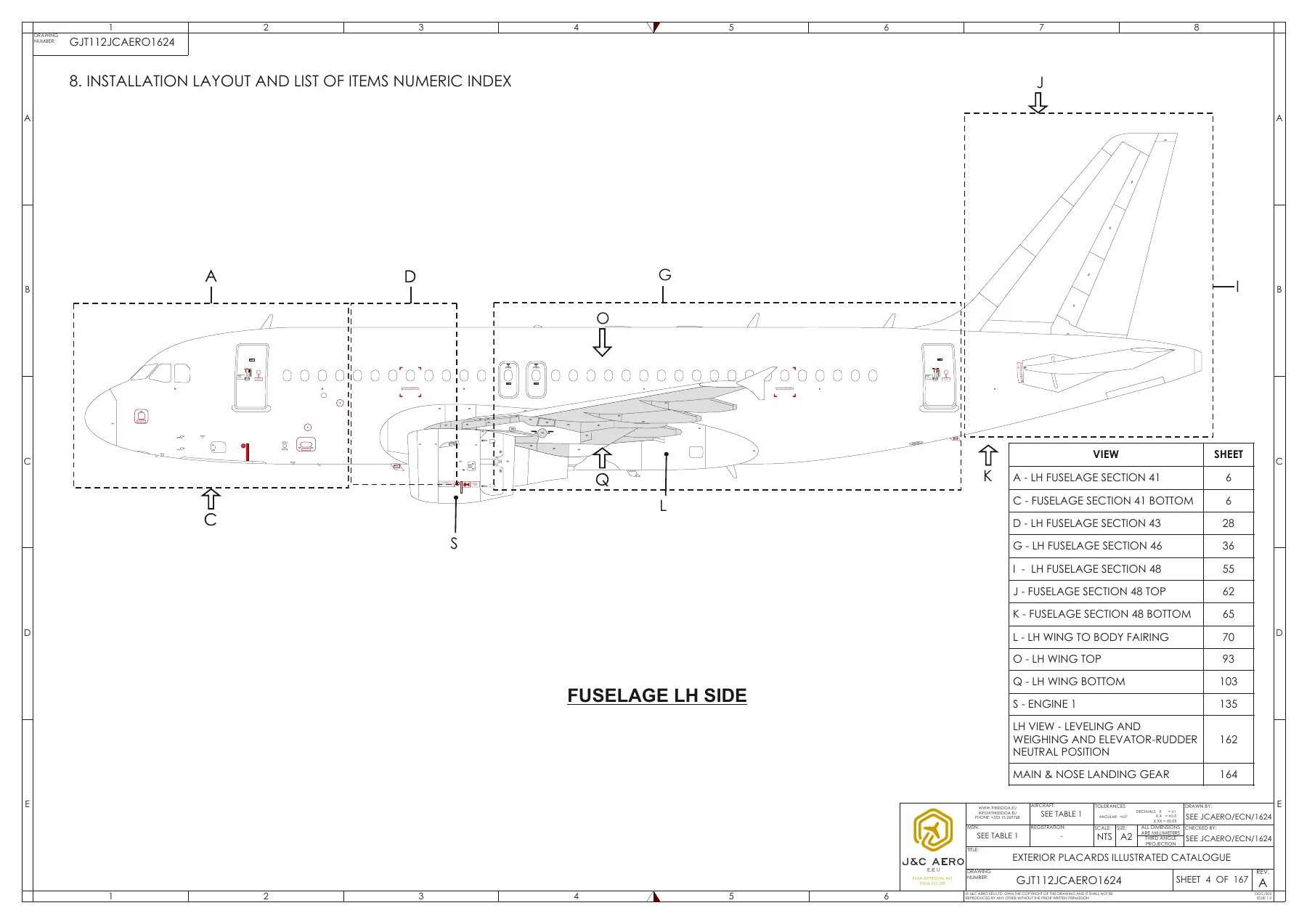

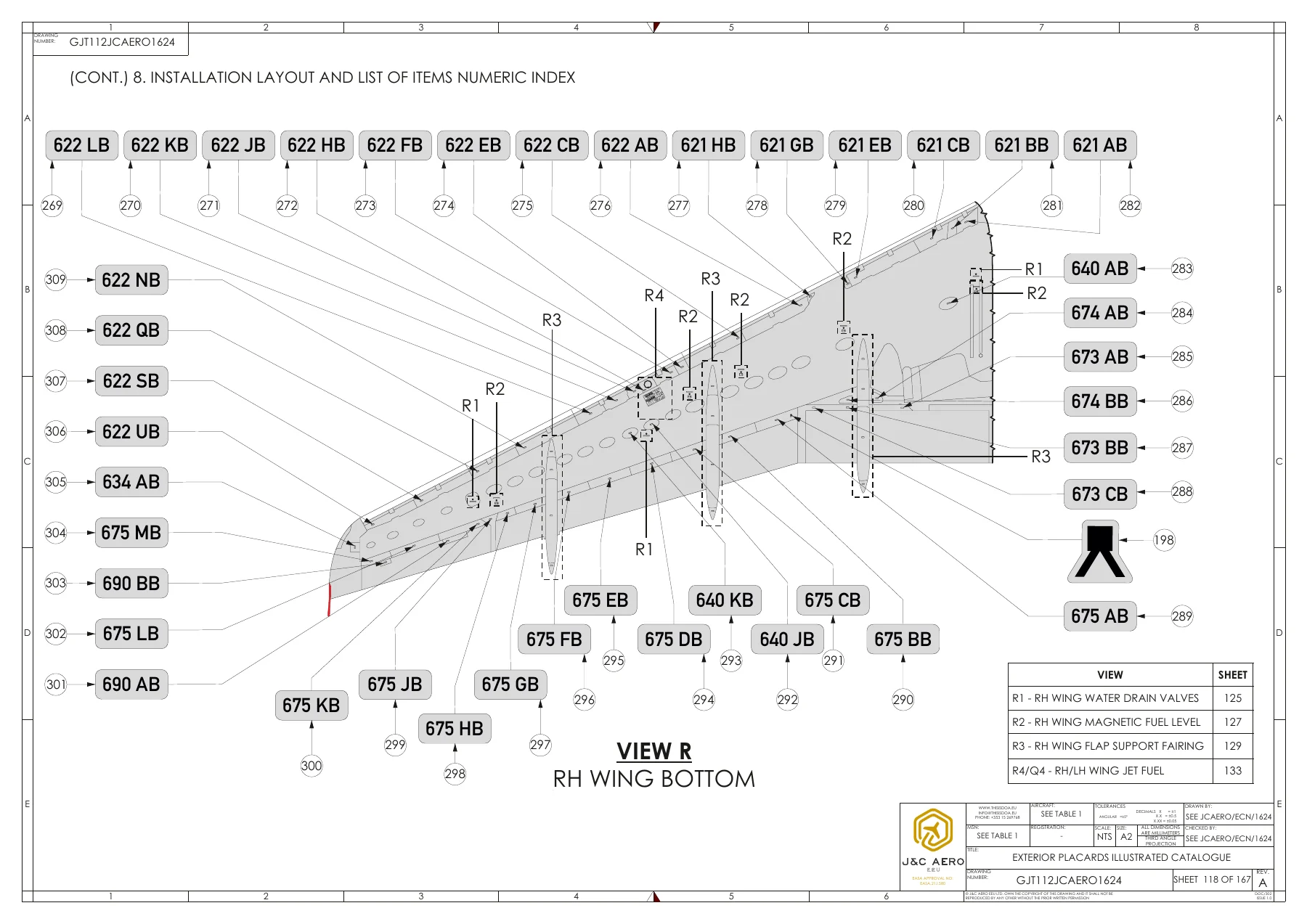

The installation layout sections are among the most valuable parts of this Airbus A319 A320 exterior placards catalogue. They show each view of the aircraft — left-hand and right-hand fuselage sections, wing tops and bottoms, flap and slat areas, engine inboard and outboard sides, landing gear, and access panels — with every placard and stencil identified by item number. The numeric index then lists each item with its OEM part number, EPA part number, layout, size, letter height, colour, quantity per view, IPC/DWG reference, and effectivity. This level of detail means a technician can locate a placard on the aircraft, cross-reference it to the illustrated layout, identify its part number, and confirm its appearance and size before ordering or installing a replacement.

The Airbus A319 A320 exterior placards catalogue also includes stencil information for painted markings, with notes on stencil material, paint colour references, and application procedures in accordance with Airbus AMM 11-00-00-370 and AIPC 11-00-00. Painted markings such as the red static port circles and the no-step zone outlines are covered, with their dimensions, line weights, and application requirements specified.

For organisations involved in aircraft painting or livery changes, the document provides the data needed to ensure that exterior placards and markings are reinstated correctly after paint work. For organisations performing routine maintenance, it provides a reference for checking the condition and presence of mandatory placards. For anyone managing the continued airworthiness of these aircraft, it provides the approved data that demonstrates compliance with the type certificate.
