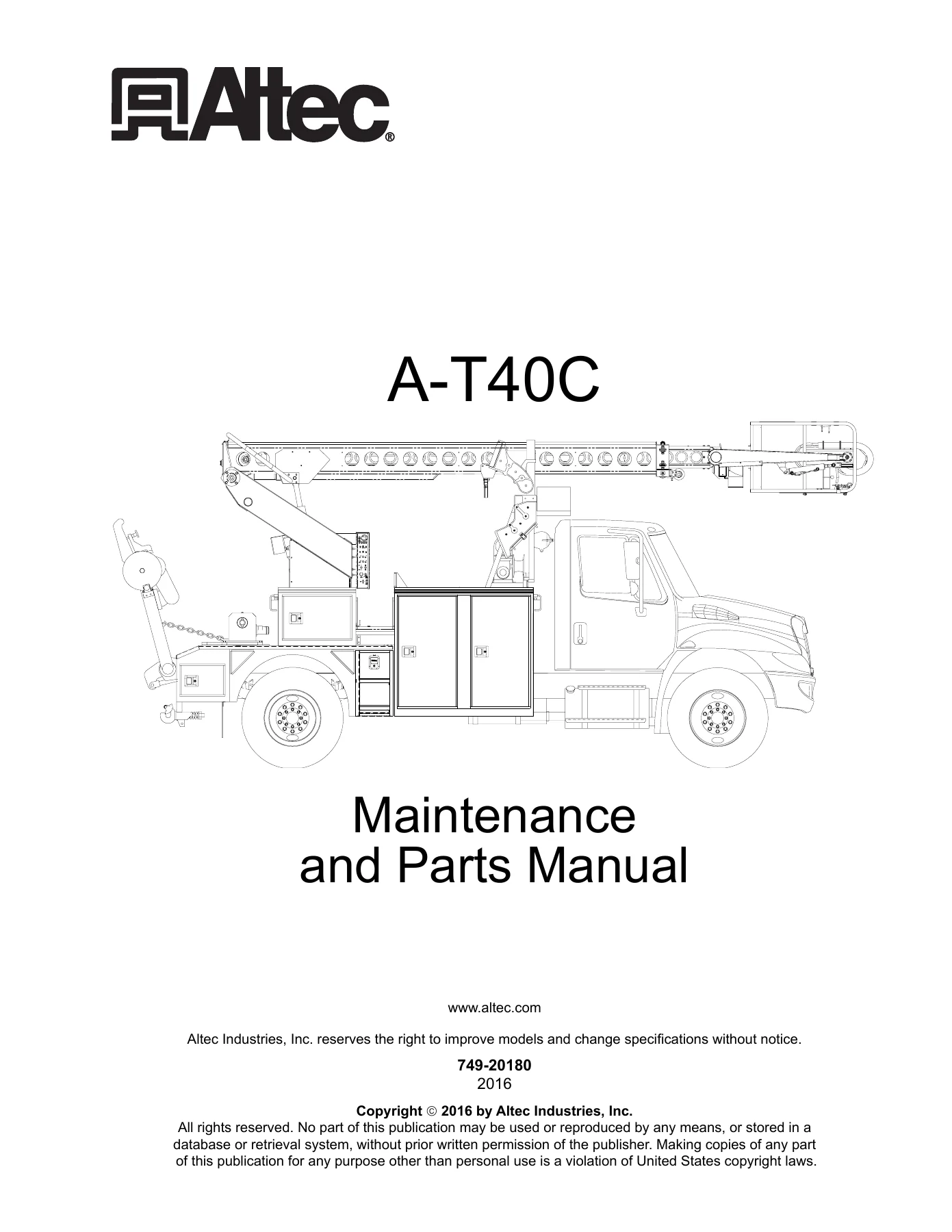

Altec A-T40C Maintenance and Parts Manual PDF

Description

File Details

• Manual type: Maintenance and Parts Manual
• Brand: Altec
• Model: A-T40C
• Language: English
• Page count: 136
• File format: PDF
• Document number: 749-20180
• Date: 2016

Chapters Covered

• Section 1 — Introduction: About This Manual
• Section 2 — Unit Specifications: General Specifications, Component Identification
• Section 3 — Safety: Safety Instructions, Disclaimer of Liability

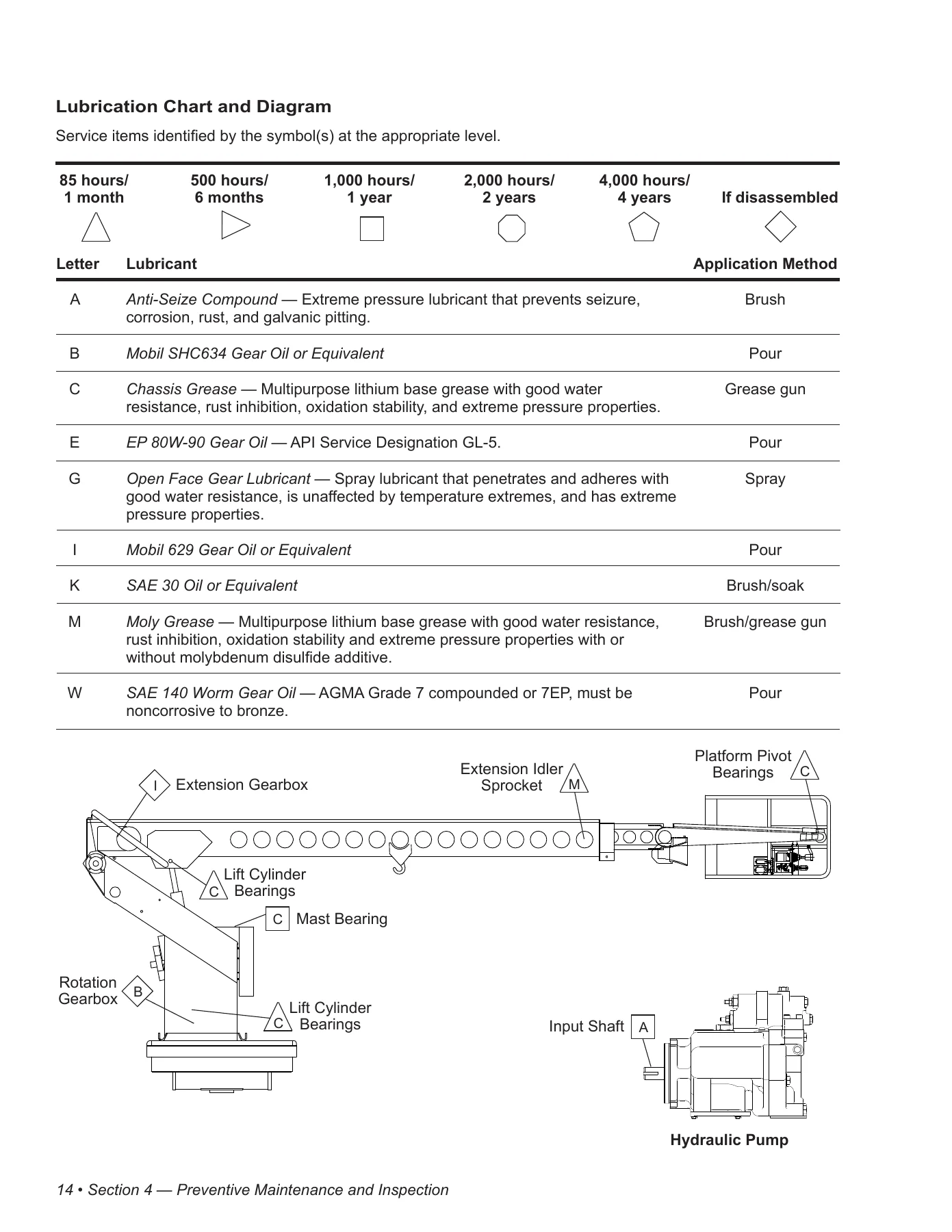

• Section 4 — Preventive Maintenance and Inspection: Equipment Storage, Protective Measures, Hydraulic System, Cleanliness Precautions, Filtration, Oil Specifications, Oil Condition, Changing Oil and Flushing the System, Lubrication, Lubrication Chart and Diagram, Structures, Care of Exterior Surfaces, Welds, Platform and Forkarm Assembly, Boom Assembly, Azimuth Drive (Rotation), Elevation System, Air/Hydraulic Disc Brake System, Fasteners, Rotation Gearbox Mounting Cap Screws, Pins and Pin Retainers, Bearings, Spherical Bearings, Self-Lubricating Bearings, Tapered Roller Bearing, Cylinders, Hydraulic Lines, Platform Leveling System, Winch Line, Accident Prevention Signs, Accident Prevention Signs Diagram
• Section 5 — Hydraulic System: Load Sense, Oil Reservoir, Pump, Valves, Holding Valves, Cavitation and Aeration, Air Bleeding, Leakage, Heat Generation, Fittings and Valve Cartridges, Torque and Tightening Procedures, Cylinders
• Section 6 — Mechanical Systems: Side Load Protection System, Chain Sling, Tow Line Winch, Winch Line, Bearings, Reel Lifter Hand Bearings, Strand Carrier Hand Bearings, Stringing System Roller Shaft Bearings, Stabilizer Bars, Rear Axle Stabilizer Bar, Front Axle Stabilizer Bar, Platform, Forkarm Assembly, Extension Chain, Extension Limit Switch Adjustment, Safety Cam System, Inner Boom, Azimuth Drive Gearbox, Elevation Cylinder, Tankhead and Turntable
• Section 7 — Electrical System: Intercom System, Ground Fault Interrupter
• Section 8 — Troubleshooting, Testing, and Adjustments: Troubleshooting Procedure, Hydraulic System, Cycle Times, Standby Pressure, System Pressure, System Pressure Relief Valve, Pump Flow, Lift Cylinder, Lower Tool Circuit, Holding Valves, Side Load Protection System, Elevation System, Platform Leveling, Front Drive PTO Reel Lifter Tool Circuit/Capstan, Mechanical System, Boom Guide Bearings, Extension System, Rotation System, Lift Mount Cap Screws, Reel Brake Air/Hydraulic Disc, Coalescent Filter, Rotors and Pads, Electrical System, Failure Identification
• Section 9 — Structural and Stability Testing: Structural, Stability, Test Forms, General Test Conditions, Level Surface Test, Five Degree Slope Test

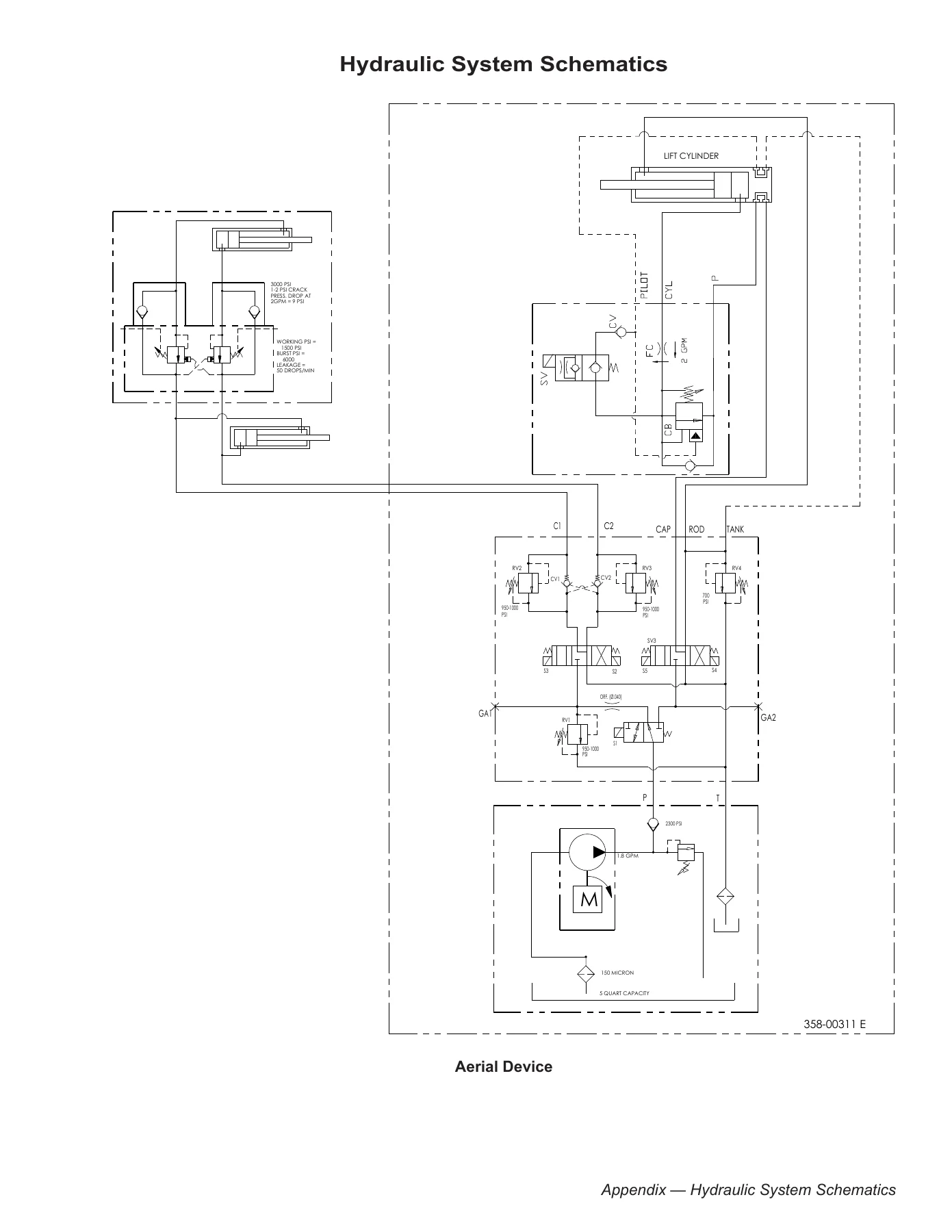

• Appendix: Glossary, Service Tools and Supplies, Accessory Checklist, Preventive Maintenance and Inspection Checklist, Torque Values, Basic JIC Symbols, Hydraulic System Schematics, Basic Electrical Symbols, Wiring Line Diagrams, Stability Test Form

This Altec A-T40C Maintenance and Parts Manual PDF gives technicians the complete service and maintenance reference for the A-T40C telescopic boom aerial device. It combines preventive maintenance schedules, hydraulic and mechanical system service, electrical troubleshooting, testing and adjustment procedures, structural inspection guidance, and stability test forms in one document. The manual opens with unit specifications and component identification, then moves into safety, filtration, oil condition, lubrication, and the detailed maintenance routines that keep the A-T40C operating safely. Later sections cover load-sense hydraulics, holding valves, cylinders, winch line service, reel lifter and strand carrier bearings, extension chain and limit switch adjustment, rotation gearbox and brake service, and electrical system checks including the intercom and ground fault interrupter. The troubleshooting and adjustment chapter is especially useful for diagnosing pressure, flow, drift, side load protection, platform leveling, and pump performance issues. The appendix adds torque values, JIC and electrical symbols, hydraulic and wiring schematics, a preventive maintenance checklist, and stability test forms.

Procedures and Systems Covered

The A-T40C manual is built around real service tasks. You can use it to check and adjust standby pressure, system pressure, and relief valve settings; test pump flow; inspect and replace holding valves; service lift cylinders, reel lifter cylinders, and platform leveling cylinders; bleed hydraulic systems; and troubleshoot leakage, cavitation, aeration, and heat generation. Mechanical coverage includes the boom assembly, extension chain and sprocket inspection, safety cam system, forkarm alignment, platform door and safety chain, tow line winch, stringing system rollers, stabilizer bars, azimuth drive gearbox, and elevation cylinder. Electrical coverage includes the intercom system and ground fault interrupter. The manual also gives detailed torque and tightening procedures for hydraulic fittings, valve cartridges, SAE O-ring fittings, JIC fittings, and split flanges, along with fastener torque values and inspection mark procedures.

Specifications You Can Reference

Key A-T40C specifications are included for maintenance and adjustment work: maximum ground to bottom of platform height 34 ft (10.36 m); working height 39 ft (11.89 m); side reach 28 ft 2 in (8.59 m); travel height 11 ft 6 in (3.51 m); maximum hydraulic pressure setting 2,350 psi (162.03 bar); rotation 720 degrees total noncontinuous; oil reservoir capacity 25 gallons (94.64 l); elevation system reservoir 1/8 gallon (3.31 l); boom articulation -20 to +64 degrees; upper boom extension 9 ft 4 1/4 in (2.86 m); maximum strand carrier reel diameter 24 in (60.96 cm); maximum strand carrier reel width 25 in (63.50 cm); maximum strand carrier capacity 2,000 pounds (907 kg); maximum strand carrier brake torque 9,600 inch-pounds (1,085 N·m); maximum reel lifter reel diameter 7 ft (2.13 m); maximum reel lifter reel width 5 ft 11 in (1.80 m); maximum reel lifter capacity 6,000 pounds (2,722 kg); reel lifter driver torque 20,000 inch-pounds (2,260 N·m); maximum reel lifter brake torque 9,600 inch-pounds (1,085 N·m); lower boom lifting eye capacity 2,000 pounds (907 kg); tow line winch capacity 1,200 pounds (544 kg); maximum tow line winch speed 22 fpm (6.71 mpm); synthetic winch line 7/16 in (11.11 mm); tool pressure 2,000 psi (137.90 bar); tool flow 8 gpm (30.28 lpm); total unit capacity 500 pounds (227 kg); maximum platform capacity 500 pounds (227 kg); maximum cable down load 150 pounds (68 kg); fairlead rotation 360 degrees; fairlead articulation 180 degrees; maximum side load capacity 600 pounds (272 kg) fairlead half extended.

Who This Manual Is For

This PDF is for owners, operators, maintenance technicians, and service shops responsible for the Altec A-T40C. It supports routine preventive maintenance, system diagnosis, component removal and installation, hydraulic testing, mechanical adjustment, electrical troubleshooting, and stability verification. The step-by-step procedures are written for personnel with training in hydraulic, electrical, and mechanical systems, and the safety alerts throughout the manual highlight areas where incorrect work can cause injury or equipment damage.

Get the Altec A-T40C Maintenance and Parts Manual PDF

With this Altec A-T40C Maintenance and Parts Manual PDF, you can perform preventive maintenance, diagnose hydraulic and mechanical faults, adjust pressures and clearances, service cylinders and holding valves, inspect booms and extension chains, test electrical components, and document stability tests. Correct procedures and factory-specified torque values matter because the A-T40C is a telescopic boom aerial device used around personnel and utility work; using the wrong setting or skipping an inspection step can lead to component failure, downtime, or unsafe operation. The manual delivers instant PDF access after purchase, no shipping, and can be viewed on any device and printed for the shop or truck. Keep it on hand for scheduled maintenance, troubleshooting, and major repair reference.
