Ammann AFT 700-3 sn KM3010170 – AFT700-3 sn STV31358 Parts Manual
$34.95
The Ammann AFT700-3 (sn LG003576) STV6000E (sn 3103351) Cummins Tier3/Stage III Spare Parts Catalogue Manual is a detailed reference guide, essential for identifying and procuring genuine replacement parts, facilitating efficient maintenance and repairs for this specific equipment configuration.
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Ammann AFT700-3 sn LG003576 STV6000E sn 3103351 Cummins Tier3 / Stage III Spare Parts Catalogue Manual – PDF DOWNLOAD
FILE DETAILS:
Ammann AFT700-3 sn LG003576 STV6000E sn 3103351 Cummins Tier3 / Stage III Spare Parts Catalogue Manual – PDF DOWNLOAD
Language : English
Pages : 752
Downloadable : Yes
File Type : PDF

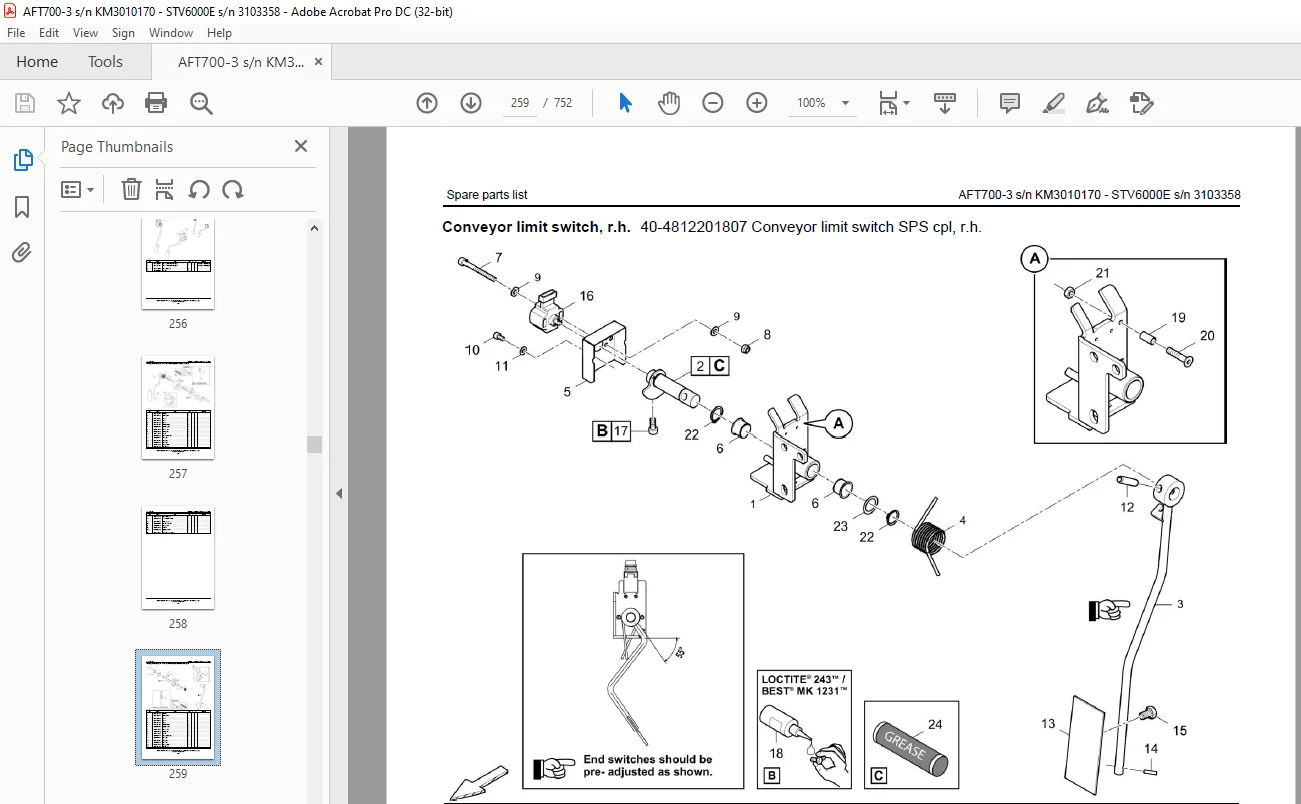

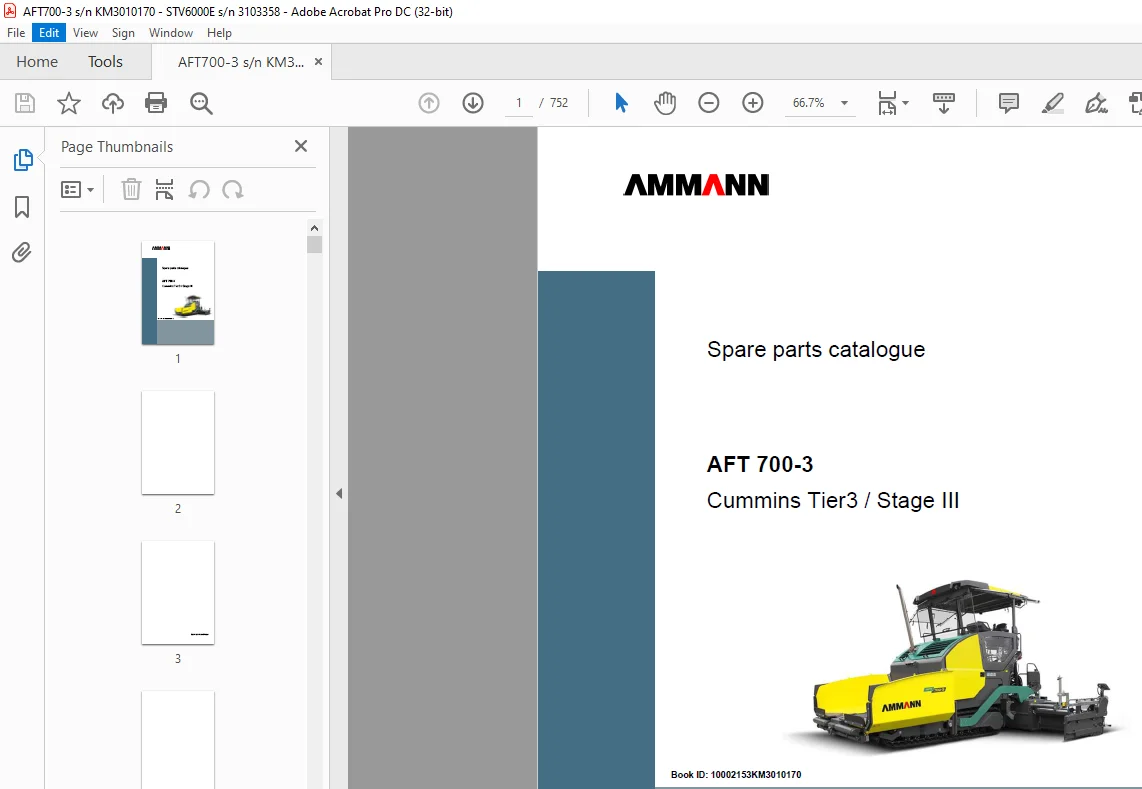

IMAGES PREVIEW OF THE MANUAL:

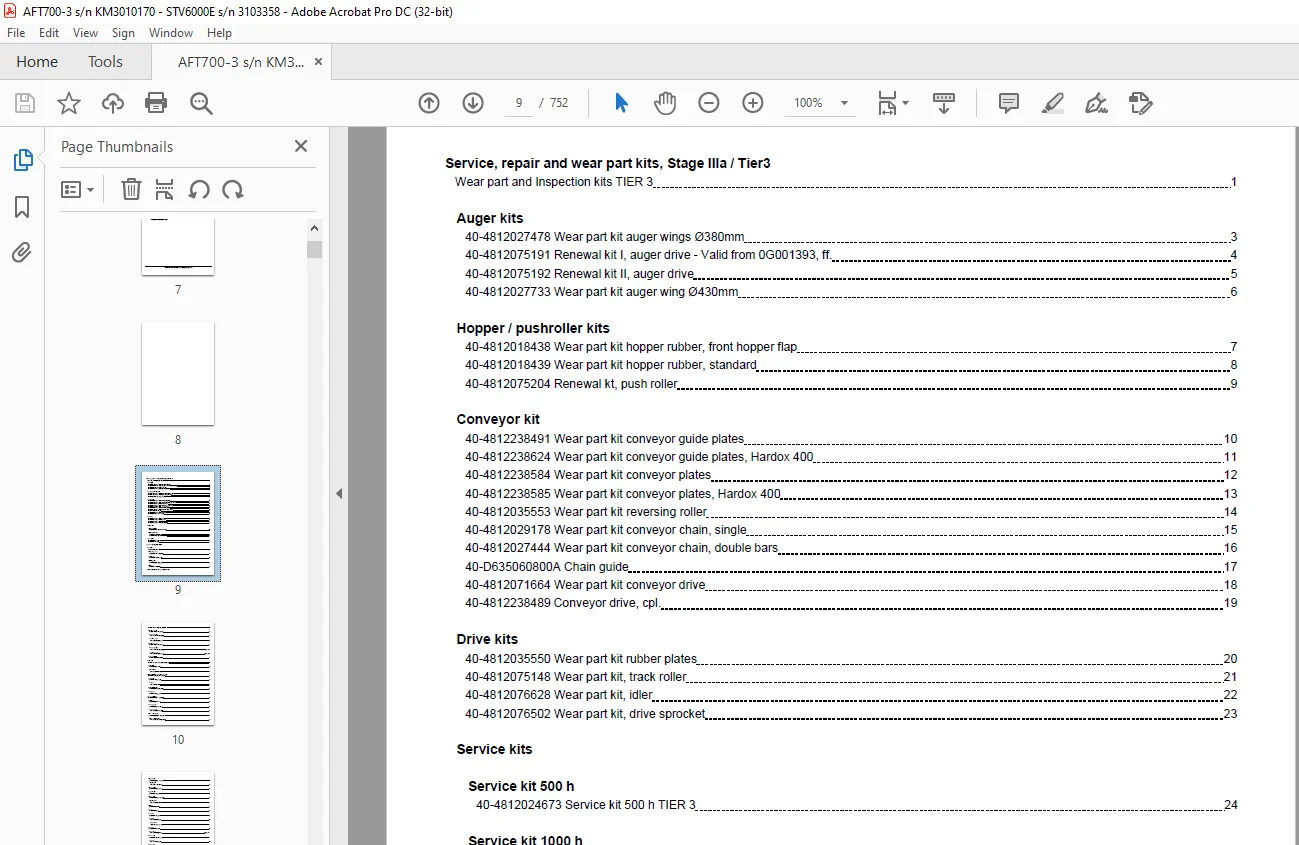

TABLE OF CONTENTS:
Ammann AFT700-3 sn LG003576 STV6000E sn 3103351 Cummins Tier3 / Stage III Spare Parts Catalogue Manual – PDF DOWNLOAD
Service, repair and wear part kits, Stage IIIa / Tier3
Wear part and Inspection kits TIER 3 1
Auger kits
40-4812027478 Wear part kit auger wings Ø380mm 3 40-4812075191 Renewal kit I, auger drive – Valid from 0G001393, ff. 4 40-4812075192 Renewal kit II, auger drive 5 40-4812027733 Wear part kit auger wing Ø430mm 6
Hopper / pushroller kits
40-4812018438 Wear part kit hopper rubber, front hopper flap 7 40-4812018439 Wear part kit hopper rubber, standard 8 40-4812075204 Renewal kt, push roller 9
Conveyor kit
40-4812238491 Wear part kit conveyor guide plates 10 40-4812238624 Wear part kit conveyor guide plates, Hardox 400 11 40-4812238584 Wear part kit conveyor plates 12 40-4812238585 Wear part kit conveyor plates, Hardox 400 13 40-4812035553 Wear part kit reversing roller 14 40-4812029178 Wear part kit conveyor chain, single 15 40-4812027444 Wear part kit conveyor chain, double bars 16 40-D635060800A Chain guide 17 40-4812071664 Wear part kit conveyor drive 18 40-4812238489 Conveyor drive, cpl. 19
Drive kits
40-4812035550 Wear part kit rubber plates 20 40-4812075148 Wear part kit, track roller 21 40-4812076628 Wear part kit, idler 22 40-4812076502 Wear part kit, drive sprocket 23
Service kits Service kit 500 h
40-4812024673 Service kit 500 h TIER 3 24
Service kit 1000 h
40-4812071041 Filter kit 1000h 25 40-4812071042 Service kit 1000h TIER 3 26
General kits
40-4812077016 Fuse and relay kit 27 40-4812064474 Plug kits 28
Mechanical, Stage IIIa / Tier3 Main frame
40-4812238421 Main frame 29
Side arm guiding
40-4812028721 Side arm guiding 30
Splash guard
40-4812238374 Splash guard 31
Steering guide
40-4812036083 Steering guide 32
Extension
40-4812232118 Extension 33
40-4812217038 Levelling arm, elect. locked
40-4812217038 Levelling arm, elect. locked 34
Levelling arm, l.h.
40-4812217282 Levelling arm, l.h. 35
Side arm guiding
40-4812232214 Side arm guiding 37
Adjusting screw
40-4812061689 Adjusting screw 38
Levelling arm, r.h.
40-4812217283 Levelling arm, r.h. 39
Side arm guiding
40-4812232214 Side arm guiding See page 37
Adjusting screw
40-4812061689 Adjusting screw See page 38
Locking, electric
40-4812217039 Locking, electric 43
Push roller
40-4812044911B Push roller, hydraulic crosshead 44
Push roller
40-4812063758 Push roller 45
Pillow block
40-4812046568 Pillow block 46
40-4812229083 Hopper with dump plate
40-4812229083 Hopper with dump plate 47
Hopper, l.h.
40-4812229108 Hopper, l.h. 48
Locking
40-4812231436 Locking 49
Bulk material flap
40-4812028563 Bulk material flap 50
Hopper, r.h.
40-4812229107 Hopper, r.h. 51
Covering, isolated
40-4812004491D Covering, isolated 52
Bulk head
40-4812200656 Bulk head 56
Hood support
40-4812226900 Hood support 57
Hood support
40-4812225685 Hood support 58
Intermediate section
40-4812226906 Intermediate section 59
Intermediate section
40-4812225631 Intermediate section 60
Air guide, r.h.
40-4812226899 Air guide, r.h., cpl. 61
Air guide, r.h.
40-4812034771 Air guide, r.h. 62
Air guide, rear
40-4812225657 Air guide, rear 63
Support plate
40-4812225681 Support plate 64
Air guide, l.h.
40-4812226902 Air guide, l.h., cpl. 65
Air guide, l.h.
40-4812225640 Air guide, l.h. 66
Retainer
40-4812225682 Retainer 67
Cover
40-4812225689 Cover 68
Door, l.h.
40-4812064224 Door, l.h. 69
Door, l.h.
40-4812064226 Door, l.h. 70
Support rod
40-4812041407 Support rod 71
Door, r. h.
40-4812064222 Door, r.h. 72
Support rod
40-4812041407 Support rod See page 71
Iso- hood r.h.
40-4812074441 Iso – Hood, r.h. 74
Hood r.h.
40-4812074444 Hood, r.h. 75
Iso- hood l.h.
40-4812074507 Iso – Hood, l.h. 77
hood l.h.
40-4812074698 Hood, l.h. 78
Covering center part, l.h.
40-4812226901 Covering center part, l.h. kpl. 80
Covering center part, l.h.
40-4812225667 Covering center part, l.h. 81
Covering center part, r.h.
40-4812233556 Covering center part, r.h. 82
Disc frame
40-4812226463 Disc frame, cpl. 83
Disc frame
40-4812044596 Disc frame 84
Isolation
40-4812009008 Isolation 85
Retainer, l.h.
40-4812226380 Retainer, l.h. 86
Retainer, r.h.
40-4812226135 Retainer, r.h. 87
Operator platform
40-4812239384 Operator platform, moveable, weather roof
40-4812239384 Operator platform, moveable, weather roof 88
Platform, cpl.
40-4812239351 Plattform, cpl. 89
Platform
40-4812239350 Platform 90
Cable W94
40-4812217152 Cable W94 93
Bottom plate, middle
40-4812227769 Bottom plate, middle 96 40-4812064117 Bottom plate, middle 97
Base plate
40-4812005148 Base plate 98
Crash protection, l.h.
40-4812225523 Crash protection, l.h. 99
Crash protection, r.h.
40-4812225524 Crash protection, r.h. 100
Roof frame front
40-4812225474 Roof frame front 101
Platform
40-4812239346 Platform 102
Crash protection front
40-4812226856 Crash protection front 103
Umbrella roof
40-4812239580 Umbrella roof 104
Locking
40-4812229224 Locking 105
Fold away step, r.h.
40-4812007101 Fold away step r.h. 106
Fold away step, l.h.
40-4812007102 Fold away step l.h. 108
Sheet tub
40-4812006340 Sheet tub 110
Door
40-4812239585 Door 111
Guide Platform
40-4812239569 Guide Platform 112
Guide
40-4812060012 Guide 113
Guide tube
40-4812060013 Guide tube 114
Guide profile l.h.
40-4812008046 Guide profile l.h. 115
Guide profile r.h.
40-4812008047 Guide profile r.h. 116
Guide, back
40-4812077311 Guide, back 117
Security rail
40-4812047665 Security rail 118
Retainer
40-4812239645 Locking 119
40-4812076104 Locking 120
Hydrl. operation platform
40-4812019595 Hydraulic, operation platform 121
Control block
40-4812216951 Control block 122
Umbrella roof
40-4812239367 Umbrella roof 123
Linear actuators
40-4812060175 Linear actuators 124
Retainer
40-4812217328 Retainer 125
Electric roof
40-4812217153 Electric roof 126
Operator board
40-4812017300 Operator board 127
Clamping lever
40-4812227100 Clamping lever 129
Telescopic pipe set
40-4812228437 Telescopic pipe set 131
Console
40-4812005193 Console 132
Stop bolt
40-4812007259 Stop bolt 134
Cover
40-4812009877 Cover 135
40-4812074011 Cover 136
Cover
40-4812009765A Cover 137
Cover, l.h., cpl.
40-4812226903 Cover, l.h., cpl. 138
Cover, l.h.
40-4812226815 Cover, l.h. 139
Cover, r.h., cpl.
40-4812226904 Cover, r.h., cpl. 140
Cover, r.h.
40-4812225707 Cover, r.h. 141
Harness W14
40-4812024274 Harness W14 142
40-4812061360 Ascension f. Varioscreed
40-4812061360 Ascent VB 146
Ascent, middle
40-4812225923 Ascent, middle 147
Ascent, l.h.
40-4812217871 Ascent, l.h. 149
Ascent, r.h.
40-4812061359 Ascent, r.h. 151
Engine, Stage IIIa / Tier 3 Drive TIER 3
40-4812217221 Drive TIER 3 153
Engine
40-4812061710 Engine 154
Combined cooler / air filter
40-4812010983 Combined cooler / air filter 155
Combined cooler
40-4812010984 Combined cooler 160
Combined cooler
40-4812008735 Combined cooler 161
Expansion tank
40-4812019655 Expansion tank 162
Attaching parts
40-4812030294 Attaching parts 163
Fuel tank
40-4812028928A Fuel tank 166
Fuel tank
40-4812225145 Fuel tank 168 40-4812237353 Fuel tank 169
Muffler
40-4812030230 Muffler 170
Fuel system
40-4812202264 Fuel system 172
Engine support
40-4812046937A Engine support 173
End pipe / rotary feedthrough
40-4812037845 End pipe / rotary feedthrough 174
Joint rod
40-4812037585 Joint rod 175
Oil drain
40-4812023352 Oil drain 176
Harness W12
40-4812217177 Harness W12 177
Service parts
Service parts 181
Split gear
40-4812039759 Split gear 183
Split gear
40-4812071339 Split gear 184 40-4812009405 Split gear 186
Engine clutch
40-4812009002 Engine clutch 188
Gear oil drain
40-4812037689 Gear oil drain 189
Split gear box
40-4812201800 Pump distributor gear 190
Pump
40-4812026140 Pump 192
40-4812026132 Pump 193
40-4812018516 Pump 194
40-4812009370 Pump 195
Drive
40-4812216523 Track group 196
Track group, short, r.h.
40-4812216545 Track group, short, r.h. 197
Presure gauge Kit
40-4812071800 Pressure gauge Kit 199
Track roller
40-4812043052 Track roller, big 200 40-4812215845 Track roller, small 201
Track drive
40-4812042984 Track drive 202
Drive gear box, cpl.
40-4812027193 Drive gear box 203
Drive gear box
40-4812035018 Drive gear box 204
Track chain
40-4812238822 Track chain 205
Track group, short, l.h.
40-4812216546 Track group, short, l.h. 206
Presure gauge Kit
40-4812071800 Pressure gauge Kit See page 199
Track roller
40-4812043052 Track roller, big See page 200 40-4812215845 Track roller, small See page 201
Track drive
40-4812042984 Track drive See page 202
Drive gear box, cpl.
40-4812027193 Drive gear box See page 203
Drive gear box
40-4812035018 Drive gear box See page 204
Track chain
40-4812238822 Track chain See page 205
Track group support
40-4812077810 Track group support 213
Conveyor
40-4812238604 Conveyor, double bars, rev.
40-4812238604 Conveyor, double bars, rev. 214
Conveyor drive
40-4812238489 Conveyor drive 215
Conveyor motor, reversable
40-4812238490 Conveyor motor, reversable 217
Hydraulic conveyor, reversable
40-4812201866 Hydraulic, conveyor reversable 218
Directional spool valve
40-4812007901 Directional spool valve 219
Conveyor turn
40-4812026817 Conveyor turn 220
Tensioner
40-4812026815 Tensioner 222
Conveyor limit switch SPS cpl.
40-4812217597 Conveyor limit switch SPS cpl. 223
Conveyor limit switch, l.h.
40-4812215299 Conveyor limit switch SPS cpl, l.h. 224
Conveyor limit switch, r.h.
40-4812201807 Conveyor limit switch SPS cpl, r.h. 226
Wear part kit conveyor chain, double bars
40-4812027444 Wear part kit conveyor chain, double bars See page 16
Chain guide
40-D635060800A Chain guide See page 17
Wear part kit conveyor guide plates
40-4812238491 Wear part kit conveyor guide plates See page 10 40-4812238624 Wear part kit conveyor guide plates, Hardox 400 See page 11
Wear part kit conveyor plates
40-4812238584 Wear part kit conveyor plates See page 12 40-4812238585 Wear part kit conveyor plates, Hardox 400 See page 13
Auger
40-4812233026 Auger Ø380mm, 2.50m
40-4812233026 Auger Ø380mm, 2.50m 232
Auger, basic width 380
40-4812233021 Auger, basic width 380 233
Auger box
40-4812232996 Auger box 234
Outer support
40-4812026736 Outer support 236
Auger support
40-4812016497 Auger support 238
Wear part kit auger wings Ø380mm
40-4812027478 Wear part kit auger wings Ø380mm See page 3 40-4812075191 Renewal kit I, auger drive – Valid from 0G001393, ff. See page 4 40-4812075192 Renewal kit II, auger drive See page 5
Mounting parts
40-4812232097 Mounting parts 241
Auger gear
40-4812045075 Auger gear 242
40-4812074320 Material tunnel installation kit, Ø380 / 160mm
40-4812074320 Material tunnel installation kit, Ø380 / 160mm 243
Material tunnel
40-4812045416 Material tunnel, 230mm 244
Worm extension, l.h.
40-4812074308 Worm extension, Ø380 / 160mm l.h. 245
Worm extension, r.h.
40-4812074312 Worm extension, Ø380 / 160mm r.h. 246
40-4812233067 Auger Ø430mm, 8.26m
40-4812233067 Auger Ø430mm, 8.26m 247
Auger, basic width 430
40-4812233022 Auger, basic width 430 248
Auger box
40-4812232996 Auger box See page 234
Outer support
40-4812026736 Outer support See page 236
Auger support
40-4812016497 Auger support See page 238
Mounting parts
40-4812232097 Mounting parts See page 241
Wear part kit auger wing Ø430mm
40-4812027733 Wear part kit auger wing Ø430mm See page 6 40-4812075191 Renewal kit I, auger drive – Valid from 0G001393, ff. See page 4 40-4812075192 Renewal kit II, auger drive See page 5
Protection cover
40-4812032831 Protection cover 253
Auger gear
40-4812045075 Auger gear See page 242
Extension part f. auger Ø430mm
40-4812047215 Extension part f. auger Ø430mm 255
Auger Ø430mm, 8,26m
40-4812032419 Auger Ø430mm, 8,26m 256
Auger extension, r.h. L: 960mm
40-4812031011 Auger extension, r.h. L: 960mm 258
Auger extension, l.h. L: 960mm
40-4812031010 Auger extension, l.h. L: 960mm 259
Auger extension, r.h. L: 640mm
40-4812031000 Auger extension, r.h. L: 640mm 260
Auger extension, l.h. L: 640mm
40-4812030998 Auger extension, l.h. L: 640mm 261
Strut material duct, r.h. L960mm
40-4812028787 Strut material duct, r.h. L:960mm 262
Strut material duct, l.h. L960mm
40-4812028782 Strut material duct, l.h. L:960mm 263
Outer support
40-4812031804 Outer support 264
Auger bearing
40-D438081200 Auger bearing 265
Strut material duct, L960mm
40-4812028789 Strut material duct L:960mm 267
Auger wing Ø430mm, l.h.
40-4812032393 Auger wing Ø430mm, l.h. 268
Auger wing Ø430mm, r.h.
40-4812032395 Auger wing Ø430mm, r.h. 269
Material tunnel, cpl. L:640mm
40-4812028792 Material tunnel, cpl. L:640mm 270
End support, plate
40-4812032289 End support, plate 271
End support
40-D439082200 End support 272
Material tunnel, cpl. L:320mm
40-4812028794 Material tunnel, cpl. L:320mm 274
Auger extension, r.h. L: 320mm
40-4812030997 Auger extension, r.h. L: 320mm 275
Auger extension, l.h. L: 320mm
40-4812030995 Auger extension, l.h. L: 320mm 276
Protection cover L:960 mm
40-4812032802 Protection cover L:960 mm 277
Protection cover L:640 mm
40-4812032803 Protection cover L:640mm 278
Protection cover L:320 mm
40-4812032804 Protection cover L:320 mm 279
Brace
40-4812029259 Brace 280
Cross struts
40-4812028882 Cross struts 283 40-4812201937 Cross struts 284
Hydraulic system Hydraulic
40-4812216687 Hydraulic 285
Hydraulic, drive system
40-4812201360 Hydraulic, drive system 287
Pump
40-4812026140 Pump See page 192
40-4812026132 Pump See page 193
Brakeventil
40-4812024410 Brakevalve 291
40-4812215465 Brakevalve 292
Hydraulic, auger
40-4812201368 Hydraulic, auger 293
Pump
40-4812018516 Pump See page 194
Hydraulic, conveyor
40-4812201362 Hydraulic, conveyor 296
Flow control valve
40-4812010000 Flow control valve 298
Connecting plate
40-4812010925 Connecting plate, r.h. 299 40-4812010974 Connecting plate, l.h. 300
Hydraulic, tamper/vibration
40-4812201363 Hydraulic, tamper/vibration 301
Flow control valve
40-4812010000 Flow control valve See page 298
Work hydraulic
40-4812216685 Work hydraulic 304
Control block
40-4812075451 Control block 311 40-4812072221 Control block 313
Filter
40-4812018069 Filter 315
Montage kit
40-4812201809 Montage kit 316
Work hydraulic
40-4812077089 Work hydraulic 317
Control block
40-4812075451 Control block See page 311
Control block
40-4812075453 Control block 325
Filter
40-4812018069 Filter See page 315
Montage kit
40-4812201809 Montage kit See page 316
Hydraulic, fan
40-4812201357 Hydraulic, fan 329
Filter
40-4812044338 Filter 331
Hydraulic, tank collector
40-4812216644 Hydraulic, tank collector 332
Hydraulic tank, cpl.
40-4812225757 Hydraulic tank, cpl. 334
Return suction filter
40-4812009435 Return suction filter 336
Hydraulic tank
40-4812225231 Hydraulic tank 337
Ganged valve support
40-4812072443 Ganged valve support 338
Leveling cylinder
Leveling cylinder standard 339 Leveling cylinder, elec. routing 340
Hose packet
40-4812201894 INTERFACE HOSEPACK
40-4812201894 Hose packet 341
Screed movement
40-4812201900 Screed movement, Hydraulic 342
Tamper vibration
40-4812201901 Tamper vibration, Hydraulic 343
40-4812201895 INTERFACE HOSEPACK
40-4812201895 Hose packet 344
Screed movement
40-4812201900 Screed movement, Hydraulic See page 342
Tamper vibration
40-4812201902 Tamper vibration CC, Hydraulic 346
40-4812201907 Profile adjustment, hydraulic
40-4812201907 Profile adjustment, Hydraulic 347
40-4812201908 Endplate, hydraulic
40-4812201908 End plate, Hydraulic 348
40-4812072023 Hose packet, screed THE
40-4812072023 Hose packet 349
Electric system AM Electric
40-4812216969 Electric 350
Electric
40-4812072170 Electric 351
Junction box
40-4812216858 Junction box 356
Mainboard
40-4812216953 Mainboard 362
Cable
40-4812217045 Cable W20 364
40-4812024179 Cable W75 367
Junction box
40-4812216713 Junction box 368
Junction box
40-4812077018 Junction box 369
Mainboard
40-4812216953 Mainboard See page 362
Cable
40-4812077050 Cable W20 374
40-4812024179 Cable W75 See page 367
Junction box
40-4812216713 Junction box See page 368
Control unit
40-4812217017 Control unit 379
Control unit
40-4812216996 Control unit 380
Cable
40-4812024187 Harness W11 383
40-4812201084 Cable W66 386
40-4812016676 Cable W73 387
Fixing- a. montage parts
40-4812074483 Fixing a. montage parts 388
Control unit
40-4812076561 Control unit 389
Control unit
40-4812076522 Control unit 390
Harness
40-4812024187 Harness W11 See page 383
40-4812201084 Cable W66 See page 386
40-4812016676 Cable W73 See page 387
Fixing- a. montage parts
40-4812074483 Fixing a. montage parts See page 388
Wiring
40-4812217024 Wiring 395
Cable
40-4812201348 Cable W2.1 397
40-4812023314 Cable W3 398
40-4812023315 Cable W4 399
40-4812029590 Cable W5 400
40-4812011128 Cable W6 401
40-4812029595 Cable W9 402
40-4812029596 Cable W10 403
40-D977436121 Ground strap 404 40-4812075073 Cable W80 405
40-4812023317 Cable W81 406
40-4812023318 Cable W82 407
40-4812217114 Harness W15 408
40-4812217115 Harness W16 410
40-4812201349 Cable W2.2 412
40-4812217139 Harness W19 413
40-4812217111 Harness W17 416
40-4812024274 Harness W14 See page 142
40-4812024317 Cable W23
421
40-4812012456 Cable W65
422
40-4812024337 Cable W21
423
40-4812024344 Cable W51
424
40-4812024348 Cable W52
425
40-4812016478 Cable W70
426
40-4812016480 Cable W71
427
40-4812217170 Cable W62
428
40-4812024354 Cable W69
433
40-4812024784 Cable W67
434
40-4812217177 Harness W12 See page 177 40-4812217253 Cable W95 435
Steering unit
40-4812014593 Steering unit 437
Control system
40-4812071011 Control system 440
Remote control, AMMANN
40-4812202805 Remote control 441
Housing, remote control
40-4812072857 Housing, remote control 442
Vandalism protection, AMMANN, tracked
40-4812076303 Vandalism protection 443
Options
40-4812215066 Generator set, 35 KVA
40-4812215066 Generator set, 35 KVA 445
El. heating
40-4812202821 El. heating 448
Control box
40-4812076495 Control box 449 40-4812024003 Control box 459
Vandalism protection
40-4812238815 Vandalism protection 472 40-4812064111 Vandalism protection 473
Universal joint protection
40-4812015882 Universal joint protection 474
40-4812201881 Spotlight for auger
40-4812201881 Spotlight for auger 475
40-4812201882 Spot light
40-4812201882 Spot light 476
40-4812029934 Back-up alarm
40-4812029934 Back-up alarm 477
GPS installation
40-4812074568 GPS installation 478
40-4812201932 Hydraulic auger lift
40-4812201932 Hydraulic auger lift 479
40-4812202582 Without fume absorbing system
40-4812202582 Without fume absorbing system 480
Cover
40-4812028733 Cover 481
Maintenance lid
40-4812011195 Maintenance lid 482
40-4812076693 Sprayer 25L, hose reel
40-4812076693 Sprayer 25L, hose reel 483
Emulsion tank
40-4812076114 Emulsion tank 484
Hose reel
40-4812217867 Hose reel 486
Hose reel
40-4812216609 Hose reel 487
Spray arm
40-4812217384 Spray arm 488
Electric, emulsion spray
40-4812076614 Electric, emulsion spray 489
Cable
40-4812076616 Cable W36 490
40-4812074550 Drivers seat Standard
40-4812009465 Drivers seat Standard 491
Driver seat, cpl.
40-4812009466 Drivers seat, cpl. 492
40-4812216522 Track cleaner, cpl.
40-4812216522 Track cleaner, cpl. 493
Track cleaner
40-4812216544 Track cleaner 494
Locking lever
40-4812043349 Locking laver 495
Tropical kit
40-4812018942A Tropical kit 496
Door, l.h.
40-4812064225 Door, l.h. 497
Support rod
40-4812041407 Support rod See page 71
Insulating board
40-4812010209 Insulating board 499
Diesel cooler cpl.
40-4812009263 Diesel cooler cpl. 500
Diesel cooler
40-4812009222 Diesel cooler 501
Door, r. h.
40-4812064222 Door, r.h. See page 72
Support rod
40-4812041407 Support rod See page 71
Engine clutch
40-4812234614 Engine clutch 503
Hood support
40-4812225685 Hood support See page 58
Intermediate section
40-4812225631 Intermediate section See page 60
Air guide, r.h.
40-4812034771 Air guide, r.h. See page 62
Air guide, l.h.
40-4812225640 Air guide, l.h. See page 66
Hood r.h.
40-4812074444 Hood, r.h. See page 75
Hood l.h.
40-4812074698 Hood, l.h. See page 78
Covering part, l.h.
40-4812225667 Covering center part, l.h. See page 81
40-4812030771 Auxiliary weight
40-4812030771 Auxiliary weight 511
40-4812009244 Tools and accessories
40-4812009244 Tools and accessories512 Tar spattle 514
40-4812232096 Indicator thickness, bottom
40-4812232096 Indicator 515
Pointer
40-4812238919 Pointer 516
40-4812228342 Bottle holder
40-4812228342 Bottle holder 517
Available options
40-4812202590 Fume control system
40-4812202590 Fume control system518
Blower
40-4812073904 Exhaust fan 521
Hydraulik, fume control
40-4812019596 Hydraulic, fume control522
Pressure reduction valve
40-4812215477 Pressure relief valve 524 40-4812044916 Pressure reduction valve 525
40-4812078816 Box, remote control PLC
40-4812078816 Box, remote control PLC 526
40-4812061518 Fume control system
40-4812061518 Fume control system527
Blower
40-4812073904 Exhaust fan See page 521
Hydraulik, fume control
40-4812217997 Hydraulic, Fume control531
Pressure reduction valve
40-4812215477 Pressure relief valve See page 524
40-4812063704 Indicator thickness, top
40-4812063704 Indicator thickness, top 534
40-4812226413 Indicator thickness, top
40-4812226413A Indicator thickness, top 536
40-4812074553 Driver`s seat
40-4812074553 Drivers seat 537
Drivers seat
40-4812216670 Drivers seat 538
Drivers seat
40-4812076671 Driver seat 539
Electric, seat heater
40-4812078125 Electric, seat heater 540
40-4812201934 Hydraulic auger lift, SETASSIST
40-4812201934 Hydraulic auger lift, SETASSIST 541
40-4812041024 Material chute
40-4812041024 Material chute 542
40-4812061575 Bio Hydraulic oil
40-4812061575 Bio Hydraulic oil 544
Hydraulic, partial flow filter
40-4812201383 Hydraulic, partial flow filter 545
Partial flow filter
40-D964013553 Partial flow filter 546
40-4812061519 Bio Hydraulic oil
40-4812061519 Bio Hydraulic oil 547
Hydraulic, partial flow filter
40-4812217995 Hydraulic, partial flow filter 548
40-4812216948 Track cleaner, cpl.
40-4812216948 Track cleaner, cpl. 549
Track cleaner, r.h.
40-4812216537 Track cleaner, r.h. 550
Track cleaner, l.h
40-4812216532 Track cleaner, l.h 551
Electric cylinder
40-4812217046 Electric cylinder 552
Cable W93
40-4812217151 Cable W93 553
40-4812045427 Material tunnel installation kit
40-4812045427 Material tunnel installation kit 554
Material tunnel 230
40-4812045416 Material tunnel, 230mm See page 244
Protection cover
40-4812045421 Protection cover 556
40-4812201880 Spot light
40-4812201880 Spot light 557
40-4812201891 Engine room lighting
40-4812201891 Engine room lighting 558
Engine room lighting
40-4812032889 Engine room lighting 559
EL- Engine room lighting
40-4812201892 EL- Engine room lighting 560
40-4812074443 Engine room lighting
40-4812074443 Engine room lighting 561
Electric
40-4812074674 Electric 562
Cable W96
40-4812074690 Cable W96 563
Cable W98
40-4812074696 Cable W98 564
Cable W99
40-4812074697 Cable W99 566
40-4812072344 Shining balloon
40-4812072344 Shining balloon 568
Retainer
40-4812072341 Retainer 569
Swinging arm
40-4812072340 Swinging arm 570
40-4812217122 Light Assit
40-4812217122 Light Assit 571
40-4812012447 Rotaflare light, PLC
40-4812012447 Rotaflare light 572
40-4812012457 Electric rotaflare light
40-4812012457 Rotaflare light 573
40-4812012450 Slip-on pipe
40-4812012450 Slip-on pipe 574 40-4812011482 Holder for rotaflare light 575
40-4812201885 Central lubrication
40-4812201885 Central lubrication 576
Pump
40-4812037776 Pump 577
40-4812037777 Pump 578
Kit central lubrication f. auger
40-4812037782 Kit central lubrication f. auger 581
Electrical, central lubrication
40-4812201887 Electrical, central lubrication 582 40-4812024348 Cable W52 See page 425
40-4812024354 Cable W69 See page 433 40-4812024803 Cable W51 583
40-4812061346 Fire extinguisher
40-4812061346 Fire extinguisher 585
40-4812015638 Diesel pump
40-4812015638 Diesel pump 586
Refueling equipment
40-4812029968 Electric diesel pump 587
40-4812060667 Diesel pump
40-4812060667 Diesel pump 588
El. refueling equipment
40-4812029968 Electric diesel pump See page 587
40-4812076692 Sprayer 25L, hose package
40-4812076692 Sprayer 25L, hose package 590
Emulsion tank
40-4812076114 Emulsion tank See page 484
Tube seat
40-4812227350 Hose package 592
Spray arm
40-4812217384 Spray arm See page 488
Electric, emulsion spray
40-4812076614 Electric, emulsion spray See page 489
Cable
40-4812076616 Cable W36 See page 490
40-4812074069 Gloria spraying device
40-4812074069 Gloria spraying device 595
40-4812201893 Emergency stop
40-4812201893 Emergency stop 596
Mounting parts
40-4812023388 Mounting parts 597
Spiral cable
40-D727409611 Spiral cable 598
Cable
40-4812024344 Cable W51 See page 424
40-4812024046 El. option, socket 230V
40-4812024046 Socket 230V 50HZ 600
40-4812201910 12V installation
40-4812201910 12V installation 601
Cable W23
40-4812024317 Cable W23 See page 421
40-4812071142 Cool box
40-4812071142 Cool box 603
Electric cool box
40-4812071348 Electric cool box 604
Cable
40-4812072056 Cable W77 605
40-4812217856 First-aid kit
40-4812217856 First-aid kit 606
40-4812019591 Profile adjustment, Hydraulic
40-4812019591 Hydraulic, profile adjustment 607
Control block
40-4812019050 Control block 608
40-4812017406 Camera system
40-4812017406 Camera system 609
Retainer
40-4812006748 Retainer610
Electrical, camera system
40-4812017407 El. option 611
Mounting parts
40-4812007883 Mounting parts 612
40-4812201926 Steering control 10m
40-4812201926 Steering control 613
Retainer
40-4812043252 Retainer615
Steering sensor
40-4812201928 Steering sensor 616
Cable W21
40-4812024337 Cable W21See page 423
Mounting parts
40-4812018600 Mounting parts 618
40-4812201912 TruckAssist Advanced
40-4812201912 TruckAssist Advanced619
Housing
40-4812018226 Housing620
Housing
40-4812018218 Housing621
El. TruckAssist Advanced
40-4812201913 El. TruckAssist Advanced 622
Cable
40-4812024784 Cable W67See page 434
40-4812216118 Kit, mat-manager
40-4812216118 Kit, mat-manager625
40-4812228144 Cover
40-4812228144 Cover629
40-4812060907 Generator set 35KVA
40-4812060907 Generator set 35KVA 630
Universal joint protection
40-4812060908 Universal joint protection 632
El. heating
40-4812202821 El. heating See page 448
Control box
40-4812076495 Control boxSee page 449
40-4812024003 Control boxSee page 459
Vandalism protection
40-4812229618 Vandalism protection 634 40-4812064111 Vandalism protection See page 473
40-4812045790 Warning plate
40-4812045790Warning plate 637
40-4812042806 Gravel field kit, short
40-4812042806 Gravel field kit 638
Conveyor chain
40-4812042760 Conveyor chain 639
Gusset plate
40-4812042829 Gusset plate 640
Bulk material flap
40-4812042848 Bulk material flap 641
40-4812007491 Oil drain hydr tank
40-4812007491 Oil drain hydr. tank 642
40-4812217946 Hardlock Advanced
40-4812217946 Hardlock pro / Pavemanager 2 643
40-4812201826 Temp. measuring auger
40-4812201826 Temperature sensor644
40-4812200833 Temp. measuring auger Moba
40-4812200833 Temperature sensor645
40-4812019611 Side shield, Hydraulic
40-4812019611 Hydraulic, side shield647
Control block
40-4812071404 Control block648 40-4812076414 Control block649
40-4812075363 Hydraulic, side shield, Stage V
40-4812075363 Hydraulic, side shield, Stage V 650
Control block
40-4812071404 Control blockSee page 648
Additional storage boxes
40-4812073931 Additional storage boxes 652
40-4812077068 MatTracker Sensor
40-4812077068 MatTracker Sensor653
Harness
40-4812073060 Harness W25.2 654
Retainer
40-4812077124 Retainer655
Leveling, PLC
CAN-sensor kit 2+1
40-4812073452 CAN-sensor kit 2+1, yellow 656
Slope transmittter
40-D900626011 Slope sensor 657
CAN-sensor kit 1+1
40-4812073449 CAN-sensor kit 1+1, yellow 658
Slope transmittter
40-D900626011 Slope sensor See page 657
Big Ski 13 m cpl.
40-4812041999 Big Ski 13 m cpl. 660
Electric parts big ski
40-4812038564 Electric parts big ski 662
Big Ski 13 m cpl.
40-4812041925 Big Ski 13 m 663
Side arm support
40-4812038560 Side arm support 665
Side arm support
40-4812004304 Side arm support 666
Big Ski 9 m cpl.
40-4812042045 Big Ski 9 m cpl. 667
Big Ski 9 m cpl.
40-4812042035 Big Ski 9 m 669
Side arm support
40-4812038560 Side arm support See page 665
Side arm support
40-4812004304 Side arm support See page 666
Electric parts big ski
40-4812038564 Electric parts big ski See page 662
Big Ski 13m PLC
40-4812072315 Big Ski 13m PLC 674
Electro installation Big Ski
40-4812072316 Electro installation Big Ski 675
Big Ski 13 m cpl.
40-4812041925 Big Ski 13 m See page 663
Side arm support
40-4812004304 Side arm support See page 666
Big Ski 9m PLC
40-4812072318 Big Ski 9m PLC 678
Electro installation Big Ski
40-4812072316 Electro installation Big Ski See page 675
Big Ski 9 m cpl.
40-4812042035 Big Ski 9 m See page 669
Side arm support
40-4812004304 Side arm support See page 666
Add-on kit
40-4812019221 Add-on kit, yellow 682
Trailing ski, 9m
40-D830031400 Trailing ski, 9m 683
Trailing ski, 9m
40-4700688226 Trailing ski, 9m 684
Mounting parts
40-4700691720 Mounting parts 687
Trailing ski, 6m
40-D830031300 Trailing ski, 6m 688
Trailing ski, 6m
40-4700688225 Trailing ski, 6m 689
Mounting parts
40-4700691720 Mounting parts See page 687
Wire tensioner cpl.
40-4720000701 Wire tensioner cpl. 693
Ultrasonic sensor
40-4812038616 Ultrasonic sensor 694
Sensor
40-4812038602 Sensor 695
Digirotary Kit
40-4812038617 Digirotary Kit 696
Accessories AM Spare key
Key 697
Tools and accessories
40-4812035048 Tools and accessories 698 40-4812009821 Tools and accessories 699
Decals Symbol
Symbol 701
Decals
40-4812024656 Decals 703
40-4812064433 Decals 704
Sticker, roof-high
40-4812024549 Sticker, roof-high 705
Special tool
Ultrasonic thickness guage 706
Wear part and Inspection kits TIER 3 1
Auger kits
40-4812027478 Wear part kit auger wings Ø380mm 3 40-4812075191 Renewal kit I, auger drive – Valid from 0G001393, ff. 4 40-4812075192 Renewal kit II, auger drive 5 40-4812027733 Wear part kit auger wing Ø430mm 6
Hopper / pushroller kits
40-4812018438 Wear part kit hopper rubber, front hopper flap 7 40-4812018439 Wear part kit hopper rubber, standard 8 40-4812075204 Renewal kt, push roller 9
Conveyor kit
40-4812238491 Wear part kit conveyor guide plates 10 40-4812238624 Wear part kit conveyor guide plates, Hardox 400 11 40-4812238584 Wear part kit conveyor plates 12 40-4812238585 Wear part kit conveyor plates, Hardox 400 13 40-4812035553 Wear part kit reversing roller 14 40-4812029178 Wear part kit conveyor chain, single 15 40-4812027444 Wear part kit conveyor chain, double bars 16 40-D635060800A Chain guide 17 40-4812071664 Wear part kit conveyor drive 18 40-4812238489 Conveyor drive, cpl. 19
Drive kits
40-4812035550 Wear part kit rubber plates 20 40-4812075148 Wear part kit, track roller 21 40-4812076628 Wear part kit, idler 22 40-4812076502 Wear part kit, drive sprocket 23
Service kits Service kit 500 h
40-4812024673 Service kit 500 h TIER 3 24
Service kit 1000 h
40-4812071041 Filter kit 1000h 25 40-4812071042 Service kit 1000h TIER 3 26
General kits
40-4812077016 Fuse and relay kit 27 40-4812064474 Plug kits 28
Mechanical, Stage IIIa / Tier3 Main frame
40-4812238421 Main frame 29
Side arm guiding
40-4812028721 Side arm guiding 30
Splash guard
40-4812238374 Splash guard 31
Steering guide
40-4812036083 Steering guide 32
Extension
40-4812232118 Extension 33
40-4812217038 Levelling arm, elect. locked
40-4812217038 Levelling arm, elect. locked 34
Levelling arm, l.h.
40-4812217282 Levelling arm, l.h. 35
Side arm guiding
40-4812232214 Side arm guiding 37
Adjusting screw
40-4812061689 Adjusting screw 38
Levelling arm, r.h.
40-4812217283 Levelling arm, r.h. 39
Side arm guiding
40-4812232214 Side arm guiding See page 37
Adjusting screw
40-4812061689 Adjusting screw See page 38
Locking, electric
40-4812217039 Locking, electric 43
Push roller
40-4812044911B Push roller, hydraulic crosshead 44
Push roller
40-4812063758 Push roller 45
Pillow block
40-4812046568 Pillow block 46
40-4812229083 Hopper with dump plate
40-4812229083 Hopper with dump plate 47
Hopper, l.h.
40-4812229108 Hopper, l.h. 48
Locking
40-4812231436 Locking 49
Bulk material flap
40-4812028563 Bulk material flap 50
Hopper, r.h.
40-4812229107 Hopper, r.h. 51
Covering, isolated
40-4812004491D Covering, isolated 52
Bulk head
40-4812200656 Bulk head 56
Hood support
40-4812226900 Hood support 57
Hood support
40-4812225685 Hood support 58
Intermediate section
40-4812226906 Intermediate section 59
Intermediate section
40-4812225631 Intermediate section 60
Air guide, r.h.
40-4812226899 Air guide, r.h., cpl. 61
Air guide, r.h.
40-4812034771 Air guide, r.h. 62
Air guide, rear
40-4812225657 Air guide, rear 63
Support plate
40-4812225681 Support plate 64
Air guide, l.h.
40-4812226902 Air guide, l.h., cpl. 65
Air guide, l.h.
40-4812225640 Air guide, l.h. 66
Retainer
40-4812225682 Retainer 67
Cover
40-4812225689 Cover 68
Door, l.h.
40-4812064224 Door, l.h. 69
Door, l.h.
40-4812064226 Door, l.h. 70
Support rod
40-4812041407 Support rod 71
Door, r. h.
40-4812064222 Door, r.h. 72
Support rod
40-4812041407 Support rod See page 71
Iso- hood r.h.
40-4812074441 Iso – Hood, r.h. 74
Hood r.h.
40-4812074444 Hood, r.h. 75
Iso- hood l.h.
40-4812074507 Iso – Hood, l.h. 77
hood l.h.
40-4812074698 Hood, l.h. 78
Covering center part, l.h.
40-4812226901 Covering center part, l.h. kpl. 80
Covering center part, l.h.
40-4812225667 Covering center part, l.h. 81
Covering center part, r.h.
40-4812233556 Covering center part, r.h. 82
Disc frame
40-4812226463 Disc frame, cpl. 83
Disc frame
40-4812044596 Disc frame 84
Isolation
40-4812009008 Isolation 85
Retainer, l.h.
40-4812226380 Retainer, l.h. 86
Retainer, r.h.
40-4812226135 Retainer, r.h. 87
Operator platform
40-4812239384 Operator platform, moveable, weather roof
40-4812239384 Operator platform, moveable, weather roof 88
Platform, cpl.
40-4812239351 Plattform, cpl. 89
Platform
40-4812239350 Platform 90
Cable W94
40-4812217152 Cable W94 93
Bottom plate, middle
40-4812227769 Bottom plate, middle 96 40-4812064117 Bottom plate, middle 97
Base plate
40-4812005148 Base plate 98
Crash protection, l.h.
40-4812225523 Crash protection, l.h. 99
Crash protection, r.h.
40-4812225524 Crash protection, r.h. 100
Roof frame front
40-4812225474 Roof frame front 101
Platform
40-4812239346 Platform 102
Crash protection front
40-4812226856 Crash protection front 103
Umbrella roof
40-4812239580 Umbrella roof 104
Locking
40-4812229224 Locking 105
Fold away step, r.h.
40-4812007101 Fold away step r.h. 106
Fold away step, l.h.
40-4812007102 Fold away step l.h. 108
Sheet tub
40-4812006340 Sheet tub 110
Door
40-4812239585 Door 111
Guide Platform
40-4812239569 Guide Platform 112
Guide
40-4812060012 Guide 113
Guide tube
40-4812060013 Guide tube 114
Guide profile l.h.
40-4812008046 Guide profile l.h. 115
Guide profile r.h.
40-4812008047 Guide profile r.h. 116
Guide, back
40-4812077311 Guide, back 117
Security rail
40-4812047665 Security rail 118
Retainer
40-4812239645 Locking 119
40-4812076104 Locking 120
Hydrl. operation platform
40-4812019595 Hydraulic, operation platform 121
Control block
40-4812216951 Control block 122
Umbrella roof
40-4812239367 Umbrella roof 123
Linear actuators
40-4812060175 Linear actuators 124
Retainer
40-4812217328 Retainer 125
Electric roof
40-4812217153 Electric roof 126
Operator board
40-4812017300 Operator board 127
Clamping lever
40-4812227100 Clamping lever 129
Telescopic pipe set
40-4812228437 Telescopic pipe set 131
Console
40-4812005193 Console 132
Stop bolt
40-4812007259 Stop bolt 134
Cover
40-4812009877 Cover 135
40-4812074011 Cover 136
Cover
40-4812009765A Cover 137
Cover, l.h., cpl.
40-4812226903 Cover, l.h., cpl. 138
Cover, l.h.
40-4812226815 Cover, l.h. 139
Cover, r.h., cpl.
40-4812226904 Cover, r.h., cpl. 140
Cover, r.h.
40-4812225707 Cover, r.h. 141
Harness W14
40-4812024274 Harness W14 142
40-4812061360 Ascension f. Varioscreed
40-4812061360 Ascent VB 146
Ascent, middle
40-4812225923 Ascent, middle 147
Ascent, l.h.
40-4812217871 Ascent, l.h. 149
Ascent, r.h.
40-4812061359 Ascent, r.h. 151
Engine, Stage IIIa / Tier 3 Drive TIER 3
40-4812217221 Drive TIER 3 153
Engine
40-4812061710 Engine 154
Combined cooler / air filter
40-4812010983 Combined cooler / air filter 155
Combined cooler
40-4812010984 Combined cooler 160
Combined cooler
40-4812008735 Combined cooler 161
Expansion tank
40-4812019655 Expansion tank 162
Attaching parts
40-4812030294 Attaching parts 163
Fuel tank
40-4812028928A Fuel tank 166
Fuel tank
40-4812225145 Fuel tank 168 40-4812237353 Fuel tank 169
Muffler
40-4812030230 Muffler 170
Fuel system
40-4812202264 Fuel system 172
Engine support
40-4812046937A Engine support 173
End pipe / rotary feedthrough
40-4812037845 End pipe / rotary feedthrough 174
Joint rod
40-4812037585 Joint rod 175
Oil drain
40-4812023352 Oil drain 176
Harness W12
40-4812217177 Harness W12 177
Service parts
Service parts 181
Split gear
40-4812039759 Split gear 183
Split gear
40-4812071339 Split gear 184 40-4812009405 Split gear 186
Engine clutch
40-4812009002 Engine clutch 188
Gear oil drain
40-4812037689 Gear oil drain 189
Split gear box
40-4812201800 Pump distributor gear 190
Pump
40-4812026140 Pump 192
40-4812026132 Pump 193
40-4812018516 Pump 194
40-4812009370 Pump 195
Drive
40-4812216523 Track group 196
Track group, short, r.h.
40-4812216545 Track group, short, r.h. 197
Presure gauge Kit
40-4812071800 Pressure gauge Kit 199
Track roller
40-4812043052 Track roller, big 200 40-4812215845 Track roller, small 201
Track drive
40-4812042984 Track drive 202
Drive gear box, cpl.
40-4812027193 Drive gear box 203
Drive gear box
40-4812035018 Drive gear box 204
Track chain
40-4812238822 Track chain 205
Track group, short, l.h.
40-4812216546 Track group, short, l.h. 206
Presure gauge Kit
40-4812071800 Pressure gauge Kit See page 199
Track roller
40-4812043052 Track roller, big See page 200 40-4812215845 Track roller, small See page 201
Track drive
40-4812042984 Track drive See page 202
Drive gear box, cpl.
40-4812027193 Drive gear box See page 203
Drive gear box
40-4812035018 Drive gear box See page 204
Track chain
40-4812238822 Track chain See page 205
Track group support
40-4812077810 Track group support 213
Conveyor
40-4812238604 Conveyor, double bars, rev.
40-4812238604 Conveyor, double bars, rev. 214
Conveyor drive
40-4812238489 Conveyor drive 215
Conveyor motor, reversable
40-4812238490 Conveyor motor, reversable 217
Hydraulic conveyor, reversable
40-4812201866 Hydraulic, conveyor reversable 218
Directional spool valve
40-4812007901 Directional spool valve 219
Conveyor turn
40-4812026817 Conveyor turn 220
Tensioner
40-4812026815 Tensioner 222
Conveyor limit switch SPS cpl.
40-4812217597 Conveyor limit switch SPS cpl. 223
Conveyor limit switch, l.h.
40-4812215299 Conveyor limit switch SPS cpl, l.h. 224
Conveyor limit switch, r.h.
40-4812201807 Conveyor limit switch SPS cpl, r.h. 226
Wear part kit conveyor chain, double bars
40-4812027444 Wear part kit conveyor chain, double bars See page 16
Chain guide
40-D635060800A Chain guide See page 17
Wear part kit conveyor guide plates
40-4812238491 Wear part kit conveyor guide plates See page 10 40-4812238624 Wear part kit conveyor guide plates, Hardox 400 See page 11
Wear part kit conveyor plates
40-4812238584 Wear part kit conveyor plates See page 12 40-4812238585 Wear part kit conveyor plates, Hardox 400 See page 13
Auger
40-4812233026 Auger Ø380mm, 2.50m
40-4812233026 Auger Ø380mm, 2.50m 232
Auger, basic width 380
40-4812233021 Auger, basic width 380 233
Auger box
40-4812232996 Auger box 234
Outer support
40-4812026736 Outer support 236
Auger support
40-4812016497 Auger support 238
Wear part kit auger wings Ø380mm
40-4812027478 Wear part kit auger wings Ø380mm See page 3 40-4812075191 Renewal kit I, auger drive – Valid from 0G001393, ff. See page 4 40-4812075192 Renewal kit II, auger drive See page 5
Mounting parts
40-4812232097 Mounting parts 241
Auger gear
40-4812045075 Auger gear 242
40-4812074320 Material tunnel installation kit, Ø380 / 160mm
40-4812074320 Material tunnel installation kit, Ø380 / 160mm 243
Material tunnel
40-4812045416 Material tunnel, 230mm 244
Worm extension, l.h.
40-4812074308 Worm extension, Ø380 / 160mm l.h. 245
Worm extension, r.h.
40-4812074312 Worm extension, Ø380 / 160mm r.h. 246
40-4812233067 Auger Ø430mm, 8.26m
40-4812233067 Auger Ø430mm, 8.26m 247
Auger, basic width 430
40-4812233022 Auger, basic width 430 248
Auger box
40-4812232996 Auger box See page 234
Outer support
40-4812026736 Outer support See page 236
Auger support
40-4812016497 Auger support See page 238
Mounting parts
40-4812232097 Mounting parts See page 241
Wear part kit auger wing Ø430mm
40-4812027733 Wear part kit auger wing Ø430mm See page 6 40-4812075191 Renewal kit I, auger drive – Valid from 0G001393, ff. See page 4 40-4812075192 Renewal kit II, auger drive See page 5
Protection cover
40-4812032831 Protection cover 253
Auger gear
40-4812045075 Auger gear See page 242
Extension part f. auger Ø430mm
40-4812047215 Extension part f. auger Ø430mm 255
Auger Ø430mm, 8,26m
40-4812032419 Auger Ø430mm, 8,26m 256
Auger extension, r.h. L: 960mm
40-4812031011 Auger extension, r.h. L: 960mm 258
Auger extension, l.h. L: 960mm
40-4812031010 Auger extension, l.h. L: 960mm 259
Auger extension, r.h. L: 640mm
40-4812031000 Auger extension, r.h. L: 640mm 260
Auger extension, l.h. L: 640mm
40-4812030998 Auger extension, l.h. L: 640mm 261
Strut material duct, r.h. L960mm
40-4812028787 Strut material duct, r.h. L:960mm 262
Strut material duct, l.h. L960mm
40-4812028782 Strut material duct, l.h. L:960mm 263
Outer support
40-4812031804 Outer support 264
Auger bearing
40-D438081200 Auger bearing 265
Strut material duct, L960mm
40-4812028789 Strut material duct L:960mm 267
Auger wing Ø430mm, l.h.
40-4812032393 Auger wing Ø430mm, l.h. 268
Auger wing Ø430mm, r.h.
40-4812032395 Auger wing Ø430mm, r.h. 269
Material tunnel, cpl. L:640mm
40-4812028792 Material tunnel, cpl. L:640mm 270
End support, plate
40-4812032289 End support, plate 271
End support
40-D439082200 End support 272
Material tunnel, cpl. L:320mm
40-4812028794 Material tunnel, cpl. L:320mm 274
Auger extension, r.h. L: 320mm
40-4812030997 Auger extension, r.h. L: 320mm 275
Auger extension, l.h. L: 320mm
40-4812030995 Auger extension, l.h. L: 320mm 276
Protection cover L:960 mm
40-4812032802 Protection cover L:960 mm 277
Protection cover L:640 mm
40-4812032803 Protection cover L:640mm 278
Protection cover L:320 mm
40-4812032804 Protection cover L:320 mm 279
Brace
40-4812029259 Brace 280
Cross struts
40-4812028882 Cross struts 283 40-4812201937 Cross struts 284
Hydraulic system Hydraulic
40-4812216687 Hydraulic 285
Hydraulic, drive system
40-4812201360 Hydraulic, drive system 287
Pump
40-4812026140 Pump See page 192
40-4812026132 Pump See page 193
Brakeventil
40-4812024410 Brakevalve 291
40-4812215465 Brakevalve 292
Hydraulic, auger
40-4812201368 Hydraulic, auger 293
Pump
40-4812018516 Pump See page 194
Hydraulic, conveyor
40-4812201362 Hydraulic, conveyor 296
Flow control valve
40-4812010000 Flow control valve 298
Connecting plate
40-4812010925 Connecting plate, r.h. 299 40-4812010974 Connecting plate, l.h. 300
Hydraulic, tamper/vibration
40-4812201363 Hydraulic, tamper/vibration 301
Flow control valve
40-4812010000 Flow control valve See page 298
Work hydraulic
40-4812216685 Work hydraulic 304
Control block
40-4812075451 Control block 311 40-4812072221 Control block 313
Filter
40-4812018069 Filter 315
Montage kit
40-4812201809 Montage kit 316
Work hydraulic
40-4812077089 Work hydraulic 317
Control block
40-4812075451 Control block See page 311
Control block
40-4812075453 Control block 325
Filter
40-4812018069 Filter See page 315
Montage kit
40-4812201809 Montage kit See page 316
Hydraulic, fan
40-4812201357 Hydraulic, fan 329
Filter
40-4812044338 Filter 331
Hydraulic, tank collector
40-4812216644 Hydraulic, tank collector 332
Hydraulic tank, cpl.
40-4812225757 Hydraulic tank, cpl. 334
Return suction filter
40-4812009435 Return suction filter 336
Hydraulic tank
40-4812225231 Hydraulic tank 337
Ganged valve support
40-4812072443 Ganged valve support 338
Leveling cylinder
Leveling cylinder standard 339 Leveling cylinder, elec. routing 340
Hose packet
40-4812201894 INTERFACE HOSEPACK
40-4812201894 Hose packet 341
Screed movement
40-4812201900 Screed movement, Hydraulic 342
Tamper vibration
40-4812201901 Tamper vibration, Hydraulic 343
40-4812201895 INTERFACE HOSEPACK
40-4812201895 Hose packet 344
Screed movement
40-4812201900 Screed movement, Hydraulic See page 342
Tamper vibration
40-4812201902 Tamper vibration CC, Hydraulic 346
40-4812201907 Profile adjustment, hydraulic
40-4812201907 Profile adjustment, Hydraulic 347
40-4812201908 Endplate, hydraulic
40-4812201908 End plate, Hydraulic 348
40-4812072023 Hose packet, screed THE
40-4812072023 Hose packet 349
Electric system AM Electric
40-4812216969 Electric 350
Electric
40-4812072170 Electric 351
Junction box
40-4812216858 Junction box 356
Mainboard
40-4812216953 Mainboard 362
Cable
40-4812217045 Cable W20 364
40-4812024179 Cable W75 367
Junction box
40-4812216713 Junction box 368
Junction box
40-4812077018 Junction box 369
Mainboard
40-4812216953 Mainboard See page 362
Cable
40-4812077050 Cable W20 374
40-4812024179 Cable W75 See page 367
Junction box
40-4812216713 Junction box See page 368
Control unit
40-4812217017 Control unit 379
Control unit
40-4812216996 Control unit 380
Cable
40-4812024187 Harness W11 383
40-4812201084 Cable W66 386
40-4812016676 Cable W73 387
Fixing- a. montage parts
40-4812074483 Fixing a. montage parts 388
Control unit
40-4812076561 Control unit 389
Control unit
40-4812076522 Control unit 390
Harness
40-4812024187 Harness W11 See page 383
40-4812201084 Cable W66 See page 386
40-4812016676 Cable W73 See page 387
Fixing- a. montage parts
40-4812074483 Fixing a. montage parts See page 388
Wiring
40-4812217024 Wiring 395
Cable
40-4812201348 Cable W2.1 397
40-4812023314 Cable W3 398
40-4812023315 Cable W4 399
40-4812029590 Cable W5 400
40-4812011128 Cable W6 401
40-4812029595 Cable W9 402
40-4812029596 Cable W10 403
40-D977436121 Ground strap 404 40-4812075073 Cable W80 405
40-4812023317 Cable W81 406
40-4812023318 Cable W82 407
40-4812217114 Harness W15 408
40-4812217115 Harness W16 410
40-4812201349 Cable W2.2 412
40-4812217139 Harness W19 413
40-4812217111 Harness W17 416
40-4812024274 Harness W14 See page 142
40-4812024317 Cable W23
421
40-4812012456 Cable W65
422
40-4812024337 Cable W21
423
40-4812024344 Cable W51
424
40-4812024348 Cable W52
425
40-4812016478 Cable W70
426
40-4812016480 Cable W71
427
40-4812217170 Cable W62
428
40-4812024354 Cable W69
433
40-4812024784 Cable W67
434
40-4812217177 Harness W12 See page 177 40-4812217253 Cable W95 435
Steering unit
40-4812014593 Steering unit 437
Control system
40-4812071011 Control system 440
Remote control, AMMANN
40-4812202805 Remote control 441
Housing, remote control
40-4812072857 Housing, remote control 442
Vandalism protection, AMMANN, tracked
40-4812076303 Vandalism protection 443
Options
40-4812215066 Generator set, 35 KVA
40-4812215066 Generator set, 35 KVA 445
El. heating
40-4812202821 El. heating 448
Control box
40-4812076495 Control box 449 40-4812024003 Control box 459
Vandalism protection
40-4812238815 Vandalism protection 472 40-4812064111 Vandalism protection 473
Universal joint protection
40-4812015882 Universal joint protection 474
40-4812201881 Spotlight for auger
40-4812201881 Spotlight for auger 475
40-4812201882 Spot light
40-4812201882 Spot light 476
40-4812029934 Back-up alarm
40-4812029934 Back-up alarm 477
GPS installation
40-4812074568 GPS installation 478
40-4812201932 Hydraulic auger lift
40-4812201932 Hydraulic auger lift 479
40-4812202582 Without fume absorbing system
40-4812202582 Without fume absorbing system 480
Cover
40-4812028733 Cover 481
Maintenance lid
40-4812011195 Maintenance lid 482
40-4812076693 Sprayer 25L, hose reel
40-4812076693 Sprayer 25L, hose reel 483
Emulsion tank
40-4812076114 Emulsion tank 484
Hose reel
40-4812217867 Hose reel 486
Hose reel
40-4812216609 Hose reel 487
Spray arm
40-4812217384 Spray arm 488
Electric, emulsion spray
40-4812076614 Electric, emulsion spray 489
Cable
40-4812076616 Cable W36 490
40-4812074550 Drivers seat Standard
40-4812009465 Drivers seat Standard 491
Driver seat, cpl.
40-4812009466 Drivers seat, cpl. 492
40-4812216522 Track cleaner, cpl.
40-4812216522 Track cleaner, cpl. 493
Track cleaner
40-4812216544 Track cleaner 494
Locking lever
40-4812043349 Locking laver 495
Tropical kit
40-4812018942A Tropical kit 496
Door, l.h.
40-4812064225 Door, l.h. 497
Support rod
40-4812041407 Support rod See page 71
Insulating board
40-4812010209 Insulating board 499
Diesel cooler cpl.
40-4812009263 Diesel cooler cpl. 500
Diesel cooler
40-4812009222 Diesel cooler 501
Door, r. h.
40-4812064222 Door, r.h. See page 72
Support rod
40-4812041407 Support rod See page 71
Engine clutch
40-4812234614 Engine clutch 503
Hood support
40-4812225685 Hood support See page 58
Intermediate section
40-4812225631 Intermediate section See page 60
Air guide, r.h.
40-4812034771 Air guide, r.h. See page 62
Air guide, l.h.
40-4812225640 Air guide, l.h. See page 66
Hood r.h.
40-4812074444 Hood, r.h. See page 75
Hood l.h.
40-4812074698 Hood, l.h. See page 78
Covering part, l.h.
40-4812225667 Covering center part, l.h. See page 81
40-4812030771 Auxiliary weight
40-4812030771 Auxiliary weight 511
40-4812009244 Tools and accessories
40-4812009244 Tools and accessories512 Tar spattle 514
40-4812232096 Indicator thickness, bottom
40-4812232096 Indicator 515
Pointer
40-4812238919 Pointer 516
40-4812228342 Bottle holder
40-4812228342 Bottle holder 517
Available options
40-4812202590 Fume control system
40-4812202590 Fume control system518
Blower
40-4812073904 Exhaust fan 521
Hydraulik, fume control
40-4812019596 Hydraulic, fume control522
Pressure reduction valve
40-4812215477 Pressure relief valve 524 40-4812044916 Pressure reduction valve 525
40-4812078816 Box, remote control PLC
40-4812078816 Box, remote control PLC 526
40-4812061518 Fume control system
40-4812061518 Fume control system527
Blower
40-4812073904 Exhaust fan See page 521
Hydraulik, fume control
40-4812217997 Hydraulic, Fume control531
Pressure reduction valve
40-4812215477 Pressure relief valve See page 524
40-4812063704 Indicator thickness, top
40-4812063704 Indicator thickness, top 534
40-4812226413 Indicator thickness, top
40-4812226413A Indicator thickness, top 536
40-4812074553 Driver`s seat
40-4812074553 Drivers seat 537
Drivers seat
40-4812216670 Drivers seat 538
Drivers seat
40-4812076671 Driver seat 539
Electric, seat heater
40-4812078125 Electric, seat heater 540
40-4812201934 Hydraulic auger lift, SETASSIST
40-4812201934 Hydraulic auger lift, SETASSIST 541
40-4812041024 Material chute
40-4812041024 Material chute 542
40-4812061575 Bio Hydraulic oil
40-4812061575 Bio Hydraulic oil 544
Hydraulic, partial flow filter
40-4812201383 Hydraulic, partial flow filter 545
Partial flow filter
40-D964013553 Partial flow filter 546
40-4812061519 Bio Hydraulic oil
40-4812061519 Bio Hydraulic oil 547
Hydraulic, partial flow filter
40-4812217995 Hydraulic, partial flow filter 548
40-4812216948 Track cleaner, cpl.
40-4812216948 Track cleaner, cpl. 549
Track cleaner, r.h.
40-4812216537 Track cleaner, r.h. 550
Track cleaner, l.h
40-4812216532 Track cleaner, l.h 551
Electric cylinder
40-4812217046 Electric cylinder 552
Cable W93
40-4812217151 Cable W93 553
40-4812045427 Material tunnel installation kit
40-4812045427 Material tunnel installation kit 554
Material tunnel 230
40-4812045416 Material tunnel, 230mm See page 244
Protection cover
40-4812045421 Protection cover 556
40-4812201880 Spot light
40-4812201880 Spot light 557
40-4812201891 Engine room lighting
40-4812201891 Engine room lighting 558
Engine room lighting
40-4812032889 Engine room lighting 559
EL- Engine room lighting
40-4812201892 EL- Engine room lighting 560
40-4812074443 Engine room lighting
40-4812074443 Engine room lighting 561
Electric
40-4812074674 Electric 562
Cable W96
40-4812074690 Cable W96 563
Cable W98
40-4812074696 Cable W98 564
Cable W99
40-4812074697 Cable W99 566
40-4812072344 Shining balloon
40-4812072344 Shining balloon 568
Retainer
40-4812072341 Retainer 569
Swinging arm
40-4812072340 Swinging arm 570
40-4812217122 Light Assit
40-4812217122 Light Assit 571
40-4812012447 Rotaflare light, PLC
40-4812012447 Rotaflare light 572
40-4812012457 Electric rotaflare light
40-4812012457 Rotaflare light 573
40-4812012450 Slip-on pipe
40-4812012450 Slip-on pipe 574 40-4812011482 Holder for rotaflare light 575
40-4812201885 Central lubrication
40-4812201885 Central lubrication 576
Pump
40-4812037776 Pump 577
40-4812037777 Pump 578
Kit central lubrication f. auger
40-4812037782 Kit central lubrication f. auger 581
Electrical, central lubrication
40-4812201887 Electrical, central lubrication 582 40-4812024348 Cable W52 See page 425
40-4812024354 Cable W69 See page 433 40-4812024803 Cable W51 583
40-4812061346 Fire extinguisher
40-4812061346 Fire extinguisher 585
40-4812015638 Diesel pump
40-4812015638 Diesel pump 586
Refueling equipment
40-4812029968 Electric diesel pump 587
40-4812060667 Diesel pump
40-4812060667 Diesel pump 588
El. refueling equipment
40-4812029968 Electric diesel pump See page 587
40-4812076692 Sprayer 25L, hose package
40-4812076692 Sprayer 25L, hose package 590
Emulsion tank
40-4812076114 Emulsion tank See page 484
Tube seat
40-4812227350 Hose package 592
Spray arm
40-4812217384 Spray arm See page 488
Electric, emulsion spray
40-4812076614 Electric, emulsion spray See page 489
Cable
40-4812076616 Cable W36 See page 490
40-4812074069 Gloria spraying device
40-4812074069 Gloria spraying device 595
40-4812201893 Emergency stop
40-4812201893 Emergency stop 596
Mounting parts
40-4812023388 Mounting parts 597
Spiral cable
40-D727409611 Spiral cable 598
Cable
40-4812024344 Cable W51 See page 424
40-4812024046 El. option, socket 230V
40-4812024046 Socket 230V 50HZ 600
40-4812201910 12V installation
40-4812201910 12V installation 601
Cable W23
40-4812024317 Cable W23 See page 421
40-4812071142 Cool box
40-4812071142 Cool box 603
Electric cool box
40-4812071348 Electric cool box 604
Cable
40-4812072056 Cable W77 605
40-4812217856 First-aid kit
40-4812217856 First-aid kit 606
40-4812019591 Profile adjustment, Hydraulic
40-4812019591 Hydraulic, profile adjustment 607
Control block
40-4812019050 Control block 608
40-4812017406 Camera system
40-4812017406 Camera system 609
Retainer
40-4812006748 Retainer610
Electrical, camera system
40-4812017407 El. option 611
Mounting parts
40-4812007883 Mounting parts 612
40-4812201926 Steering control 10m
40-4812201926 Steering control 613
Retainer
40-4812043252 Retainer615
Steering sensor
40-4812201928 Steering sensor 616
Cable W21
40-4812024337 Cable W21See page 423
Mounting parts
40-4812018600 Mounting parts 618
40-4812201912 TruckAssist Advanced
40-4812201912 TruckAssist Advanced619
Housing
40-4812018226 Housing620
Housing
40-4812018218 Housing621
El. TruckAssist Advanced
40-4812201913 El. TruckAssist Advanced 622
Cable
40-4812024784 Cable W67See page 434
40-4812216118 Kit, mat-manager
40-4812216118 Kit, mat-manager625
40-4812228144 Cover
40-4812228144 Cover629
40-4812060907 Generator set 35KVA
40-4812060907 Generator set 35KVA 630
Universal joint protection
40-4812060908 Universal joint protection 632
El. heating
40-4812202821 El. heating See page 448
Control box
40-4812076495 Control boxSee page 449
40-4812024003 Control boxSee page 459
Vandalism protection
40-4812229618 Vandalism protection 634 40-4812064111 Vandalism protection See page 473
40-4812045790 Warning plate
40-4812045790Warning plate 637
40-4812042806 Gravel field kit, short
40-4812042806 Gravel field kit 638
Conveyor chain
40-4812042760 Conveyor chain 639
Gusset plate
40-4812042829 Gusset plate 640
Bulk material flap
40-4812042848 Bulk material flap 641
40-4812007491 Oil drain hydr tank
40-4812007491 Oil drain hydr. tank 642
40-4812217946 Hardlock Advanced
40-4812217946 Hardlock pro / Pavemanager 2 643
40-4812201826 Temp. measuring auger
40-4812201826 Temperature sensor644
40-4812200833 Temp. measuring auger Moba
40-4812200833 Temperature sensor645
40-4812019611 Side shield, Hydraulic
40-4812019611 Hydraulic, side shield647
Control block
40-4812071404 Control block648 40-4812076414 Control block649
40-4812075363 Hydraulic, side shield, Stage V
40-4812075363 Hydraulic, side shield, Stage V 650
Control block
40-4812071404 Control blockSee page 648
Additional storage boxes
40-4812073931 Additional storage boxes 652
40-4812077068 MatTracker Sensor
40-4812077068 MatTracker Sensor653
Harness
40-4812073060 Harness W25.2 654
Retainer
40-4812077124 Retainer655
Leveling, PLC
CAN-sensor kit 2+1
40-4812073452 CAN-sensor kit 2+1, yellow 656
Slope transmittter
40-D900626011 Slope sensor 657
CAN-sensor kit 1+1
40-4812073449 CAN-sensor kit 1+1, yellow 658
Slope transmittter
40-D900626011 Slope sensor See page 657
Big Ski 13 m cpl.
40-4812041999 Big Ski 13 m cpl. 660
Electric parts big ski
40-4812038564 Electric parts big ski 662
Big Ski 13 m cpl.
40-4812041925 Big Ski 13 m 663
Side arm support
40-4812038560 Side arm support 665
Side arm support
40-4812004304 Side arm support 666
Big Ski 9 m cpl.
40-4812042045 Big Ski 9 m cpl. 667
Big Ski 9 m cpl.
40-4812042035 Big Ski 9 m 669
Side arm support
40-4812038560 Side arm support See page 665
Side arm support
40-4812004304 Side arm support See page 666
Electric parts big ski
40-4812038564 Electric parts big ski See page 662
Big Ski 13m PLC
40-4812072315 Big Ski 13m PLC 674
Electro installation Big Ski
40-4812072316 Electro installation Big Ski 675
Big Ski 13 m cpl.
40-4812041925 Big Ski 13 m See page 663
Side arm support
40-4812004304 Side arm support See page 666
Big Ski 9m PLC
40-4812072318 Big Ski 9m PLC 678
Electro installation Big Ski
40-4812072316 Electro installation Big Ski See page 675
Big Ski 9 m cpl.
40-4812042035 Big Ski 9 m See page 669
Side arm support
40-4812004304 Side arm support See page 666
Add-on kit
40-4812019221 Add-on kit, yellow 682
Trailing ski, 9m
40-D830031400 Trailing ski, 9m 683
Trailing ski, 9m
40-4700688226 Trailing ski, 9m 684
Mounting parts
40-4700691720 Mounting parts 687
Trailing ski, 6m
40-D830031300 Trailing ski, 6m 688
Trailing ski, 6m
40-4700688225 Trailing ski, 6m 689
Mounting parts
40-4700691720 Mounting parts See page 687
Wire tensioner cpl.
40-4720000701 Wire tensioner cpl. 693
Ultrasonic sensor
40-4812038616 Ultrasonic sensor 694
Sensor
40-4812038602 Sensor 695
Digirotary Kit
40-4812038617 Digirotary Kit 696
Accessories AM Spare key
Key 697
Tools and accessories
40-4812035048 Tools and accessories 698 40-4812009821 Tools and accessories 699
Decals Symbol
Symbol 701
Decals
40-4812024656 Decals 703
40-4812064433 Decals 704
Sticker, roof-high
40-4812024549 Sticker, roof-high 705
Special tool
Ultrasonic thickness guage 706
Tension tester 707
Frequency tension tester
708 Infrared thermometer 709
Test adapter 710
Welding protection 711
Dismantling tool (big pins) 712
Dismantling tool (smal pins) 713
Service tool bodas 714
Magnet tester 715
Digital pressure gauge kit 716
Frequency and amplitude meter 717
Questions? Email us: [email protected]
S.M
