Ammann ARR 1575 Trench Roller Workshop Manual 3001980 PDF
$28.95
Ammann ARR 1575 Trench Roller YANMAR 3TNV80F-SPAMM U.S. EPA Tier 4f Workshop Manual (3001980) is a detailed guide for comprehensive maintenance and repairs, providing in-depth information for ensuring optimal performance and longevity of the ARR 1575 Trench Roller.
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Ammann ARR 1575 Trench Roller YANMAR 3TNV80F-SPAMM U.S. EPA Tier 4f Workshop Manual 3001980 – PDF DOWNLOAD
FILE DETAILS:
Ammann ARR 1575 Trench Roller YANMAR 3TNV80F-SPAMM U.S. EPA Tier 4f Workshop Manual 3001980 – PDF DOWNLOAD
Language : English
Pages : 364
Downloadable : Yes
File Type : PDF

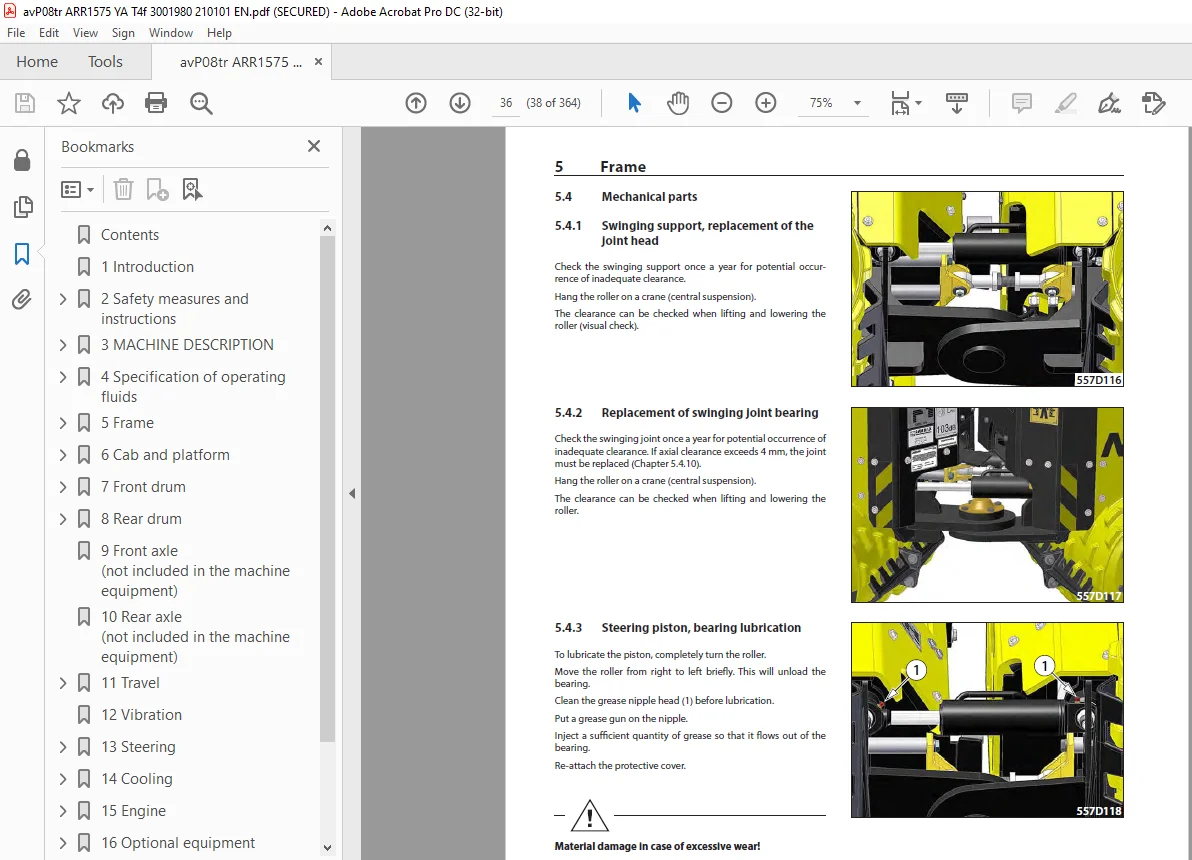

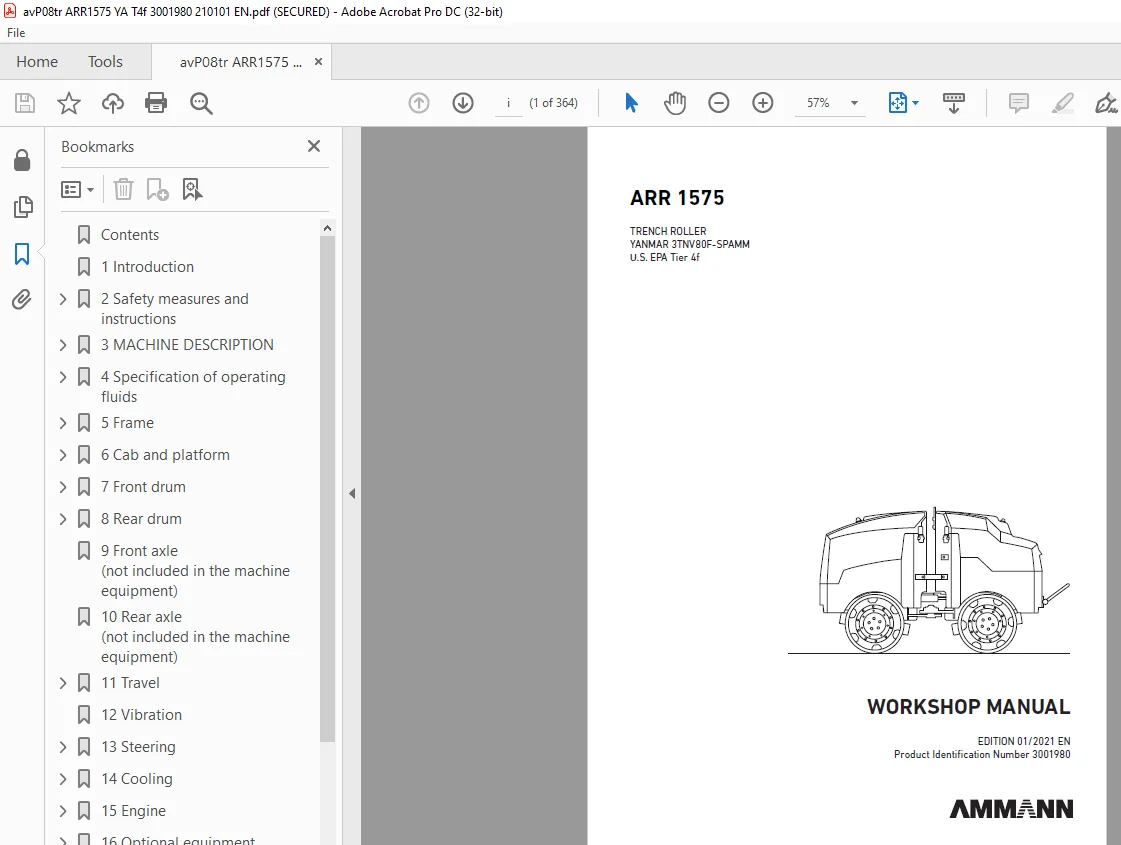

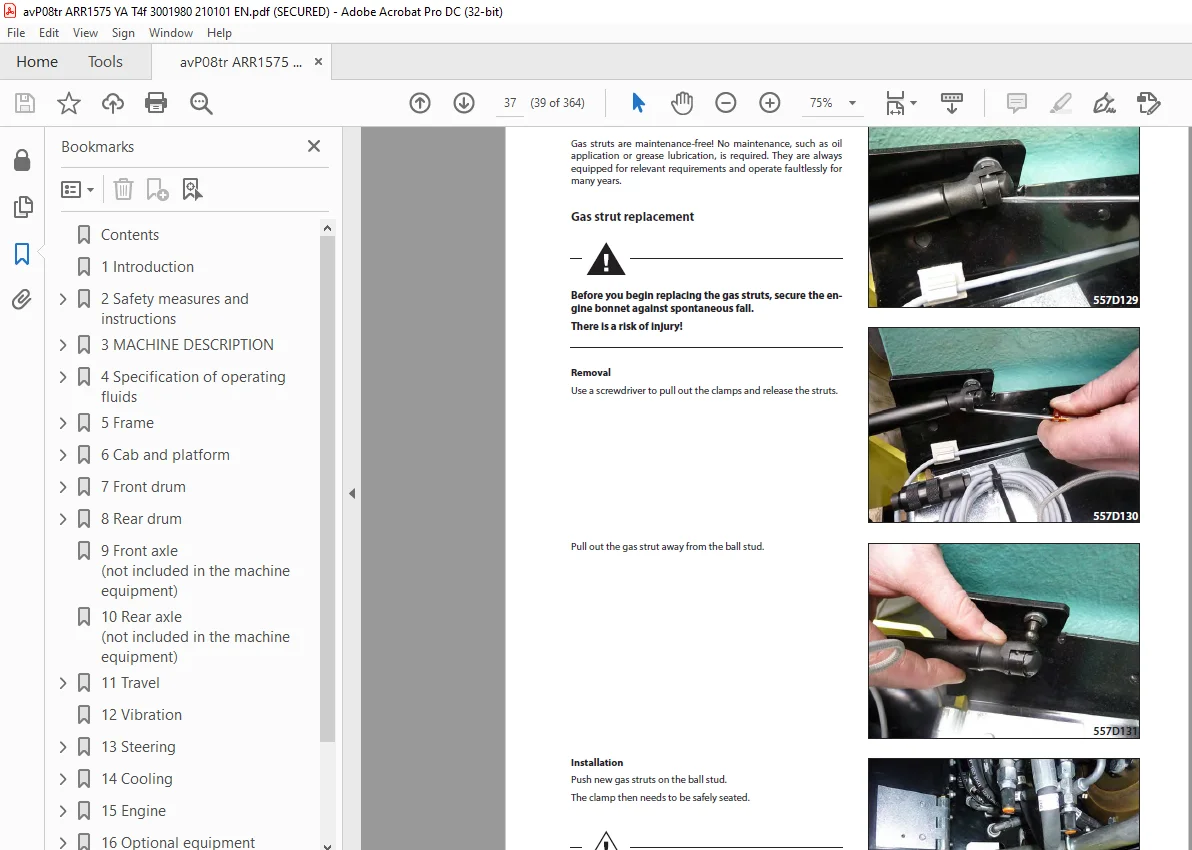

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Ammann ARR 1575 Trench Roller YANMAR 3TNV80F-SPAMM U.S. EPA Tier 4f Workshop Manual 3001980 – PDF DOWNLOAD
Contents 5
1 Introduction 11
2 Safety measures and instructions 15
2 1Safety rules 16
2 2Environmental and hygiene principles 19
2 3Fire prevention 20
2 4Claim conditions and disclaimer of liability 20
3 MACHINE DESCRIPTION 21
3 1Machine description 22
3 2Dimensional drawing of the machine 24
3 3Technical data 25
4 Specification of operating fluids 27
4 1Engine oil 28
4 2Fuel 29
4 3Coolant 30
4 4Hydraulic oil 31
4 5Lubricating grease 31
4 6Fillings 32
5 Frame 33
5 1Description of basic elements 34
5 4Mechanical parts 38
5 4 1Swinging support, replacement of the joint head 38
5 4 2Replacement of swinging joint bearing 38
5 4 3Steering piston, bearing lubrication 38
5 4 5Gas strut 39
5 4 6Front bonnet replacement 41
5 4 6 1Replacement of bonnet hinges 43
5 4 6 2Sensor replacement 44
5 4 6 3Replacement of the rubber-metal elements of the front bonnet stop 49
5 4 6 4Adjustment of the rubber-metal elements of the front bonnet stop 51
5 4 7Rear bonnet replacement 52
5 4 7 1Replacement of bonnet hinges 56
5 4 7 2Sensor replacement 56
5 4 7 3Replacement of the rubber-metal elements of the rear bonnet stop 59
5 4 7 4Adjustment of the rubber-metal elements of the rear bonnet stop 59
5 4 8Swinging support 60
5 4 9Replacement of the steering piston 68
5 4 10Swinging joint 71
5 5Fuel tank 83
5 5 1Fuel level check 83
5 5 2Fuel replenishment 83
5 5 3Fuel draining 84
5 5 4Fuel tank cleaning 84
5 6Hydraulic tank 85
5 6 1Checking the hydraulic oil level 85
5 6 2Hydraulic oil replenishment 85
5 6 3Hydraulic oil draining 86
5 6 4Hydraulic oil filter replacement 87
5 6 6Ventilation filter replacement 88
5 6 7Hydraulic tank filling 88
5 6 8Filling the travel pump, increasing the supply pressure 89
6 Cab and platform 93
6 1Control and indication elements 95
6 1 1Display unit 96
6 1 1 1Indicator lamps 96
6 1 2Error indication via LEDs on the display unit 99
6 1 3Infrared light emitter 100
6 1 3 1Layout 100
6 1 3 2Indication of faults by LEDs on the infrared light emitter 100
6 1 3 3Cable connection 101
6 1 3 4Handling 102
6 3 3Relays and fuses in the engine compartment 108
6 3 4Dashboard 109
6 3 4 1Other components 110
6 3 4 2N1 connector / cable harness 110
6 4 1Replacement of the remote control battery 113
6 4 2Replacement of the display unit 117
6 4 3Replacement of the control unit 118
6 4 3 2Installation 120
7 Front drum 121
7 2Hydraulic parts 122
7 2 1Travel drive/vibration hose 122
7 2 2Valve block connections 126
7 2 3Valve block hose 129
7 4Mechanical parts 131
7 4 1Removal of the drum extension 131
7 4 2Drum removal 133
7 4 3Replacement of vibration unit rubber elements 134
7 4 3Disassembly of the vibration unit 140
7 4 4Installation of the drum rubber-metal elements 148
7 4 4Installation of the vibration unit 155
7 4 5Replacement of the travel hydraulic motor 168
7 4 6Replacement of the vibration hydraulic motor 178
7 4 7Drum installation 186
7 4 8Scraper 186
8 Rear drum 187
8 2Hydraulic parts 188
8 3ACEecon 189
8 4Mechanical parts 198
9 Front axle
(not included in the machine equipment) 199
10 Rear axle
(not included in the machine equipment) 201
11 Travel 203
11 2Hydraulic parts 205
11 2 1Replacement of the travel pump 205
11 2 2Replacement of the valve block 220
11 2 3Brake test 236
11 2 4Replacement of the travel hydraulic motor 236
11 4Mechanical parts 237
11 4 1Replacement and adjustment of the speed magnet 237
11 3 2Checking the engine speed and frequency 243
12 Vibration 245
13 Steering 247
13 2Hydraulic parts 248
13 2 1Replacement of the steering piston 248
14 Cooling 249
14 2Hydraulic parts 250
14 2 1Cleaning of the hydraulic oil cooler 250
14 4Mechanical parts 251
14 4 1Coolant and checking the coolant level 251
14 4 1 1Checking the coolant level 251
14 4 1 2Coolant replenishment 251
14 4 1 3Cooler cleaning 251
15 Engine 253
15 1Engine compartment, overview 254
15 1 1Engine, left side 254
15 1 2Engine, right side 254
15 3Electrical installation 255
15 3 1Engine compartment 255
15 3 2Chassis at the rear 257
15 3 3Battery 258
15 3 3 1Battery replacement 259
15 3 4Batteries 260
15 3 5Alternator replacement 260
15 3 6Starter replacement 260
15 4Mechanical parts 261
15 4 1Fuel filter element 261
15 4 2Water separator filter element 261
15 4 3Checking the engine oil level 262
15 4 4Engine oil replenishment 262
15 4 5Engine oil draining 262
15 4 6Engine oil filter replacement 263
15 4 7Inlet air filter 264
15 5Replacement and adjustment of the speed magnet 265
15 6Checking the engine speed and frequency 266
16 Optional equipment 267
16 1List of optional equipment 268
16 2Safety bar 269
16 2 1Safety bar replacement 269
16 2 2Sensor replacement and adjustment 276
17 General procedures 281
17 2Electrical installation 282
17 2 2Preparation for welding work 282
17 2 3Starting the battery by means of another battery (jumping) 283
17 2 4Charging the battery with a charger 283
17 2 5Long-term storage 283
17 2 6Battery replacement 283
18 Troubleshooting 285
18 1Error diagnostics 286
18 1 1Description of basic components 286
18 1 2The engine does not start 299
18 1 3Start of the conductor and infrared radiation test 301
18 1 4Near and remote machine halt 303
18 1 5Control does not work 304
18 1 6 1External influences 304
18 1 6 2Machine cabling 304
18 1 6 3Operation 304
18 1 7Display unit 313
18 1 8Manual control 316
18 2Pressure check 317
18 2 1Pressure check and adjustment 317
18 2 2Checking the steering pressure 319
18 2 4Checking the maximum vibration pressure 320
18 2 5Checking the travel pump 323
18 2 5 1Checking the maximum supply pressure 323
18 2 5 2Checking the travel pressures (reverse/forward) 325
18 2 5 3Checking the maximum pressure of the travel pump (reverse/forward) 326
18 2 6Checking the travel hydraulic motors 327
18 2 7Adjustment of the travel pump zero position 328
18 2 7 1Checking the travel pump magnetic coil / travel pump servo block 329
18 2 8Travel pump servo block check 331
18 2 9Checking the quantity divider 337
18 2 10Speeds and pressures 338
18 3Roller overturning 339
18 3 1Checking damage 340
18 3 2Preventing oil shock 340
18 3 3Starting the engine 346
19 Appendices 347
19 1Hydraulic system 349
19 1 1Adjustment of the travel pump zero position 349
19 1 1 1Checking the travel pump magnetic coil / travel pump servo block 349
19 2Wiring diagram 350
19 4Hydraulic system diagram 352
19 6Workshop jigs 354
19 6 1Special tools 354
19 6 2Special tool for measuring the speed and frequency 357
19 6 3Special tool for magnetic coil check 357
19 7Checking the tightness of screw connections 358
