Ammann ARX 12-2 16-2 20-2 Roller Workshop Manual PDF
$28.95
The Workshop Manual for Ammann ARX 12-2, ARX 16-2, ARX 20-2 Tandem Roller Kubota D1105-EF07 EU Stage V, U.S. EPA Tier 4f is a comprehensive guide for servicing, covering engine specifics, troubleshooting, and maintenance procedures to ensure optimal performance.
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description

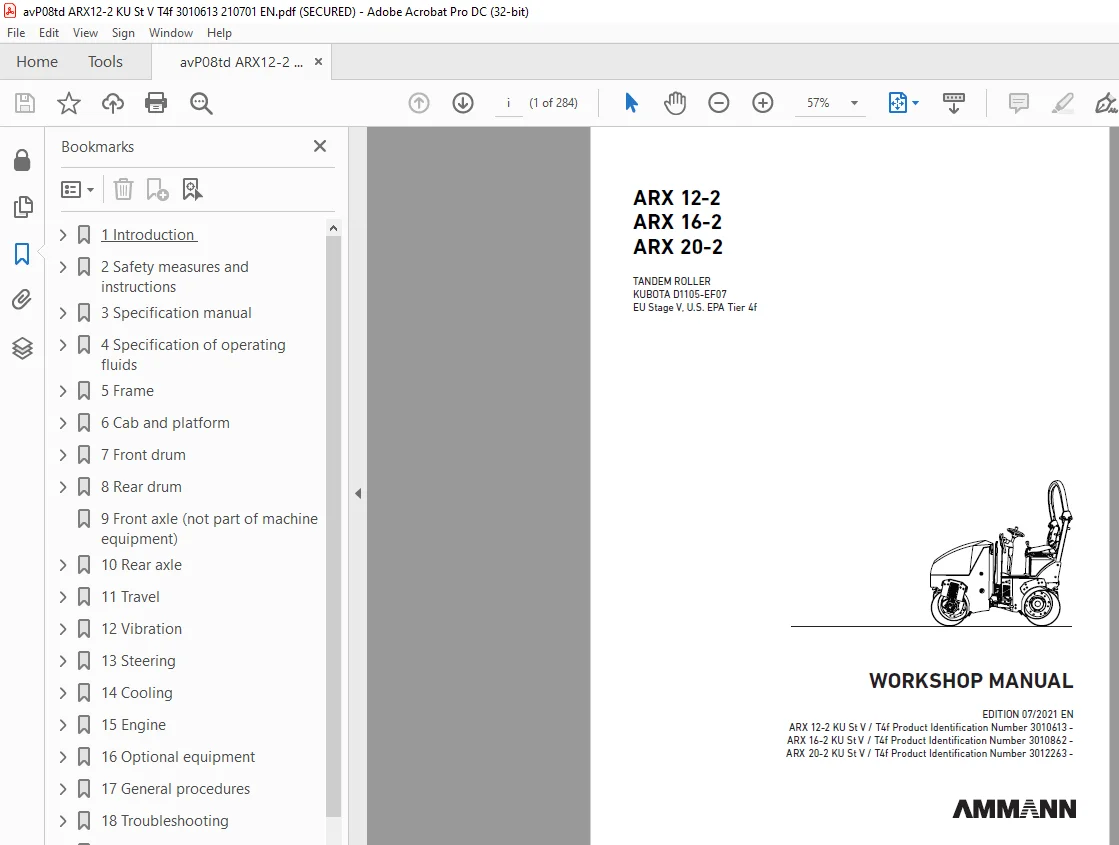

Ammann ARX 12-2 ARX 16-2 ARX 20-2 Tandem Roller Kubota D1105-EF07 EU Stage V, U.S. EPA Tier 4f Workshop Manual – PDF DOWNLOAD
FILE DETAILS:
Ammann ARX 12-2 ARX 16-2 ARX 20-2 Tandem Roller Kubota D1105-EF07 EU Stage V, U.S. EPA Tier 4f Workshop Manual -PDF DOWNLOAD
Language : English
Pages : 284
Downloadable : Yes
File Type : PDF
ARX 12-2 KU St V/ T4f Product Identification Number 3010613-
ARX 16-2 KU StV / T4f Product Identification Number 3010862-
ARX 20-2 KU St V/ T4f Product Identification Number 3012263-
IMAGES PREVIEW OF THE MANUAL:

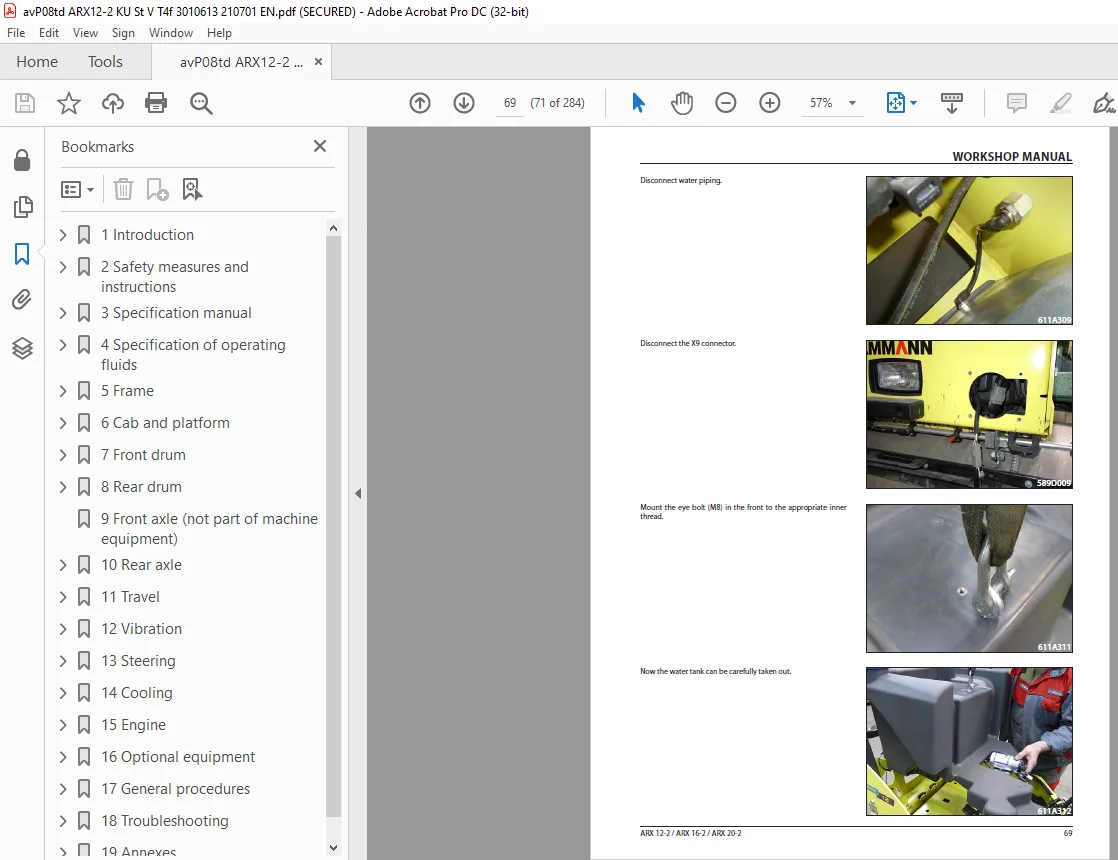

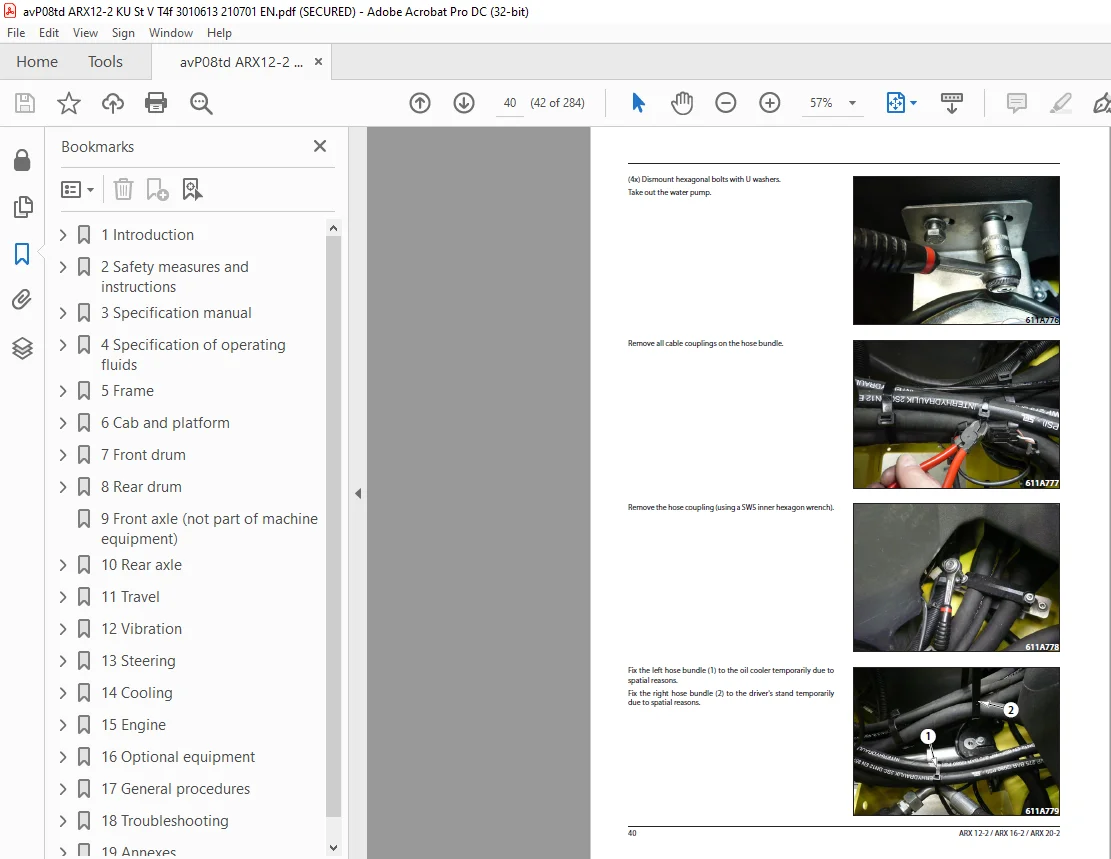

TABLE OF CONTENTS:
Ammann ARX 12-2 ARX 16-2 ARX 20-2 Tandem Roller Kubota D1105-EF07 EU Stage V, U.S. EPA Tier 4f Workshop Manual -PDF DOWNLOAD
1 IntroductionΒ 9
1 1About this workshop manualΒ 12
1 1 1Who is the workshop manual intended for 12
1 1 2PurposeΒ 12
1 1 3Applicability of the workshop manual 12
1 1 4Validity of the workshop manualΒ 12
2 Safety measures and instructionsΒ 13
2 1Safety rulesΒ 14
2 2Environmental and hygiene principles 17
2 3Fire preventionΒ 18
2 4Claim conditions and disclaimer of liability 18
3 Specification manualΒ 19
3 1Basic dataΒ 20
3 2Dimensioned drawing of the machineΒ 22
3 3Technical dataΒ 24
4 Specification of operating fluidsΒ 29
4 1 1Engine oilΒ 30
4 1 2FuelΒ 31
4 1 3CoolantΒ 32
4 1 4Hydraulic oilΒ 33
4 1 5Lubricating greaseΒ 33
4 1 6EmulsionΒ 33
4 1 7FillingsΒ 34
5 FrameΒ Β 35
5 1Description of basic elementsΒ 37
5 4Mechanical partsΒ 38
5 4 1Replacement of swinging support joint head 38
5 4 2Replacement of swinging joint bearing 38
5 4 3Lubrication of steering piston bearing 38
5 4 4Dashboard (screws)Β 39
5 4 5Gas pressure springΒ 39
5 4 6Disassembly/replacement of engine bonnet 40
5 4 7Swinging supportΒ 41
5 4 8Replacement of joint headΒ 41
5 4 9Swinging jointΒ 54
5 4 10Replacement of bearingΒ 54
5 5Fuel tankΒ 64
5 5 1Fuel level checkΒ 64
5 5 2Fuel replenishmentΒ 64
5 5 3Fuel drainageΒ 65
5 5 4Cleaning the fuel tankΒ 65
5 6Hydraulic tankΒ 66
5 6 1Check of the hydraulic oil levelΒ 66
5 6 2Hydraulic oil replenishmentΒ 66
5 6 3Hydraulic oil drainageΒ 67
5 6 4Hydraulic oil filter replacementΒ 68
5 6 6Ventilation filter replacementΒ 69
5 7Water tankΒ 70
5 7 1Water tank removalΒ 70
5 9SprinklingΒ 72
5 9 2Cleaning accessoriesΒ 72
5 9 3Sprinkling deviceΒ 72
5 9 4Sprinkling with shut-off valveΒ 73
5 9 5ScraperΒ 73
5 10Roll Over Protective Structure β ROPS 74
5 10 1ROPS tiltingΒ 74
5 10 2ROPS liftingΒ 75
6 Cab and platformΒ 77
6 1Description of basic elementsΒ 79
6 3Electrical installationΒ 80
6 3 1Steering columnΒ 80
6 3 2Output layout on the steering pillar 80
6 3 3Relays and fuses in the engine compartment 81
6 3 4DashboardΒ 81
6 3 5Multifunctional display (A4)Β 82
6 3 6Control lever panelΒ 83
6 3 7Other componentsΒ 83
6 3 7 1Control unit of the machine A3Β 83
6 4Mechanical partsΒ 84
7 Front drumΒ 85
7 1Description of basic elementsΒ 86
7 2Hydraulic partsΒ 87
7 2 1Overview of hydraulic hosesΒ 87
7 4Mechanical partsΒ 88
7 4 1Replacement of vibration unit bearing 88
7 4 1 1Drum removalΒ 88
7 4 1 2Drum disassemblyΒ 93
7 4 1 3Drum assemblyΒ 99
8 Rear drumΒ 109
8 1Description of basic elementsΒ 110
8 3Hydraulic partsΒ 111
8 3 1Overview of hydraulic hosesΒ 111
8 4Mechanical partsΒ 112
8 4 1Replacement of vibration unit bearings 112
8 4 1 1Drum removalΒ 112
8 4 1 2Drum disassemblyΒ 115
8 4 1 3Drum assemblyΒ 121
9 Front axle (not part of machine equipment) 131
10 Rear axleΒ 133
10 1Description of basic elementsΒ 134
10 4Mechanical partsΒ 135
10 4 1Replacement of travel motor at the pneumatic axle 135
11 TravelΒ Β 141
11 1Description of basic elementsΒ 142
11 2Hydraulic partsΒ 143
11 2 1Brake testΒ 143
11 2 1 1Check of the parking brakeΒ 143
11 2 1 2Check of the emergency brakeΒ 144
11 2 1 3Check of the service brakeΒ 145
11 2 2Hydraulic oil temperature sensor replacement 146
12 VibrationΒ 147
12 1Description of basic elementsΒ 148
13 SteeringΒ 149
13 1Description of basic elementsΒ 150
14 CoolingΒ 151
14 1Description of basic elementsΒ 152
14 2Hydraulic partsΒ 153
14 2 1Hydraulic oil cooler cleaningΒ 153
14 4Mechanical partsΒ 154
14 4 1Coolant and check of coolant level 154
14 4 1 1Coolant level checkΒ 154
14 4 1 2Coolant replenishmentΒ 155
14 4 1 3Cooler cleaningΒ 155
15 EngineΒ Β 157
15 1Description of basic elementsΒ 158
15 1 1Overview of engine compartmentΒ 158
15 1 2Kubota engine servicingΒ 159
15 3Electrical installationΒ 160
15 3 1Steering pillar fusesΒ 160
15 4Mechanical partsΒ 161
15 4 1Fuel filter elementΒ 161
15 4 2Water separator filter elementΒ 161
15 4 3Engine oilΒ 162
15 4 3 1Check of engine oil levelΒ 162
15 4 3 2Engine oil replenishmentΒ 163
15 4 3 3Engine oil drainingΒ 164
15 4 3 4Engine oil filter replacement 165
15 4 4Inlet air filterΒ 167
16 Optional equipmentΒ 169
16 1List of optional equipmentΒ 170
17 General proceduresΒ 171
17 2Electrical installationΒ 172
17 2 1Travel pump magnetic coil check 172
17 2 2Preparation for welding worksΒ 174
17 2 3Starting the battery by means of another battery (jumping) 175
17 2 4Charging the battery with a charger 176
17 2 5Long-term storageΒ 176
17 2 6Battery replacementΒ 177
17 2 7Lamp replacementΒ 178
17 2 7 1Front lamp replacementΒ 178
17 2 7 2Rear lamp replacementΒ 179
17 4Calibration and setting (calibration mode) 180
17 4 1Calibration modeΒ 181
17 4 2Calibration of the minimum current of travel coils 184
18 TroubleshootingΒ 187
18 1SW error diagnosticsΒ 188
18 1 1Error codesΒ 188
18 1 3Travel controller checkΒ 196
18 1 3 1IntroductionΒ 196
18 1 3 2TestΒ 196
18 2Pressure checkΒ 197
18 2 1Steering pressure settingΒ 197
18 2 2Steering valveΒ 197
18 2 3Maximum pressure of vibration control valve 198
18 2 4Travel pump checkΒ 198
18 2 4 1Supply pressure checkΒ 198
18 2 4 2Travel pressure checkΒ 199
18 2 5Travel pump zero position adjustment 201
18 2 5 1Travel pump magnetic coil check 202
18 2 6Travel pump servo block checkΒ 204
18 2 7Edge cutter valveΒ 210
18 2 8IntroductionΒ 214
18 2 9Brake valve magnetic coil check 215
18 2 12Quantity divider checkΒ 216
18 2 11Vibration control valveΒ 219
18 2 11 1Pressure valveΒ 219
18 2 11 2Magnetic coilΒ 223
18 2 12Travel controllerΒ 224
18 2 12 1Travel controller replacement 224
18 2 12 2Switch check and replacement 226
18 2 13Control unit replacementΒ 229
18 2 14Brake testΒ 232
18 2 14 1Check of the parking brakeΒ 232
18 2 14 2Check of the emergency brake 232
18 2 14 3Check of the service brakeΒ 232
19 AnnexesΒ 233
19 1Hydraulic systemΒ 234
19 1 1Travel pump zero position adjustment 234
19 1 1 1Travel pump magnetic coil check 235
19 2Wiring diagramΒ 238
19 3Electric installations cable harnesses 245
19 3Hydraulic system diagram ARX 12-2, ARX 16-2, ARX 20-2 270
19 6Workshop jigsΒ 274
19 6 1ToolsΒ 274
