Ammann AV 130 X Articulated Tandem Roller Cummins Tier 3 Operating Manual SN 4022001 – PDF DOWNLOAD
FILE DETAILS:
Ammann AV 130 X Articulated Tandem Roller Cummins Tier 3 Operating Manual SN 4022001 – PDF DOWNLOAD
Language : English
Pages : 196
Downloadable : Yes
File Type : PDF

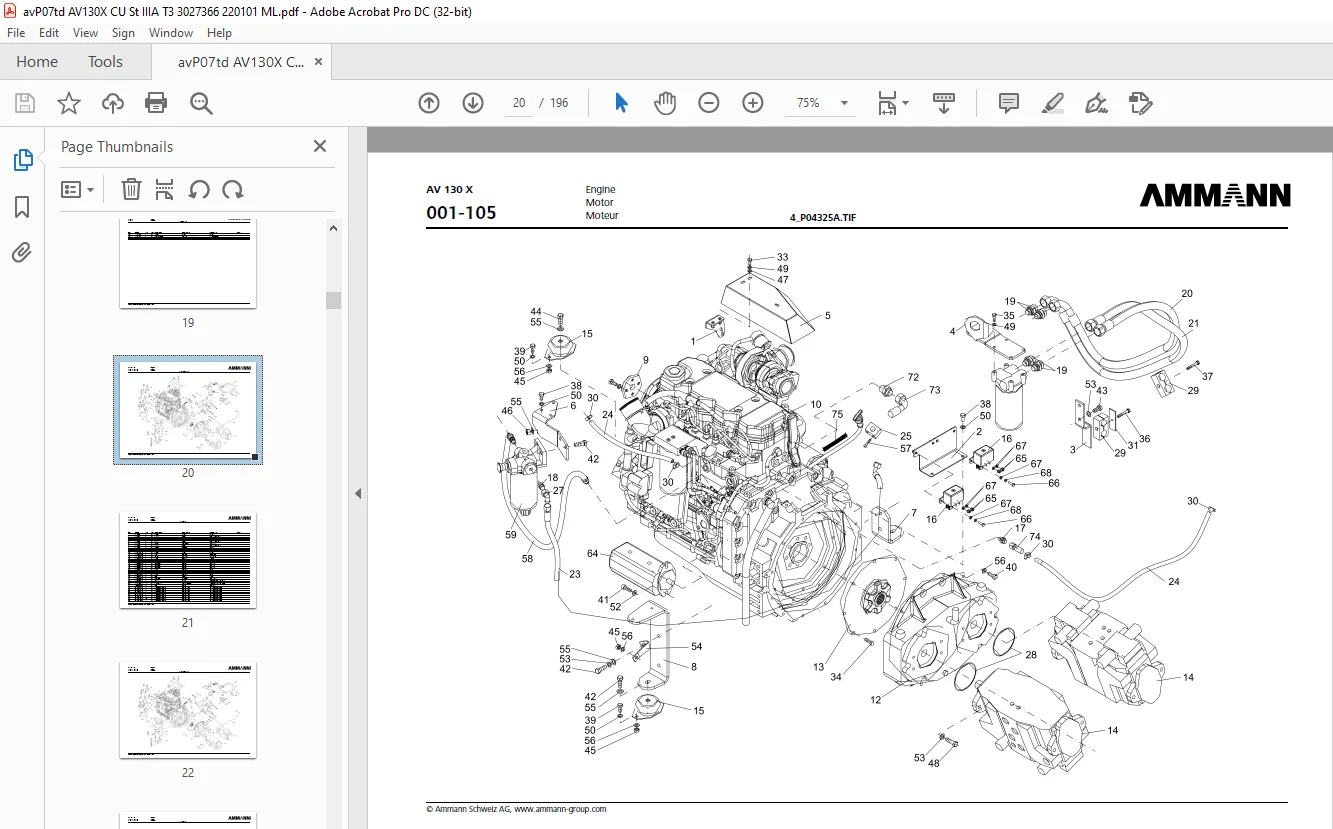

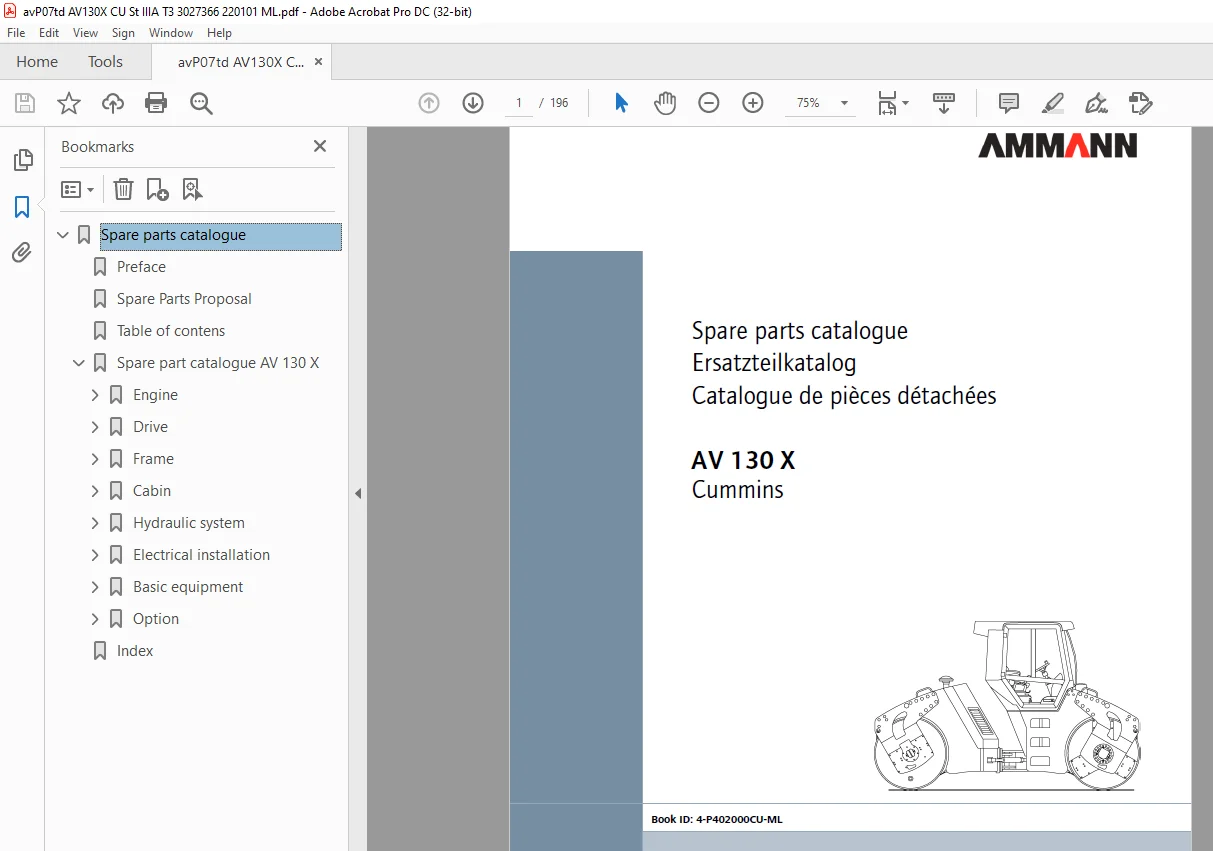

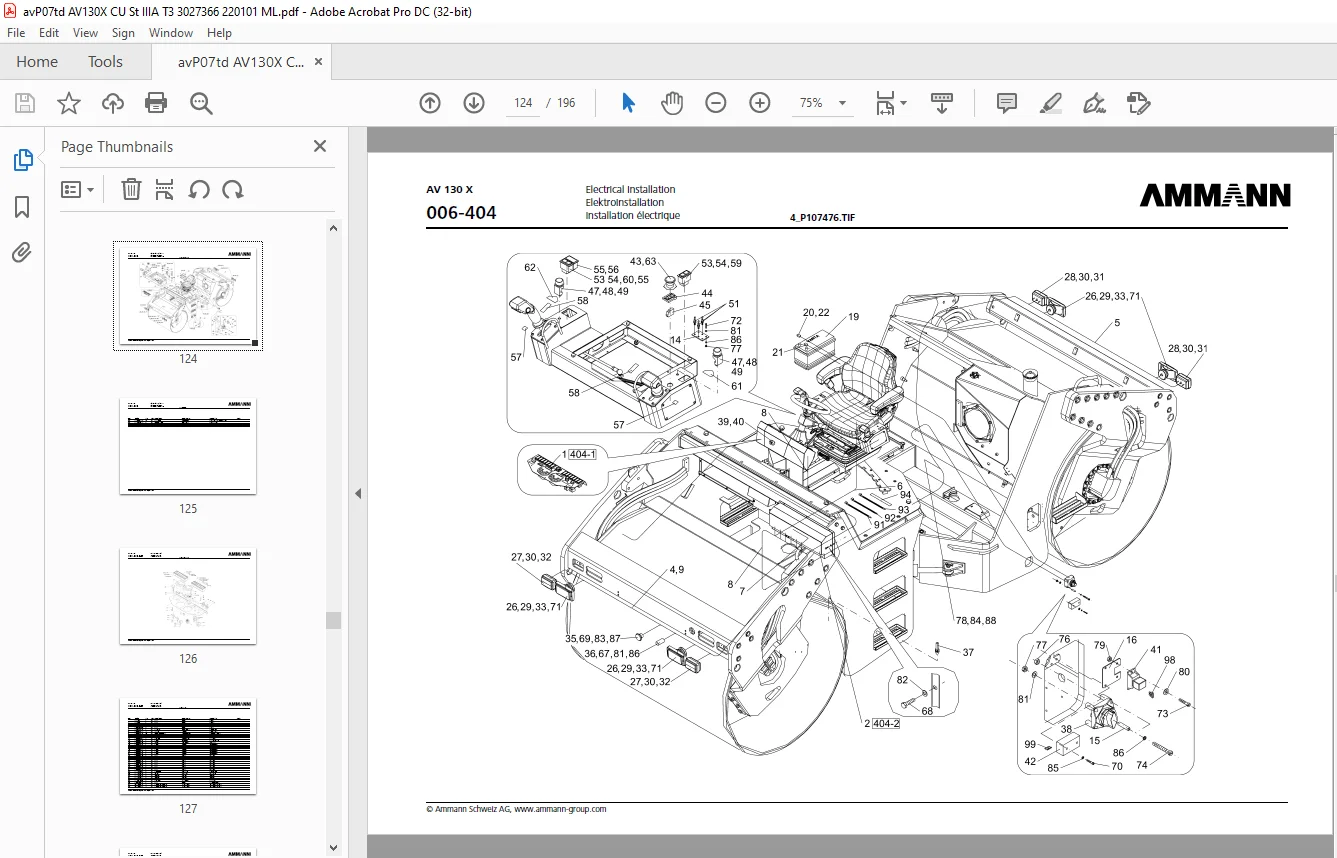

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Ammann AV 130 X Articulated Tandem Roller Cummins Tier 3 Operating Manual SN 4022001 – PDF DOWNLOAD
Spare parts catalogue...................... 3 Preface................................ 7 Spare Parts Proposal................... 0 Table of contens....................... 10 Spare part catalogue AV 130 X.......... 16 Engine............................. 18 Engine......................... 20 Cooling system................. 24 Intake and exhaust pipe........ 28 Drive.............................. 30 Drum........................... 32 Frame.............................. 36 Front frame.................... 38 Scrapers....................... 40 Rear frame..................... 42 Joint.......................... 44 Steering suspension........ 46 Steering cylinder.............. 48 Frame accessories.............. 50 Water tank..................... 52 Spraying....................... 54 Spraydown pipe............. 56 Cabin.............................. 58 Platform....................... 60 Rear mirror.................... 64 Cabin.......................... 66 Cabin.......................... 72 Cabin.......................... 78 Cab mounting................... 82 Control........................ 84 Travel controls............ 86 Steering column................ 90 Cover hood..................... 92 Heater......................... 96 Hydraulic system................... 98 Front drum hydraulic system....100 Rear drum hydraulic system.....102 Pump hydraulics................104 Cube.......................108 Steering hydraulics............110 Cooling hydraulics.............114 Lifting hydraulics.............116 Electrical installation............118 Electrical installation........120 Instrument panel...........126 Contact....................130 Cab wiring.....................134 Basic equipment....................136 Labelling......................138 Option.............................140 Scrapers.......................142 Railing........................144 Roof...........................146 Cover..........................148 Platform wiring................150 Revolving light................152 Revolving light................154 Reversing alarm................156 Lamps..........................158 Lamps..........................160 Tool kit.......................162 Set of spare parts.............164 Set of spare parts.............166 Edge cutter....................168 Edge cutter hydraulics.....172 Cover hood.................174 Thermometer....................176 Air conditioning system........178 Fire extinguisher..............180 Index..................................184
