Aprilia Tuono V4 2011 Owner Manual – English & French PDF Download

Description

File Details

• Manual type: Owner’s manual (use and maintenance booklet)
• Brand: Aprilia
• Model: Tuono V4
• Publication year: 2011
• Language: English and French (bilingual)
• Page count: 267 pages
• File format: PDF
• Document reference: Aprilia Tuono V4 Owner Manual English-French 2011

Chapters Covered

• General rules
• Vehicle
• Use
• Maintenance
• Technical data
• Scheduled maintenance

General Rules

This opening chapter sets out the safety framework for the Tuono V4: carbon monoxide warnings, fuel handling, hot component precautions, coolant and oil hazards, battery electrolyte safety, brake and clutch fluid handling, and stand usage rules. It also includes the noise emission warranty statement, tampering prohibitions, and the emissions control warranty details that apply to US-market machines. For anyone working on or riding the Tuono V4, this chapter establishes the non-negotiable safety boundaries before any procedure begins.

Vehicle

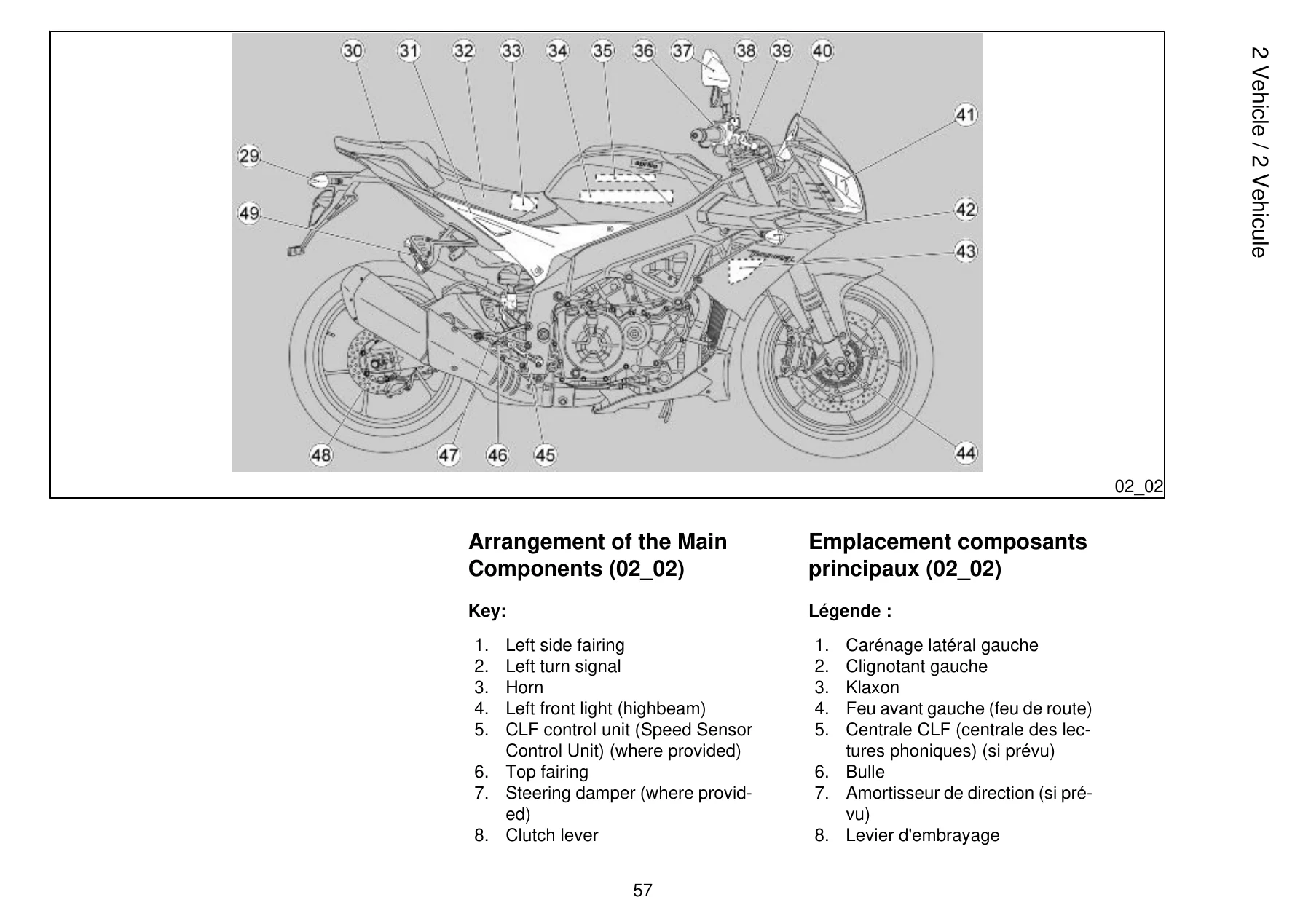

The largest reference chapter in the manual, covering the Tuono V4’s layout and controls in exhaustive detail. It opens with a numbered arrangement of main components, then moves through the dashboard, analog instrument panel, warning light unit, digital LCD display (including ROAD, RACE and TRIP modes), alarm messages, engine mapping selection, control buttons, advanced functions menu, ignition switch and steering lock, a-PRC adjustment buttons, horn, turn signals, high/low beam, passing button, start-up button, engine stop switch, the full a-PRC system explanation (ALC, ATC, AWC, AQS), immobilizer operation, saddle removal, glove/tool kit compartment, and frame/engine number locations. If you need to understand what a dash icon means, how to change maps, or how the a-PRC system is configured, it is all here.

Use

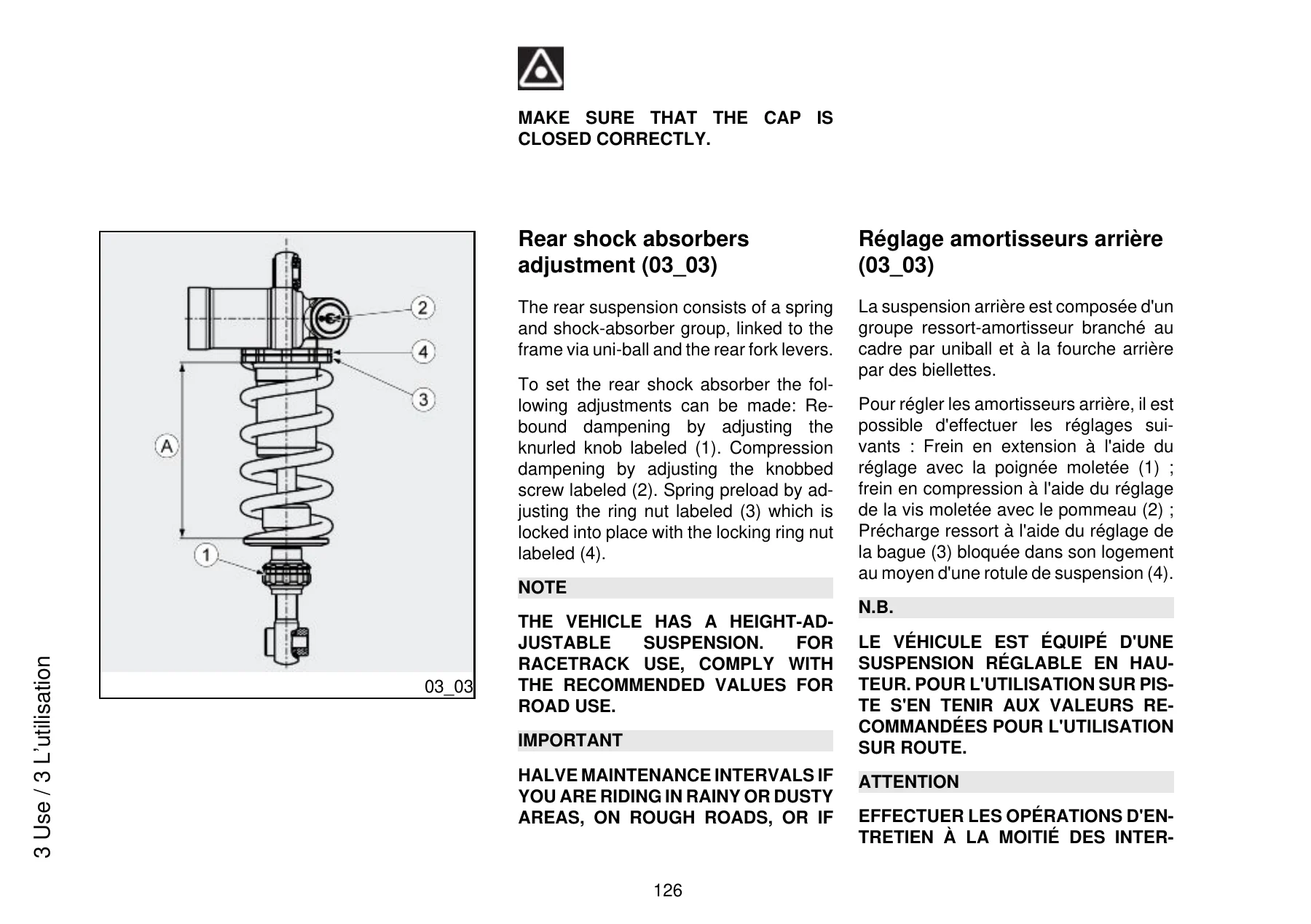

This chapter covers everything from pre-ride checks to parking. It includes the pre-ride inspection table (brakes, throttle, engine oil, wheels and tires, levers, steering, side stand, fasteners, fuel tank, lights, horn, speed sensors), refueling procedure with capacity figures, rear shock absorber adjustment (rebound, compression, spring preload), front fork adjustment (rebound, compression, spring preload, stanchion protrusion), steering damper notes, front brake and clutch lever adjustment, running-in guidance, engine starting procedure, moving off and riding technique, stopping the engine, parking, catalytic silencer notes, side stand operation, theft prevention advice, and a substantial safe riding section covering basic safety rules, clothing, accessories, loading, and mounting/dismounting with a passenger.

Maintenance

The hands-on chapter for routine and scheduled service. It covers engine oil level checking and top-off, oil and filter change notes, tire inspection and pressure guidance, spark plug removal, air filter removal, coolant level checking and top-off (including the 50/50 water-antifreeze mix), brake fluid top-up for front and rear systems, battery removal and installation, new battery use, electrolyte level check, battery charging, fuse checking and replacement (with the full auxiliary and main fuse arrangement), light bulb replacement (high/low beam, front and rear turn signals, license plate light, brake light), headlight adjustment (vertical and horizontal), rear-view mirror removal, front and rear disc brake inspection, periods of inactivity preparation, vehicle cleaning, transport, and drive chain free play check, adjustment, wear inspection and lubrication.

Technical Data

A complete specifications chapter for the Tuono V4. It lists dimensions (max length 81.30 in / 2065 mm, max width 32.28 in / 820 mm, max height 42.91 in / 1090 mm, saddle height 32.52 in / 826 mm, wheelbase 56.89 in / 1445 mm, minimum ground clearance 4.92 in / 125 mm), curb weight 425 lb / 193 kg, fully loaded weight 615 lb / 279 kg, engine type (V4, 4-stroke longitudinal 65° V, four valves per cylinder, DOHC, 999 cc), bore and stroke (3.07 in / 2.06 in, 78 mm / 52.26 mm), compression ratio 13:1, idle speed 1500 ± 100 rpm, maximum engine rpm 12300 ± 100 rpm, lubrication and cooling system details, fuel tank capacity (4.49 US gal / 17 l including 0.95 US gal / 3.6 l reserve), engine oil capacity with filter change (1.06 US gal / 4 l), coolant capacity (0.68 US gal / 2.6 l), gear ratios, drive chain type (525, Regina 110 links), fuel system (ride-by-wire, 1.89 in / 48 mm throttle bodies), chassis (aluminum dual-beam), suspension (Showa 43 mm upside-down fork, Sachs rear shock), brakes (320 mm dual floating front discs with radial four-piston calipers, 220 mm rear disc), wheel rims (3.50 x 17 front, 6.00 x 17 rear), tire sizes and pressures, electrical system (NGK CR9EKB spark plugs, YUASA YTZ10S battery, 450 W generator, 30 A main fuse, 5A/7.5A/15A secondary fuses), bulb specifications, and warning light list.

Scheduled Maintenance

The final chapter provides the periodic maintenance chart with intervals at 0.6, 6.2, 12.4, 18.6 and 24.8 thousand miles (1,000, 10,000, 20,000, 30,000 and 40,000 km), covering items such as rear shock absorber setting, cylinder balancing, spark plugs, drive chain, clutch cable, transmission and control cables, sprockets, bearings, steering, wheel bearings, electronic control unit diagnostics, brake discs, air filter, oil filter, fork, valve free play, cooling system, braking systems, light system, stand switch, safety switches, stop switches, brake fluid, coolant, fork oil, engine oil, light adjustment, fork oil seals, flexible coupling, tires, wheels, bolt tightening, gasoline pipes, clutch wear and brake pad wear. It also includes the recommended products table listing ENI i-RIDE PG RACING 5W-40 motor oil, AGIP MP GREASE, AGIP PERMANENT SPEZIAL coolant, AGIP BRAKE 4 brake fluid and AGIP ARNICA SA 32 fork oil.

What This Tuono V4 Owner Manual Enables You to Do

This is not a generic sportbike handbook. It is the specific use and maintenance documentation Aprilia produced for the 2011 Tuono V4, covering the a-PRC electronics package (ATC traction control, AWC wheelie control, ALC launch control, AQS quick shift), the ride-by-wire throttle mapping system, the fully adjustable Showa/Sachs suspension, and the maintenance schedule for the 999cc V4 engine. With this manual on your device, you can correctly interpret every dashboard alarm, configure the a-PRC system to your riding conditions, perform oil and filter changes, check and adjust chain slack, top off coolant and brake fluid, replace bulbs and fuses, adjust suspension preload and damping, and follow the factory-specified running-in and servicing intervals.

Working from the correct procedures and the correct torque, clearance and capacity figures matters on a motorcycle like the Tuono V4. The wrong oil level, an incorrectly adjusted chain, or a misunderstood a-PRC setting can affect both safety and mechanical longevity. This manual provides the values and the sequence — front fork rebound 10 clicks from closed, rear shock spring length 5.71 in (145 mm) for road use, chain free play 1.18 in (30 mm), engine oil 1.06 US gal (4 l) with filter change, and so on — so you are not guessing.

IMAGES PREVIEW

Delivery is instant. The PDF downloads immediately after payment and works on any device — laptop, tablet, phone. You can print the pages you need for the workshop and keep the complete manual on file. No shipping, no waiting, no physical book to lose.
