AROL TSI EURO PK W6 Use and Maintenance Manual 2019 – PDF Download

Description

AROL TSI EURO PK W6 Closing Machine Manual — 2019

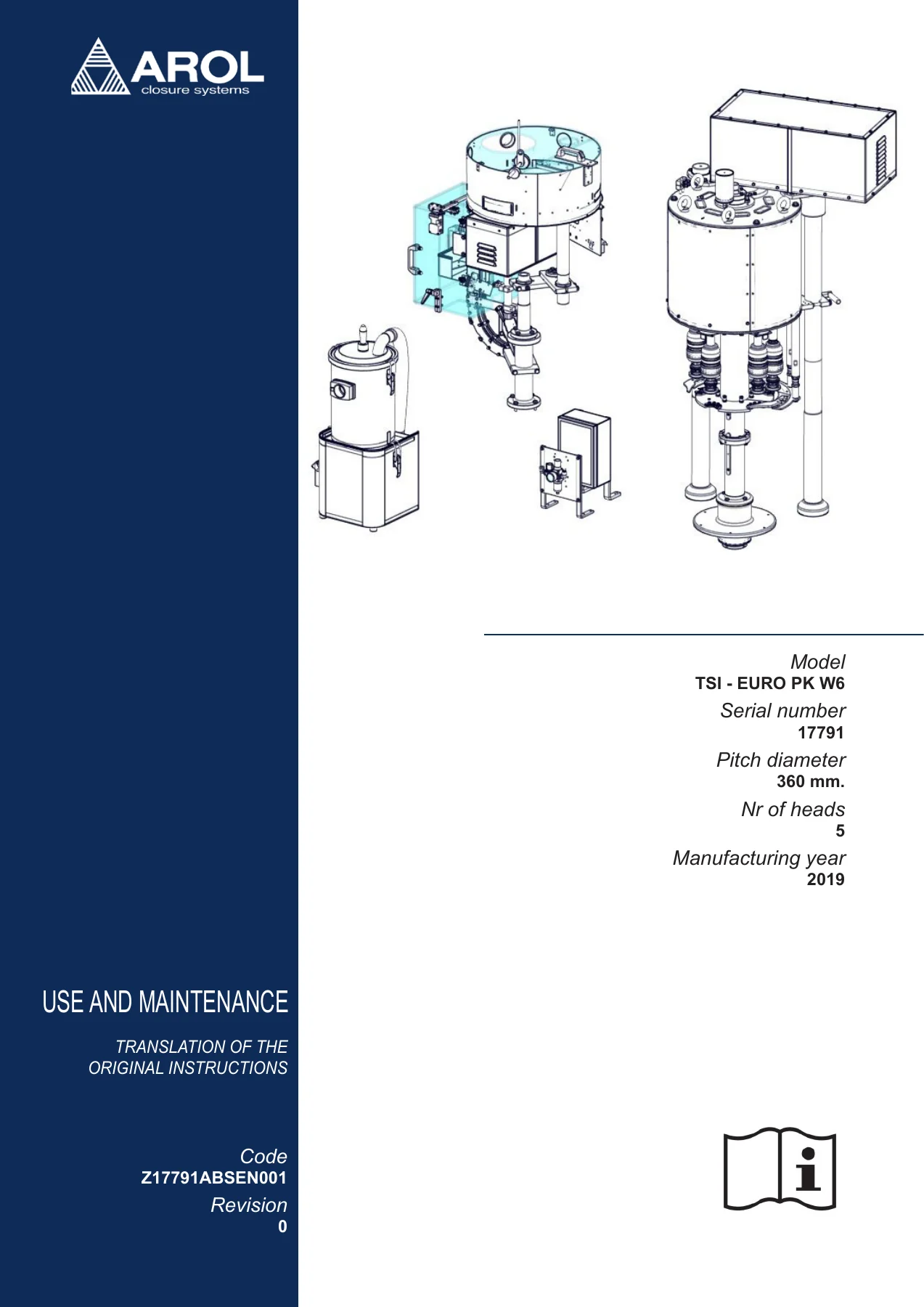

This is the complete Use and Maintenance Manual for the AROL TSI EURO PK W6 closing machine, serial number 17791, manufactured in 2019 with a pitch diameter of 360 mm and 5 closure heads. The 170-page PDF is the English translation of the original instructions, carrying document code Z17791ABSEN001, Revision 0. It is the same manual supplied with the machine and covers the full operating lifecycle: installation, start-up, use, size change, maintenance, and dismantling.

File Details

• Manual type: Use and Maintenance Manual
• Brand: AROL S.p.A.
• Model: TSI – EURO PK W6
• Serial number: 17791
• Manufacturing year: 2019
• Language: English (translation of the original instructions)
• Page count: 170
• File format: PDF
• Document code: Z17791ABSEN001
• Revision: 0
• Pitch diameter: 360 mm
• Number of closure heads: 5

Chapters Covered

• 1 Purpose of the Manual – Edition – Updating Method
• 2 Identification of the Closing Machine
• 3 Declaration of Incorporation
• 4 Closing Machine Description
• 5 Security and Accident Prevention
• 6 How to Ask for Interventions
• 7 How to Order Spare Parts
• 8 Installation and Connections
• 9 Closing Machine Use
• 10 Size Change
• 11 Maintenance of the Closing Machine
• 12 Faults and Remedies
• 13 Scrapping and Disposing

Machine Description and Identification

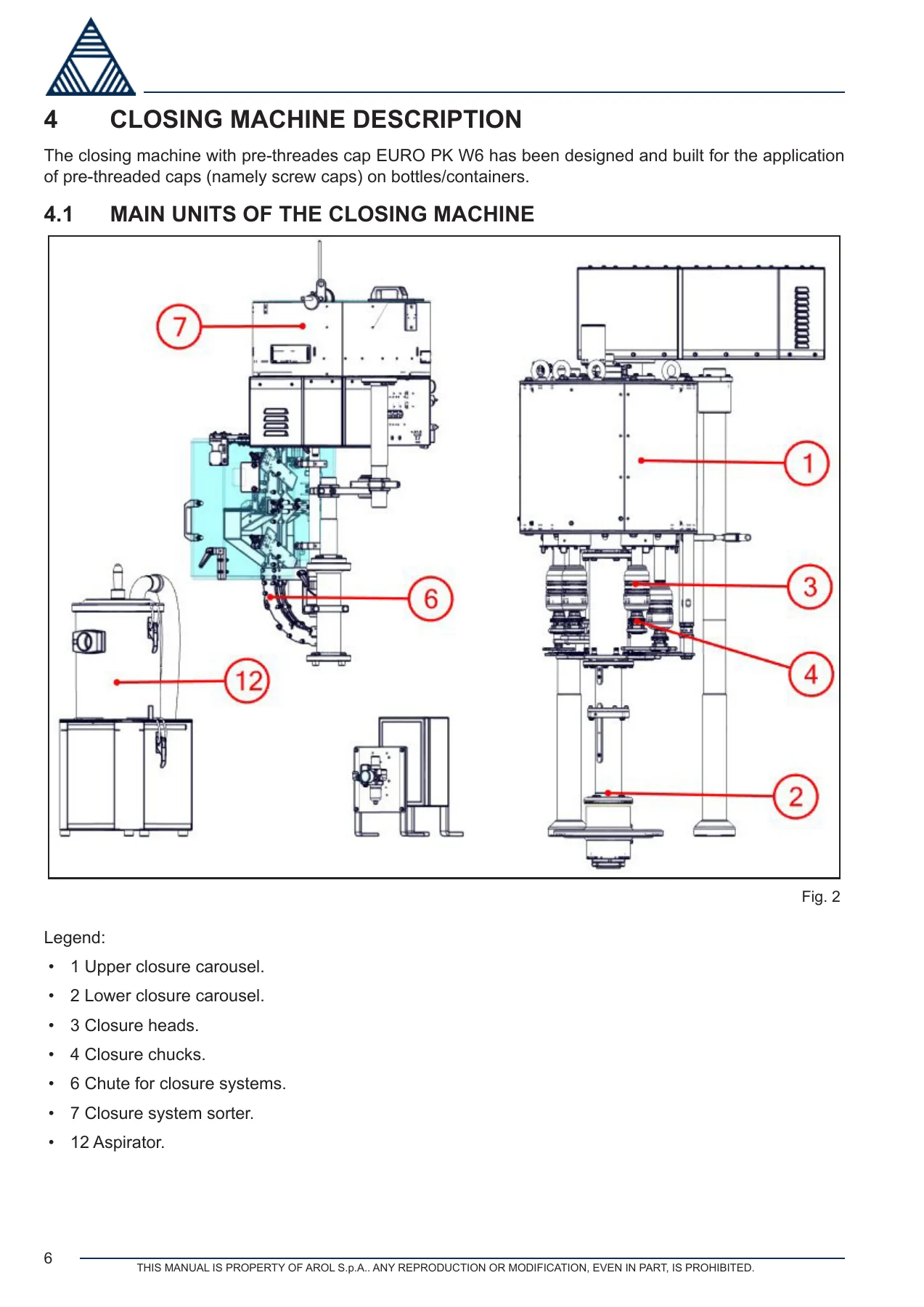

Chapters 2 through 4 open with the identification plate location and data fields (model, type, pitch diameter, number of heads, serial number, year), followed by a full breakdown of the main units: upper and lower closure carousels, closure heads, closure chucks, chute for closure systems, closure system sorter, and aspirator. The production cycle is described step by step, from cap orientation in the hopper through to the closure head picking a cap by chuck and screwing it onto the container. Technical data tables list nominal production at 7200 pieces/hour, machine weight at 920 kg, electrical supply at 440V ~60Hz main and 24V auxiliary, installed power of 2.41 kW total, and pneumatic requirements of 400 cal/min sterile air at 6–8 bar.

Safety and Accident Prevention

Chapter 5 is dedicated to safety devices and procedures. It documents the fixed guards protecting the head area and cap ejector, the position of safety devices, and the compulsory isolation of all energy sources before any maintenance or size change. Residual risks are identified, along with the required personal protective equipment and the employer’s obligations for training and information. Safety procedures for both operation and maintenance are laid out in full, including lockout steps for pneumatic and electrical energy and the requirement to verify that all guards are reinstalled before restarting.

Installation and Connections

Chapter 8 covers the mechanical and pneumatic installation of the closing machine. It details caps chute installation, the mounting of the flat centrifugal caps sorter, pneumatic connection to the air treatment unit and main distribution network, ionizer connection including air quality requirements and electronic wiring (brown to phase, blue to neutral, green/yellow to earth), and installation of the suction device. Each procedure is supported by illustrated steps and reference to the pneumatic diagram supplied with the manual.

Operating the Closing Machine

Chapter 9 walks through setting up, checks, and first start-up. It includes preliminary checks before starting, closing machine height adjustment using the spacer method, ionizer power supply commissioning, caps sorter loading with level sensor adjustment, emptying of the caps distribution system, and ejection of overturned caps. Cleaning procedures are given in detail with a cleaning intervals table covering external washing, closure head and chuck washing, sorter cleaning, and aspirator container emptying, plus autoclave sterilization of closure heads at 121°C and 1 bar for 20 minutes.

Size Change Procedures

Chapter 10 explains the size change process for container body guides, container neck guides, and caps. It covers removal and installation of the central star-wheel, external bottle neck guide, bottle neck centering device support, bottle neck guide sector, closure chuck “PK 4S HE”, closure heads “PK 415”, and caps selection equipment for the centrifugal sorter. Adjustment of the closure head for tightening torque and vertical load variation is also included, along with a closure application data table for recording torque values.

Maintenance and Lubrication

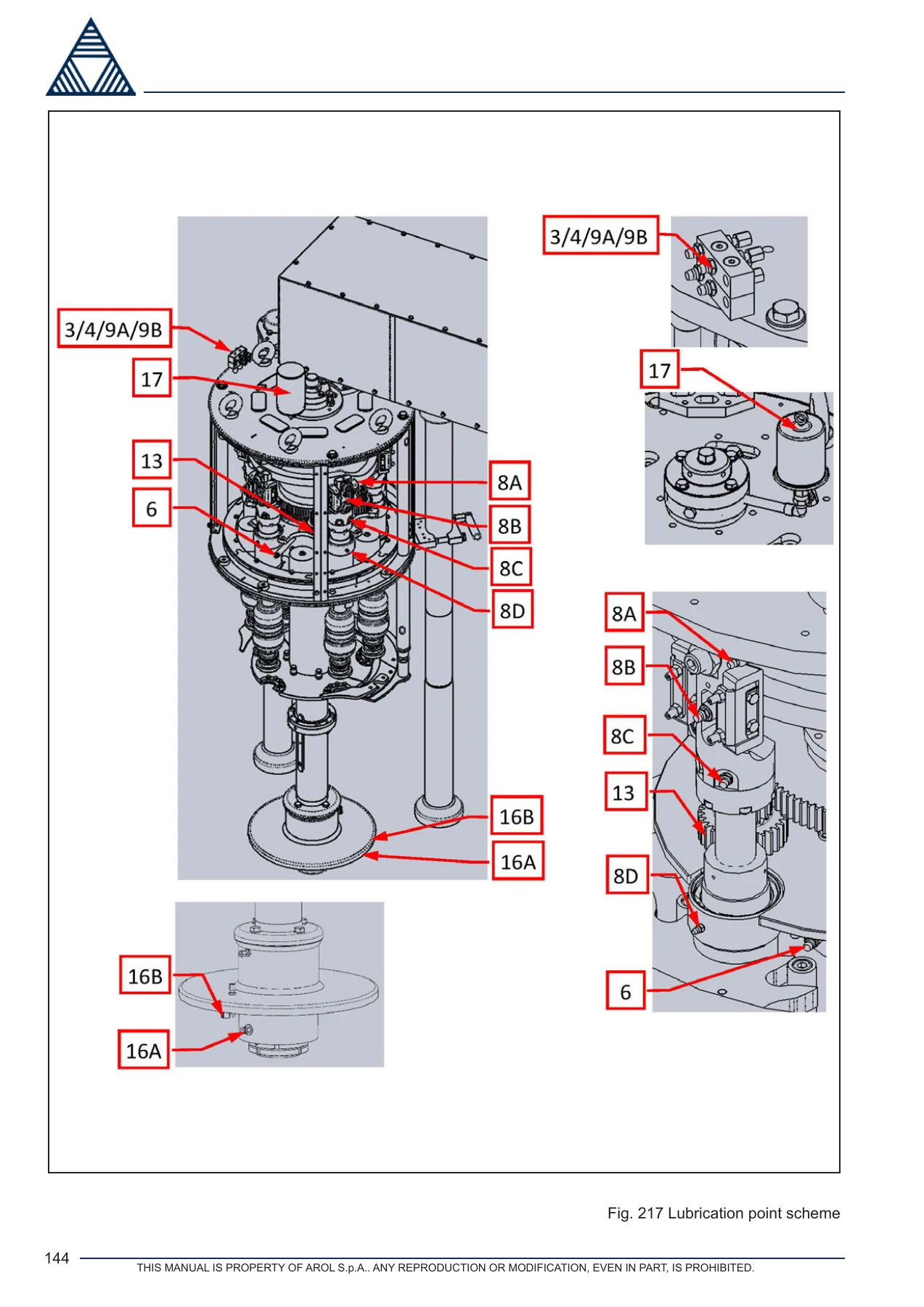

Chapter 11 is the largest section, covering scheduled maintenance at intervals from 40 to 24,000 working hours. It includes routine maintenance tables for each interval, spindle pads clearance adjustment, closure head maintenance with spring replacement and magnetic ring overhaul, closure chuck maintenance, toothed centering device replacement, centrifugal caps sorter maintenance, and ionizing nozzle maintenance. Lubrication is treated in full with NSF H1 food-grade lubricant tables, a lubrication point list and scheme, lubricant cartridge replacement, closure head and chuck lubrication, and Bonfiglioli reducer oil replacement. Extraordinary maintenance covers spindle control cam wear check and alignment between bottle centering device and central star-wheel.

Troubleshooting and Disposal

Chapter 12 provides a faults and remedies table organized by symptom, cause, and remedy. It covers issues with closure carousel vertical movement, container breakage, cap descent from the sorter, cap screwing problems, insufficient or excessive torque, caps falling from the closure head, aspirator faults, and ionizing device problems. Chapter 13 closes the manual with scrapping and disposal instructions, including disconnection from the electric network, emptying of lubrication points, locking of moving parts, and differentiated collection of materials according to local regulations.

Why This Manual Matters for Your AROL TSI EURO PK W6

The AROL TSI EURO PK W6 is a commercial closing machine designed for pre-threaded caps on bottles and containers, running at up to 7200 pieces per hour. Keeping it running correctly requires exact torque settings, correct size change procedures, and timely maintenance. This manual gives you the manufacturer’s own procedures for tightening torque adjustment on the PK 415 closure head, spindle pad clearance adjustment, magnetic ring overhaul, and lubrication intervals with NSF H1 food-grade lubricants. Without these specifications, you risk damaged caps, broken containers, premature wear on closure chucks, or safety incidents from improperly isolated energy sources.

What You Can Do With This PDF Manual

With this AROL TSI EURO PK W6 use and maintenance manual in hand, you can perform the full range of tasks the machine requires: install the caps sorter and chute, set the correct closing height for each container size, change over to a different cap format, adjust tightening torque across all five closure heads, replace compensating springs for varying vertical loads, clean and sterilize closure heads, troubleshoot faults from the symptom tables, and order the correct spare parts. The maintenance schedule spans from 40-hour checks through to 24,000-hour overhauls, giving you a complete preventive maintenance plan. The troubleshooting chapter alone can save hours of downtime by pointing directly to the likely cause and remedy.

IMAGES PREVIEW

Instant PDF Delivery — No Shipping, No Waiting

This AROL TSI EURO PK W6 manual is delivered as an instant PDF download after payment. There is no shipping, no waiting for a physical book, and no risk of a damaged or lost package. The file works on any device — laptop, tablet, or smartphone — and can be printed for use on the production floor. Keep a copy on the machine, in the maintenance office, and on your technician’s tablet. The PDF format means you can search for specific torque values, lubrication points, or fault codes without flipping through pages. Whether you are performing a routine 500-hour lubrication, a full 3000-hour closure head overhaul, or diagnosing a cap that will not screw correctly, this manual puts the manufacturer’s procedures and specifications at your fingertips.
