Astra HD9 Euro 3 Service Manual PDF – Maintenance, Diagnostics & Electrics
Original price was: $120.00.$29.95Current price is: $29.95.
Official Astra HD9 Euro 3 Use and Maintenance Manual. This comprehensive guide covers Iveco Cursor 8 (F2B) and Cursor 13 (F3B) engines, ZF/Allison transmission operations, and complete electrical fuse/relay layouts. Essential for performing scheduled maintenance, understanding dashboard error codes, and managing hydraulic systems on 4×2, 6×4, and 8×8 heavy-duty trucks.
Description
Astra HD9 Euro 3 Service Manual Maintenance, Diagnostics & Electrics PDF DOWNLOAD
Description:
Maximize the Uptime of Your Astra HD9 Heavy-Duty Truck
This Astra HD9 Euro 3 Service & Maintenance Manual is the critical resource for operators and fleet mechanics managing Astra’s extreme-duty trucks. Far more than a basic glovebox guide, this 284-page manual provides the deep technical specifications, maintenance schedules, and diagnostic procedures required to keep these beasts operational in harsh environments.
Covering the full range of chassis configurations (from 2-axle to 4-axle, including 6×6 and 8×8), this PDF details the care and troubleshooting of the Iveco Cursor engines and ZF/Allison drivelines. It includes invaluable electrical data, such as fuse block mapping and relay identification, often missing from standard repair guides.
Key Technical Coverage:
Engine Maintenance: Specifics for Iveco F2B (Cursor 8) and F3B (Cursor 13), including belt replacement checks, valve play adjustment notes, and fuel system bleeding.
Transmission & Driveline: Operational and maintenance data for ZF 16 S manual gearboxes, Allison automatic, and ZF As-Tronic automated transmissions. Includes Multipower PTO and NMV 221 power take-off engagement procedures.
Hydraulics & Steering: Fluid change procedures for power steering (with and without auxiliary cylinders), cab tilting mechanisms, and differential lock troubleshooting.

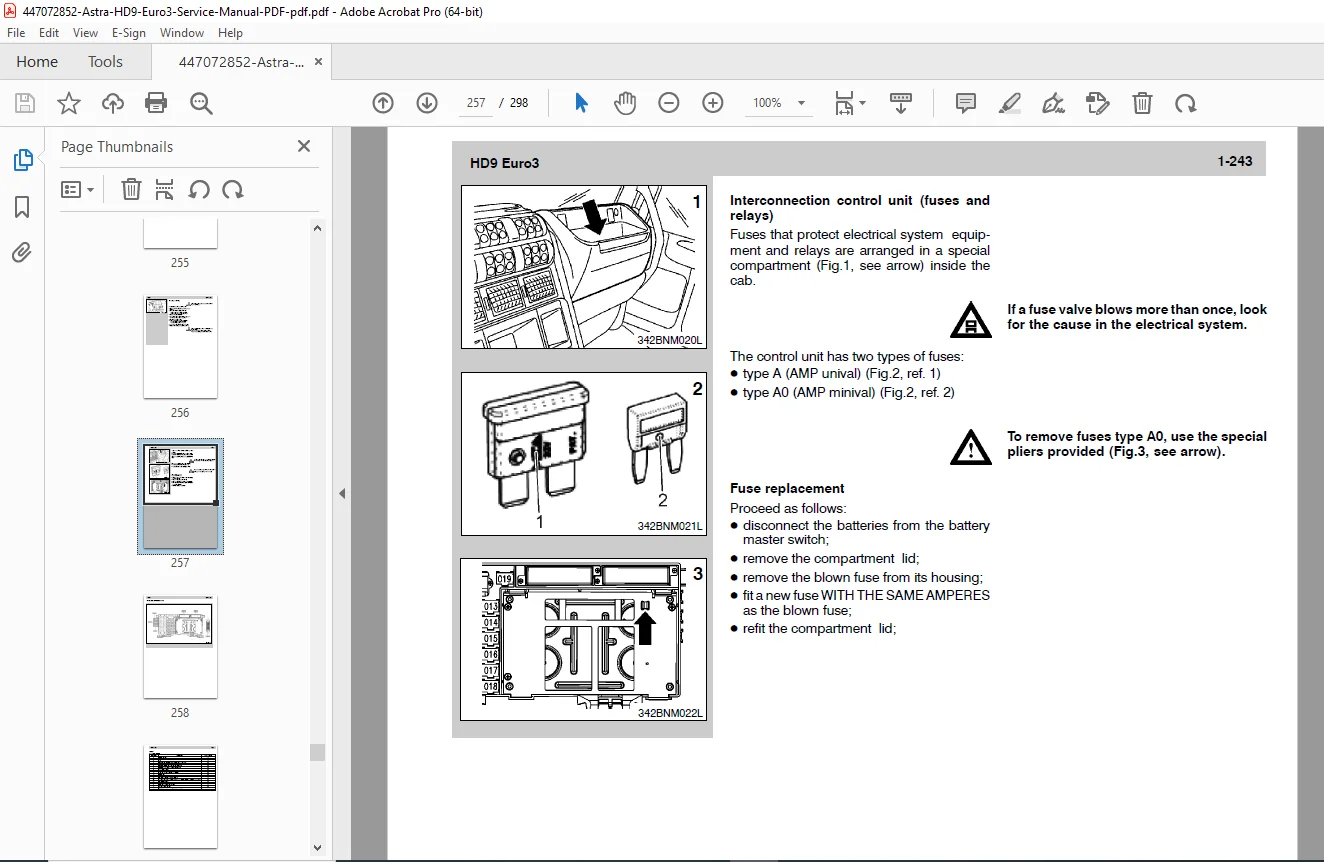

Electrical System: Complete fuse and relay box diagrams, bulb lists, and battery maintenance for 24V systems.
Diagnostics: Explanation of dashboard warning lights, error code retrieval from the instrument cluster, and “symptom-to-cause” troubleshooting guides for braking and steering systems.
Comprehensive Table of Contents:
1. Technical Data:
Engine Specifications (Bore, Stroke, Displacement)
Tightening Torques (Engine, Wheels, Suspension)
Refill Capacities (Oil, Coolant, Hydraulic Fluid)
2. Instructions for Use:
Differential Locks & Transfer Box Operation
Cruise Control & Engine Brake/Intarder Settings
Cab Tilting Procedures (Hydraulic & Mechanical)
3. Maintenance Instructions:
Lubrication Charts: Greasing points for cardan joints, fifth wheels, and leaf springs.
Fluid & Filter Changes: Step-by-step guides for Engine Oil, Fuel Pre-filters, Air Dryers, and Hub Oil.
Brake System: Shoe-drum play checks and wear limit inspections.
4. Electrical Components:
Fuse Holder Layouts (70005, 70601, etc.)
Relay Identification (Climate control, PTO, Start relays)
File Details:
| Feature | Details |
| Manual Name | Astra HD9 Euro 3 Use & Maintenance Handbook |
| Models Covered | Astra HD9 (4×2, 4×4, 6×4, 6×6, 8×4, 8×6, 8×8) |
| Engines | Iveco Cursor 8 (F2B), Cursor 13 (F3B) |
| Year | 2011 – 2012 |
| File Type | High-Quality PDF (Searchable Text) |
| Total Pages | 298 Pages |
| Language | English |
Your heavy equipment demands heavy-duty care. Download the official Astra HD9 Technical Handbook instantly to get the fuse diagrams, torque specs, and maintenance schedules you need to prevent costly downtime on the job site.
