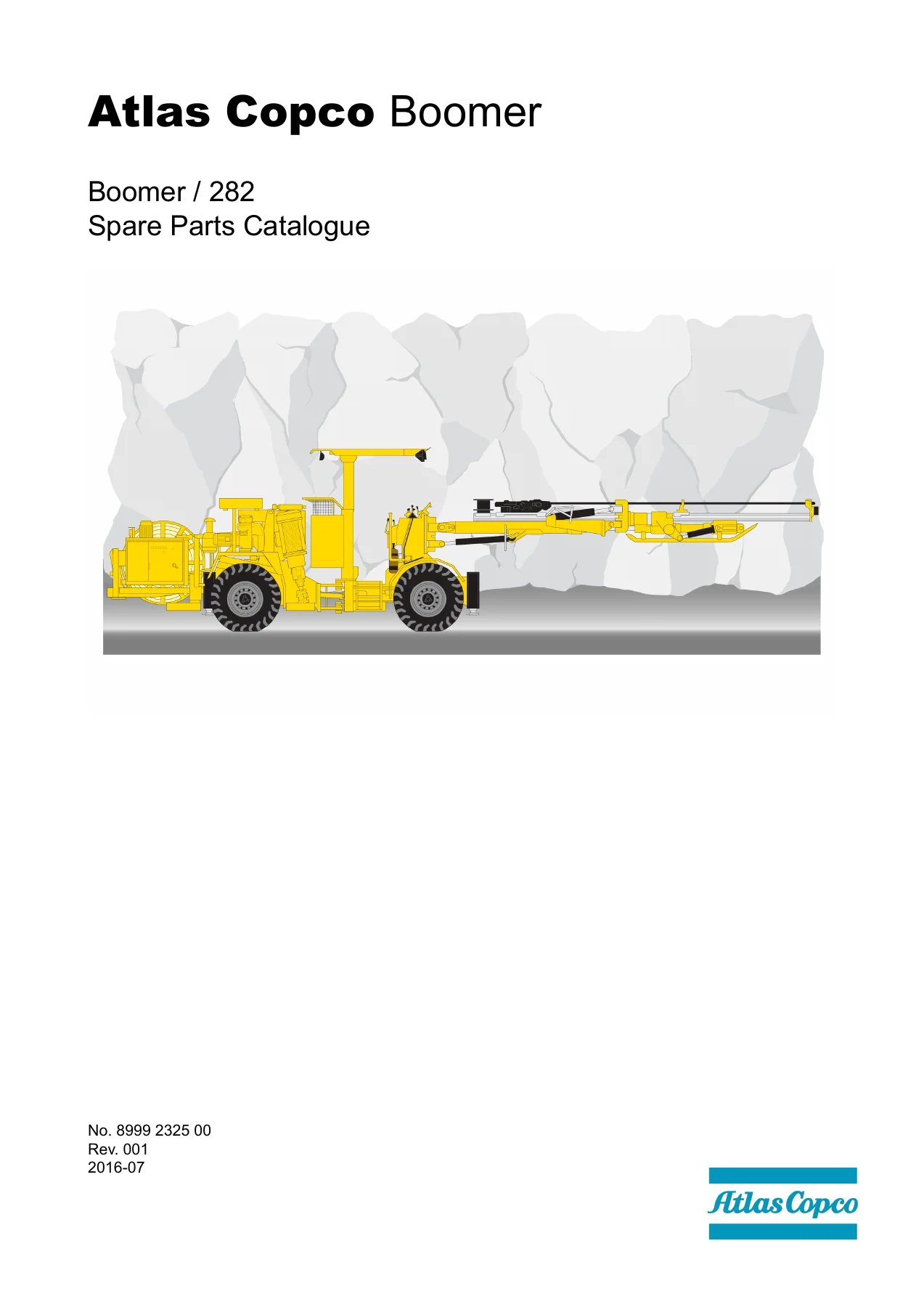

Atlas Copco Boomer 282 Spare Parts Catalogue – Document 8999 2325 00

This is the full Atlas Copco Boomer 282 spare parts catalogue issued under document number 8999 2325 00. It is the parts identification reference for the Boomer 282 face drilling rig, built around the COP 1838HD and COP 1838HD+ rock drills. Every listing in the catalogue works from the manufacturer’s own part numbers and reference positions, so a part can be traced from the exploded illustration straight to the order number and quantity required. The publication is bilingual, with descriptions given in both English and Spanish throughout.

What makes this Atlas Copco Boomer 282 Spare Parts Catalogue practical is the way the rig is broken down. Instead of hunting through a general index, the catalogue separates the machine into major assemblies and then drills into each one: the rock drill as a complete unit, the feed, the boom, the carrier, the cable reel, the hydraulic system, the electrical system and the air/water system. Each assembly opens into a reference-numbered diagram with a matching table of part numbers, descriptions and quantities.

File Details

• Manual type: Spare Parts Catalogue
• Brand: Atlas Copco
• Machine: Boomer 282
• Document number: 8999 2325 00
• Rock drill covered: COP 1838HD and COP 1838HD+
• Language: English / Spanish (bilingual descriptions)
• File format: PDF
• Page count: Approximately 1,108 pages
• Copyright notice shown: 2016, Atlas Copco Rock Drills AB, Sweden

Chapters Covered

The catalogue is organised into numbered sections, each with its own list of contents and page references.

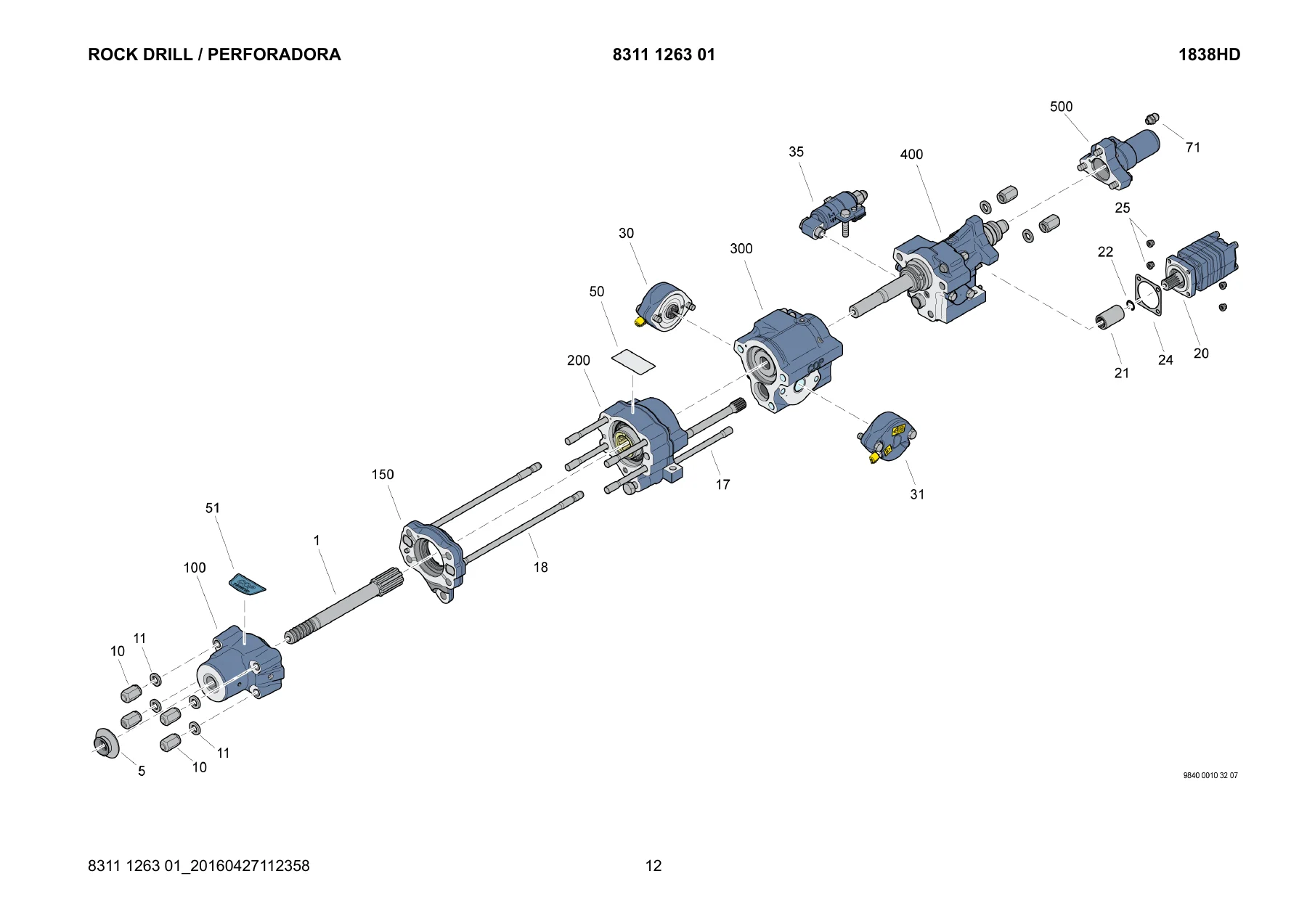

• 1. Rock Drill / Perforadora
  • Rock Drill
  • Front Part Comp
  • Cover Group
  • Gear Housing Gr
  • Interm. Part Grp

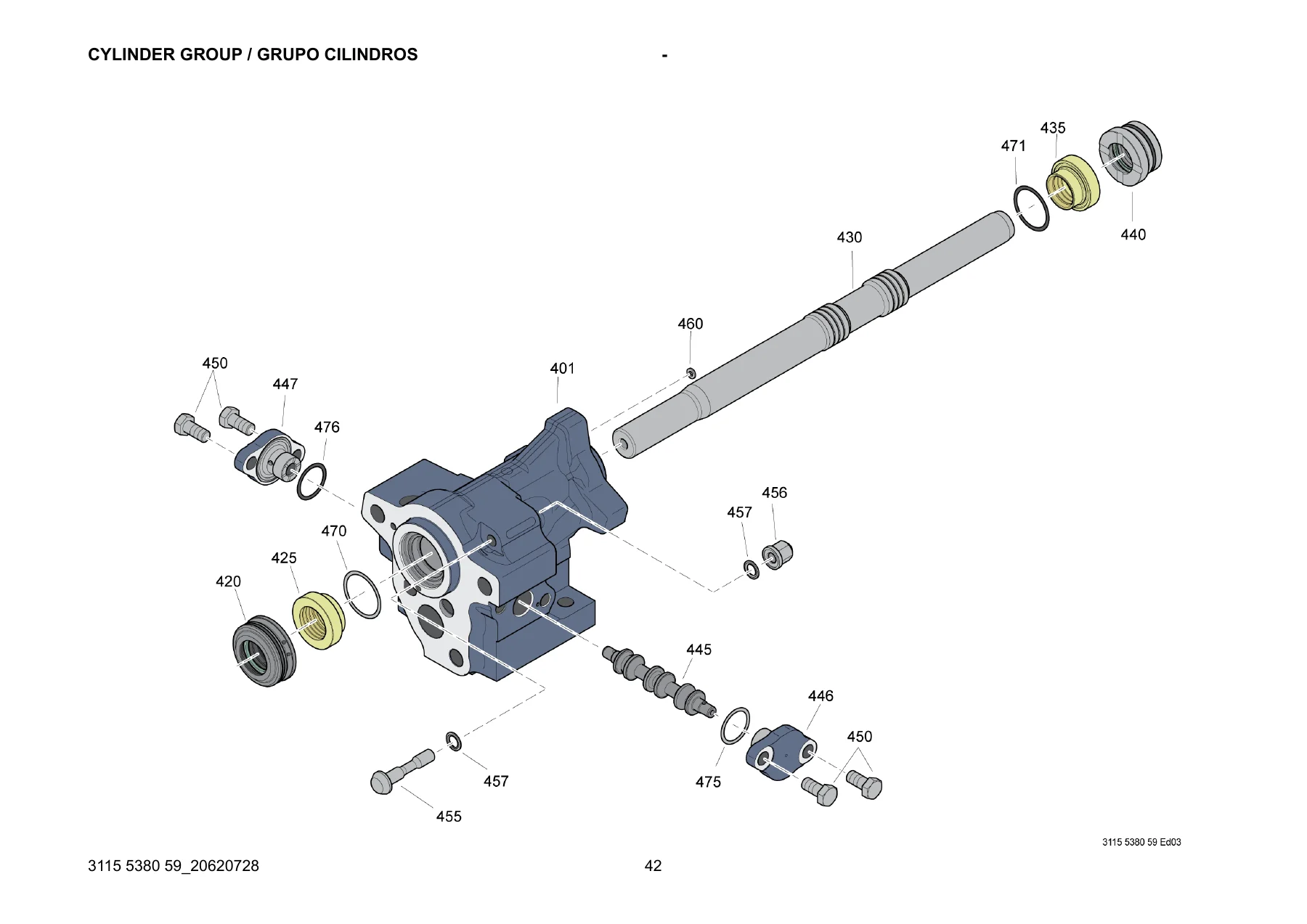

  • Cylinder Group
  • Back Head Group
  • Hydraulic Motor
  • Accumulator
  • Return Accum.
  • Optional Set
• 2. Feed / Deslizadera
  • Feed
  • Limit Switch Set
  • Basic Part Set
  • Detail Set
  • Pulley Wheel
  • Holder Set
  • Rock Drill Kit
  • Hose Drum
  • Feed Beam
  • Cylinder Set
  • Hose Set
  • Bushing Set
• 3. Boom / Brazo
  • Basic Boom
  • Boom Part
  • Boom Attachment
  • Boom Link
  • Cylinder Link
  • Shaft Compl.
  • Expanding Shaft
  • Boom
  • Double Ch. Valve
  • Hydr. Cylinder
  • Check Valve
  • Telescope Set
  • Bearing Housing
  • Turning Device
  • Hose Set
  • Assembly Set
• 4. Carrier / Vehiculo
  • Carrier
  • Rear Frame
  • Motor Cap Catch
  • Boombracket Cpl
  • Stop
  • Support Leg Kit
  • Protection Roof
  • Roof Extension
  • Assembly Set
  • Aut. Grease Syst
  • Angle Ind. Compl.
  • Warning Signs
  • Label List
  • Binder Box
  • Fire Suppr. Syst
• 5. Cable Reel / Cabrestante
  • Cable Reel
  • Cable, 3-Core
  • Cable Lug Set
  • Collector Kit
  • Braking Chopper
  • Swing Arm
• 6. Hydr. System / Sistema Hidrau
  • Hydr. System
  • El. Oil Filler
  • Boom Hyd. Kit
  • Control Panel
  • Hose Set
  • Coupling Set
• 7. Electr. System / Sistema Electr.
  • Elcabinet Set
  • Volt Kit
  • EMC-Set
  • Electric Set
  • Headlight Set
  • Flashing Beacon
  • Stair Lighting
• 8. Air/Water System / Sist Aire/Agua
  • Air/Water System
  • Waterflow Guard
  • Air Blowing
  • Boot Washer
  • ECL-Set
• 9. Parts & Service
• 10. Hose Connection / Acopl.-Manguera
• 11. Hoses / Mangueras
• Cross Reference List

Taken as a whole, the Boomer 282 parts catalogue gives a workshop or parts desk a single reference for the entire rig. The rock drill section alone carries the COP 1838HD and COP 1838HD+ down to individual seals, O-rings, shims, nozzles, pistons, valve cones and cylinder components, while the larger sections cover the structural, hydraulic and electrical assemblies that surround it. Because each subsection is paired with its own exploded illustration, the correct orientation and position of a component is visible alongside its part number.

What You Can Do With This Catalogue

This is a working parts document rather than a service manual, and it is used for one core job: identifying exactly which component belongs on a Boomer 282 and what number to order it under. That includes the small consumables that stop a rig – cup seals, O-rings, back-up rings, wipers, seal kits, needle and roller bearings, shims and thread inserts – as well as larger assemblies such as the turning device, bearing housings, hydraulic cylinders, hydraulic motors, accumulators, feed beam, hose drums, cable reel and the complete front part and gear housing groups.

It also supports the rebuild and overhaul side of ownership. The Rock Drill section includes overhaul and seal kits listed by impact-hour interval, along with conversion kits for moving a COP 1838HD to 1838HD+ specification and to four-corner straight splines, so a workshop can plan rebuilds rather than guessing at parts. The Carrier and electrical sections list items such as filters, level and temperature indicators, pressure switches, relays, solenoids, indication lamps, headlights and junction box components down to terminal-block level.

Because every table carries the manufacturer’s part number alongside the reference position and quantity, cross-checking a suspected failure against the diagram takes minutes rather than a phone call. Parts desk staff can quote directly from the catalogue, and field technicians can confirm that a replacement matches the assembly already on the machine before it is ordered.

Hose, Coupling and Cross Reference Sections

Three sections at the back are worth calling out on their own. The Hose Connection section is a large nipple and coupling reference, organised by thread type and size, covering straight, elbow, 45-degree and 90-degree fittings, cap nuts, plugs, adapters, cutting rings, adapter sleeves and test connections. The Hoses section lists hose assemblies by circuit tag with diameter and length. The Cross Reference List ties part numbers back to reference numbers and page locations, which is the fastest route when the number is known but the drawing is not.

Why Use the Correct Part Numbers

On a drilling rig, an incorrect seal, bearing or hydraulic fitting does not simply fail early – it can take out the component around it. Working from the Atlas Copco Boomer 282 Spare Parts Catalogue 8999 2325 00 keeps the part number, the assembly position and the quantity aligned with the machine as built, which is the difference between a repair that holds and one that comes back.

IMAGES PREVIEW

Instant PDF Delivery

The catalogue is supplied as a PDF download, available immediately after checkout with no shipping and nothing to wait for. It can be opened on a workshop PC, a laptop, a tablet or a phone, searched for a part number directly on screen, and printed page by page or in full for the parts counter. Keep it on the service laptop, the office terminal and the machine’s documentation folder, and the right number is always within reach.
