Atlas Copco Boomer 282 Spare Parts Catalogue 8999 3041 00 – PDF

Description

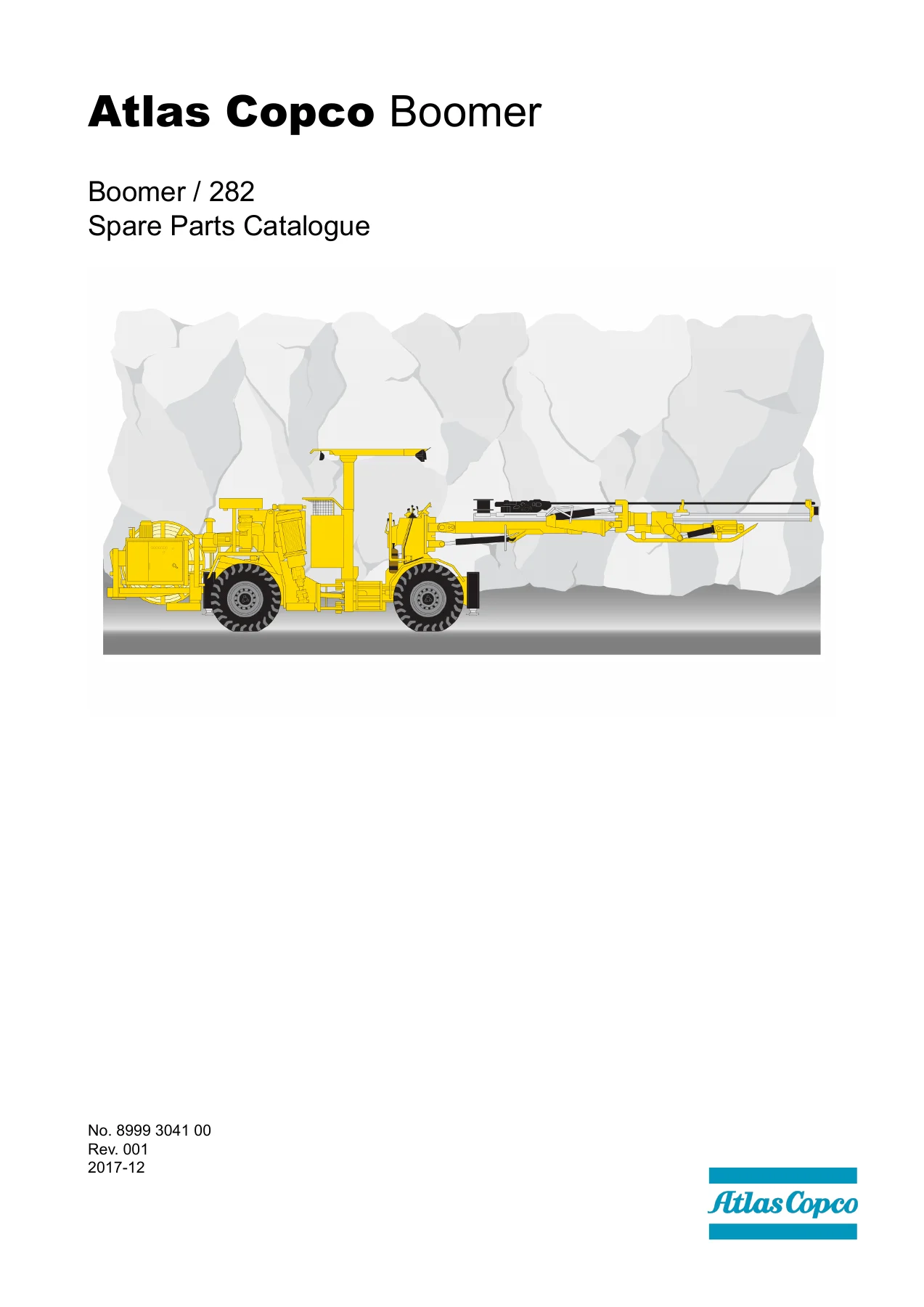

Atlas Copco Boomer 282 Spare Parts Catalogue – Document 8999 3041 00

This is the full Atlas Copco Boomer 282 spare parts catalogue issued under document number 8999 3041 00. It is the parts lookup reference for the Boomer 282 face drilling rig, organised section by section so a workshop, parts desk or maintenance planner can identify any component on the machine by its position number, part number, quantity and description. Every listing in the catalogue carries the part number in the first column and the reference number in the second, with the quantity, English description, Spanish description, page cross-reference and any remarks such as kit contents or fitment notes.

File Details

• Manual type: Spare parts catalogue
• Brand / machine: Atlas Copco Boomer 282
• Document number: 8999 3041 00
• Publisher: Epiroc Rock Drills AB, Sweden
• Copyright year shown: 2017
• Language: English and Spanish (bilingual, side-by-side columns)
• Page count: 1,292 pages
• File format: PDF

Chapters Covered

The catalogue follows the machine from the drill front to the rear frame. The section list below is taken directly from the catalogue’s own contents pages.

• 1. Rock Drill / Perforadora – Rock drill assembly, front part comp, cover group, gear housing group, intermediate part group, cylinder group, back head group, hydraulic motor, accumulator, return accumulator, optional set
• 2. Feed / Deslizadera – Feed assembly, hose set, gable plate, basic part set, detail sets, pulley wheel, holder sets, limit switch, rock drill kit, hose drum, feed beam, cylinder sets, end piece set, cradle sets
• 3. Boom / Brazo – Basic boom, boom parts, boom attachment, boom link, cylinder link, shaft comp, expanding shafts, double check valves, hydraulic cylinders, telescope set, bearing housings, hose sets, assembly sets, stop
• 4. Carrier / Vehiculo – Carrier, rear frame, motor cap catch, automatic sets, support leg kit, warning signs, manual grease system, connection set, cable set, label list, automatic grease system, fire suppression system, boom bracket, cabin complete, condenser unit
• 5. Cable Reel / Cabrestante – Cable reel, three-core cable, swing arm, collector kit, cable lug set
• 6. Hose Reel / Carrete-Manguera – Hose reel, water hose
• 7. Hydr. System / Sistema Hidrau – Hydraulic system, electric oil filler, control panel, hydraulic sets, boom hydraulic kit, cover set, coupling set, hose sets
• 8. Electr. System / Sistema Electr – Electric cabinet set, EMC set, headlight set, flashing beacon, volt kit, electric set, contact
• 9. Air / Water System / Sist Aire/Agua – Air/water system, water flow guard, ECL set, cleaning unit, boot washer
• 10. Parts & Service – PM kits, fluids, service kits, boom sets, feed sets, tool sets, hydraulic tool, upgrade kits
• 11. Hose Connection / Acopl.-Manguera – Nipple and coupling cross-reference by thread type
• 12. Hoses / Mangueras – Full hose assembly listing with length and type
• Cross Reference List – Reference number to page lookup

What makes this catalogue useful in practice is the level of detail behind each of those headings. Individual assemblies are broken down into their position numbers, and each position carries the current part number rather than a generic description. Where an item is only supplied as part of a kit, that is stated in the remarks column. Where a component exists in a left and right version, or in a front and rear version, both are listed separately. Seal kits, overhaul kits, conversion kits and repair kits are listed with their internal contents spelled out, so you know exactly what arrives when the kit is ordered. That structure turns the catalogue into a working tool: you can trace a part from an exploded view, read the position number off the drawing, and come straight back to the part number you need to order.

The Machine Families and Sub-Assemblies Covered

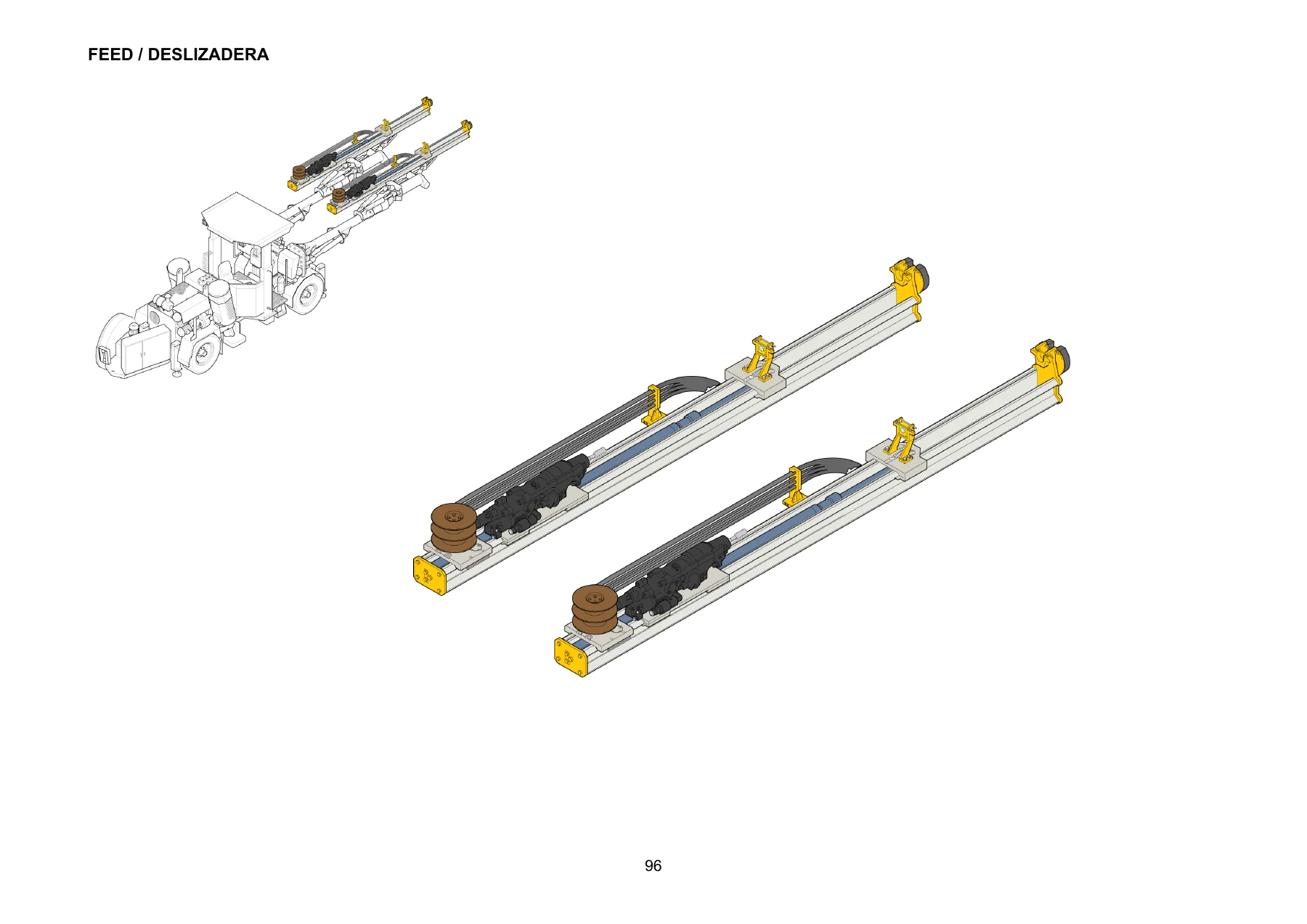

The Boomer 282 is built around the COP rock drill range, and the catalogue carries the full parts breakdown for the drill variants it can be fitted with. Alongside the drill itself you get the hydraulic motors that drive rotation, the accumulators, the cylinder group and back head group, and the seal and cover groups that sit around them. The feed section covers the complete slide, the hose drum that carries the drill’s hoses, the pulley wheels and holders, the stop ring set, the drill steel supports and the cradle assemblies used in different feed configurations.

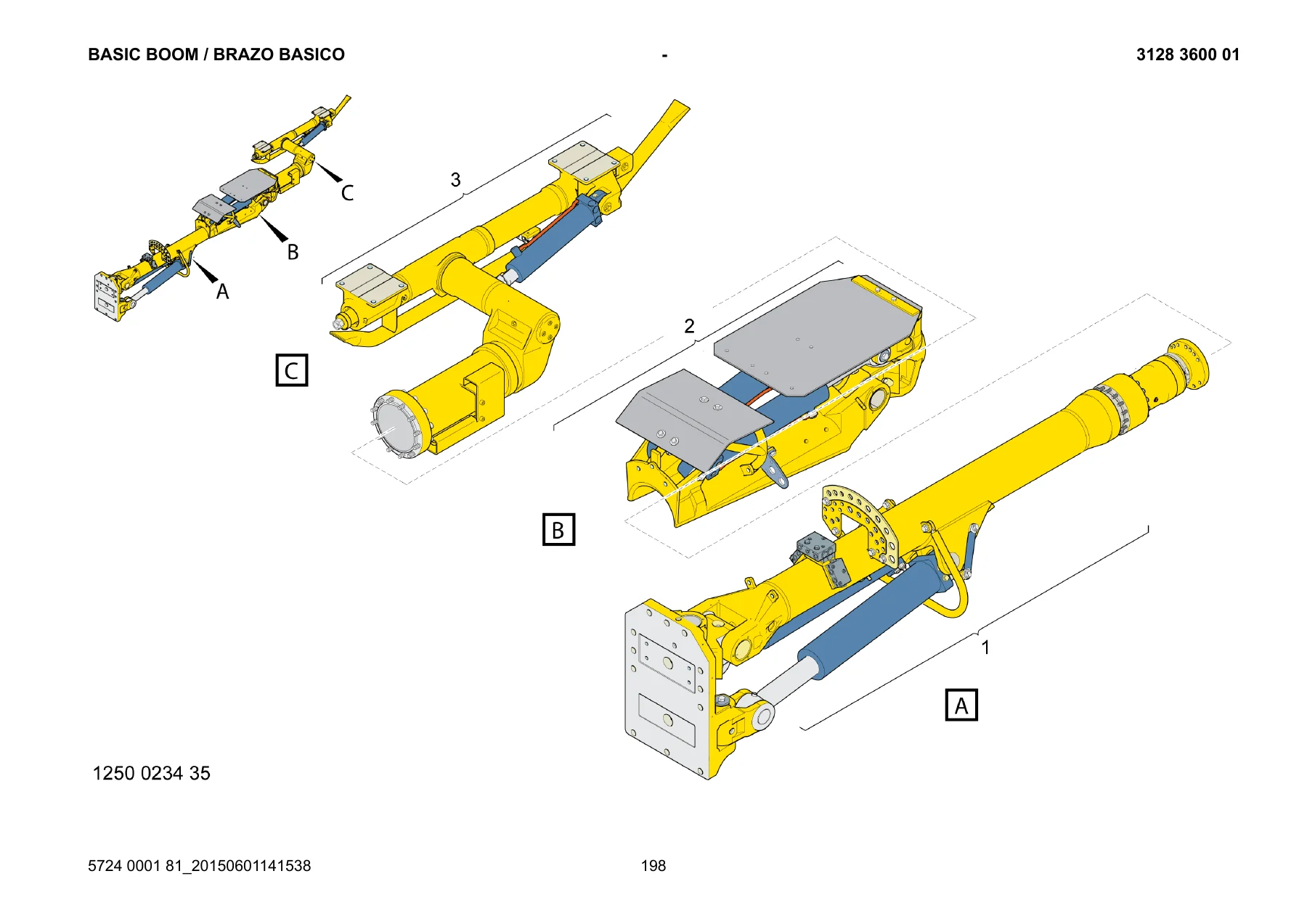

The boom section is where the catalogue gets particularly dense. It covers the basic boom on both the left and right hand versions, the boom attachment and link assemblies, the cylinder link, the expanding shafts and their bushings and lock nuts, the thrust bearings, the double check valves and the boom cylinders including the rear boom cylinder. The hose sets for the boom are listed both as complete assemblies and as individual hoses with their bore, length and type designation.

The carrier section covers the machine from the rear frame forward: the frame motor parts, the fuel tank and its filler components, the drive axle with planet gear kit, brake disc kit, crown wheel kit and differential kit, the hydraulic reservoir, the battery box, the mudguards, the support beam and the boom bracket. The cabin is broken down into its glass, door, wiper, air conditioning, ventilation and electrical sub-groups, along with the seat and safety belt, the steps and the swing attachment.

The hydraulic, electrical and air/water sections at the back of the catalogue list the system-level assemblies – direction valves, pilot valves, valve blocks, hydraulic pumps, pressure reducing valves, steering cylinder, control panels, junction boxes, relays, fuses, lamps, connectors, wiring looms, strainers, lubricator pumps, oil reservoirs, pressure gauges, water flow guards and the cleaning unit. The fire suppression system is also covered, section by section, for the rear frame, engine frame, cabin and boom frame.

Applied Models and Assemblies Referenced

Within the catalogue you will find parts listings for the following drill and component designations, among others: COP 1838HD+, COP 1838HD, COP 1638+, COP 2560+, COP 1238, MSQ 80 SH, MSQ 100 SH, MSQ 160 SH, MSYQ 250 SH, BMHT 2000, BMH 2843R, BMHT 1000/2000, BUT 28 and DCS 18. Engine service kits are listed for DEUTZ BF4L914, DEUTZ D914L604, DEUTZ F5L912W and DEUTZ TCD3.6 L4, with the CLARK 12000 transmission filler set also covered.

How to Use This Atlas Copco Boomer 282 Spare Parts Catalogue

Start from the contents list to find the system, then go to the section’s exploded view to identify the position number. The following table gives the part number, quantity, description and any remarks for that position. Where a part is marked “not sold separately”, the catalogue points you to the parent assembly or kit that must be ordered instead. Where a kit is listed with a contents note such as “INCL POS 421,422,423”, that tells you which individual positions are already inside the kit, so you do not order them twice.

The cross reference list at the back of the catalogue converts a reference number directly into a page number, which is useful when you are holding a worn part with only the ref number stamped on it. The hose section lists every hose assembly with its bore, length and specification, and the hose connection section is arranged by thread type so a matching nipple or coupling can be found quickly.

Why This Catalogue Matters in the Workshop

Ordering the wrong part on a drilling rig is expensive in downtime and in return freight. This catalogue removes the guesswork: the part number you read off the page is the part number the supplier expects, and the remarks column tells you whether the item is a standalone part or only available inside a kit. For a machine that spends its life underground, having the correct seal kit, accumulator part or hydraulic motor identification on hand at the face is what keeps the rig productive.

It is equally useful for planning. The service kit section lists the contents of each 500-hour, 1,000-hour and engine-hour kit for the fitted DEUTZ engine, so consumables can be stocked in advance. The tool section lists the mandrels, pressing tools, assembly tools, extractors and torque keys used on the drill and accumulators, which is what you need when the job calls for a specific seal driver rather than a generic one.

IMAGES PREVIEW

Instant PDF Delivery

The Atlas Copco Boomer 282 spare parts catalogue 8999 3041 00 is delivered as an instant PDF download after payment, with no shipping and no waiting for a physical copy. It opens on any device – laptop in the workshop office, tablet on the bench, or phone at the rig – and any page can be printed if you prefer a paper copy at the machine. With 1,292 pages of exploded views, part numbers and kit breakdowns covering the COP 1838HD+ rock drill, feed, boom, carrier and every onboard system, it is the reference you keep coming back to whenever the Boomer 282 needs a part identified or ordered.
