Atlas Copco Simba H157 Spare Parts Catalogue 8991 8097 00 – PDF Download

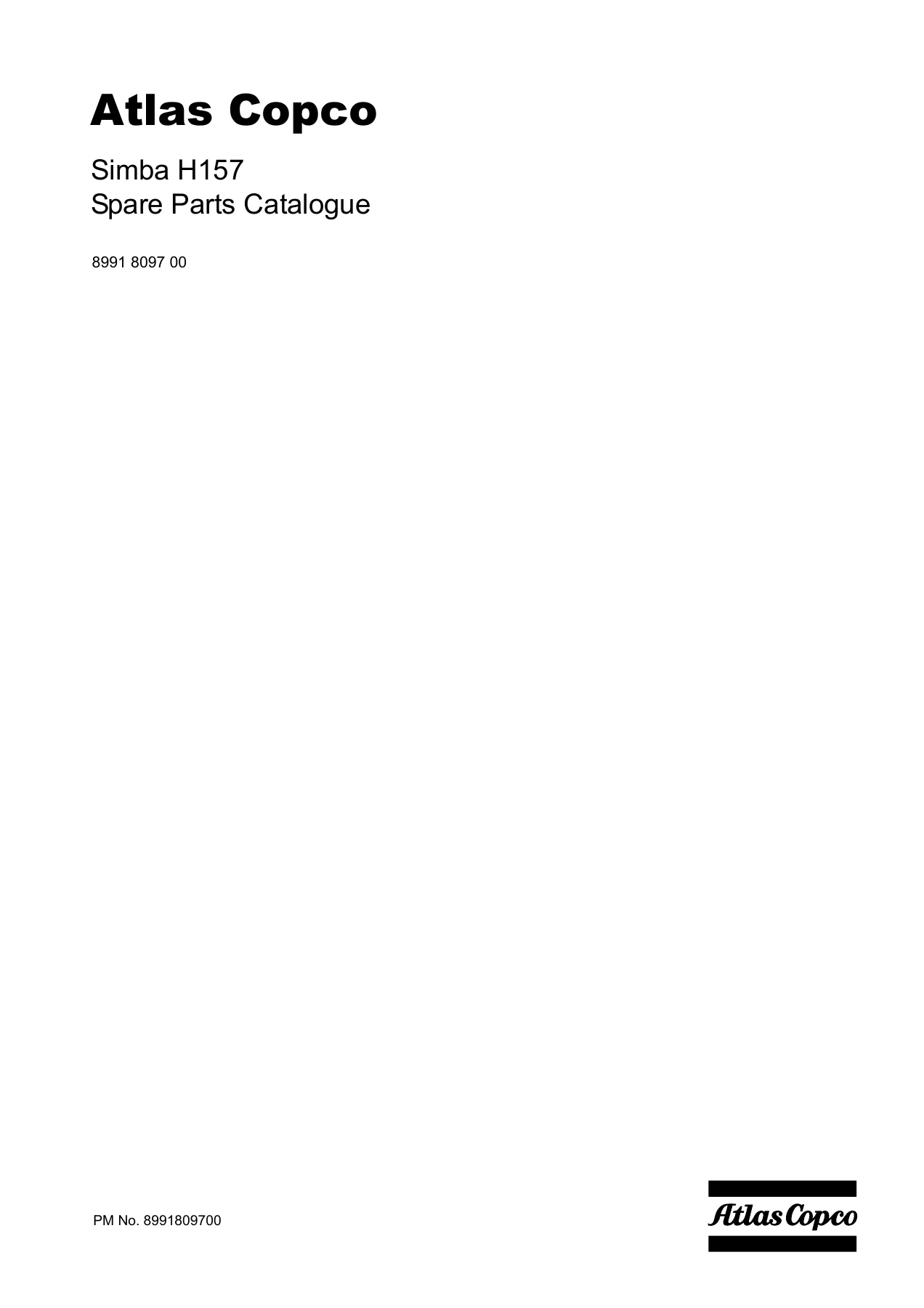

This Atlas Copco Simba H157 Spare Parts Catalogue 8991 8097 00 is an 844-page bilingual (English and Swedish) parts catalogue published by Atlas Copco Rock Drills AB of Örebro, Sweden. It breaks the Simba H157 down into hydraulics, carrier, boom, rock drill, feed, electrics, air/water, cable reel, angle indicator and hoses. Every assembly comes with its part numbers, quantities and descriptions, so the right component can be identified and ordered the first time.

File Details

• Manual type: Spare Parts Catalogue
• Brand: Atlas Copco
• Model: Simba H157
• Catalogue number: 8991 8097 00 (PM No. 8991809700)
• Publisher: Atlas Copco Rock Drills AB, SE-70191 Örebro, Sweden
• Copyright year: 2009
• Language: English and Swedish (every part description appears in both)
• Pages: 844
• File format: PDF

Chapters Covered

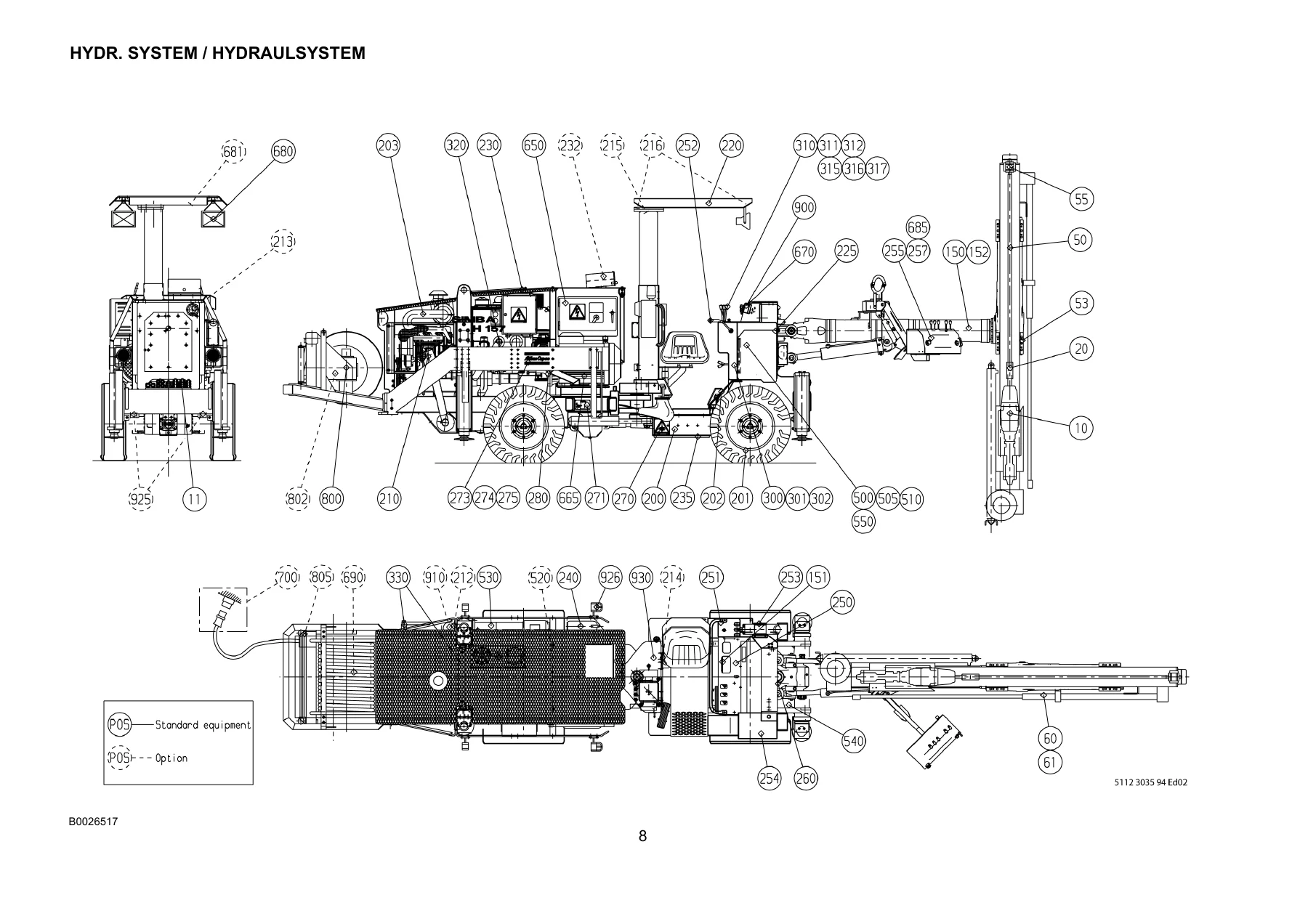

• Hydraulic System (page 5)
  • Boom hydraulic kit: direction valve sections, pressure control valve, lever joint and lever set, joystick P70 hose set
  • Hydraulic system with return block, oil cooler, direction valve and hose set
  • Drilling system hydraulics: hydraulic pump (displacement 100+50+11 cm3/r), A10VO 100 cc pump with pilot valve, gear pump, throttle valves, valve blocks, DCS1800 panel valve block, sequence valve, flow regulator, drilling direction valve, pressure reducing valve, regulator and hose set
  • Hydraulic system for ARI 157C, with joining-rods hose set
  • Suction connections, electric oil filler, and thermostat / hydraulic oil set
• Carrier (page 137)
  • Frame set, electrical equipment, operator’s panel, junction boxes, battery switch and headlight
  • Motor frame with hydraulic oil tank, suction filter, return filter and fuel tank
  • Driver’s platform and chair, lubrication system and lubrication valve
  • DEUTZ F4L 912W diesel engine, fuel system and accelerator
  • Drive unit: drive shafts, crown wheel, differential, brake disc and planet gear kits, pinion stand, cardan shafts
  • Brake and steering hydraulics, carrier DC4 hose set, jack set and support legs
  • Wheels and rims, air filter set, catalyser set, protection roof and shields
  • Fire extinguisher set and Ansul fire suppression system, control panel, hand railing
  • Rod extension panel for drill rod jointing, signs and label lists, motor-to-pump coupling set, bit holder
• Boom (page 365)
  • Assembly set and basic boom BUT 4B with rear boom part, expanding shafts, links and boom link
  • Boom cylinders with check valve and overcentre valve, telescope set with extension cylinder
  • Turning device and rotation unit BUT 4B, sensor protection and angle sensor
  • Boom positioning hydraulics, hose nipple sets and hose sets for BUT 4B/BMH2000
  • Sensor sets and stop lug
• Rock Drill (page 451)

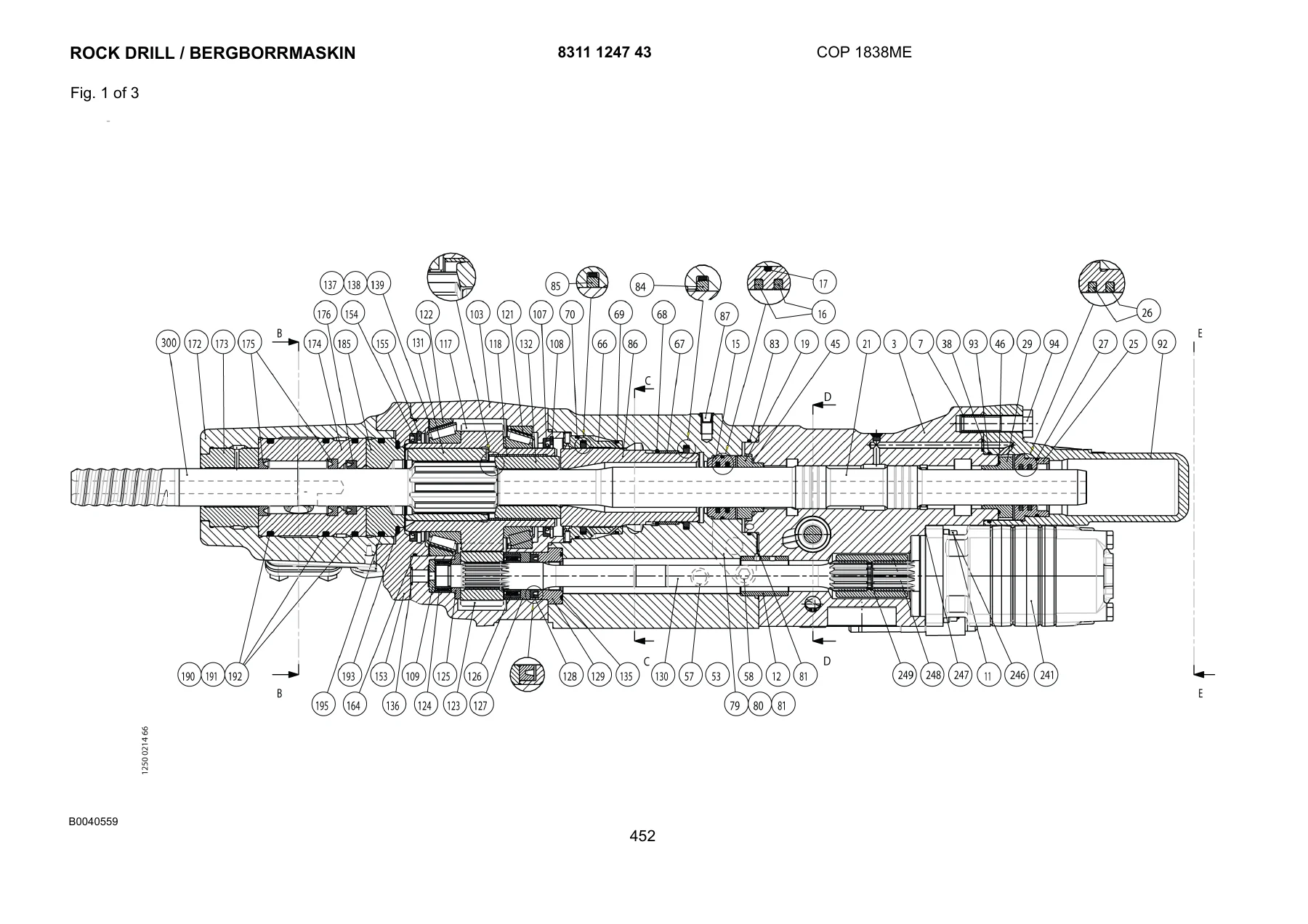

  • Rock drill 8311 1247 43 (COP 1838ME): cylinder, pistons, gear housing, rotation chuck
  • Front heads for shank guide D=38, D=52 and D=45, plus the AW design front part
  • Accumulators, return accumulator, hydraulic motors MSQ 80 SH to MSQ 250 SH
  • Repair sets, 400 impact hour overhaul kit, seal kit, charging device for accumulators
• Feed (page 497)
  • Bulkhead connections and feed BMHS 2809-ES01: feed beam, end piece set, cradle sets, hose drum, pulley wheels, ropes
  • Drill steel support BSH 110B with bushing halves and bushings
  • Limit switch sensor set, stop sets, stinger set with hydraulic cylinder
  • Hydraulic sets, hose nipple sets, assembly set and feed extension cylinder set
• Electrical System (page 599)
  • Reverse alarm, horn, flashing beacon and brake light
  • Basic electrical cabinet (IEC-STAND 380-690V 50/60Hz), main switch, emergency stop box
  • Volt kit with thermal relays, electric set, junction box, cable sets
  • Light set, headlights, transformer, emergency brake electric sets and push-button box
  Complete PDF Bookmark Tree

  Complete Bookmarks

  The complete bookmarks in the “Atlas Copco Simba H157 Spare Parts Catalogue 8991 8097 00” are as follows:

  Front page

  Hydr. system

  Carrier

  Boom

  Rock drill

  Feed

  Electr. system

  Air/watersystem

  Cable reel

  Angle ind.compl

  Hoses

  Cross reference list

• Air/Water System (page 671)
  • Air/water system with oil reservoir, ECL lubrication pump and hose set
  • Water pump set: hydraulic motor, water pump, coupling, direction valve, pressure relief valve
  • Flow guard, flushing water guard, hole blow kit and strainer
• Cable Reel (page 711)
  • Plug connector and complete cable reel: commutator, contact set, cable steering, gear housing, hydraulic motor, shaft set
  • Hose set, contact breaker with apparatus panel, hydraulic set for dual control
• Angle Indicator Complete (page 755)
  • ARI157C system kit with inclinometer, CAN cable sets, power supply set, fuse box, electric set
• Hoses (page 773): hose assembly listing for the whole machine
• Cross Reference List (page 785): part-number index pointing back to reference numbers and pages

Taken as a whole, this Simba H157 spare parts catalogue lets a mechanic, parts buyer or workshop planner trace a component from the machine level down to the individual seal, screw or hose. It also shows which larger assembly that component belongs to, and it lets you work backwards from a known part number through the index at the back.

How the Atlas Copco Simba H157 Parts Catalogue Is Laid Out

Each assembly is shown as an illustrated page paired with a parts table. The table lists reference number, part number, quantity, an English and a Swedish description, the page of any sub-assembly, and remarks. The catalogue itself advises stating the part number rather than the reference number, together with the quantity, when ordering. Where a part is only supplied inside a set, the table says so: many entries are marked NOT SOLD SEPARATELY, and several drivetrain kits are marked COMPLETE KIT ONLY. Seal kits, repair sets and overhaul kits state which positions they include, which helps when you only need the wear items.

Rock drill, feed and drill steel support

The rock drill chapter covers the COP 1838ME unit with separate front head pages for shank guide diameters D=38, D=52 and D=45, and an AW design front part. Shank adapters are listed by thread type, including R32, R38, T38, T45 and TC45 variants. Accumulator parts, five MSQ hydraulic motor sizes, and a 400 impact hour overhaul kit are all covered. The feed chapter continues with the BMHS 2809-ES01 feed, the BSH 110B drill steel support and a range of bushing halves for different drill steel sizes.

Hydraulics and carrier

The hydraulic chapter documents the drilling system pumps, valve blocks, hose sets and the pump and valve parts for the ARI 157C angle indicator. The carrier chapter follows with the DEUTZ F4L 912W diesel engine unit, drive shafts, planetary and brake kits, brake and steering hydraulics, wheels, jacks, support legs, the protection roof and fire suppression equipment.

IMAGES PREVIEW

Electrics, air/water and cable reel

Electrical pages list the cabinet components, relays, contactors, transformers, junction boxes, cable sets, lights and emergency stop equipment. The air/water chapter documents the lubrication pump, flushing water pump set, flow guard and hole blow kit, while the cable reel chapter shows the commutator, slip rings, gear housing and driving motor. A dedicated hoses chapter lists every hose assembly with its size and length designation, such as 6,3X 1200 R2AT.

Please Note

This is a spare parts catalogue. It identifies components and part numbers rather than giving step-by-step repair or adjustment procedures, so it works best alongside your own workshop knowledge or a separate service manual.
