Ausa Forklift C250 H X4 Parts Manual – PDF DOWNLOAD

Description

Ausa Forklift C250 H X4 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Ausa Forklift C250 H X4 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 304
Downloadable : Yes
File Type : PDF

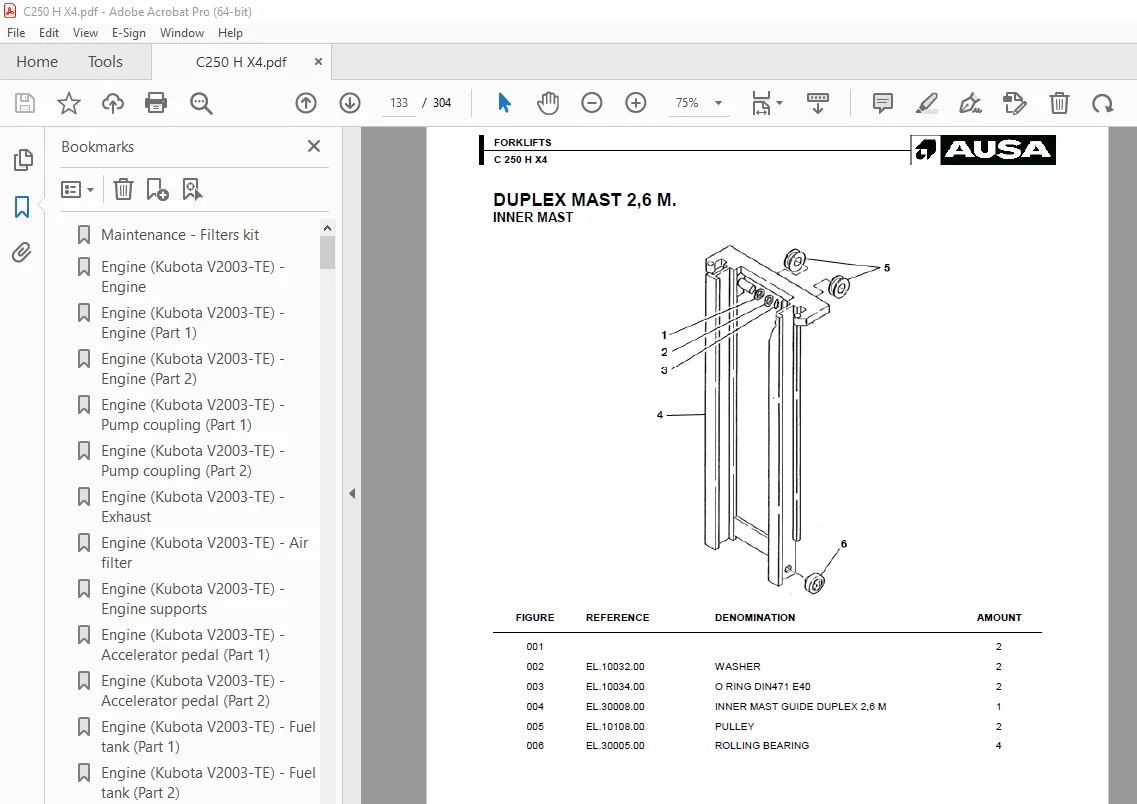

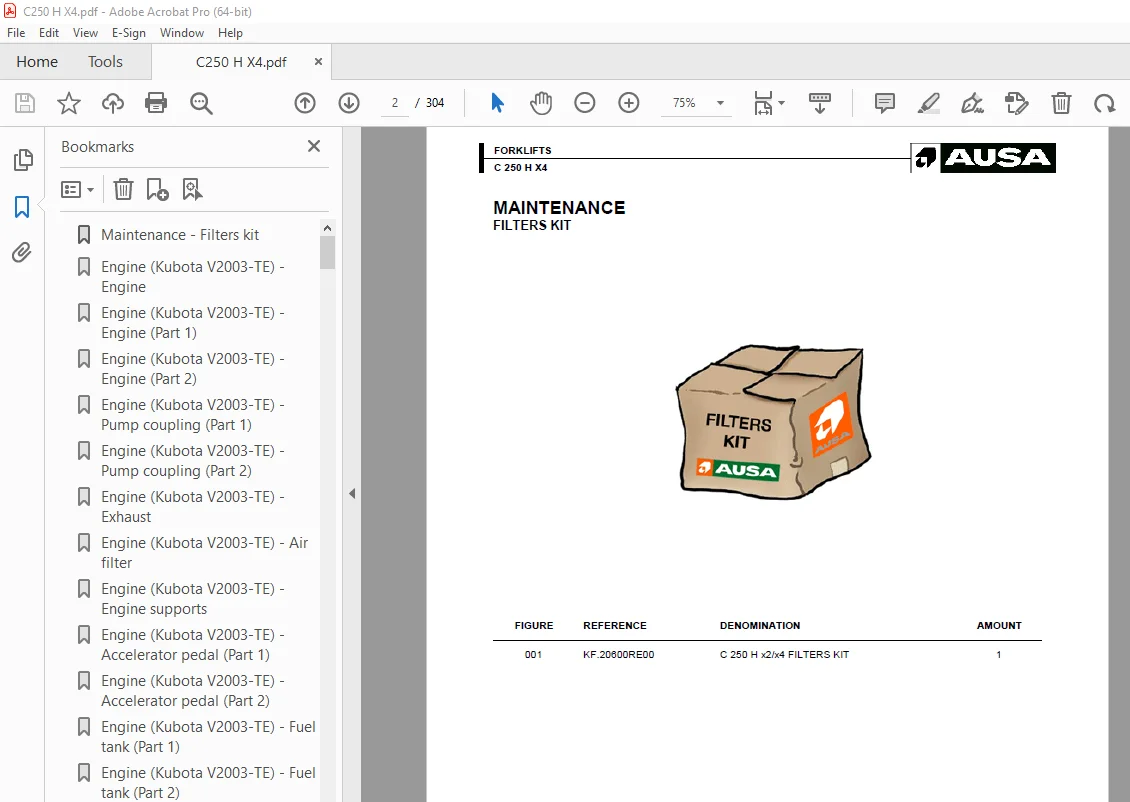

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ausa Forklift C250 H X4 Parts Manual – PDF DOWNLOAD

Maintenance – Filters kit 2
Engine (Kubota V2003-TE) – Engine 3
Engine (Kubota V2003-TE) – Engine (Part 1) 4
Engine (Kubota V2003-TE) – Engine (Part 2) 5
Engine (Kubota V2003-TE) – Pump coupling (Part 1) 6
Engine (Kubota V2003-TE) – Pump coupling (Part 2) 7
Engine (Kubota V2003-TE) – Exhaust 8
Engine (Kubota V2003-TE) – Air filter 9
Engine (Kubota V2003-TE) – Engine supports 10
Engine (Kubota V2003-TE) – Accelerator pedal (Part 1) 11
Engine (Kubota V2003-TE) – Accelerator pedal (Part 2) 12
Engine (Kubota V2003-TE) – Fuel tank (Part 1) 13
Engine (Kubota V2003-TE) – Fuel tank (Part 2) 14
Engine (Kubota V2003-TE) – Fuel tank (Part 3) 15
Engine (Kubota V2003-TE) – Radiator (Part 1) 16
Engine (Kubota V2003-TE) – Radiator (Part 2) 17
Transmission – Inching pedal 18
Transmission – Reduction box 20
Transmission – Reduction box inner (Part 1) 21
Transmission – Reducer box inner (Part 2) 22
Transmission – Reducer box inner (Part 2) – 51401 23
Transmission – Reducer box inner (Part 3) 24
Transmission – Compen System 25
Transmission – COMPEN system (interior) 26
Transmission – Cardan joint 27
Transmission (Front axle) – Front axle 28
Transmission (Front axle) – Crown wheel & pinion 29
Transmission (Front axle) – Differential 32
Transmission (Front axle) – Axle casings 33
Transmission (Front axle) – Wheel hub 37
Transmission (Front axle) – Brake disc (Part 1) 39
Transmission (Front axle) – Brake disc (Part 2) 40
Transmission (Front axle) – Brake disc (Part 3) 41
Transmission (Front wide axle) – Front axle 43
Transmission (Front wide axle) – Crown wheel & pinion 44
Transmission (Front wide axle) – Differential 47
Transmission (Front wide axle) – Axle casings 48
Transmission (Front wide axle) – Wheel hub 52
Transmission (Front wide axle) – Brake disc (Part 1) 54
Transmission (Front wide axle) – Brake disc (Part 2) 55
Transmission (Front wide axle) – Brake disc (Part 3) 56
Transmission (Rear axle) – Rear axle 58
Transmission (Rear axle) – Rear axle (Part 1) 59
Transmission (Rear axle) – Rear axle (Part 2) 61
Transmission (Rear axle) – Rear axle (Part 3) 62
Transmission (Rear axle) – Rear axle (Part 4) 66
Transmission (Rear axle) – Rear axle (Part 5) 68
Transmission (Rear axle) – Rear axle (Part 6) 69
Transmission (Rear axle) – Steering axle support 71
Brake – Footbrake (Part 1) 72
Brake – Footbrake (Part 2) 74
Brake – Footbrake (Part 3) 75
Steering – Steering (Part 1) 76
Steering – Steering (Part 2) 77
Steering – Steering (Part 2) – 50329 78
Steering – Steering (Part 3) 79
Steering – Steering (Part 4) 80
Steering – Steering (Part 4) – 50329 81
Steering – Hydrostatic steering 82
Front wheels – Standard 83
Front wheels (optionals) – On road 84
Front wheels (optionals) – Solids 85
Front wheels (optionals) – Flat 86
Rear wheels – Standard 87
Rear wheels (optionals) – On road 88
Rear wheels (optionals) – Solids 89
Chassis – Chassis 90
Body – Sheets (Part 1) 91
Body – Sheets (Part 2) 92
Body – Sheets (Part 3) 93
Body – Counterweight (Part 1) 94
Body – Counterweight (Part 2) 95
Body – Counterweight (Part 3) 96
Body – Seat 97
Body – Cab shutter 98
Body – Seat canopy 99
Body – Joystick lever 100
Opened cab – Opened cab (Part 1) 101
Opened cab – Opened cab (Part 2) 102
Opened cab – Opened cab (Part 3) 103
Opened cab – Opened cab (Part 4) 104
Opened cab – Opened cab (Part 5) 105
Opened cab – Opened cab (Part 6) 106
Opened cab – Opened cab (Part 7) 107
Opened cab – Opened cab (Part 8) 108
Opened cab – Opened cab (Part 9) 109
Opened cab – Shock absorber 110
Half-closed cab – Half-closed cab (Part 1) 111
Half-closed cab – Half-closed cab (Part 2) 112
Half-closed cab – Half-closed cab (Part 3) 113
Half-closed cab – Half-closed cab (Part 4) 114
Half-closed cab – Half-closed cab (Part 5) 115
Half-closed cab – Half-closed cab (Part 6) 116
Half-closed cab – Shock absorber 117
Closed cab – Closed cab (Part 1) 118
Closed cab – Closed cab (Part 2) 119
Closed cab – Closed cab (Part 3) 120
Closed cab – Closed cab (Part 4) 121
Closed cab – Closed cab (Part 5) 123
Closed cab – Closed cab (Part 6) 124
Closed cab – Shock absorber 125
Closed cab – Heater (Part 3) 126
Machine operation tools – Tilting cylinder (Part 1) 127
Machine operation tools – Tilting cylinder (Part 2) 128
Duplex mast 2,6 m – Full mast without side-shift panel 129
Duplex mast 2,6 m – Full mast with side-shift panel 130
Duplex mast 2,6 m – Mast 131
Duplex mast 2,6 m – Outer mast 132
Duplex mast 2,6 m – Inner mast 133
Duplex mast 2,6 m – Panel without side-shift 134
Duplex mast 2,6 m – Panel with side-shift 135
Duplex mast 2,6 m – Panel with side-shift (Part 1) 136
Duplex mast 2,6 m – Panel with side-shift (Part 2) 137
Duplex mast 2,6 m – Panel with side-shift (Part 3) 138
Duplex mast 2,6 m – Forks 139
Duplex mast 2,6 m – Lifting cylinder (Part 1) 140
Duplex mast 2,6 m – Lifting cylinder (Part 2) 141
Duplex mast 2,6 m – Hydraulic mast system 142
Duplex mast 2,6 m – Auxiliary hydraulic system (Part 1) 143
Duplex mast 2,6 m – Auxiliary hydraulic system (Part 2) 144
Duplex mast 2,6 m – Auxiliary hydraulic system (Part 3) 145
Duplex mast 3,3 m – Full mast without side-shift panel 146
Duplex mast 3,3 m – Full mast with side-shift panel 147
Duplex mast 3,3 m – Mast 148
Duplex mast 3,3 m – Outer mast 149
Duplex mast 3,3 m – Inner mast 150
Duplex mast 3,3 m – Panel without side-shift 151
Duplex mast 3,3 m – Panel with side-shift 152
Duplex mast 3,3 m – Panel with side-shift (Part 1) 153
Duplex mast 3,3 m – Panel with side-shift (Part 2) 154
Duplex mast 3,3 m – Panel with side-shift (Part 3) 155
Duplex mast 3,3 m – Forks 156
Duplex mast 3,3 m – Lifting cylinder (Part 1) 157
Duplex mast 3,3 m – Lifting cylinder (Part 2) 158
Duplex mast 3,3 m – Hydraulic mast system 159
Duplex mast 3,3 m – Auxiliary hydraulic system (Part 1) 160
Duplex mast 3,3 m – Auxiliary hydraulic system (Part 2) 161
Duplex mast 3,3 m – Auxiliary hydraulic system (Part 3) 162
Duplex mast 3,6 m – Full mast without side-shift panel 163
Duplex mast 3,6 m – Full mast with side-shift panel 164
Duplex mast 3,6 m – Mast 165
Duplex mast 3,6 m – Outer mast 166
Duplex mast 3,6 m – Inner mast 167
Duplex mast 3,6 m – Panel without side-shift 168
Duplex mast 3,6 m – Panel with side-shift 169
Duplex mast 3,6 m – Panel with side-shift (Part 1) 170
Duplex mast 3,6 m – Panel with side-shift (Part 2) 171
Duplex mast 3,6 m – Panel with side-shift (Part 3) 172
Duplex mast 3,6 m – Forks 173
Duplex mast 3,6 m – Lifting cylinder (Part 1) 174
Duplex mast 3,6 m – Lifting cylinder (Part 2) 175
Duplex mast 3,6 m – Hydraulic mast system 176
Duplex mast 3,6 m – Auxiliary hydraulic system (Part 1) 177
Duplex mast 3,6 m – Auxiliary hydraulic system (Part 2) 178
Duplex mast 3,6 m – Auxiliary hydraulic system (Part 3) 179
Duplex mast 4,5 m – Full mast without side-shift panel 180
Duplex mast 4,5 m – Full mast with side-shift panel 181
Duplex mast 4,5 m – Mast 182
Duplex mast 4,5 m – Outer mast 183
Duplex mast 4,5 m – Inner mast 184
Duplex mast 4,5 m – Panel without side-shift 185
Duplex mast 4,5 m – Panel with side-shift 186
Duplex mast 4,5 m – Panel with side-shift (Part 1) 187
Duplex mast 4,5 m – Panel with side-shift (Part 2) 188
Duplex mast 4,5 m – Panel with side-shift (Part 3) 189
Duplex mast 4,5 m – Forks 190
Duplex mast 4,5 m – Lifting cylinder (Part 1) 191
Duplex mast 4,5 m – Lifting cylinder (Part 2) 192
Duplex mast 4,5 m – Hydraulic mast system 193
Duplex mast 4,5 m – Auxiliary hydraulic system (Part 1) 194
Duplex mast 4,5 m – Auxiliary hydraulic system (Part 2) 195
Duplex mast 4,5 m – Auxiliary hydraulic system (Part 3) 196
Triplex mast 3,7 m – Full mast without side-shift 197
Triplex mast 3,7 m – Full mast with side-shift 198
Triplex mast 3,7 m – Mast 199
Triplex mast 3,7 m – Outter mast 200
Triplex mast 3,7 m – Intermediate mast 201
Triplex mast 3,7 m – Inner mast 202
Triplex mast 3,7 m – Panel without side-shift 203
Triplex mast 3,7 m – Side-shift panel 204
Triplex mast 3,7 m – Side-shift panel (Part 1) 205
Triplex mast 3,7 m – Side-shift panel (Part 2) 206
Triplex mast 3,7 m – Side-shift panel (Part 3) 207
Triplex mast 3,7 m – Forks 208
Triplex mast 3,7 m – Cylinders 209
Triplex mast 3,7 m – Central cylinder 210
Triplex mast 3,7 m – Lateral cylinder 211
Triplex mast 3,7 m – Hydraulic mast sistem 212
Triplex mast 3,7 m – Hydraulic mast sistem (Part 1) 213
Triplex mast 3,7 m – Hydraulic mast sistem (Part 2) 214
Triplex mast 3,7 m – Auxiliary hydraulic mast system 215
Triplex mast 3,7 m – Auxiliary hydraulic mast system (Part 1) 216
Triplex mast 3,7 m – Auxiliary hydraulic mast system (Part 2) 217
Triplex mast 3,7 m – Auxiliary hydraulic mast system (Part 3) 218
Triplex mast 4,3 m – Full mast without side-shift 219
Triplex mast 4,3 m – Full mast with side-shift 220
Triplex mast 4,3 m – Mast 221
Triplex mast 4,3 m – Outter mast 222
Triplex mast 4,3 m – Intermediate mast 223
Triplex mast 4,3 m – Inner mast 224
Triplex mast 4,3 m – Panel without side-shift 225
Triplex mast 4,3 m – Side-shift panel 226
Triplex mast 4,3 m – Side-shift panel (Part 1) 227
Triplex mast 4,3 m – Side-shift panel (Part 2) 228
Triplex mast 4,3 m – Side-shift panel (Part 3) 229
Triplex mast 4,3 m – Forks 230
Triplex mast 4,3 m – Cylinders 231
Triplex mast 4,3 m – Central cylinder 232
Triplex mast 4,3 m – Lateral cylinder 233
Triplex mast 4,3 m – Hydraulic mast sistem 234
Triplex mast 4,3 m – Hydraulic mast sistem (Part 1) 235
Triplex mast 4,3 m – Hydraulic mast sistem (Part 2) 236
Triplex mast 4,3 m – Auxiliary hydraulic mast system 237
Triplex mast 4,3 m – Auxiliary hydraulic mast system (Part 1) 238
Triplex mast 4,3 m – Auxiliary hydraulic mast system (Part 2) 239
Triplex mast 5,4 m – Full mast without side-shift 240
Triplex mast 5,4 m – Mast 241
Triplex mast 5,4 m – Outter mast 242
Triplex mast 5,4 m – Intermediate mast 243
Triplex mast 5,4 m – Inner mast 244
Triplex mast 5,4 m – Panel without side-shift 245
Triplex mast 5,4 m – Side-shift panel 246
Triplex mast 5,4 m – Side-shift panel (Part 1) 247
Triplex mast 5,4 m – Side-shift panel (Part 2) 248
Triplex mast 5,4 m – Side-shift panel (Part 3) 249
Triplex mast 5,4 m – Forks 250
Triplex mast 5,4 m – Cylinders 251
Triplex mast 5,4 m – Central cylinder 252
Triplex mast 5,4 m – Lateral cylinder 253
Triplex mast 5,4 m – Hydraulic mast sistem 254
Triplex mast 5,4 m – Hydraulic mast sistem (Part 1) 255
Triplex mast 5,4 m – Hydraulic mast sistem (Part 2) 256
Triplex mast 5,4 m – Auxiliary hydraulic mast system 257
Triplex mast 5,4 m – Auxiliary hydraulic mast system (Part 1) 258
Triplex mast 5,4 m – Auxiliary hydraulic mast system (Part 2) 259
Triplex mast 5,4 m – Auxiliary hydraulic mast system (Part 3) 260
Load protector – Load protector without side-shift 261
Load protector – Load protector with side-shift 262
Hydraulic diagram installation – Control valve 263
Hydraulic diagram installation – Service diagram 264
Hydraulic diagram installation – Transmission diagram 266
Hydraulic diagram installation – Hydraulic tank (Part 1) 268
Hydraulic diagram installation – Hydraulic tank (Part 1) 269
Hydraulic diagram installation – Hydraulic tank (Part 2) 270
Hydraulic diagram installation – Oil filter 271
Hydraulic diagram installation – Valves (Part 1) 272
Hydraulic diagram installation – Valves (Part 2) 273
Electric installation – Battery (Part 1) 274
Electric installation – Battery (Part 2) 275
Electric installation – Battery (Part 3) 276
Electric installation – Rear lighting 277
Electric installation – Front lighting 278
Electric installation – Lights electrical length 279
Electric installation – Front work lights 280
Electric installation – Rear work lights 281
Electric installation – Windscreen wiper electrical length 282
Electric installation – Engine electrical length 283
Electric installation – 284
Finishing – Plates and decals (Part 1) 285
Finishing – Plates and decals (Part 2) 286
Finishing – Plates and decals (Part 2) – 57394 287
Finishing – Plates and decals (Part 3) 288
Finishing – Plates and decals (Part 4) 289
Finishing – Plates and decals (Part 5) 290
Finishing – Plates and decals (Part 5) – 54424 291
Finishing – Finished UK 292
Finishing – Finished Germany 293
Finishing – Finished France 294
Finishing – Finished Poland 295
Finishing – Tools bag 296
Index – C 250 H x4 297

S.V 25/01/2025
