Baoli Forklift Truck CPDS15 CPDS18 Operation & Service Manual PDF

Description

Baoli Forklift Truck CPDS15 CPDS18 Operation & Service Manual – PDF DOWNLOAD

FILE DETAILS:

Baoli Forklift Truck CPDS15 CPDS18 Operation & Service Manual – PDF DOWNLOAD

Language : English
Pages : 87
Downloadable : Yes
File Type : PDF

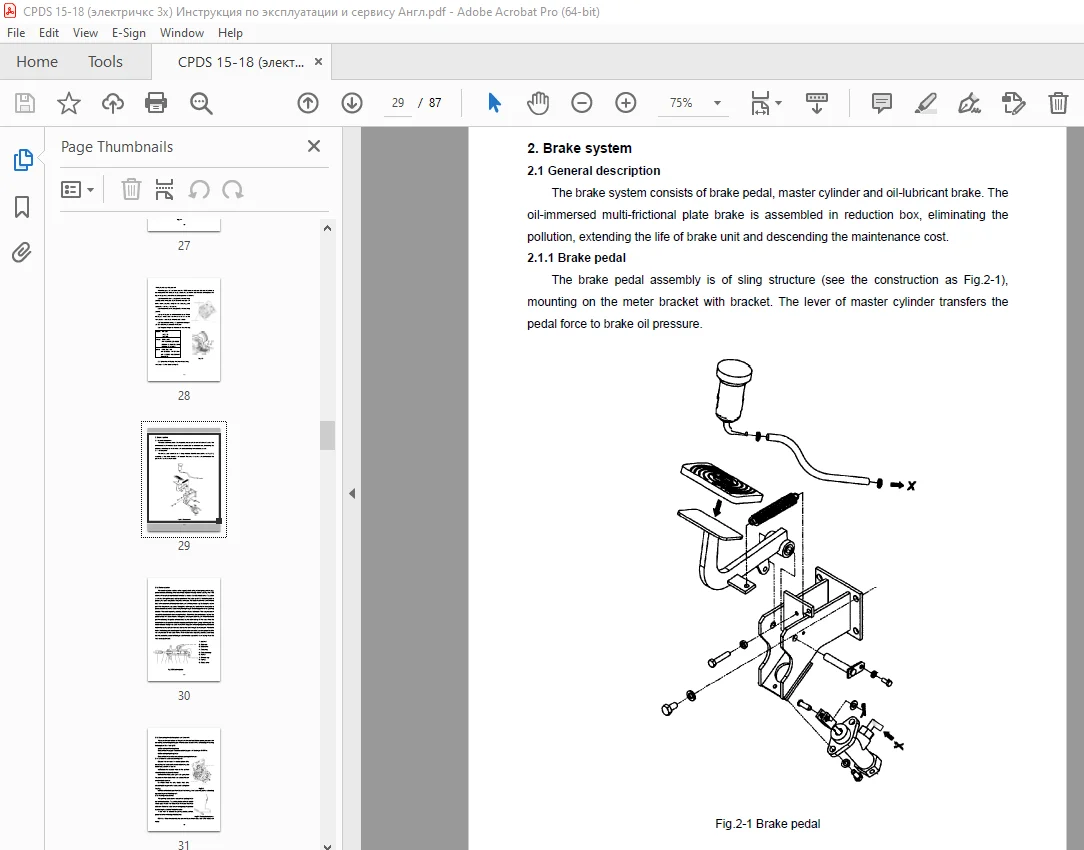

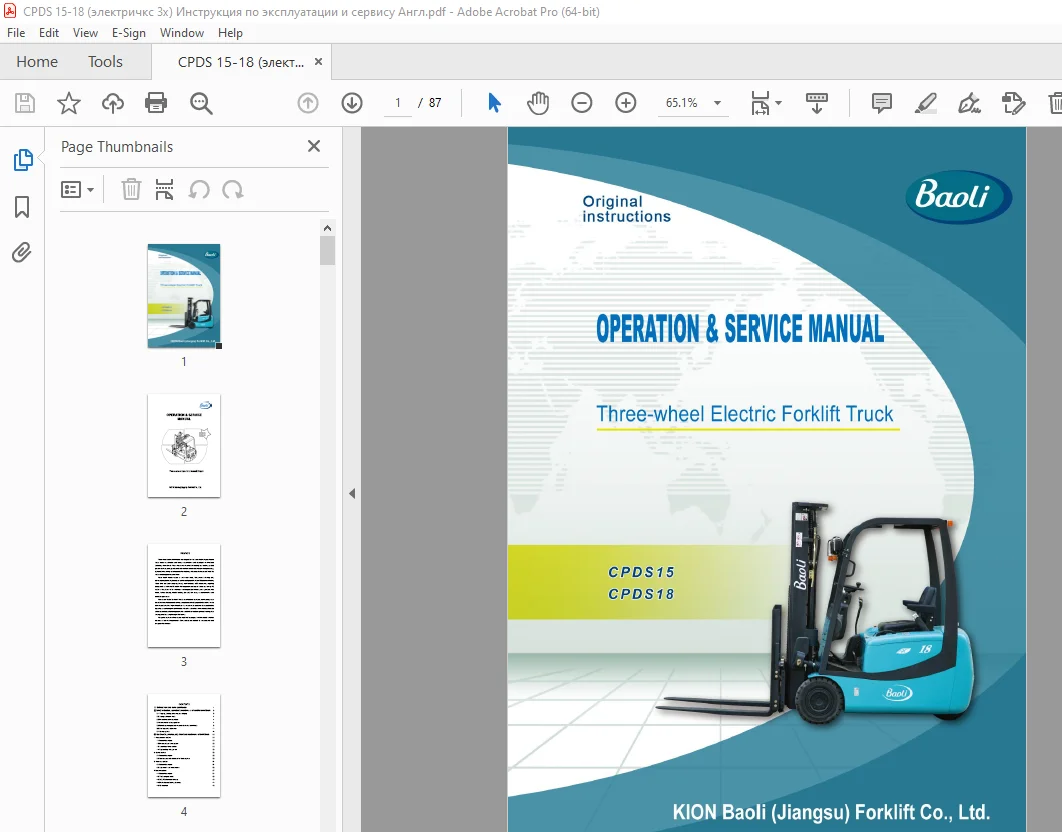

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Baoli Forklift Truck CPDS15 CPDS18 Operation & Service Manual – PDF DOWNLOAD

Ⅰ External view and main specification
Ⅱ Safety instruction, operation & maintenance of electric forklift truck
2 1 Shipping, loading, unloading and slinging
2 2 Storage of forklift truck
2 3 Precautions before operation
2 4 Information of safety operation
2 5 Periodic servicing and maintenance of electric forklift truck
2 6 Brief operation instruction
2 7 Caution plates
Ⅲ Construction, principle, adjustment and maintenance of forklift truc kk
1 Transmission system
1 1 General description
1 2 Disassembly of drive system
1 3 Assembly of drive system
1 4 Replenishing with gear oil
2 Brake system
2 1 General description description
2 2 Mainten ance and adjustment of brake system system
3 Steering system
3 1 General description description
3 2 Adjustment and maintenance maintenance
4 Electric systemsystem
4 1 General description
4 2 SME compact meter meter
4 3 SME AC electric control assy assy
4 4 Distribut ion and setting of sensor sensor
4 5 AC microtron microtron
5 SME three
5 SME three–phase AC motorphase AC motor
5 1 General description5 1 General description
5 2 Operating 5 2 Operating environmentenvironment
5 3 Daily inspection and maintenance5 3 Daily inspection and maintenance
6 Battery and charger
6 Battery and charger
6 1 Structure of battery
6 1 Structure of battery
6 2 Specification of ba6 2 Specification of batteryttery
6 3 Usage and maintenance of battery6 3 Usage and maintenance of battery
6 4 Troubleshooting6 4 Troubleshooting
6 5 Charger6 5 Charger
7 Hydraulic system
7 Hydraulic system
7 1 General description7 1 General description
7 2 Maintenance and adjustment of hydraulic system
7 2 Maintenance and adjustment of hydraulic system
8 Mast system
8 Mast system
8 1 General description8 1 General description
8 2 Maintenance and adjustment of mast system8 2 Maintenance and adjustment of mast system
Charging record card of electric forklift truck
EC DECLARATION OF CONFORMITY

DESCRIPTION:

Baoli Forklift Truck CPDS15 CPDS18 Operation & Service Manual – PDF DOWNLOAD

PREFACE:

• Three wheel e lectric forklift trucks are designed on the base of advanta ges of some
  trucks made by domestic and foreign manufactures and developed in introduced
  technology from abroad. These trucks are all suited for handling and stacking packed
  goods in stations, ports, goods yards and warehouses and used widely in food proce ssing,
  light and textile, mining industries and other factories, with some of attachments fitted, the
  trucks can be applied more and more.
• These forklift trucks feature a wide vision mast, full powered steering unit,
  self energizing brake, stepless speed c ontrol and high quality Italian AC system controllers,
  Italian drive unit (self energizing brake), multi functional LCD instruments, importing
  components as hydraulic AC motor with temperature and speed sensor and towing AC
  motor, so they have a lot of adv antages such as good performance, easy operation, wide
  vision , flexible steering, reliable braking, powerful, low noise, no contamination and
  aesthetic appearance
• This manual states the forklift truck’s specifications, operation, maintenance, main
  assembl ies’ constructions and working principles so as to help operators to use the trucks
  correctly and attain the highest functions. It is necessary to read over the manual before
  operating or maintaining the forklift trucks. The rules and notices in this manua l should be
  abided seriously by all relative personnel to enable these trucks in optimized working state
  for long period and bring the highest efficiency.
• The partial content in this manual might not correspond with the actual condition
  because of technica l improvement. Our products are subject to improvements and
  changes without notice.

S.V 24/01/2025
