Belarus 1523 1523B 1523.3 1523B.3 Tractor Operating Manual – PDF DOWNLOAD

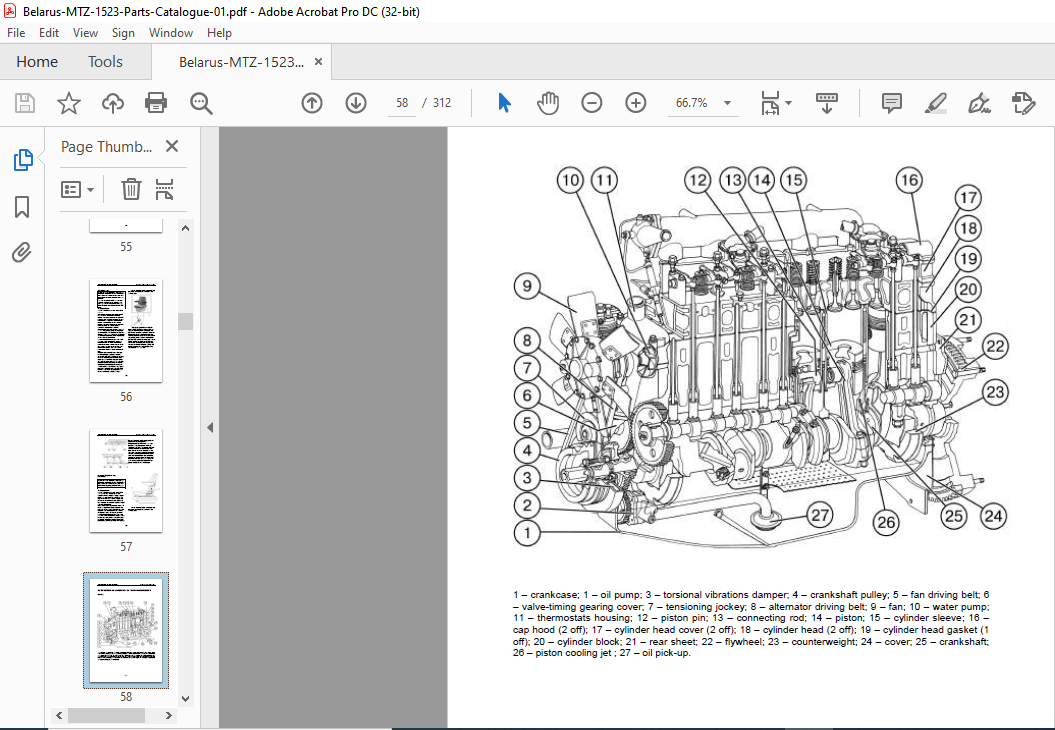

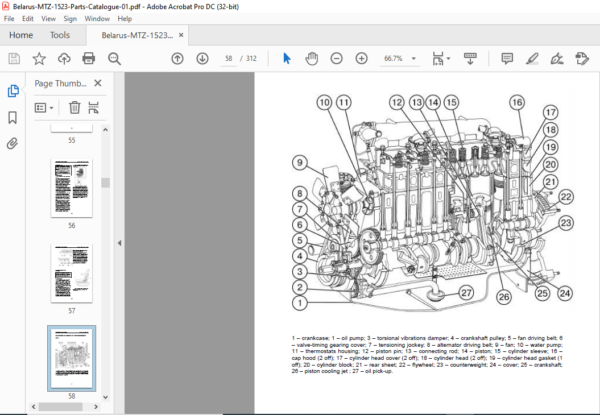

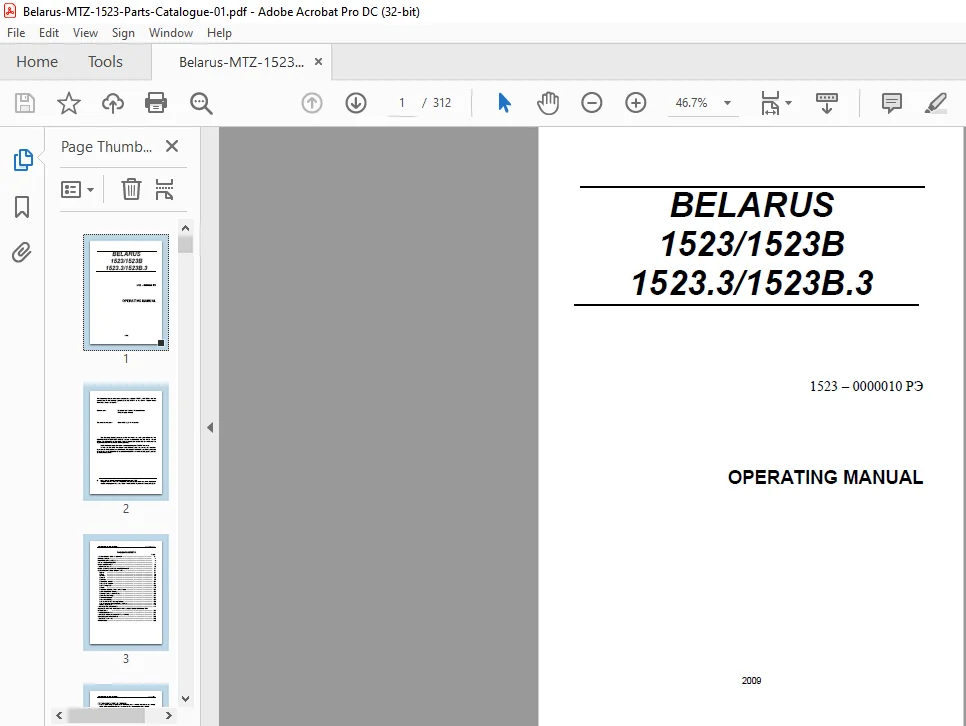

IMAGES PREVIEW OF THE MANUAL:
Belarus 1523 1523B 1523.3 1523B.3 Tractor Operating Manual – PDF DOWNLOAD
Belarus 1523 1523B 1523.3 1523B.3 Tractor Operating Manual – PDF DOWNLOAD
DESCRIPTION:
Belarus 1523 1523B 1523.3 1523B.3 Tractor Operating Manual – PDF DOWNLOAD
Introduction
TO THE OPERATORS’ ATTENTION:
1. Prior to proceeding to operation of the tractor, read carefully this Manual and strictly follow all the instructions related to operation and maintenance of the tractor.
2. Be sure to run in the tractor for initial 30 hours. Right up to Maintenance Service 1 (125 h), the diesel-engine loading should not exceed 80 % percent of its power rating.
3. Your tractor is equipped with a speed-range type transmission gearbox. The ranges are switched over by means of tooth-type flexible clutches, while the gears within the range are shifted by means of synchronizers.
To engage a range:
— depress the clutch pedal completely and allow the tractor to come to a standstill;
— then gently, without jerks, select the desired range using the range engagement
lever;
— release smoothly the clutch pedal.
To engage a gear:
— depress the clutch pedal completely;
— shift the change-over stick smoothly, without jerks, and hold it in this drawn-in
position until the gear is fully engaged;
— release smoothly the clutch pedal.

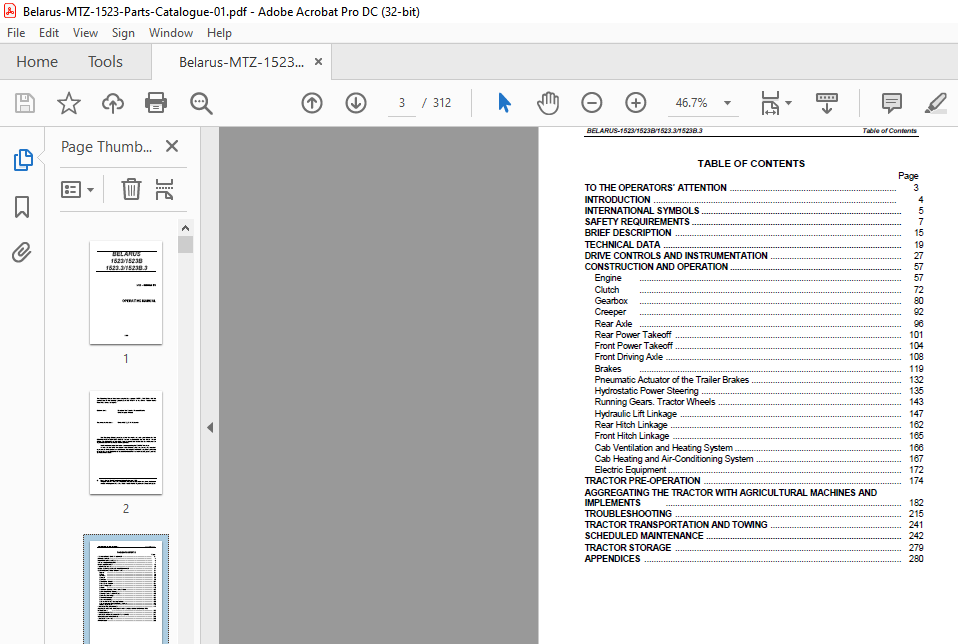

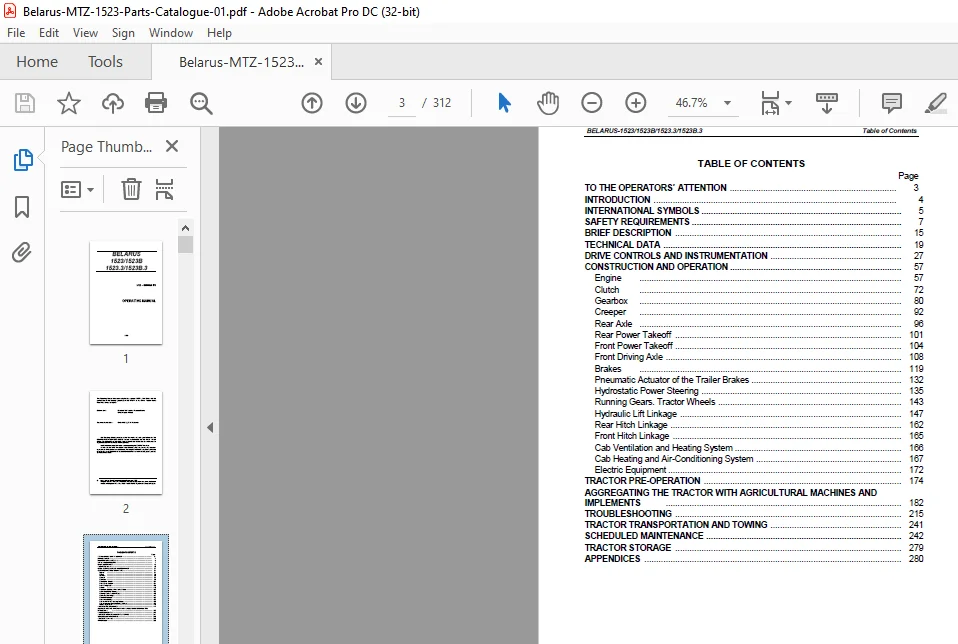

TABLE OF CONTENTS:
Belarus 1523 1523B 1523.3 1523B.3 Tractor Operating Manual – PDF DOWNLOAD
TO THE OPERATORS ATTENTION 3
INTRODUCTION 4
INTERNATIONAL SYMBOLS 5
SAFETY REQUIREMENTS 7
BRIEF DESCRIPTION 15
TECHNICAL DATA 19
DRIVE CONTROLS AND INSTRUMENTATION 27
CONSTRUCTION AND OPERATION 57
Engine 57
Clutch 72
Gearbox 80
Creeper 92
Rear Axle 96
Rear Power Takeoff 101
Front Power Takeoff 104
Front Driving Axle 108
Brakes 119
Pneumatic Actuator of the Trailer Brakes 132
Hydrostatic Power Steering 135
Running Gears Tractor Wheels 143
Hydraulic Lift Linkage 147
Rear Hitch Linkage 162
Front Hitch Linkage 165
Cab Ventilation and Heating System 166
Cab Heating and Air-Conditioning System 167
Electric Equipment 172
TRACTOR PRE-OPERATION 174
AGGREGATING THE TRACTOR WITH AGRICULTURAL MACHINES AND
IMPLEMENTS 182
TROUBLESHOOTING 215
TRACTOR TRANSPORTATION AND TOWING 241
SCHEDULED MAINTENANCE 242
TRACTOR STORAGE 279
APPENDICES 280
