Eaton Fuller Mid Range Transmissions TRSM4106 Service Manual – PDF DOWNLOAD

Description

Eaton Fuller Mid Range Transmissions TRSM4106 Service Manual – PDF DOWNLOAD

DESCRIPTION:

Eaton Fuller Mid Range Transmissions TRSM4106 Service Manual – PDF DOWNLOAD

All transmissions are fitted with an identification plate on the left hand side of the front case showing
1. Transmission serial number.
2. Transmission model.
3. Manufacturing data code.
4. Transmission specification number.

The transmission specification number is unique to each customer and gives precise details of the transmission design level. This number must be quoted when ordering replacement parts.
There are currently two design levels of the 4106 transmission. Each level is identified by the specification number.
Y 0400
Y 04100

General:
Lubrication:
Proper Oil Level
Before checking the oil level or refilling, vehicle should be on level ground. Make sure that the oil is level with the filler opening.
Draining Oil
Drain transmission while oil is warn. To drain oil remove the drain plug at the bottom if case. Clean the drain plug before re-installing.
Refilling
Clean area round filler plug. Fill transmission to the level of the filler opening. The exact amount of oil depends on the transmission inclination. In every instance, fill to the level of the filler opening. Do not overfill this causes oil to be forced out of the case past the mainshaft and input shaft seals.
Adding Oil
It is recommended that different types and brands of oil are not intermixed because of possible incompatibility.

TABLE OF CONTENTS:

Eaton Fuller Mid Range Transmissions TRSM4106 Service Manual – PDF DOWNLOAD

Section 1 General
1/1 Letter and Model Designation
1/2 Technical Data
1/3 Lubrication
1/4 Recommended Lubricants
1/5 Torque Tightening Recommendations
1/7 Disassembly Precautions and Inspection of Expendable Parts
1/9 Reassembly Precautions
1/10 Gear End Floats
1/11 Special Tools
1/14 Locally Made Tools
Section 2 General Discription
2/1 Features
2/2 Gear Change Pattern
2/2 Power Flow Diagrams
Section 3 Shifting Controls
3/2 Remote Control – Exploded View
3/3 Remote Control Disassembly
3/4 Remote Control Reassembly
3/7 Direct Control – Exploded View
3/8 Direct Control Disassembly
3/9 Direct Control Reassembly
Section 4 Transmission Overhaul
4/2 Transmission Case – Exploded View
4/3 Transmission Case Disassembly
4/9 Layshaft Disassembly
4/10 Layshaft Reassembly
4/11 Synchroniser Flange Removal / Fitment
4/12 Maninshaft Disassembly (New Type)
4/13 Maninshaft Reassembly (New Type)
4/17 Mainshaft Assembly – Exploded View (NewType)
4/31 Mainshaft Disassembly (Old Type)
4/32 Mainshaft Assembly – Exploded View (Old Type)
4/35 Mainshaft Reassembly (Old Type)
4/41 Selector Shaft Disassembly
4/42 Selector Shaft Reassembly
4/44 Transmission Case Reassembly

EATON FULLER MID RANGE TRANSMISSIONS TRSM4106 SERVICE MANUAL – PDF DOWNLOAD:

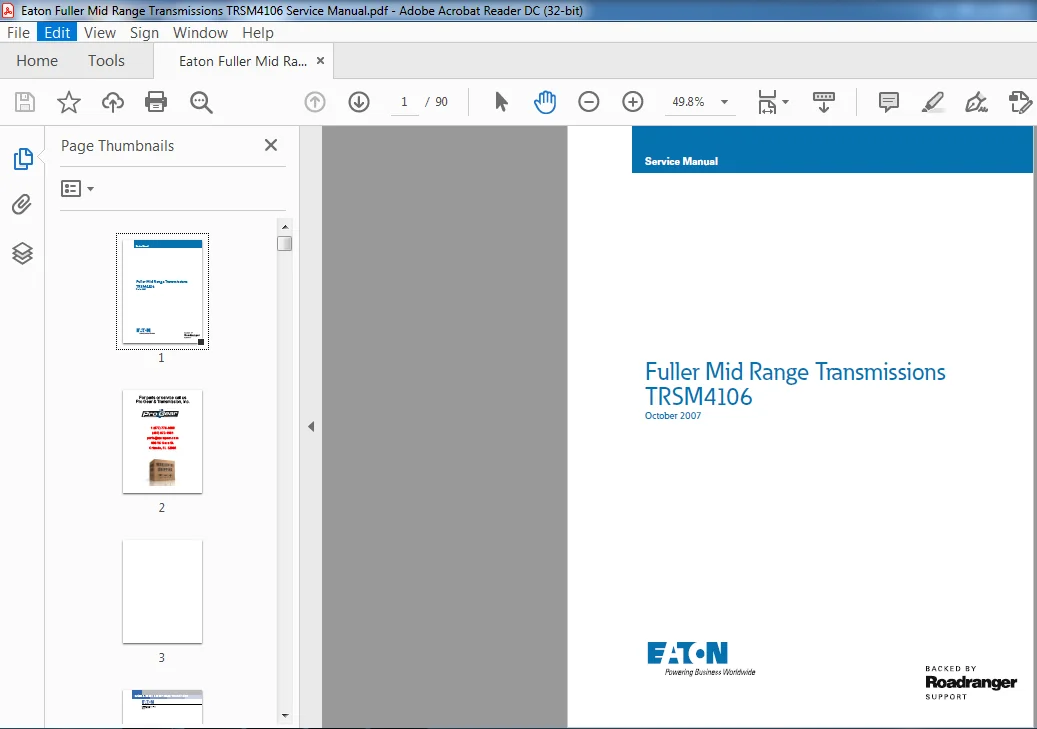

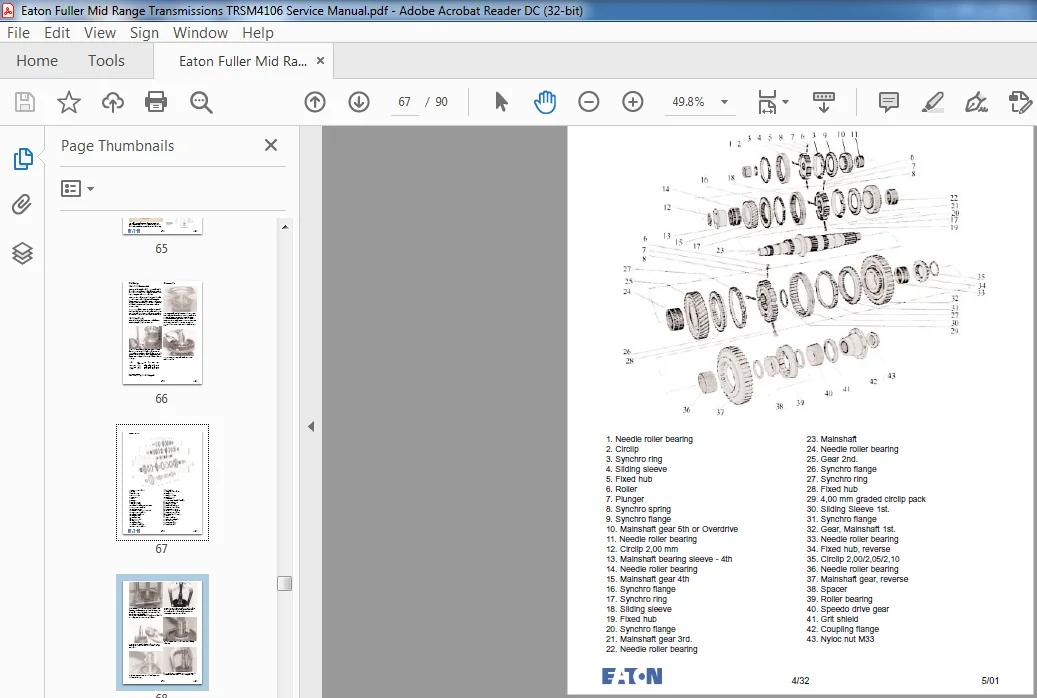

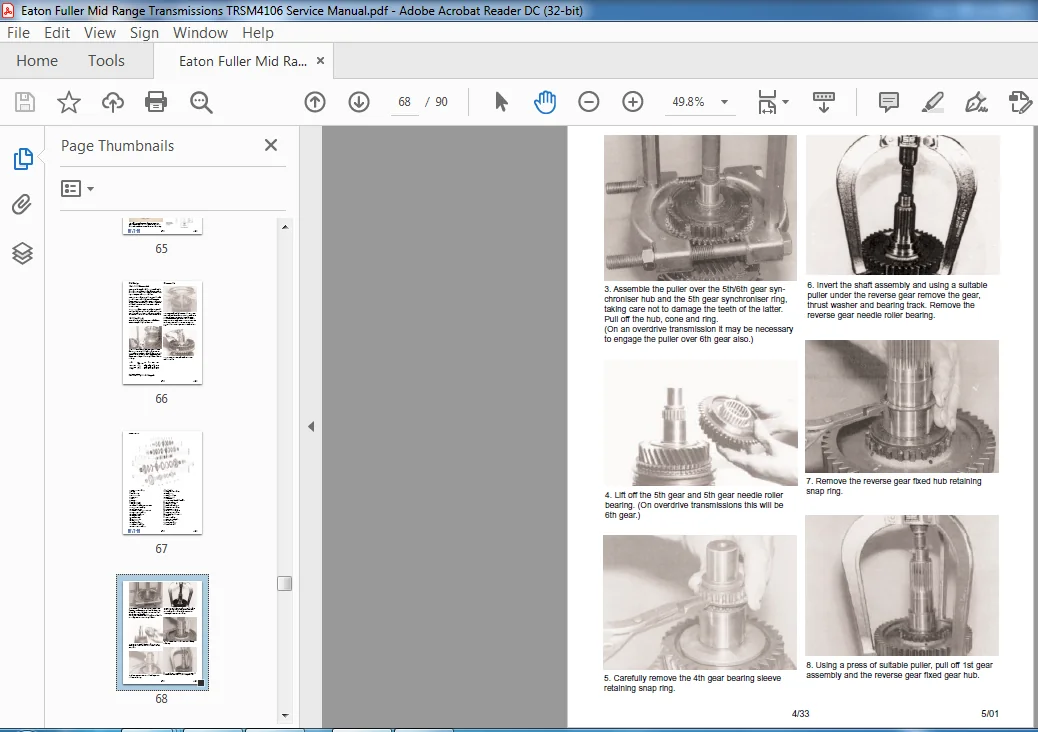

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
