BELARUS 80.1/80.3/80У/82У/82.1/820/82.3/82Р/82П PARTS & ASSEMBLY UNITS MANUAL – PDF

Description

BELARUS 80.1/80.3/80У/82У/82.1/820/82.3/82Р/82П PARTS & ASSEMBLY UNITS MANUAL – PDF DOWNLOAD

FILE DETAILS:

BELARUS 80.1/80.3/80У/82У/82.1/820/82.3/82Р/82П PARTS & ASSEMBLY UNITS MANUAL – PDF DOWNLOAD

Language : English
Pages : 401
Downloadable : Yes
File Type : PDF

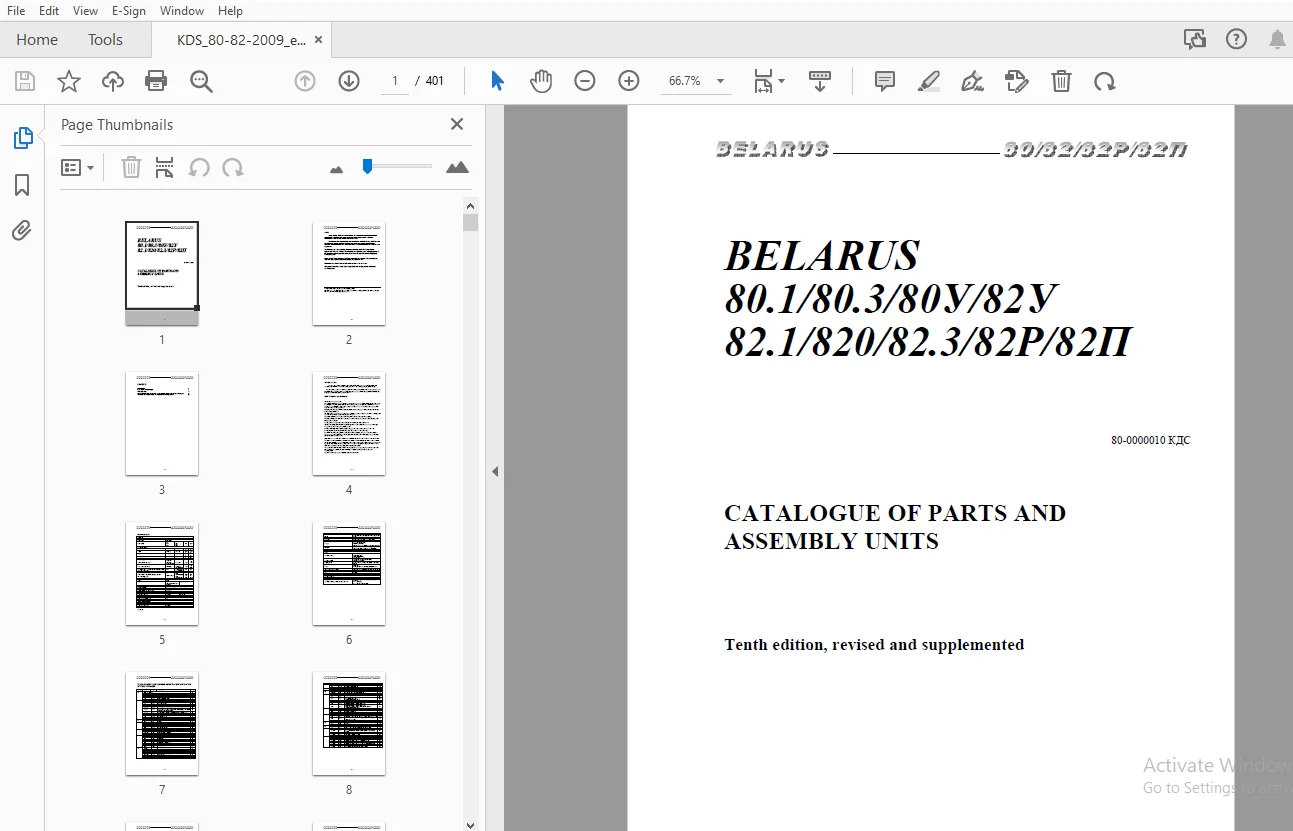

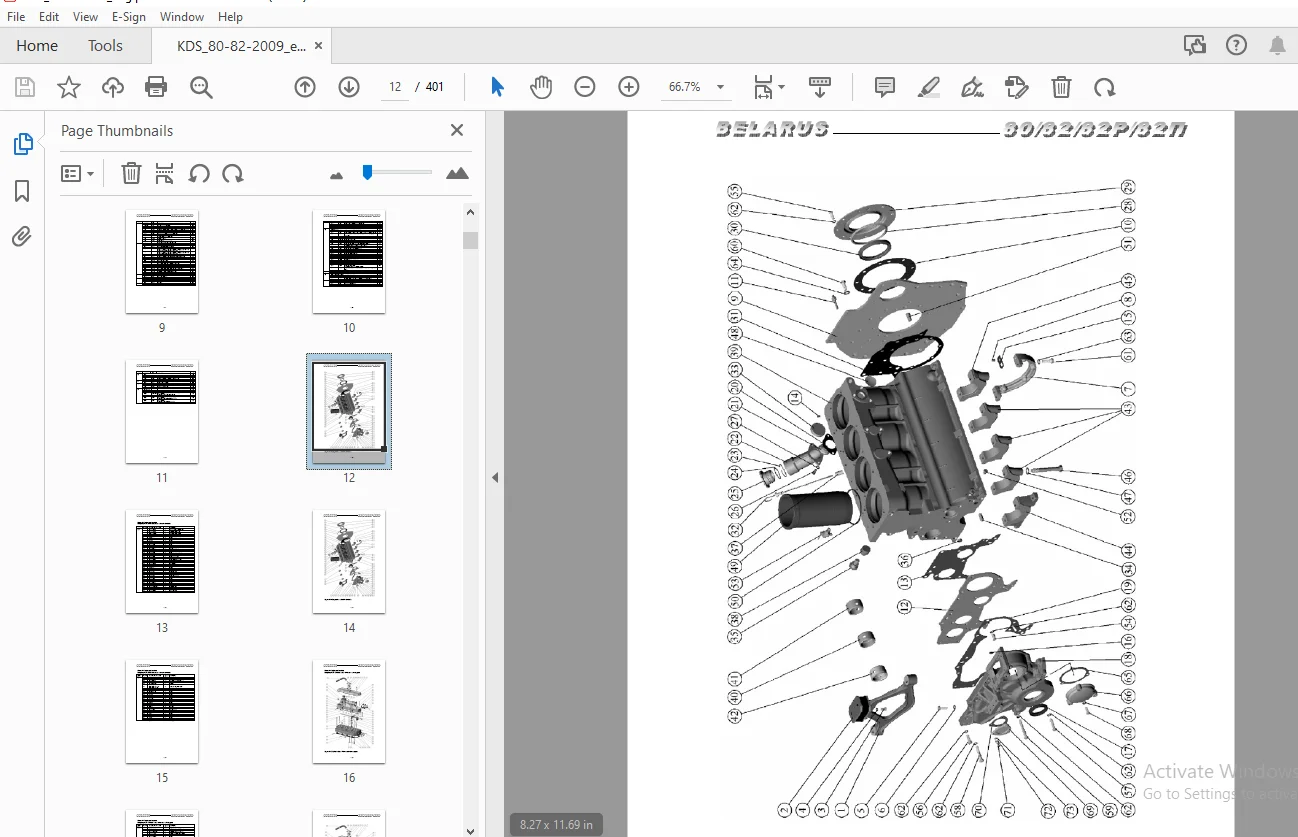

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BELARUS 80.1/80.3/80У/82У/82.1/820/82.3/82Р/82П PARTS & ASSEMBLY UNITS MANUAL – PDF DOWNLOAD

• Introduction 4
• How to Use the Catalogue 4
• Technical Data 5
• Index of the Groups, Subgroups of Assembly Units and Parts of the Catalogue 8
• Assembly Units and Parts of the Tractors in Basic Equipment 12
• Engine Mechanisms – Page 12
  • 10.1 Suspension and Cylinder Unit – Pages 12-16
  • 10.2 Cylinder Head, Valves, and Valve Tappets – Pages 16-20
  • 10.3 Pistons and Connecting Rods, Crankshaft, and Flywheel – Pages 20-24
  • 10.4 Timing Gear – Pages 24-26
  • 10.5 Exhaust Manifold Assembly – Page 26
  • 10.6 Steering Pump Assembly – Page 26
• Feeding System – Page 28
  • 11.1 Fuel Tanks (Metallic) – Pages 28-30
  • 11.2 Fuel Tanks (Plastic) – Pages 30-32
  • 11.3 Fuel Tank (for Belarus-82П Tractor) – Pages 32-34
  • 11.4 Fuel Equipment Assembly (for Д-243 Engine) – Pages 34-36
  • 11.5 Fuel Equipment Assembly (for Д-243C Engine with YADZA Fuel Pump) – Pages 36-38
  • 11.6 Fuel Equipment Assembly (for Д-243C Engine with NZTA Fuel Pump) – Pages 38-39
  • 11.7 Fuel Equipment Assembly (for Д-243C Engine with Motorpal or RAAZ Fuel Pump) – Pages 39-42
  • 11.8 Preliminary Fuel Filter – Pages 42-44
  • 11.9 Secondary Fuel Filter – Pages 44-46
  • 11.10 Fuel Feeding Control – Pages 46-48
  • 11.11 Engine Shutdown, Engine Emergency Shutdown – Pages 48-50
  • 11.12 Air Cleaner – Pages 50-52
• Exhaust System – Page 52
  • 12.1 Muffler – Page 52
• Cooling System – Page 54
  • 13.1 Water Radiator, Water Radiator Suspension – Pages 54-56
  • 13.2 Thermostat – Pages 56-58
  • 13.3 Water Pump and Fan – Pages 58-60
  • 13.4 Fan Guard (Optionally) – Pages 60-62
  • 13.5 Shutter – Pages 62-64
• Lubrication System – Page 64
  • 14.1 Crankcase – Pages 64-66
  • 14.2 Oil Pump and Oil Pump Receiver – Pages 66-68
  • 14.3 Centrifugal Oil Filter Body Gasket – Pages 68-70
  • 14.4 Oil Cooler – Pages 70-72
• Clutch – Page 72
  • 16.1 Clutch Plates – Pages 72-74
  • 16.2 Clutch Casing – Pages 74-76
  • 16.3 Clutch Casing (Shifter) – Pages 76-78
  • 16.4 Clutch Casing (PTO Drive, Mounted Attachment Hydraulic System Pump Drive) – Pages 78-80
  • 16.5 Clutch Casing (Reduction Gear) – Pages 80-82
  • 16.6 Clutch Casing (Reverse Gear) – Pages 82-84
  • 16.7 Clutch Control – Pages 84-86
  • 16.8 Clutch Control (for Belarus-80У/82У Tractor) – Pages 86-88
• Gearbox – Page 88
  • 17.1 Gearbox, Gearbox Casing – Pages 88-90
  • 17.2 Primary Shaft, Secondary Shaft – Pages 90-92
  • 17.3 Internal Shaft, Intermediate Shaft – Pages 92-94
  • 17.4 Shaft of the First and Reverse Gear – Pages 94-96
  • 17.5 Reduction Gear – Pages 96-98
  • 17.6 Gear Shift Mechanism, Casing of Forks – Pages 98-100
  • 17.7 Gear Shift Mechanism, Cover – Pages 100-102
  • 17.8 Reduction Gear Control – Pages 102-104
  • 17.9 Reverse Gear Control – Pages 104-106
  • 17.10 Mechanical Speed-Reducing Unit – Pages 106-110
  • 17.11 Hydraulic Speed-Reducing Unit – Pages 110-112
• Transfer Gearbox – Page 112
  • 18.1 Transfer Gearbox for Driving the FDA – Pages 112-116
• Cardan Drive – Page 116
  • 22.1 Cardan Shaft, Intermediate Cardan Shaft Bearing – Pages 116-118
  • 22.2 Cardan Shaft Guard – Pages 118-120
• Front Driving Axle – Page 120
  • 23.1 Front Driving Axle Assembly (for Belarus-82.1/82У/82Р Tractors) – Pages 120-122
  • 23.2 Front Driving Axle Assembly (for Belarus-820/82.3/82П Tractors) – Pages 122-126
  • 23.3 Front Driving Axle Drive Gear – Pages 126-128
  • 23.4 Differential – Pages 128-130
  • 23.5 Final Drive Reduction Gear of the Front Driving Axle (for Belarus-82.1/82У/82Р) – Pages 130-134
  • 23.6 Final Drive Reduction Gear of the Front Driving Axle (for Belarus-820/82.3/82П) – Pages 134-138
• Rear Axle – Page 138
  • 24.1 Rear Axle Casing, Final Drive – Pages 138-140
  • 24.2 Differential, Bearing Cage – Pages 140-142
  • 24.3 Differential Lock Mechanism – Pages 142-144
  • 24.4 Final Reduction Gear (for Belarus-82Р Tractor) – Pages 144-146
• Traction Hitch Mechanism – Page 146
  • 27.1 Hitch, Hook Version (Optionally) – Pages 146-148
  • 27.2 Hitch, “Pendulum” or “Trailer” Variant (Optionally) – Pages 148-152
  • 27.3 Traction Hitch Mechanism (for Belarus-82П Tractor) – Pages 152-154
• Frame – Page 154
  • 28.1 Semiframe – Pages 154-156
  • 28.2 Hydraulic Hook (Optionally, Except for Belarus-82П Tractor) – Pages 156-158
• Front Axle – Page 158
  • 30.1 Front Axle and Steering Link (for Belarus-80.1/80.3/80У Tractors) – Pages 158-160
• Wheels and Hubs – Page 160
  • 31.1 Front Guide Wheels, Hubs of the Front Wheels (for Belarus-80.1/80.3/80У) – Pages 160-162
  • 31.2 Front Driving Wheels – Pages 162-164
  • 31.3 Rear Wheels, Hubs of the Rear Wheels – Pages 164-166
  • 31.4 Spacer for Twinning the Rear Wheels – Pages 166-168
• Steering Control – Page 168
  • 34.1 Steering Column – Pages 168-170
  • 34.2 Steering Fittings – Pages 170-174
  • 34.3 HPS Hydraulic Cylinder and Fittings (Version with Front Axle) – Pages 174-176
  • 34.4 Hydraulic Cylinder 50×25-200 – Pages 176-178
  • 34.5 HPS Hydraulic Cylinder and Fittings (Front Driving Axle 72-2300020-А-04) – Pages 178-180
  • 34.6 Hydraulic Cylinder Ц63 (63×30-200) – Pages 180-182
  • 34.7 Hydraulic Cylinder Ц63 and HPS Fittings (Front Driving Axle 822-2300020-04 or 822-2300020-02) – Pages 182-184
• Brakes – Page 184
  • 35.1 Service Brakes, Brake Control – Pages 184-186
  • 35.2 Parking Brake, Parking Brake Control – Pages 186-188
  • 35.3 Pipelines and Fittings of the Single-Line Pneumatic Actuator of the Trailer Brakes – Pages 188-190
  • 35.4 Pipelines and Fittings of the Two-Line Pneumatic Actuator of the Trailer Brakes – Pages 190-192
  • 35.5 Pressure Regulator – Pages 192-196
  • 35.6 Bottle – Pages 196-198
  • 35.7 Brake Valve (for Single-Line Pneumatic Actuator) – Pages 198-200
  • 35.8 Brake Valve (for Two-Line Pneumatic Actuator) – Pages 200-202
  • 35.9 Connecting Head (for Single-Line Pneumatic Actuator) – Pages 202-204
  • 35.10 Connecting Head (for Two-Line Pneumatic Actuator) – Pages 204-206
  • 35.11 Compressor – Pages 206-208
  • 35.12 Choke Assembly (for Tractors without Pneumatic Compressor) – Pages 208-210
• Electric Equipment – Page 210
  • 37.1 Electric Equipment of the Engine – Pages 210-212
  • 37.2 Electric Equipment of the Transmission – Pages 212-214
  • 37.3 Electric Equipment of the Cab – Pages 214-218
  • 37.4 Storage Batteries – Pages 218-220
  • 37.5 Alternator – Pages 222-224
  • 37.6 Starter, Starter Assembly – Pages 224-226
  • 37.7 Electric Torch Pre-Heater – Pages 226-228
  • 37.8 Road Light Assembly – Pages 228-230
  • 37.9 Working Light Assembly – Pages 230-232
  • 37.10 Signalling Beacon Assembly – Pages 244-246
• Instrumentation – Page 246
  • 38.1 Base, Instrumentation – Pages 246-250
  • 38.2 Wall, Cover – Pages 250-252
• Tools and Accessories – Page 252
  • 39.1 Operator Tools – Pages 252-254
  • 39.2 First-Aid Kit – Pages 254-256
  • 39.3 Tool Box – Pages 256-258
• Power Takeoff – Page 258
  • 42.1 Rear Power Takeoff – Pages 258-262
  • 42.2 Side Power Takeoff, Side Power Takeoff Control – Pages 262-264
  • 42.3 Driving Pulley – Pages 264-266
  • 42.4 Rear Power Takeoff Control – Pages 266-268
  • 42.5 Front Ballast – Pages 268-270
• Hydraulic System – Page 272
  • 46.1 Rear Mounted Attachment – Pages 272-278
  • 46.2 Rear Mounted Attachment (Variant for Belarus-82П) – Pages 278-282
  • 46.3 External Interlock of the Lower Rods – Pages 282-284
  • 46.4 Hydraulic Distributor Control – Pages 284-286
  • 46.5 Hydraulic System – Pages 286-288
  • 46.6 Hydraulic System Casing – Pages 288-292
  • 46.7 Hydraulic Units Casing Fittings – Pages 292-294
  • 46.8 Hydraulic Units and Fittings – Pages 294-296
  • 46.9 Hydraulic Units Casing and Filter – Pages 296-300
  • 46.10 Hydraulic Units Casing and Filter, Variant – Pages 300-304
  • 46.11 Pump Drive – Pages 306-308
  • 46.12 Telescopic Drawbar – Pages 310-312
  • 46.13 Hydraulic Cylinder Ц100×200 – Pages 312-314
  • 46.14 РП70 Hydraulic Distributor – Pages 314-316
  • 46.15 Р80 Hydraulic Distributor – Pages 316-320
  • 46.16 РП70 Hydraulic Distributor Control – Pages 320-322
  • 46.17 Р80 Hydraulic Distributor Control – Pages 322-324
  • 46.18 Governor – Pages 324-328
  • 46.19 Governor Control – Pages 328-330
  • 46.20 Cut-off Clutch – Pages 330-332
  • 46.21 Locking Device – Pages 332-334
  • 46.22 Retention Mechanism – Pages 334-336
  • 46.23 Hydraulic Lift Distributor (for Belarus-82П with Hydraulic Lift) – Pages 336-338
  • 46.24 Hydraulic Lift Control – Pages 338-342
• Rear Axle Differential Lock Control – Page 344
  • 48.1 Differential Lock Control – Pages 344-346
• Wind- and Rear Screen Wipers – Page 346
  • 52.1 Windscreen Wiper – Pages 346-348
  • 52.2 Rear Screen Wiper – Pages 348-350
  • 52.3 Wind- and Rear Screen Wipers Assembly (for Belarus-82П) – Pages 350-352
  • 52.4 Rear Screen Washer Assembly (for Belarus-82П) – Pages 352-354
• Tractor Cab – Page 354
  • 67.1 Tractor Cab, Rear Fenders – Pages 354-360
  • 67.2 Canopy Framework, Base – Pages 360-362
  • 67.3 Cab Floor – Pages 362-364
  • 67.4 Cab Doors – Pages 364-366
• Seat – Page 366
  • 68.1 Operator Seat – Pages 366-368
  • 68.2 Seat Suspension – Pages 368-372
  • 68.3 Reverse Mechanism (for Belarus-82П) – Pages 372-374
  • 68.4 Additional Seat – Pages 374-376
• Heater – Page 376
  • 81.1 Heater, Heater Fittings – Pages 376-378
• Cab Accessories – Page 378
  • 82.1 Internal Rear-View Mirror – Pages 378-380
  • 82.2 Side Rear-View Mirror – Pages 380-382
  • 82.3 Sun Visor – Pages 382-384
• Empennage – Page 384
  • 84.1 Radiator Facing, Bonnet (Except for Belarus-82П) – Pages 384-386
  • 84.2 Radiator Facing, Bonnet (for Belarus-82П) – Pages 386-390
  • 84.3 Front Fenders (for Belarus-80.1/80.3/80У) – Pages 390-394
  • 84.4 Front Fenders (for Belarus-82П) – Pages 394-396
  • 84.5 Front Fenders (for Belarus-82.1/820/82.3/82П) – Pages 396-398
  • 84.6 Footstep – Pages 400-402
