Bell UH-1B UH-1C UH-1H UH-1M EH-1H UH-1V Repair Parts & Special Tools Manual TM 55-1520-210-23P-1

This 588-page technical manual is the Aviation Unit and Intermediate Maintenance Repair Parts and Special Tools List for the UH-1B, UH-1C, UH-1H, UH-1M, EH-1H and UH-1V utility tactical transport helicopter family. The document is TM 55-1520-210-23P-1, dated 27 February 1981, and the copy incorporates an extensive sequence of later change material. Its purpose is parts identification and maintenance-support reference: illustrated assembly breakdowns are paired with detailed listings containing stock numbers, manufacturer codes, part numbers, descriptions, applicability codes, units of measure and quantities.

The Bell UH-1B UH-1C UH-1H UH-1M EH-1H UH-1V Repair Parts & Special Tools Manual TM 55-1520-210-23P-1 is especially useful when a component must be traced from a major helicopter assembly down to an individual listed item. Figures identify components by callout number, while the accompanying tables provide the data required to distinguish parts and determine their relationship to the next higher assembly.

Important Volume Coverage

TM 55-1520-210-23P is arranged as a three-volume publication. This PDF is TM 55-1520-210-23P-1, the first volume. The manual identifies this volume as containing the Table of Contents, Section I and Section II material for Functional Groups 02 through 06. Later functional groups continue in TM 55-1520-210-23P-2 and TM 55-1520-210-23P-3, with additional sections also assigned to the third volume. Buyers looking specifically for this -23P-1 volume therefore receive the detailed early-system repair-parts coverage contained here, rather than all three volumes combined.

File Details

  • Manual type: Aviation Unit and Intermediate Maintenance Repair Parts and Special Tools List, including depot maintenance repair parts and special tools
  • Models: UH-1B, UH-1C, UH-1H, UH-1M, EH-1H (Bell), UH-1V
  • Document number: TM 55-1520-210-23P-1
  • Original date: 27 February 1981
  • Language: English
  • Pages: 588
  • File format: PDF

What the Parts Listings Provide

The repair-parts section is organized by functional group and normally follows assembly and disassembly relationships. Illustrations precede the corresponding parts listings so a technician can first locate a component visually and then match its figure and item number to the tabular data. The listings contain National Stock Numbers where assigned, manufacturer identification data, part numbers, item descriptions, usable-on codes, units of measure and quantities incorporated in the unit.

IMAGES PREVIEW

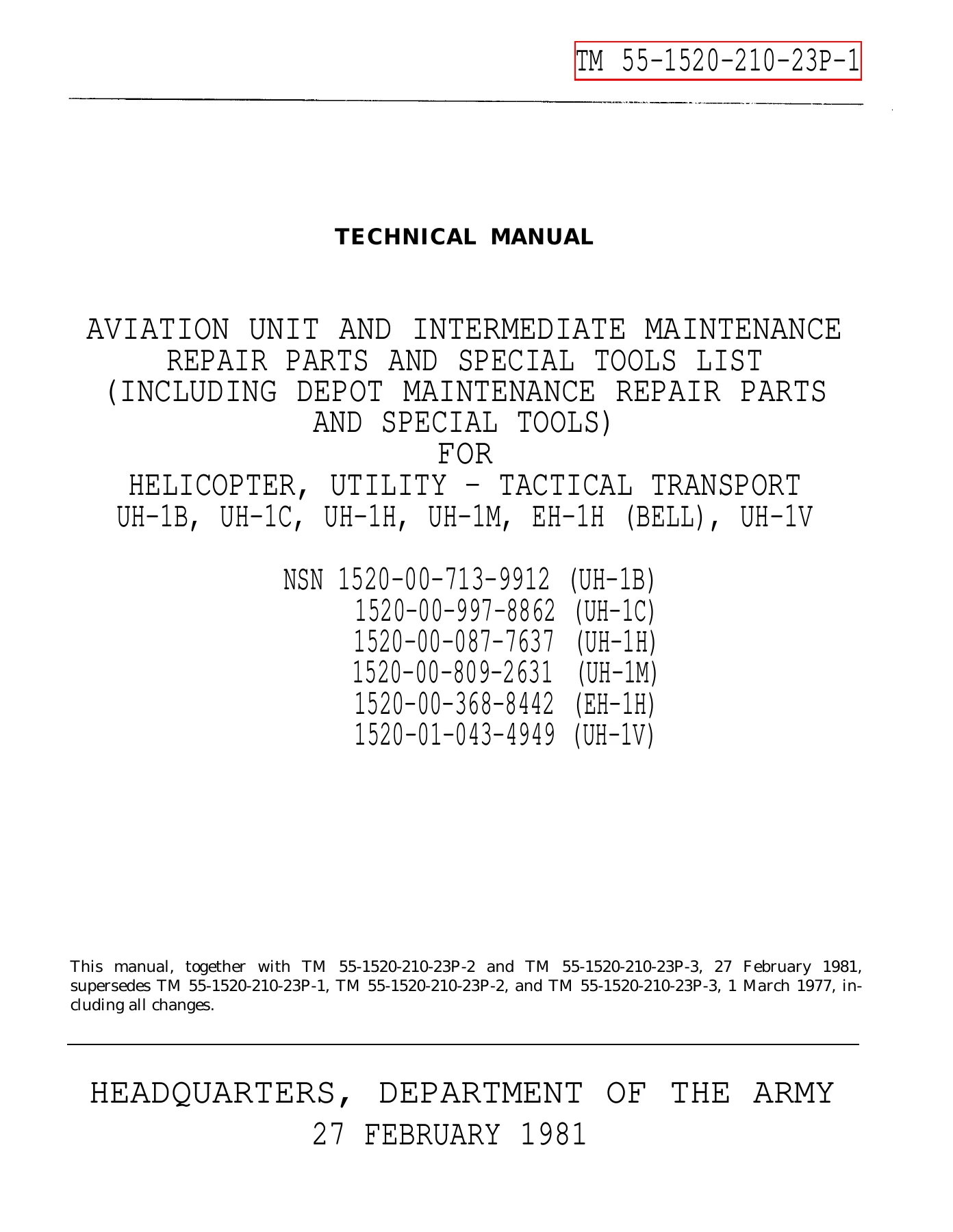

Bell UH-1B UH-1C UH-1H UH-1M EH-1H UH-1V Repair Parts & Special Tools Manual TM 55-1520-210-23P-1 — PDF page 1 preview

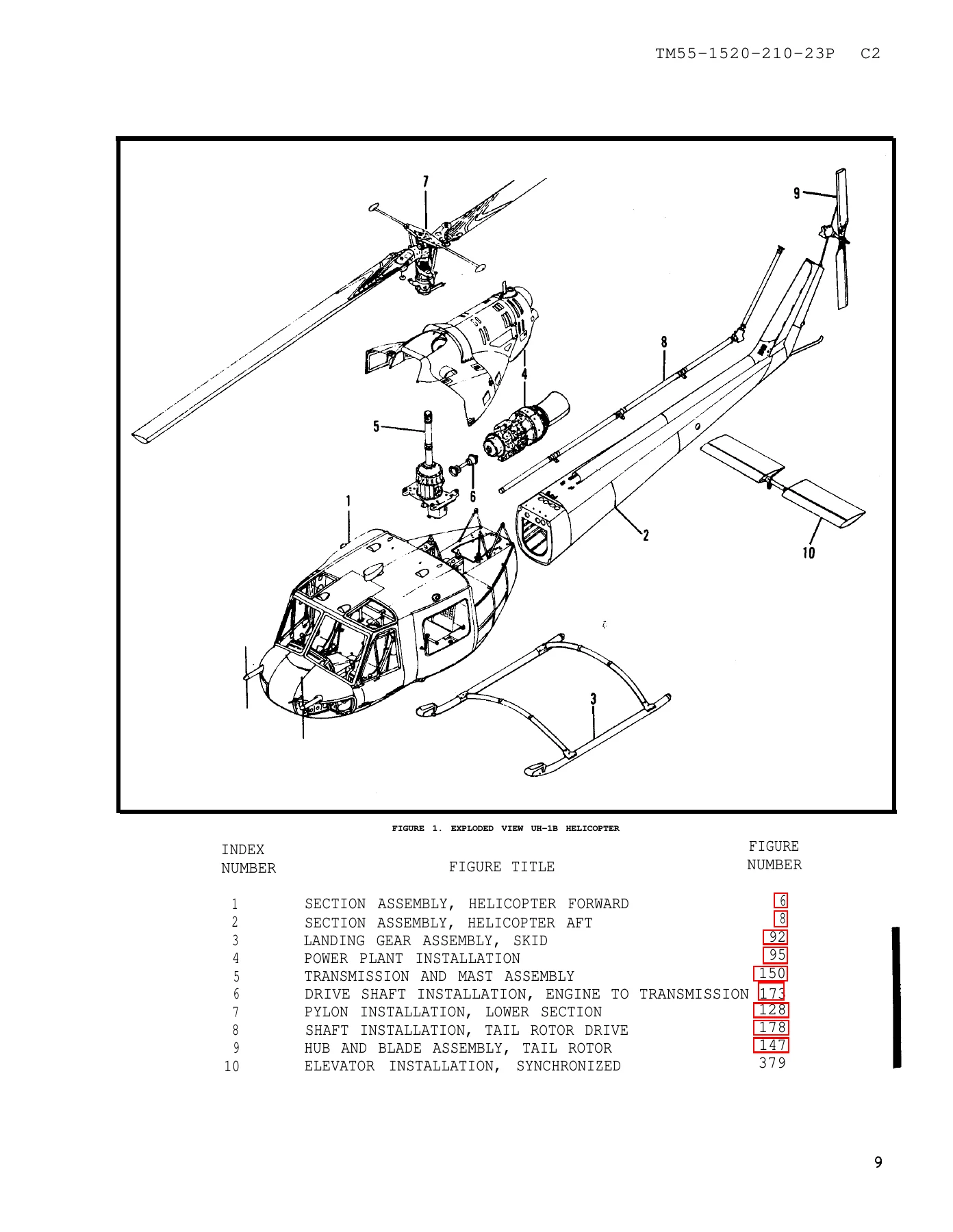

Bell UH-1B UH-1C UH-1H UH-1M EH-1H UH-1V Repair Parts & Special Tools Manual TM 55-1520-210-23P-1 — PDF page 105 preview

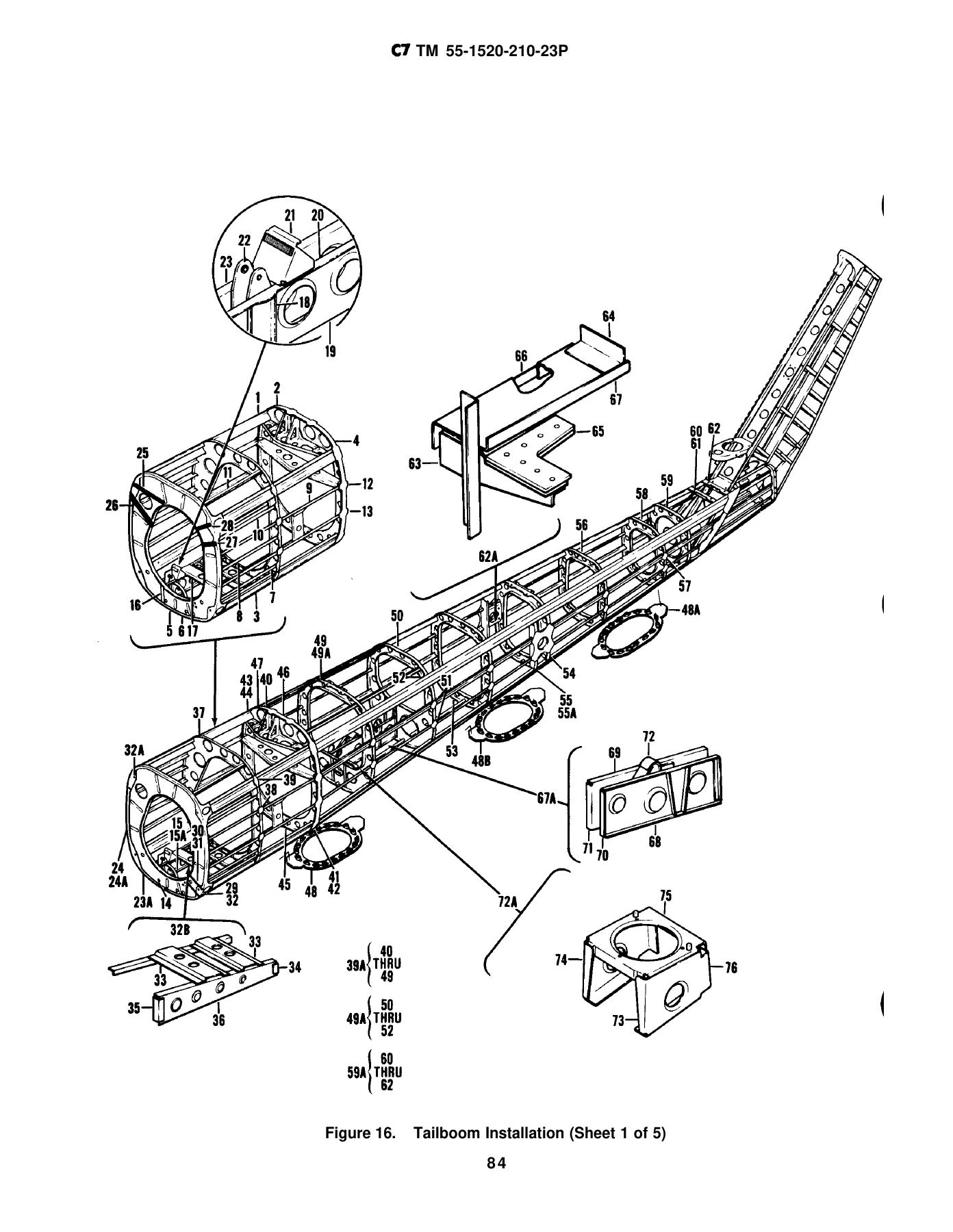

Bell UH-1B UH-1C UH-1H UH-1M EH-1H UH-1V Repair Parts & Special Tools Manual TM 55-1520-210-23P-1 — PDF page 126 preview

The introduction also explains the Source, Maintenance and Recoverability code system used throughout the parts tables. These SMR codes identify such information as how a support item is obtained, the maintenance level authorized to remove or use it, the level capable of complete repair and the prescribed disposition of an unserviceable item. This makes the manual considerably more useful than a simple illustrated parts catalog: the tables preserve the maintenance-support coding attached to the listed components.

Model applicability is handled through usable-on codes and, where necessary, effectivity information within individual listings. The manual also explains replacement relationships, next-higher-assembly references, oversize and undersize parts, manufactured or fabricated items, quantity information and the conventions used when a component breakdown continues in another figure.

Chapters Covered

  • Section I – Introduction
    • Scope of the repair parts and maintenance-support listing
    • Organization of repair parts, special tools and index information across the publication set
    • Explanation of illustration and item-number columns
    • Source, Maintenance and Recoverability codes
    • National Stock Number and part-number information
    • Federal Supply Code for Manufacturer information
    • Description, unit-of-measure and quantity columns
    • Usable-on codes and model applicability
    • Special information for replacement and assembly relationships
    • Methods for locating repair parts
    • Abbreviations and mnemonic codes
  • Section II – Repair Parts List, Functional Groups 02 through 06
    • Airframe assemblies and structural sections
    • Forward and aft helicopter section assemblies
    • Tail boom assemblies and tail boom installation
    • Tail rotor shaft access-door components
    • Forward fuselage assemblies
    • Nose door, nose installation and cabin nose assemblies
    • Cutter installation and component breakdowns
    • Cabin windshield installation
    • Crew-door assemblies, latches and related hardware
    • Cabin panels and roof installations
    • Seat, armor-seat and passenger-seat installations
    • Skid landing-gear assembly
    • Power plant installation and engine assembly-related parts
    • Engine external oil-filter unit assemblies and associated equipment shown in the listings
    • Transmission and mast assembly
    • Engine-to-transmission drive-shaft installation
    • Lower pylon installation
    • Tail-rotor drive-shaft installation
    • Tail-rotor hub and blade assembly
    • Synchronized elevator installation

Across these groups, the document moves from broad helicopter assemblies into increasingly detailed component breakdowns. Exploded drawings show the spatial relationship between assemblies, brackets, panels, skins, structural members, fasteners and other components, while the facing or following tables identify the associated figure items. Many entries also carry applicability information so differences between UH-1 variants can be distinguished instead of treating every listed component as universally interchangeable.

Illustrated Component Identification

A major strength of this UH-1 repair parts manual is its large number of line drawings and exploded views. Early overview illustrations show the helicopter broken into principal assemblies, including the forward and aft sections, skid landing gear, power plant, transmission and mast, engine-to-transmission drive shaft, pylon, tail-rotor drive, tail-rotor hub and synchronized elevator. More detailed figures then expand individual structures and installations.

Complete PDF Bookmark Tree

Complete Bookmarks

The complete bookmarks in the “Bell UH-1B UH-1C UH-1H UH-1M EH-1H UH-1V Repair Parts & Special Tools Manual TM 55-1520-210-23P-1” are as follows:

TITLE PAGEp. 1
LAST CHANGEp. 3
LIST OF EFFECTIVE PAGESp. 79
TABLE OF CONTENTSp. 85
INTRODUCTIONp. 97
AIRFRAMEp. 110
ALIGHTING GEARp. 348
POWERPLANT INSTALLATIONp. 362
ROTORSp. 434
DRIVE TRAINp. 486
FIGURES
FIGURE 1p. 105
FIGURE 2p. 106
FIGURE 3p. 107
FIGURE 5p. 110
FIGURE 7p. 114
FIGURE 8p. 118
FIGURE 15p. 122
FIGURE 16p. 126
FIGURE 16A
FIGURE 16B
FIGURE 16C
FIGURE 16D
FIGURE 16E
FIGURE 16F
FIGURE 16G
FIGURE 16H
FIGURE 16J
FIGURE 17
FIGURE 18
FIGURE 19
FIGURE 20
FIGURE 21p. 155
FIGURE 22p. 157
FIGURE 23
FIGURE 23A
FIGURE 24p. 174
FIGURE 25p. 176
FIGURE 26p. 180
FIGURE 27p. 184
FIGURE 28p. 186
FIGURE 29p. 188
FIGURE 30
FIGURE 31
FIGURE 32
FIGURE 33
FIGURE 34p. 202
FIGURE 35
FIGURE 36
FIGURE 36A
FIGURE 37
FIGURE 38
FIGURE 39
FIGURE 40p. 226
FIGURE 42p. 230
FIGURE 42A
FIGURE 42B
FIGURE 42C
FIGURE 42D
FIGURE 42E
FIGURE 42F
FIGURE 43
FIGURE 44
FIGURE 45
FIGURE 46
FIGURE 47
FIGURE 48
FIGURE 49
FIGURE 50
FIGURE 51
FIGURE 52
FIGURE 53
FIGURE 54
FIGURE 55
FIGURE 56
FIGURE 57
FIGURE 58
FIGURE 59
FIGURE 60
FIGURE 61
FIGURE 62
FIGURE 63
FIGURE 64
FIGURE 65
FIGURE 66
FIGURE 67
FIGURE 67A
FIGURE 68
FIGURE 69p. 286
FIGURE 70p. 294
FIGURE 70A
FIGURE 71
FIGURE 72p. 306
FIGURE 73
FIGURE 74
FIGURE 75
FIGURE 76p. 314
FIGURE 77p. 318
FIGURE 78
FIGURE 79
FIGURE 80
FIGURE 81
FIGURE 82
FIGURE 83
FIGURE 84
FIGURE 85
FIGURE 86
FIGURE 87
FIGURE 88
FIGURE 89
FIGURE 90
FIGURE 91p. 342
FIGURE 92
FIGURE 92.1
FIGURE 93
FIGURE 94
FIGURE 94A
FIGURE 95
FIGURE 96
FIGURE 97
FIGURE 98
FIGURE 98Ap. 378
FIGURE 98Bp. 380
FIGURE 98Cp. 382
FIGURE 99p. 384
FIGURE 100
FIGURE 101
FIGURE 102
FIGURE 103
FIGURE 104p. 390
FIGURE 105p. 392
FIGURE 107p. 394
FIGURE 107A
FIGURE 111
FIGURE 112p. 404
FIGURE 113
FIGURE 114
FIGURE 115
FIGURE 116
FIGURE 117
FIGURE 118
FIGURE 119
FIGURE 120
FIGURE 121
FIGURE 122p. 422
FIGURE 123
FIGURE 124
FIGURE 125
FIGURE 126
FIGURE 127p. 432
FIGURE 128p. 434
FIGURE 130
FIGURE 131
FIGURE 132
FIGURE 133
FIGURE 134
FIGURE 135
FIGURE 135Ap. 450
FIGURE 136
FIGURE 137
FIGURE 138
FIGURE 139
FIGURE 140
FIGURE 141p. 464
FIGURE 142
FIGURE 143
FIGURE 144
FIGURE 145
FIGURE 146p. 478
FIGURE 147p. 480
FIGURE 148p. 482
FIGURE 149p. 484
FIGURE 150
FIGURE 151
FIGURE 152
FIGURE 153
FIGURE 154
FIGURE 155p. 494
FIGURE 156
FIGURE 157
FIGURE 158p. 504
FIGURE 159p. 506
FIGURE 160p. 508
FIGURE 161p. 510
FIGURE 162p. 512
FIGURE 163p. 516
FIGURE 164p. 520
FIGURE 165p. 526
FIGURE 166p. 528
FIGURE 167
FIGURE 168
FIGURE 169
FIGURE 170
FIGURE 171
FIGURE 173p. 546
FIGURE 173Ap. 548
FIGURE 174
FIGURE 175
FIGURE 176p. 556
FIGURE 176Ap. 558
FIGURE 177p. 560
FIGURE 178
FIGURE 179
FIGURE 180p. 566
FIGURE 181
FIGURE 182
FIGURE 183p. 574
FIGURE 184

Examples include multi-sheet tail-boom drawings showing skins, stringers, bulkheads, supports, fin structure and associated attachment points; forward-fuselage illustrations with numerous numbered callouts; nose and cabin installation drawings; cutter-system breakdowns; and other assembly-level diagrams. These visual references are directly linked to the item numbers in the parts tables, allowing the reader to work from the physical location of a component toward its listed identification data.

Parts Identification and Applicability Data

TM 55-1520-210-23P-1 is designed around exact component identification. A typical listing may show the illustration figure and item number, SMR code, National Stock Number, manufacturer code, part number, component description, usable-on code, unit of measure and quantity incorporated. Where configuration differences exist, entries may include specific usable-effectivity information or references to another figure for the next higher assembly or further breakdown.

The introduction provides instructions for finding a part even when its National Stock Number or part number is not already known. The reader can identify the relevant assembly, locate the component in its illustration, note the figure and item number and then use the corresponding repair-parts listing. This arrangement is valuable for maintenance, restoration, inventory research and parts cross-reference work where the physical component is known but its exact listed identity is not.

Because the publication contains historical change material and model-specific applicability, it also preserves configuration information that can be important when comparing assemblies from different UH-1 variants. The listings should be read together with their usable-on and effectivity information rather than assuming that visually similar parts apply to every model.

Identify UH-1 Components with the Correct Illustrated Reference

The Bell UH-1B UH-1C UH-1H UH-1M EH-1H UH-1V Repair Parts & Special Tools Manual TM 55-1520-210-23P-1 gives technicians, maintainers, restorers and parts researchers a structured reference for identifying airframe, landing-gear, power-plant and related Functional Group 02-06 components contained in this first volume. Its exploded views and figure/item system make it possible to trace assemblies to individual listed parts, compare model applicability, locate stock and part numbers, and understand the maintenance-support coding attached to those items.

Using the correct figure, part number, NSN, usable-on code and assembly relationship helps avoid ordering or identifying a component from the wrong configuration. After purchase, the manual is supplied as an instant PDF download with no physical shipping required. It can be viewed on a computer, tablet or phone and pages can be printed whenever a paper reference is useful at the workbench.
