Bmw 1200 Gs Replacement Parts Manual – PDF DOWLOAD

Description

📘 DOCUMENT OVERVIEW

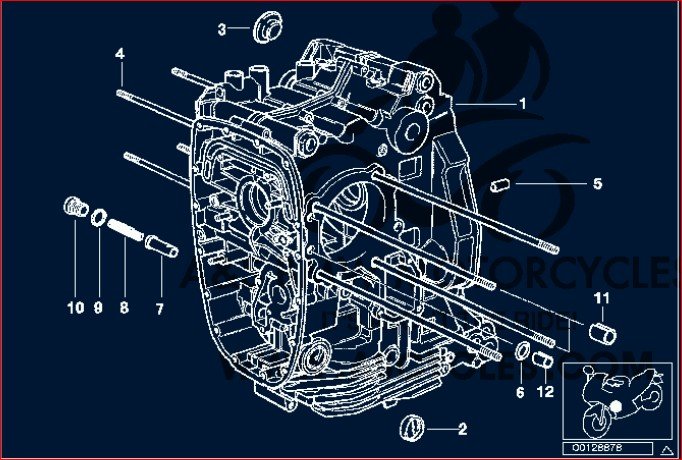

This comprehensive digital document serves as a detailed Parts Catalog and Service Manual for the BMW R1200 GS (K25) motorcycle engine and related components. It’s a valuable resource for both professional mechanics and experienced DIY enthusiasts looking to perform repairs or maintenance on this specific model. The manual is meticulously organized, presenting a wealth of technical information in a user-friendly format. Each section focuses on a particular subsystem or assembly, providing exploded diagrams and associated part numbers. This allows for easy identification of components and simplifies ordering replacement parts.

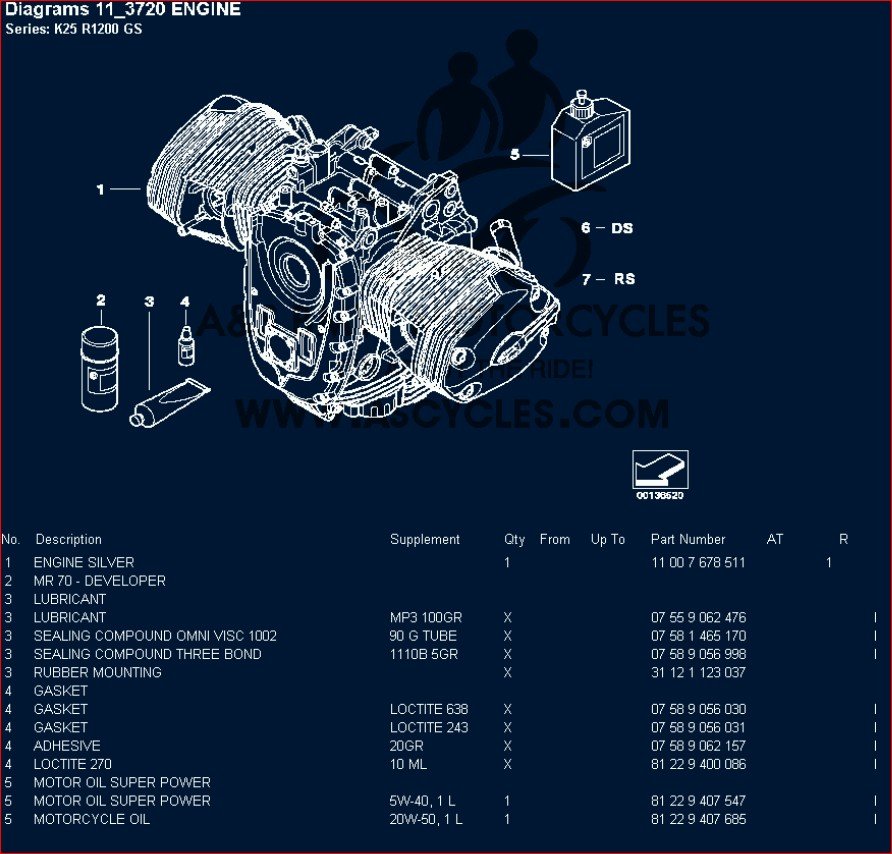

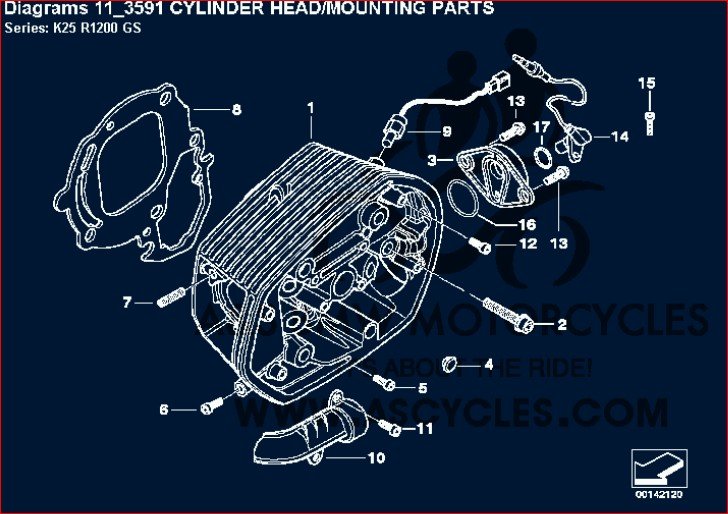

🔧 Engine Diagrams and Specifications: The manual begins with a detailed breakdown of the engine itself, covering everything from the engine block (both complete and short engine versions) to the cylinder head, pistons, and internal components. The diagrams are incredibly clear, showing each part in its place within the assembly. This is particularly useful when disassembling, reassembling, or troubleshooting engine-related issues. Detailed part lists provide specific part numbers, making ordering replacements a straightforward process. Lubricants and sealants are also listed, ensuring you have all the necessary materials for any job.

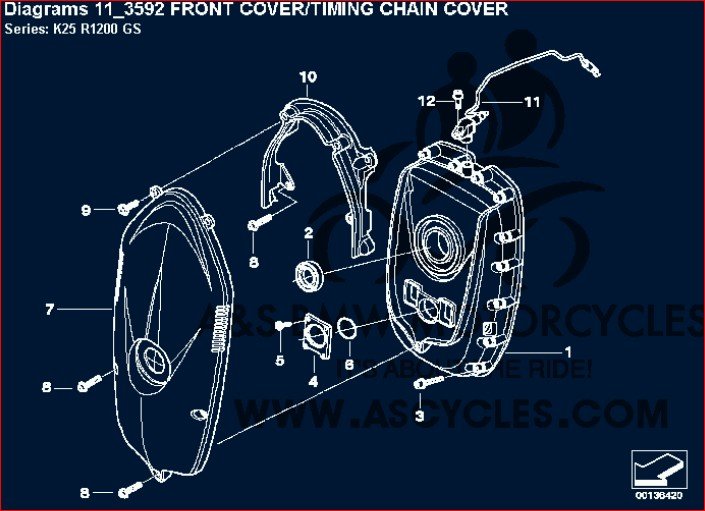

⚙️ Component-Specific Sections: Beyond the engine, the document delves into other key systems. You’ll find sections dedicated to the timing chain, crankshaft, connecting rods, camshafts, and the associated components. Each section is logically structured with clear diagrams and part listings. This level of detail simplifies complex repairs involving these crucial engine components.

⚡ Electrical and Accessory Systems: The manual goes beyond the mechanical aspects, including sections on the ignition system, generator, starter, and various other electrical components. The inclusion of these sections makes it a truly comprehensive resource for diagnosing and resolving both mechanical and electrical issues.

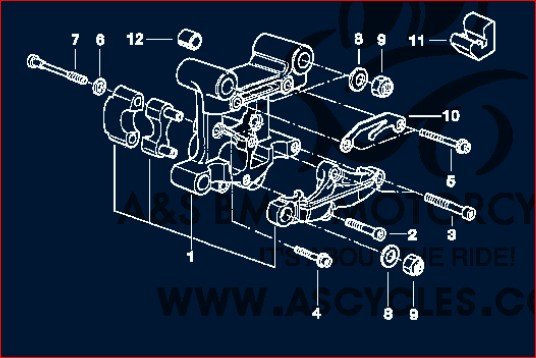

🧰 Chassis and Accessory Details: The detailed illustrations extend to the chassis, covering the underride protection, fuel system (including the fuel tank, pump, and related parts), and various accessories such as the luggage system and heated handlebars. Part numbers are included for each item, making the manual exceptionally practical for ordering parts. The inclusion of these components demonstrates the all-encompassing nature of this manual.

⚠️ Safety and Maintenance: While not explicitly stated as a separate section, the level of detail and precision in the diagrams and parts listings implicitly emphasize the importance of careful and precise work when servicing this motorcycle. The comprehensive nature of the documentation suggests the importance of following proper procedures for safety.

🚜 Overall: This detailed service and parts manual is an invaluable asset for anyone working on a BMW R1200 GS (K25) motorcycle engine and related systems. The combination of clear diagrams, detailed part listings, and the coverage of a wide range of components makes this manual a must-have for professionals and dedicated DIYers alike.

❌ WHAT’S NOT INCLUDED

• Step-by-step repair instructions.
• Torque specifications for all fasteners.

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

What models does this manual cover?

This manual covers the BMW R1200 GS (K25) motorcycle engine and various related components and systems.

What type of procedures are included?

While step-by-step instructions aren’t included, the manual provides detailed exploded diagrams and part lists for engine disassembly and reassembly, component identification, and ordering replacement parts for the engine and numerous related systems (electrical, fuel, chassis, accessories).

Is this suitable for DIY mechanics?

Suitable for experienced DIY mechanics comfortable working with detailed diagrams and possessing a solid understanding of motorcycle mechanics. Not recommended for beginners.

What format is this manual in?

This manual is in digital PDF format, downloadable immediately after purchase.

Are there any language requirements?

The manual is primarily in English.

What is the scope of this manual’s coverage?

This manual covers a wide array of parts and systems for the BMW R1200 GS (K25), including the engine (complete and short engine), electrical systems, fuel system, chassis components, and various accessories.

Does this manual include torque specifications?

No, torque specifications are not explicitly listed in this manual.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: Excellent; very detailed and comprehensive.
• Content Type: Parts Catalog and Service Manual
• Language: English
• Technical Level: Professional/Intermediate
• Recommended For: Professional mechanics and experienced DIY users familiar with motorcycle repair.
• Page Count: Approximately 140 pages
• Image Quality: Excellent; diagrams are clear and well-labeled.

Q: What models does this manual cover?
A: This manual covers the BMW R1200 GS (K25) motorcycle engine and various related components and systems.

Q: What type of procedures are included?
A: This manual provides detailed exploded diagrams and part lists facilitating engine disassembly, reassembly, component identification, and ordering replacement parts. It doesn’t include step-by-step repair procedures.

Q: Is this suitable for DIY mechanics?
A: This is suitable for experienced DIYers with a strong mechanical aptitude. Beginners should seek professional assistance.

Q: What format is this manual in?
A: It’s a digital PDF, downloadable instantly after purchase.

Q: Are there any language requirements?
A: The manual is written in English.

Q: What is the scope of the manual’s coverage?
A: The manual extensively covers engine components, electrical systems, the fuel system, chassis parts, and a wide array of accessories for the BMW R1200 GS (K25).

Q: Does the manual provide torque specifications?
A: No, the manual does not provide torque specifications.

📋 Original Product Description:

Bmw 1200 Gs Replacement Parts Manual

DESCRIPTION:

This OEM Parts Manual is illustrated & includes Exploded Parts Diagrams. It is a great way of looking at all the parts in your vehicle and is ideal for disassembly, repair and then assembly, also all part numbers are listed in sections. This Manual is clear and written in a way so that just about anybody can follow it with ease. There are illustrations, part numbers and descriptions so that you can find the right part.Simply find the replacement part you need, print off the part number then either take it to your local dealer or search the internet to purchase the part you require with huge savings over dealer prices.No need to pay big bucks to have someone else print it for you! You can print off any page of what you need when you need it!
