BMW 3 Series E90 E91 E92 E93 2006-2012 Repair Manual & 330i Wiring Diagrams PDF
Original price was: $49.95.$29.95Current price is: $29.95.

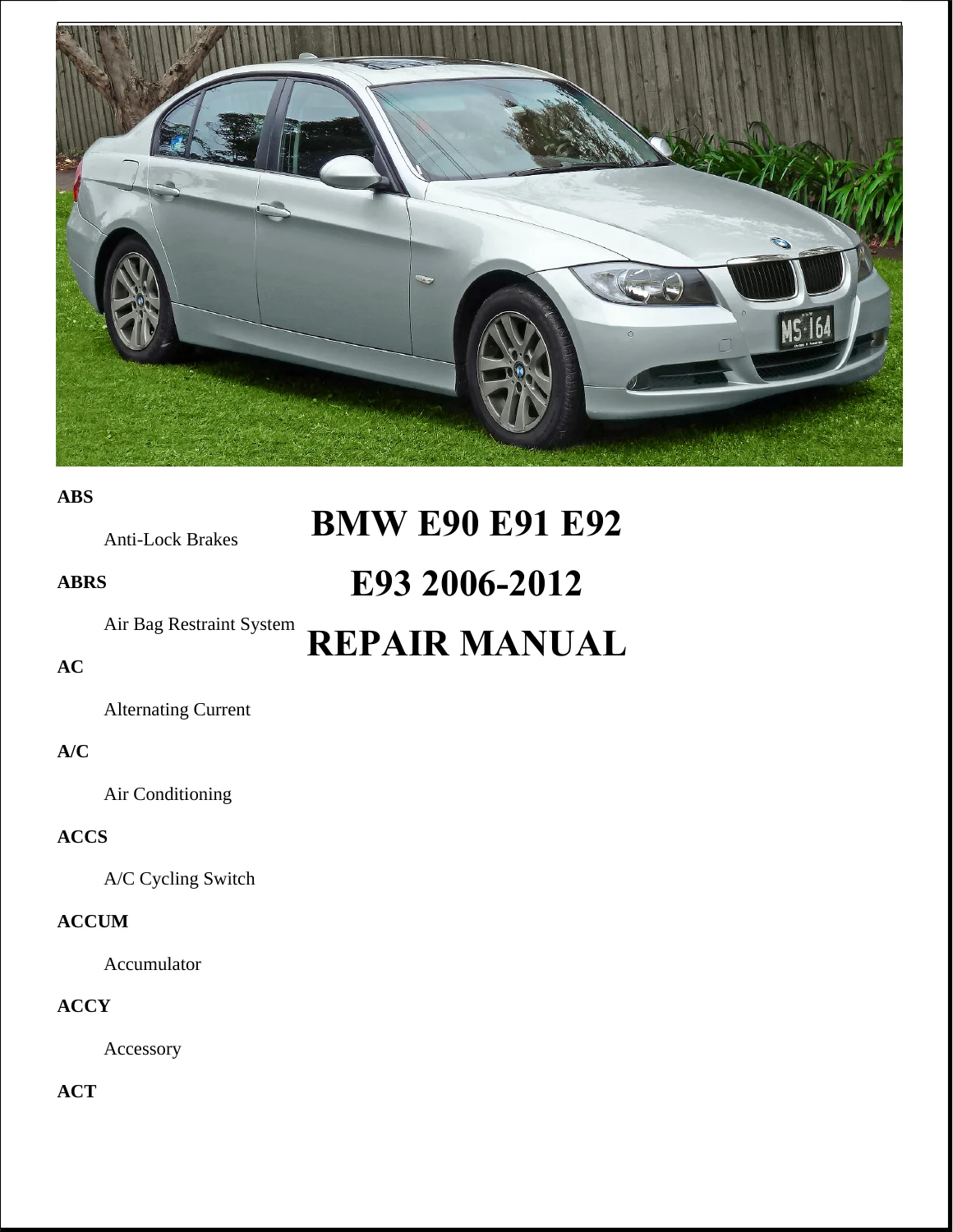

Comprehensive BMW 3 Series repair reference for E90, E91, E92 and E93 models, combining extensive 2006-08 repair instructions, system overviews, specifications and 2006 BMW 330i wiring diagrams in one 2,876-page PDF.
Description
BMW 3 Series E90 E91 E92 E93 2006-2012 Repair Manual & 330i Wiring Diagrams PDF
This BMW 3 Series E90 E91 E92 E93 2006-2012 Repair Manual & 330i Wiring Diagrams PDF is a large technical reference compilation covering mechanical, electrical, body, chassis and equipment work across the E9x 3-Series family. The opening title identifies BMW E90, E91, E92 and E93 with 2006-2012 coverage, while the individual repair articles inside are primarily dated 2006-08 and identify model applicability such as 325i, 325xi, 330i, 330xi, 328i, 328xi, 335i and 335xi. The dedicated system wiring-diagram section is specifically identified for the 2006 BMW 330i, making this particularly useful where detailed 330i electrical circuit tracing is required.
Rather than focusing on one narrow system, this compilation brings together thousands of pages of repair instructions, component removal and installation procedures, tightening references, special-tool notes, system descriptions, diagnostic information, technical illustrations and electrical schematics. It is suited to owners, technicians and workshops working on BMW E90-generation 3-Series vehicles who need a broad reference for jobs ranging from brakes and suspension to engine electrical, body equipment, HVAC and wiring diagnosis.
File Details
- Manual type: Repair Manual and System Wiring Diagrams
- Brand: BMW
- Model family: E90, E91, E92, E93 3-Series
- Primary wiring model: 2006 BMW 330i
- Language: English
- Page count: 2,876 pages
- File format: PDF
Broad 3-Series Repair Coverage
The repair material is organized as a collection of BMW 3-Series service articles. Many sections identify coverage for combinations of 325i, 325xi, 330i, 330xi, 328i, 328xi, 335i and 335xi, while some sections are specific to narrower model or engine combinations. This means the document is best used as a broad E9x repair reference, with the model applicability printed at the head of each article checked before carrying out a procedure.

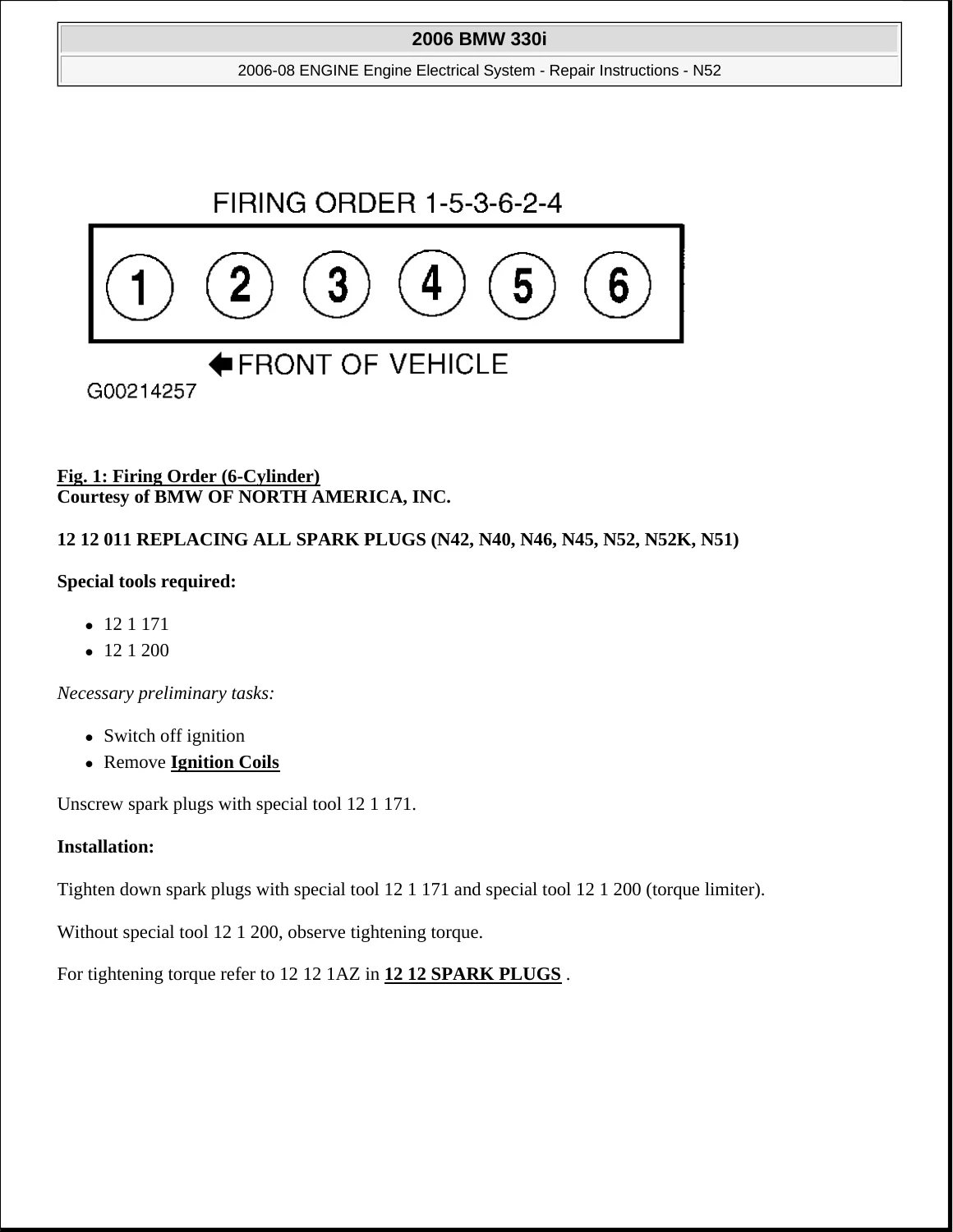

For the 330i, the manual contains particularly useful N52 material. The powertrain overview identifies the N52B30 3.0-liter inline six and explains technologies including the magnesium-aluminum crankcase, Valvetronic II, the three-stage DISA intake manifold, electric coolant pump and Siemens MSV70 engine management. The technical data section records the 2,996 cm³ displacement, 85.0/88.0 mm stroke/bore, 1-5-3-6-2-4 firing order, 190 kW/255 hp output, 300 torque figure at 2,500 to 4,000 rpm, 10.7 compression ratio and additional engine dimensions and operating data.
Chapters Covered
- General Information
- Commonly used automotive abbreviations
- Powertrain overview for 3-Series E90
- Multiple Restraint System 5 overview
- Suspension and chassis components overview
- Restraint System
- Airbag and pyrotechnic safety procedures
- Seat belts and belt tensioners
- Airbag cables, modules and gas generators
- Procedure after airbag deployment
- Audio, Navigation and Anti-Theft
- Radio and CD changer service
- Amplifiers, speakers and audio components
- Antennas, navigation equipment and related electronics
- Automatic Transmission
- Transmission assembly service procedures
- Removal, installation and component repair instructions
- Manual Transmission and Clutch
- Complete transmission procedures
- Clutch hydraulic bleeding and service
- Gear-shift mechanism repair
- Body Equipment and Body Repair
- Doors, locks, trim and exterior equipment
- Body component removal and installation
- Panel and structural repair instructions
- Brakes
- Brake testing and bleeding
- Brake component removal and installation
- Pedal and mounting-block service
- Communication Systems
- Transceiver and communication-system components
- Cooling System
- Cooling-system precautions and checking
- Cooling components and service procedures
- Cruise Control, Park Distance and Locking
- Park Distance Control
- Radio-controlled locking
- Cruise-control related components
- Electrical Drives and General Electrical System
- Central locking drives
- Troubleshooting and electrical service procedures
- Battery and vehicle electrical-system work
- Engine and Gearbox Suspension
- Engine mount replacement and support procedures
- Engine Electrical System – N52
- Ignition-system work
- Battery and jump-starting procedures
- Compression testing
- Ignition coils and crankshaft pulse generator
- DME control unit and electronics-box service
- Knock sensors, alternator and electrical testing
- Exhaust System
- Complete exhaust removal and installation
- N52/N52K/N51 exhaust procedures
- Fuel Supply System
- Fuel-system functional description
- Fuel tank, pump and supply-system procedures
- Tank venting and carbon-canister information
- Front and Rear Axles
- Front-axle repair instructions
- Rear-axle service and KDS-related material
- Heating and Air Conditioning
- Heater and air-conditioning repair instructions
- HVAC component service
- Instruments and Lighting
- Instrument-cluster service
- Lighting adjustment and lamp repair procedures
- Propeller Shaft
- Deflection angles and propeller-shaft procedures
- Universal-joint shaft reference material
- Seats
- Front-seat components, guides and related mechanisms
- Steering and Wheel Alignment
- Electronic chassis alignment
- Steering and wheel-alignment repair procedures
- Slide/Tilt Roof
- Sunroof and bonded-seal repair instructions
- System Wiring Diagrams – 2006 BMW 330i
- Active bodyworks and air conditioning
- Anti-lock brakes, anti-theft and access/start
- Body control modules and computer data lines
- Cooling fan, cruise control and defoggers
- Electronic power steering and 3.0L engine performance
- Exterior lights, headlights and ground distribution
- Horn, instrument cluster and interior lighting
- Memory seats, navigation and parking assistant
- Power distribution, door locks, mirrors and seats
- Power top/sunroof and power windows
- Radio, shift interlock and starting/charging
- Supplemental restraints and transmission
- Trunk, tailgate, fuel door and wiper/washer circuits
The scope gives a technician both procedure-driven repair information and system-level context. Many repair pages include numbered BMW operation references, required preliminary tasks, warnings, special-tool references, installation notes and tightening-torque cross-references. Illustrations identify fasteners, electrical connectors, modules, brackets, sensors and component positions, which helps when dismantling and reassembling unfamiliar systems.
2006 BMW 330i Electrical Wiring Section
A major strength of this BMW 3 Series repair manual is the dedicated 2006 BMW 330i system wiring-diagram section. It contains 78 numbered circuit figures covering both high-level vehicle systems and multi-page circuits. Examples include the 3.0L engine-performance circuit in four parts, power distribution in four parts, ground distribution in four parts, access/start, anti-theft, automatic A/C, ABS, body modules, exterior lamps, adaptive front lighting, xenon and non-xenon headlamp configurations, navigation, radio variants, seat circuits, power windows, starting, charging, restraints and transmission.
IMAGES PREVIEW
This wiring coverage is especially valuable for electrical fault tracing because related systems are separated into named circuits rather than presented as a single undifferentiated vehicle schematic. The diagrams can be used alongside the repair sections for component identification, connector access, module service and electrical diagnosis.
N52 Engine and Powertrain Reference
The E90 powertrain overview gives more than basic identification. It describes the N52B30 engine and its construction, including the composite magnesium-aluminum crankcase, magnesium bedplate and cylinder-head cover, Valvetronic II and three-stage DISA intake manifold. The manual also presents engine technical data, while the N52 engine-electrical chapter covers ignition-system work, ignition coils, crankshaft pulse generators, DME control-unit access, knock sensors, electronics-box components, alternator testing and related diagnostic procedures.
Supporting engine chapters extend into cooling, exhaust, fuel supply and engine mounting. This combination makes the BMW E90 330i repair reference useful for jobs that cross system boundaries, such as diagnosing an engine-performance issue that may involve electrical control, fuel supply, cooling or exhaust components.
Repair Procedures, Illustrations and Workshop Detail
Throughout the 2,876 pages, the repair instructions commonly follow a workshop sequence: required preliminary work, removal steps, connector or fastener identification, installation cautions and specification references. Numerous figures show components in their installed position and identify screws, nuts, clips, plugs, brackets, special tools and alignment points. Safety-critical sections, particularly airbags and restraint systems, include explicit precautions for pyrotechnic components, battery disconnection and handling of modules.
The chassis material spans brakes, front axle, rear axle, steering, wheel alignment, propeller shaft and integrated suspension systems. Body-related sections cover body equipment, body repairs, seats, roof systems, lighting, instruments, locks and electrical drives. Transmission content includes automatic transmission, manual transmission, clutch and gear-shift mechanisms. The result is a broad repair library suited to both mechanical and electrical work rather than a single-subsystem manual.
Get the Repair Information You Need in One PDF
This BMW 3 Series E90 E91 E92 E93 2006-2012 Repair Manual & 330i Wiring Diagrams PDF supports a wide range of service, dismantling, installation, diagnosis and electrical tracing tasks. It gives you repair sequences, component illustrations, safety instructions, engine data, system explanations and extensive 2006 BMW 330i circuit diagrams so you can work from documented procedures and specifications instead of relying on guesswork.
After purchase, the manual is supplied as an instant PDF download with no physical shipping. You can open it on a compatible computer, tablet or phone and print the pages you need for workshop use.
