BMW Marine D12 Diesel Engine Shop Manual – PDF DOWNLOAD

Description

BMW Marine D12 Diesel Engine Shop Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:58
DOWNLOADABLE:YES
FILE TYPE:PDF

BMW MARINE D12 DIESEL ENGINE SHOP MANUAL – PDF DOWNLOAD:

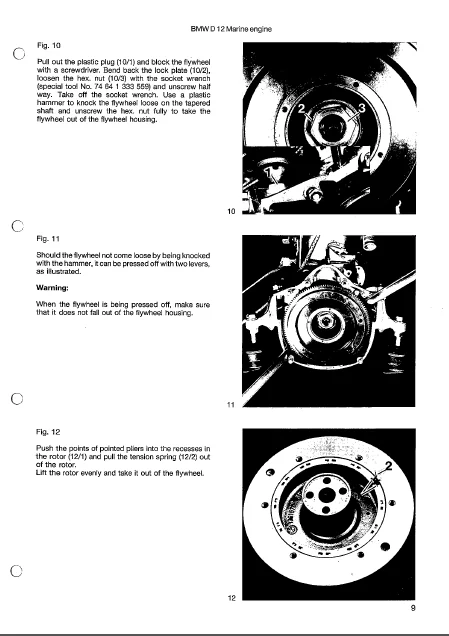

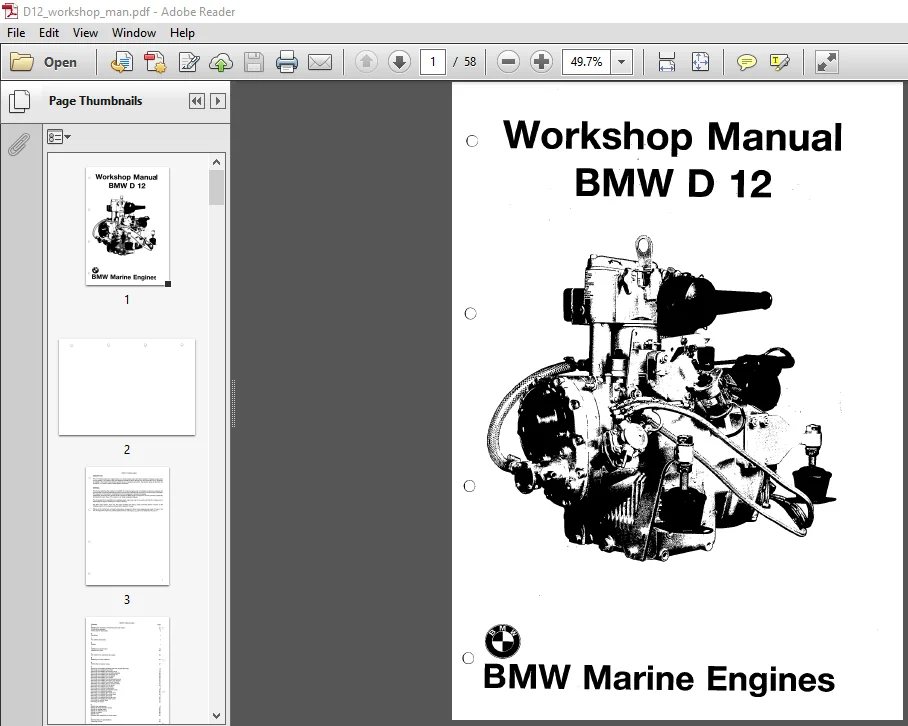

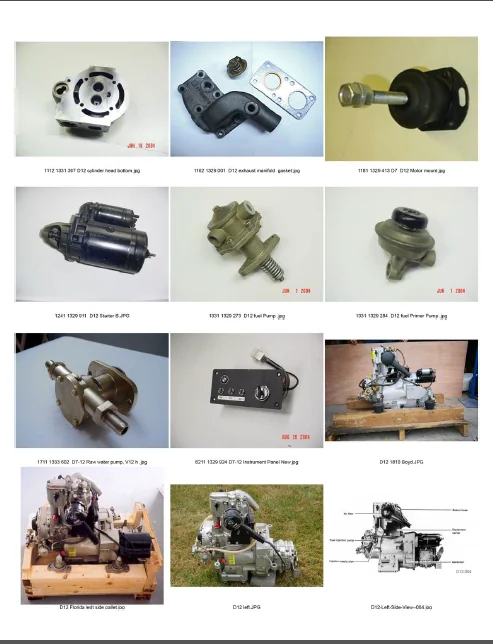

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

BMW Marine D12 Diesel Engine Shop Manual

DESCRIPTION:

The D 12 marine engine is a single-cylinder, four-stroke Diesel engine with direct injection. It features a single-circuit cooling system. The coolant pump with Neoprene impeller is driven directly from the crankshaft. The A.C. generator is located in the flywheel and, like the electric starter, is standard epuipment. The injection pump is driven from the camshaft. The injection system bleeds itself automatically.

GENERAL :

• This manual describes the overhaul of the BMW D 12 marine engine when not installed. All removal, installation and overhaul jobs on a specific assembly (component) are always combined into one section and named after the assembly. The sequence of the sections corresponds to the job sequence in stripping the engine.
• Additionally, at the beginning of each section the jobs are listed which are required to remove (overhaul) the assembly (component) in each case, if the engine is not being completely stripped. The job sequence for assembling the complete engine is given as a list of key words with the title “Job sequence in assembling the engine” follçwing the overhaul sections.
• The terms “top, bottom, front, rear, left, right” invariably are related, unless otherwise defined in the text, to the installed position of the engine as viewed in the direction of travel.

TABLE OF CONTENTS:

BMW Marine D12 Diesel Engine Shop Manual

Dl 2 Marine engine
DESCRIPTION
The D 12 marine engine is a single-cylinder, four-stroke Diesel engine with direct injection. It features a single-circuit
cooling system. The coolant pump with Neoprene impeller is driven directly from the crankshaft. The A.C. generator
is located in the flywheel and, like the electric starter, is standard epuipment. The injection pump is driven from the
camshaft. The injection system bleeds itself automatically.
GENERAL
This manual describes the overhaul of the BMW D 12 marine engine when not installed. All removal, installation and
overhaul jobs on a specific assembly (component) are always combined into one section and named after the assembly.
The sequence of the sections corresponds to the job sequence in stripping the engine.
Additionally, at the beginning of each section the jobs are listed which are required to remove (overhaul) the assembly
(component) in each case, if the engine is not being completely stripped.
The job sequence for assembling the complete engine is given as a list of key words with the title “Job sequence in
assembling the engine” follçwing the overhaul sections.
The terms “top, bottom, front, rear, left, right” invariably are related, unless otherwise defined in the text, to the
installed position of the engine as viewed in the direction of travel.
C tFeixgtu,rtehse iFnigthuree mNoa.niusagl ivaeren fnirustm, fboellroewdecdobnysethceutiitveemlyNtoh.roinutghheoFuitg.uWreh, een.g.c, r(o2s5s/1)reisfearerenfceersenacree tomaFdige. 2to5, Fiteigmure1.s in the
1
BMW Dl 2 Marine engine
Contents Page
C
Checking the functioning of injection pump and injector
Checking the generator 11
Cooling system (schematic) 4
D
Description 1
F
Fuel system (schematic)
G
General 1
Installing the cylinder head 19
Installing the valves 26
J
Job sequence in assembling the engine 50
M
Measuring the valve projection 27 Q
0
Overhauling the injector nozzle 37
R
Removing and installing retaining plate with engine electricals 6
Removing and installing the air filter 15
Removing and installing the bearing flange 14
Removing and installing the camshaft assembly 38
Removing and installing the connecting rod 47
Removing and installing the crankshaft
Removing and installing the cylinder 28
Removing and installing the decompression lever 22
Removing and installing the engine stop magnet 32
Removing and installing the exhaust manifold 16
Removing and installing the fuel control system 41
Removing and installing the fuel pump 32
Removing and installing the gearbox
Removing and installing the generator 8
Removing and installing the injection pump
Removing and installing the piston 46
Removing and installing the rocker arms 21
Removing and installing the rocker levers 40
Removing and installing the starter 7
Removing and installing the timing cover 33
Removing and installing the water pump 30
Removing the cylinder head 17
Removing the valves 25
S
Service and maintenance
Setting the decompression device 23
Setting the engine speed
Setting the injection pump
Setting the valves 28
Special tools
Stripping and assembling the water pump 31
T
Technical data and specifications 51
Tightening torques
w 0
Winter lay-up and lengthy operating breaks 55
Wiring diagram 5
