BMW R80 G/S 1981-1982 Factory Repair Manual – Workshop Service PDF

Description

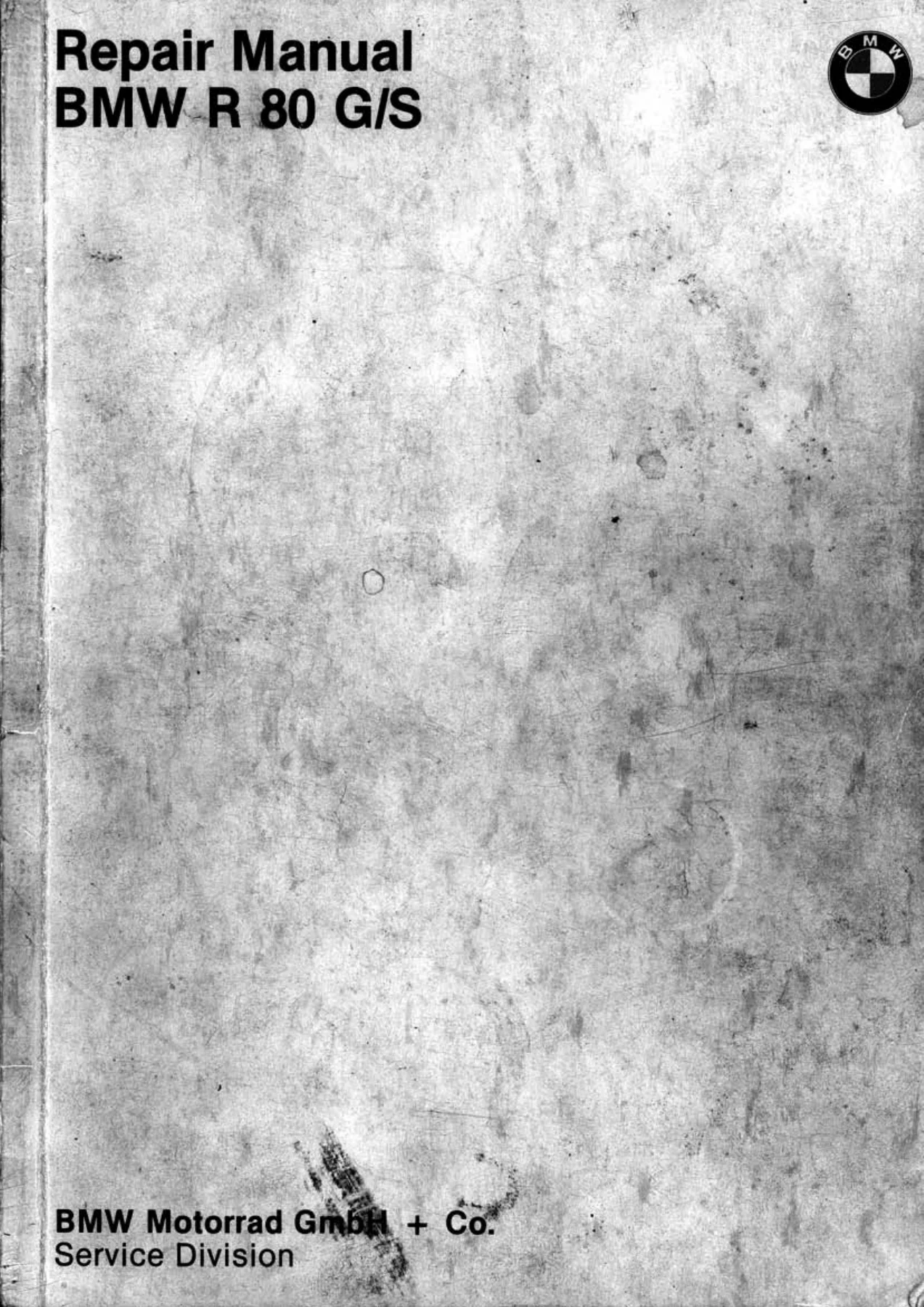

BMW R80 G/S 1981-1982 Factory Repair Manual

This is the complete BMW R80 G/S factory Repair Manual, published directly by BMW Motorrad GmbH & Co, Service Division, and issued as the 10.81 (October 1981) edition covering both the 1981 model and the revised 1982 model. If you own, service, or restore the legendary R80 G/S — the machine that founded BMW’s GS adventure line — this BMW R80 G/S 1981-1982 Factory Repair Manual is the same reference used by BMW workshop mechanics, laid out using BMW’s own group numbering system (00 through 63) so every procedure is easy to locate.

File Details

• Manual type: Factory Repair Manual (BMW Motorrad GmbH & Co, Service Division)
• Brand / Model: BMW R80 G/S (1981 and 1982 models)
• Edition date: 10.81 (October 1981)
• Language: English
• Page count: 249 pages
• File format: PDF, instant digital download

Chapters Covered

The BMW R80 G/S Repair Manual follows BMW’s standard group system, matching the same numbering used in BMW’s flat-rate catalogs:

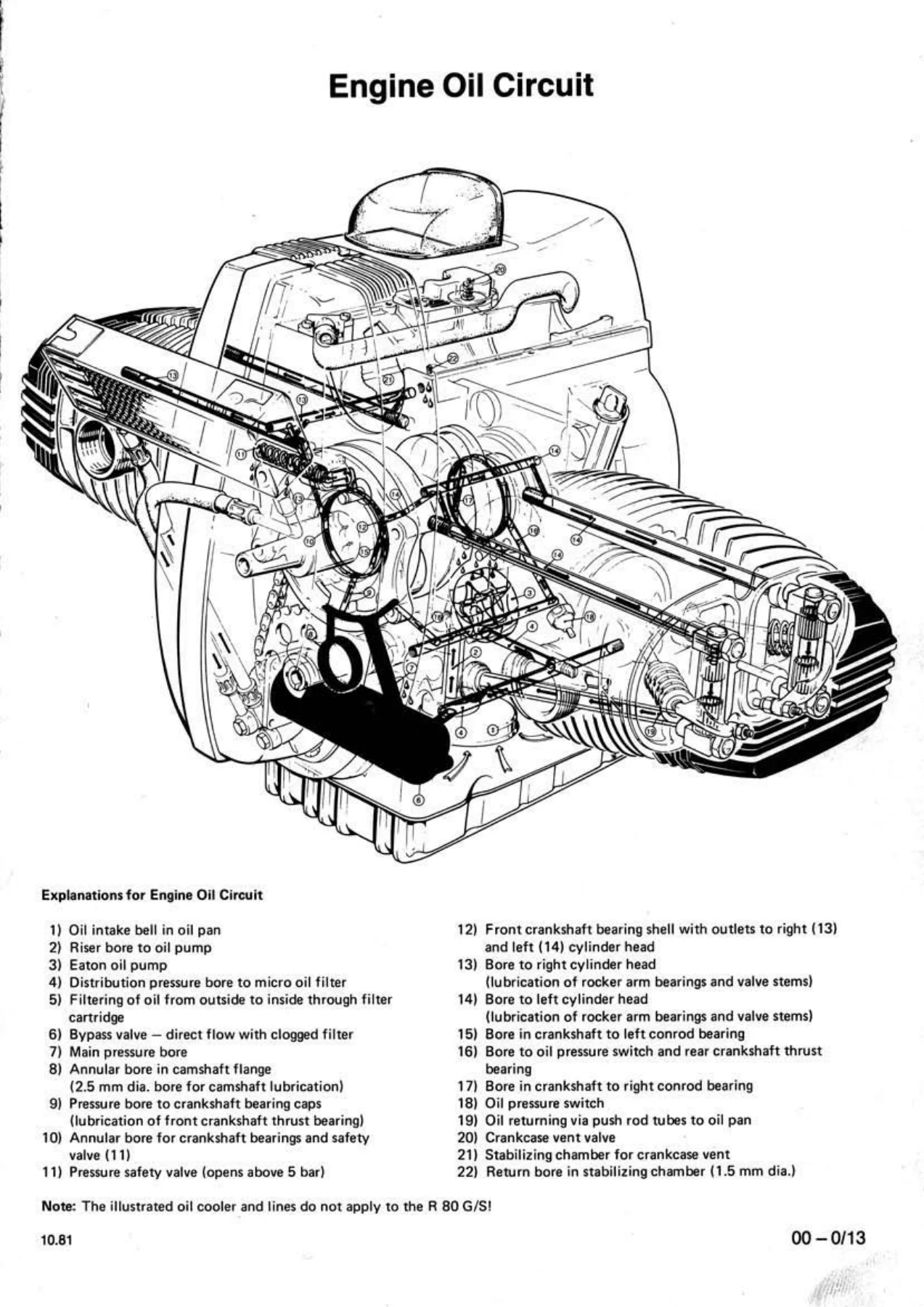

• 00 – Maintenance and General Hints (introduction, tightening torque standards, torque summary, bolt/nut classes, conversion charts, engine oil circuit, BMW special tools, general technical data)

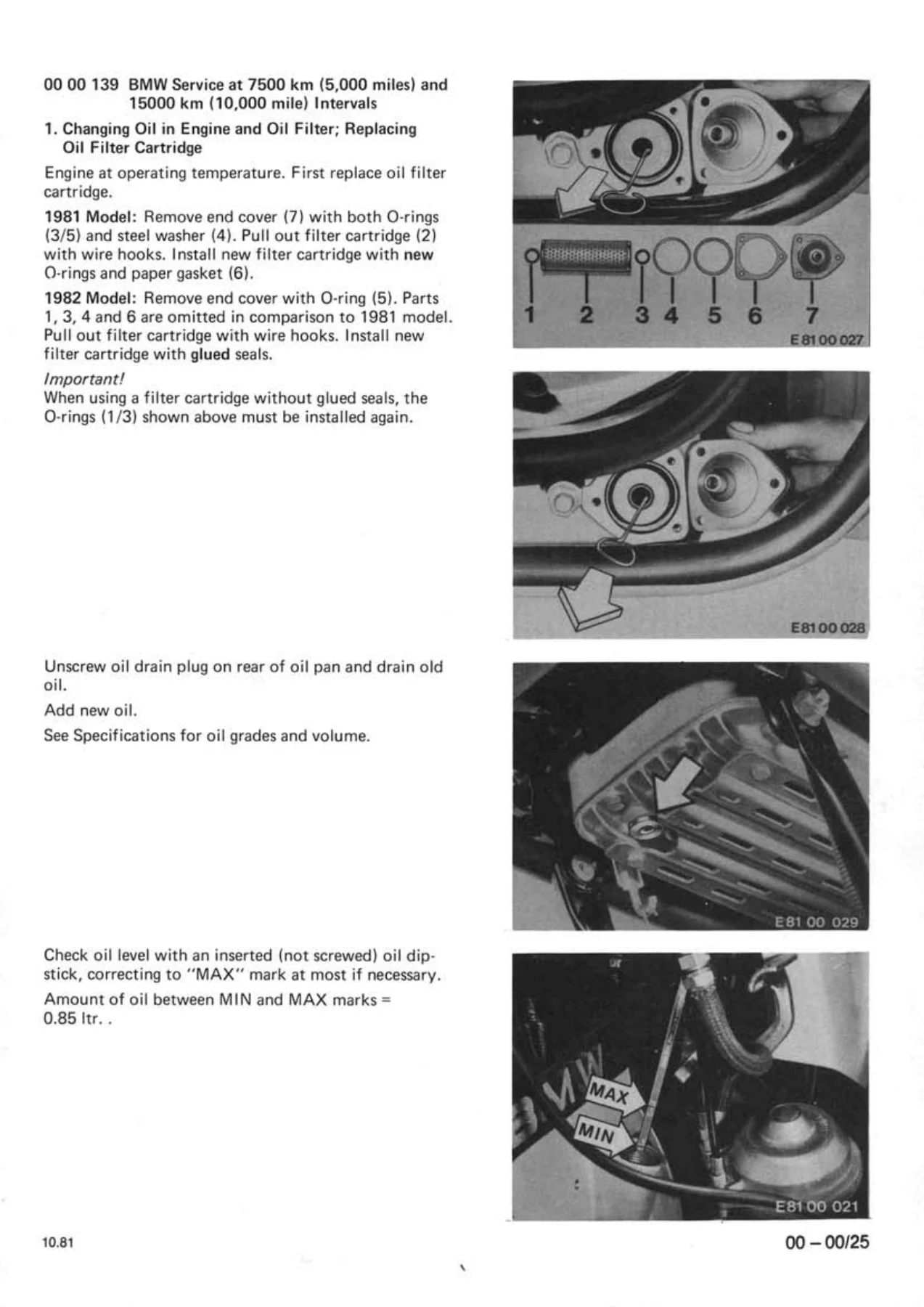

• 00-00 – Service Schedules (free delivery inspection, 1st inspection at 1000 km/600 mi, BMW service beginning at 7500 km/5000 mi, BMW inspection beginning at 15000 km/10000 mi, engine inspection after 1000 km/600 mi)
• 11 – Engine (compression check, engine removal/installation, cylinder removal/installation, cylinder head removal/disassembly/valve grinding, valve guide replacement, timing case cover, crankshaft radial oil seals, engine vent hose, crankshaft replacement, main bearing bushings, flywheel/clutch housing, connecting rod, piston, sprocket sets, valve play adjustment, oil pump, engine troubleshooting)
• 12 – Engine Electrical
• 13 – Fuel Supply and Adjustments
• 16 – Fuel Tank and Lines
• 18 – Exhaust System
• 21 – Clutch
• 23 – Transmission
• 26 – Drive Shaft
• 31 – Front Fork
• 32 – Steering
• 33 – Rear Wheel Drive
• 34 – Brakes
• 35 – Pedal Assembly
• 36 – Wheels and Tyres
• 46 – Frame
• 51 – Equipment
• 52 – Dual Seat
• 61 – General Electrics
• 62 – Instruments
• 63 – Lights

Taken as a whole, this factory manual gives a technician everything needed to service the R80 G/S from the ground up: routine BMW inspection intervals, full engine teardown and rebuild procedures, driveline and final-drive work, front fork and steering service, brake and wheel maintenance, frame checks, and a complete rundown of the electrical system and instruments — all cross-referenced to BMW’s own special-tool numbers so the correct tool is identified for every job.

Engine Specifications Included

Because the R80 G/S is built around BMW’s opposed-twin Boxer engine, this Repair Manual devotes detailed specification tables to the powerplant, including:

• 84.8 mm cylinder bore and 70.6 mm piston stroke, 785 cc fiscal / 797.5 cc effective displacement
• 8.2:1 compression ratio, 37 kW (50 DIN HP) at 6500 rpm, max torque 56.7 Nm at 5000 rpm
• Piston ring end/side clearances, piston pin dimensions and running clearances
• Compression pressure reference values (good/normal/poor)
• Complete tightening torque summary for cylinder head nuts, conrod bolts, clutch housing, transmission, front fork, steering and more

IMAGES PREVIEW

Special Tools and Reference Charts

The manual reproduces BMW’s own special tool photographs with order numbers (valve spring lifters, mandrels, pullers, frame gauges, master gauges, and more), plus reference charts for fluid capacities, tire pressures, oil grades, and DIN/metric conversion — the kind of shop reference material that’s otherwise scattered across multiple sources.

Why Choose This BMW R80 G/S Factory Repair Manual

With this BMW R80 G/S 1981-1982 Factory Repair Manual, you can diagnose engine, electrical, fuel, driveline, brake, and chassis problems using the exact procedures and torque values BMW’s own service division specified for this motorcycle — not generic guesswork. Correct specifications and tightening torques matter on an engine like this one, where over- or under-torquing critical fasteners such as cylinder head nuts or conrod bolts can lead to costly damage; this manual gives you those figures exactly as published. Delivery is instant: after checkout you receive a PDF download of the full BMW R80 G/S Repair Manual, viewable on any computer, tablet, or phone, and printable for shop use — no shipping wait, no physical book to store.
