Bobcat TL35.70(X) Telescopic Handler Service Manual – S/N ANL714000, AVM114000, ANMG14000 & AVM614000 & Above

Description

Bobcat TL35.70(X) Telescopic Handler Service Manual

This Bobcat TL35.70(X) Telescopic Handler Service Manual is the complete workshop reference for the TL35.70 and TL35.70X telescopic handlers, covering S/N ANL714000 & Above and AVM114000 & Above on the TL35.70, and S/N ANMG14000 & Above and AVM614000 & Above on the TL35.70X. Across 836 pages, this Bobcat TL35.70(X) service manual walks a technician through every system on the machine, from the Perkins 1104D-44TA diesel engine to the hydrostatic drivetrain, hydraulic circuits, mainframe, electrical system and cab HVAC. If you turn wrenches on Bobcat telescopic handlers for a living or you own one and want to do your own major service, this Bobcat TL35.70(X) Telescopic Handler Service Manual is written at the same depth the dealer technician works from.

File Details

• Manual Type: Service Manual (workshop/repair manual)
• Brand / Model: Bobcat TL35.70 and TL35.70X Telescopic Handler
• Serial Number Coverage: TL35.70 S/N ANL714000 & Above and AVM114000 & Above; TL35.70X S/N ANMG14000 & Above and AVM614000 & Above
• Language: English
• Page Count: 836 pages
• File Format: PDF (instant digital download)
• Publication Number: 7283169enUS (09-20)(D)

Chapters Covered

The Bobcat TL35.70(X) Telescopic Handler Service Manual is organized into the same numbered section layout used on the shop floor, so a technician can jump straight to the section referenced on a work order or parts lookup:

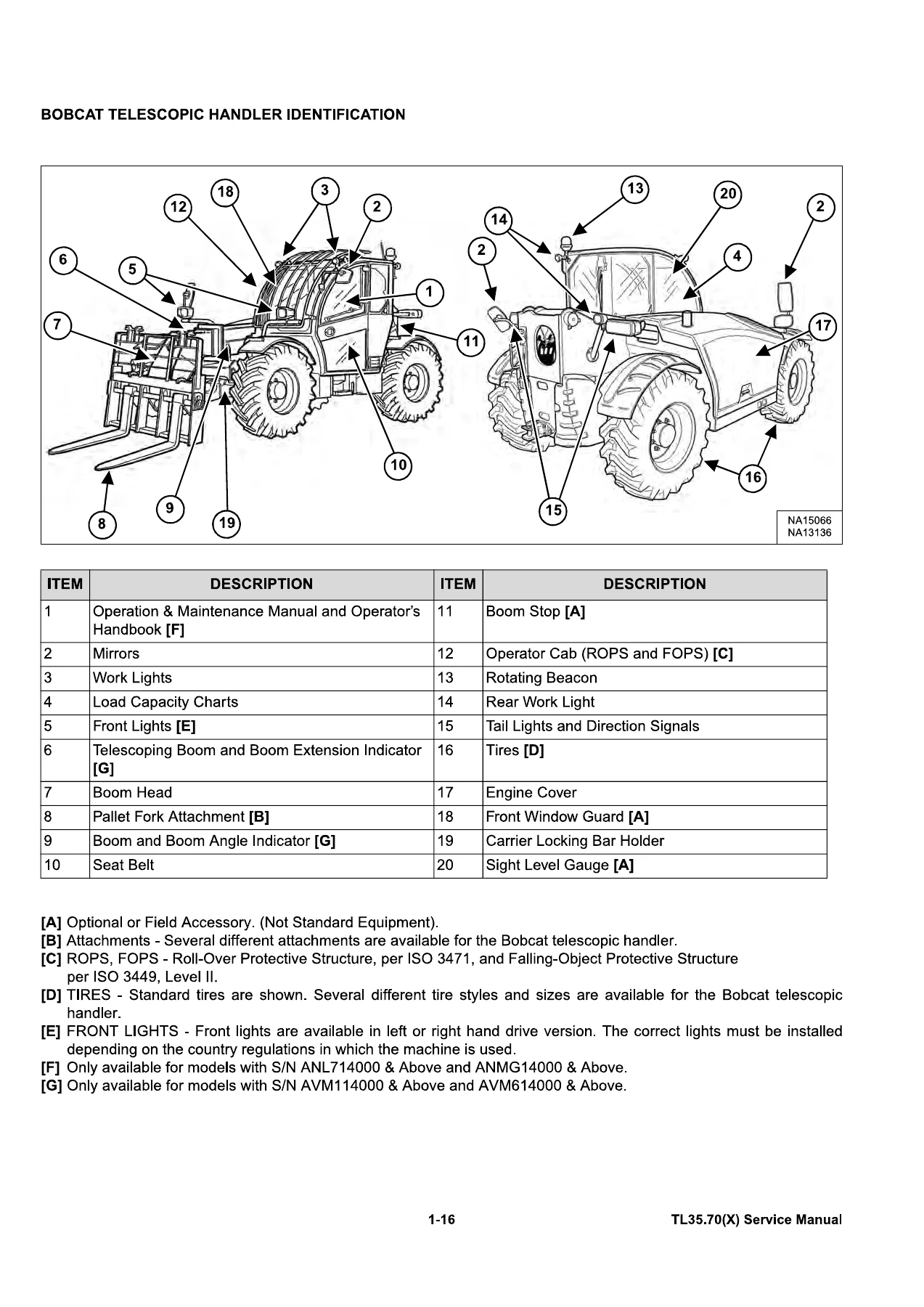

IMAGES PREVIEW

• Safety and Maintenance: lifting and blocking the handler, operator cab access and windows, transporting the machine on a trailer, the towing procedure, the full scheduled maintenance interval chart, air cleaner service, cooling system, fuel system (including biodiesel blend guidance), engine lubrication, hydraulic/hydrostatic fluid and filters, front and rear axle oil, chassis lubrication points, attachment carrier inspection, tire maintenance, the approved boom stop, engine cover, shutdown procedure, emergency exit, storage and return to service, and the remote start tool kit
• Hydraulic System: hydraulic system information and symbol glossary, boom cylinder, self-leveling (compensation) cylinder, extension (compensation) cylinder, tilt cylinder, front and rear steering cylinders, collector block, service brake valve, tandem gear pump, fan motor, hydraulic fluid tank, steering unit, main valve (with troubleshooting charts and section-by-section disassembly and assembly), port relief valves, accumulators, trailer brake valve, and the boom suspension and float system
• Hydrostatic System: hydrostatic system information, oil cooler, hydrostatic drive motor removal, disassembly and assembly, hydrostatic pump (charge pump, piston pump and solenoid block disassembly), charge pressure testing and adjustment, and multifunction valve testing

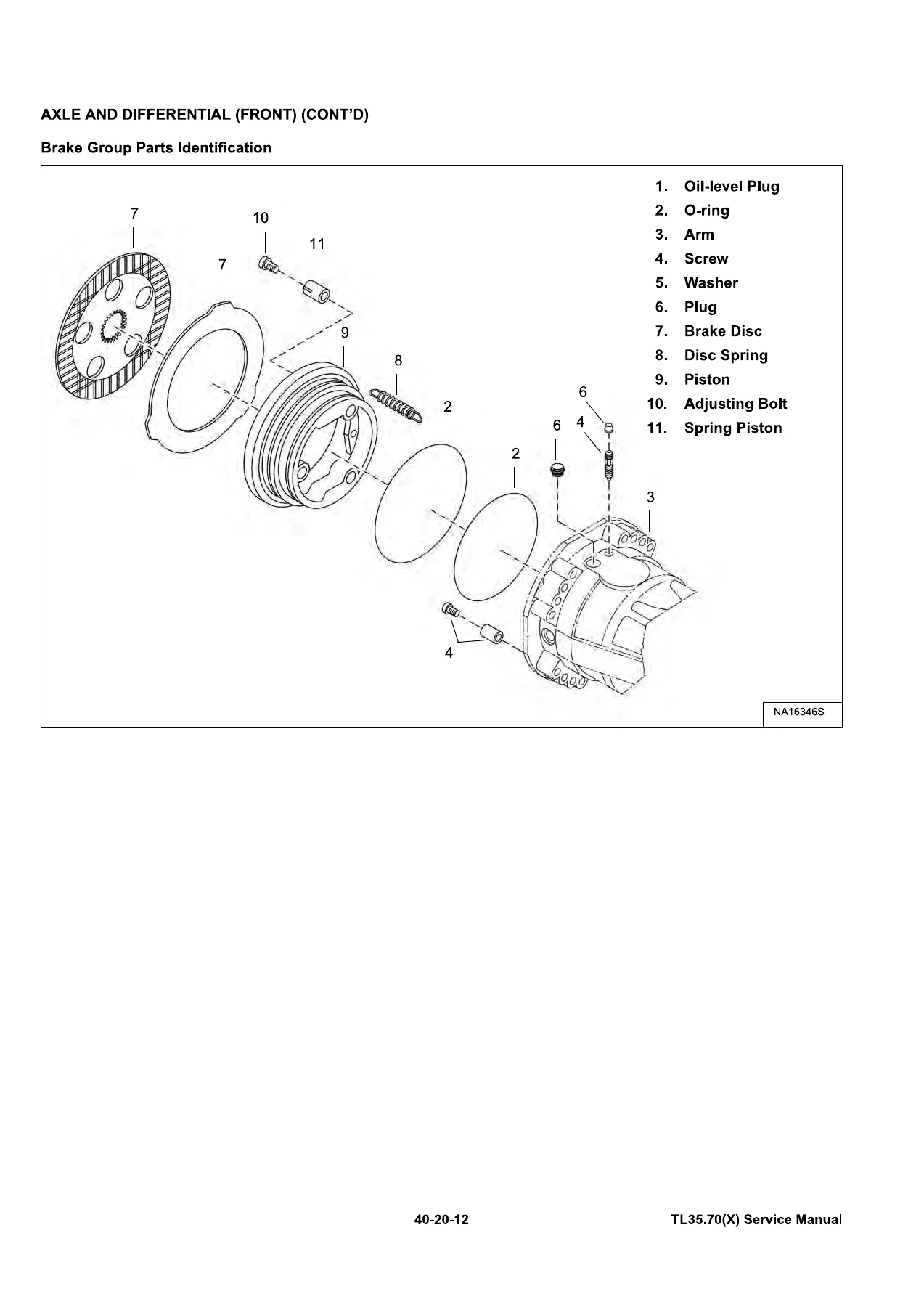

• Drive System: drivetrain troubleshooting chart, front axle and differential, rear axle and differential (planetary carrier, steering knuckle, differential, pinion group and brake group), front axle removal, axle toe-in adjustment, steering angle adjustment, park brake, gearbox, gearbox shifting control cylinder, driveshaft, and service brake bleeding
• Mainframe: operator cab, operator seat, fixed boom, inner boom, front and rear boom wear pads, engine cover, fuel tank, quick-tach attachment carrier, counterweight, fender, steering column cover, dash cover, and joystick panel
• Electrical System and Analysis: complete wiring schematics and connector-pin assignment charts for the engine bay, frame and cab harnesses, an electrical symbol glossary, battery, starter, alternator, wiper motors, fuel level sender, and the machine’s electronic controllers – Workgroup Controller, Display Controller, LLMI and LLMC
• Engine Service: full Perkins 1104D-44TA specifications and troubleshooting, engine removal and installation, compression checking, engine bay assembly, engine speed control, muffler, air cleaner housing, cooling system, lubrication system, fuel injection system, cylinder head and valve train, crankshaft and pistons, camshaft and timing gears, turbocharger, and flywheel and housing
• Heating, Ventilation and Air Conditioning (HVAC): cab fresh air filter, recirculation filter, and climate control system service
• Specifications: complete machine dimensions, performance figures, weights, drive system and tire data, steering and brakes, fluid capacities, hydraulic and electrical system specifications, and instrument panel gauge and warning light reference

Together, these sections give a technician everything needed to diagnose, repair and rebuild the TL35.70(X) from the ground up, without guessing at a torque value, a clearance, or a wire color.

Engine, Hydrostatic Drive and Hydraulic Highlights

The TL35.70(X) is powered by the Perkins 1104D-44TA, a 4-cylinder turbocharged diesel rated at 74.5 kW (100 hp) at 2200 rpm with 410 N.m of maximum torque at 1400 rpm, and this Bobcat TL35.70(X) Telescopic Handler Service Manual covers it down to bearing clearances, journal diameters and valve train specifications. The hydrostatic transmission uses electronic regulation feeding a 2-speed gearbox, and the manual details the full drive motor and piston pump teardown, including the charge pump, servo piston and solenoid block. On the hydraulic side, the manual documents the gear-type pump rated at 100 L/min with a 25.0 MPa relief setting, the open-center main valve with flow sharing and flow compensator technology, and every cylinder circuit on the machine – boom, self-leveling, extension, tilt and steering – down to the seal kit level.

Electrical System and Controller Diagnostics

Modern Bobcat telescopic handlers rely on a network of electronic controllers, and this Bobcat TL35.70(X) Telescopic Handler Service Manual documents the Workgroup Controller, Display Controller, and the LLMI and LLMC longitudinal load moment controllers, along with their connector locations and wiring. Full connector-pin assignment tables are provided for the engine, frame and cab harnesses, alongside a complete glossary of the electrical symbols used throughout the schematics, so tracing a fault back to a specific pin, relay or sensor is straightforward rather than a guessing game.

Get Instant Access to the Bobcat TL35.70(X) Telescopic Handler Service Manual

Whether you are chasing a hydrostatic drive fault, rebuilding the front axle and differential, servicing the main hydraulic valve, or working through a full engine overhaul on the Perkins 1104D-44TA, this Bobcat TL35.70(X) Telescopic Handler Service Manual gives you the exact procedures, torque specifications, wiring diagrams and parts identification the job calls for. Working from the correct Bobcat-specified procedures and specifications helps you avoid comebacks, protects the machine’s hydraulic and hydrostatic systems from further damage, and gets the telescopic handler back to work with confidence. This Bobcat TL35.70(X) Telescopic Handler Service Manual is delivered as an instant PDF download, so there is no shipping wait and no missing pages – open it on a laptop, tablet or phone in the shop, or print out just the section you need for the job in front of you.
