BT Forklift C15 Quality Parts Manual 564221AA – PDF DOWNLOAD

Description

BT Forklift C15 Quality Parts Manual 564221AA – PDF DOWNLOAD

FILE DETAILS:

BT Forklift C15 Quality Parts Manual 564221AA – PDF DOWNLOAD

Language : English,German,French,Swedish
Pages :229
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

BT Forklift C15 Quality Parts Manual 564221AA – PDF DOWNLOAD

0000 Chassis 8
Chassi; Chassis; Châssis 8
1000 Motors 9
Motorer; Motoren; Moteurs 9
2000 Transmission/Drive gear 9
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 9
3000 Brake/Wheel/Caterpillar system 9
Broms-/Hjul/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 9
4000 Steering system 10
Styrsystem; Steuer-/Lenksystem; Système de direction 10
5000 Electrical system 10
Elektriskt system; Elektroanlage; Système électrique 10
6000 Hydraulic/pneumatic system 12
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 12
7000 Work function – lifting masts 13
Arbetsfunktion – lyftstativ; Arbeitsfunktion – Hubgerüste; Fonction de travail – mâts de levage 13
9000 Options/attachments 14
Tillbehör/extrautrustning; Zubehör /Zusatzausrüstung; Equipement supplémentaire/Options 14
0320-00002 P0017514 16
0320-00002 Frame pivot [2003-06-17] 17
0340-00356 P0018650 18
0340-00356 Inspection covers [2003-09-10] 19
0340-00357 P0018661 20
0340-00357 Inspection covers [2003-06-17] 21
0340-00364 P0018882 23
0340-00364 Inspection covers [2003-06-17] 23
0390-00219 P0018803 24
0390-00219 Battery compartment parts [2003-06-17] 25
0400-00052 P0018883 27
0400-00052 Frame/chassis components [2003-08-20] 27
0450-00072 P0018779 28
0450-00072 Motor fixing points [2003-06-17] 28
0480-00006 P0018898 29
0480-00006 Bumpers, shock absorbers [2003-06-17] 29
0510-00015 P0018906 30
0510-00015 Cabin fixing points [2003-10-01] 31
0530-00024 P0018706 32
0530-00024 Cabin windows [2003-06-17] 32
0620-00057 P0018519 34
0620-00057 Seat, cushions [2003-06-17] 35
0670-00060 P0017975 37
0670-00060 Wall/floor covering [2003-06-17] 37
0680-00144 P0018894 38
0680-00144 Internal fittings [2003-08-07] 38
0740-00007 P0018738 39
0740-00007 Mirrors [2003-06-17] 39
0800-00005 P0018532 40
0800-00005 Safety equipment [2003-06-17] 40
0810-00090 P0017846 42
0810-00090 Overhead guard/roof [2003-06-17] 42
0810-00100 P0018938 43
0810-00100 Overhead guard/roof [2003-06-17] 43
0840-00092 P0017892 44
0840-00092 Driver Protection [2003-10-21] 45
0840-00097 P0018704 48
0840-00097 Driver Protection [2003-10-21] 49
0840-00101 P0019599 52
0840-00101 Driver Protection [2003-10-21] 53
0850-00257 P0017547 56
0850-00257 Signs, warnings, decals [2003-10-20] 57
1710-00079 P0018878 58
1710-00079 Electric pump motor [2003-06-17] 59
1710-00080 P0018886 60
1710-00080 Electric pump motor [2003-06-17] 61
1740-00016 P0017202 63
1740-00016 Electric fan motor, electric fan [2003-10-21] 63
1740-00020 P0018646 64
1740-00020 Electric fan motor, electric fan [2003-06-17] 64
1740-00021 P0018933 64
1740-00021 Electric fan motor, electric fan [2003-06-17] 64
1740-00023 P0019580 65
1740-00023 Electric fan motor, electric fan [2003-10-21] 65
1760-00080 P0018952 66
1760-00080 Electric drive motor [2003-06-17] 67
2550-00064 P0018701 70
2550-00064 Mechanical drive gear unit [2003-06-17] 71
3180-00016 P0018579 74
3180-00016 Electrically controlled travel brake [2003-06-17] 74
3180-00017 P0018740 75
3180-00017 Electrically controlled travel brake [2003-06-17] 75
3530-00083 P0018870 76
3530-00083 Drive wheel [2003-06-17] 76
3550-00229 P0016806 77
3550-00229 Fork/support arm wheels [2003-06-17] 77
3550-00230 P0016807 78
3550-00230 Fork/support arm wheels [2003-06-17] 79
4140-00002 P0017207 80
4140-00002 Steering lines/tank [2003-10-21] 80
4160-00004 P0017494 81
4160-00004 Servo-motor/cylinder [2003-06-17] 81
4310-00032 P0018812 82
4310-00032 Electric steering wheel/lever [2003-06-17] 83
4310-00033 P0018823 84
4310-00033 Electric steering wheel/lever [2003-10-21] 85
4310-00034 P0018824 88
4310-00034 Electric steering wheel/lever [2003-06-17] 89
4500-00001 P0018068 92
4500-00001 Automatic steering systems [2003-10-21] 93
5120-00012 P0018896 94
5120-00012 Lighting [2003-06-17] 94
5160-00096 P0018897 94
5160-00096 General alarm signals (audible/visual) [2003-06-17] 94
5160-00098 P0018934 95
5160-00098 General alarm signals (audible/visual) [2003-06-17] 95
5190-00015 P0006443 96
5190-00015 Battery cut out connector/contactor [2003-06-17] 96
5280-00055 P0018846 97
5280-00055 Level/position transducers/lamps [2003-06-17] 97
5280-00056 P0018868 98
5280-00056 Level/position transducers/lamps [2003-09-30] 99
5390-00222 P0018150102
5390-00222 Driving function harnesses/ fuse [2003-06-17]103
5430-00102 P0017237104
5430-00102 Drive motor cables/resistors/fuses [2003-06-17]104
5460-00051 P0017238105
5460-00051 Transistor panel [2003-06-17]105
5460-00052 P0018741106
5460-00052 Transistor panel [2003-06-17]106
5460-00053 P0017266107
5460-00053 Transistor panel [2003-06-17]107
5510-00101 P0018698108
5510-00101 Work function micro switches, potentiometers [2003-06-17]108
5520-00005 P0017979109
5520-00005 Work function relays [2003-06-17]109
5520-00006 P0018152109
5520-00006 Work function relays [2003-06-17]109
5590-00094 P0017716110
5590-00094 Work function harnesses/ fuse [2003-10-17]111
5590-00095 P0017750114
5590-00095 Work function harnesses/ fuse [2003-06-17]115
5590-00097 P0018214116
5590-00097 Work function harnesses/ fuse [2003-06-17]116
5680-00101 P0017281118
5680-00101 Battery/motor cables, fuse [2003-06-17]119
5710-00094 P0017756122
5710-00094 Drive/multi-function PCBs [2003-10-21]122
5720-00005 P0018911123
5720-00005 Work function PCBs [2003-10-21]123
5790-00019 P0017978124
5790-00019 Safely electronics harnesses, fuse [2003-09-30]125
5830-00112 P0018224126
5830-00112 Safety probes/ sensors [2003-06-17]126
5830-00122 P0018901127
5830-00122 Safety probes/ sensors [2003-06-17]127
5840-00013 P0018060128
5840-00013 Aisle probes/sensors [2003-06-17]129
5840-00014 P0018063130
5840-00014 Aisle probes/sensors [2003-06-17]131
5840-00015 P0018065132
5840-00015 Aisle probes/sensors [2003-06-17]133
5840-00017 P0018574134
5840-00017 Aisle probes/sensors [2003-06-17]135
5840-00018 P0018576136
5840-00018 Aisle probes/sensors [2003-06-17]137
6110-00020 P0017195138
6110-00020 Hydraulic tank [2003-06-17]138
6120-00199 P0017193140
6120-00199 Hydraulic tank lines [2003-06-17]141
6130-00029 P0018776142
6130-00029 Filters and housing [2003-06-17]142
6140-00026 P0017199143
6140-00026 Hydraulic pump [2003-06-17]143
6140-00027 P0017198143
6140-00027 Hydraulic pump [2003-06-17]143
6210-00040 P0018749144
6210-00040 Main valve unit lift/reach/tilt [2003-10-01]145
6220-00020 P0018755147
6220-00020 Control valve (Other functions) [2003-10-01]147
6220-00021 P0018757148
6220-00021 Control valve (Other functions) [2003-10-01]148
6230-00089 P0018924150
6230-00089 Hydraulic lines chassis [2003-06-17]151
6280-00001 P0018774153
6280-00001 Accumulator [2003-10-21]153
6280-00002 P0018775154
6280-00002 Accumulator [2003-06-17]154
6280-00003 P0019315155
6280-00003 Accumulator [2003-10-21]155
6310-00006 P0018744156
6310-00006 Mast valve units [2003-10-01]157
6320-00172 P0017133160
6320-00172 Mast hydraulic lines [2003-08-25]161
6320-00173 P0017137164
6320-00173 Mast hydraulic lines [2003-06-17]165
6320-00182 P0017495168
6320-00182 Mast hydraulic lines [2003-06-17]169
6610-00124 P0018925172
6610-00124 Main lift cylinders [2003-10-02]173
6610-00125 P0018926174
6610-00125 Main lift cylinders [2003-10-01]175
6620-00092 P0018936176
6620-00092 Free lift cylinder [2003-06-17]177
6670-00018 P0018717178
6670-00018 Other hydraulic cylinders [2003-06-17]178
7100-00074 P0016955180
7100-00074 Main mast [2003-08-25]180
7120-00206 P0016954182
7120-00206 Main lift chain system [2003-09-15]183
7150-00025 P0019650185
7150-00025 Main mast guidance/ dampers [2003-10-17]185
7190-00054 P0018756186
7190-00054 Main mast suspension [2003-06-18]187
7220-00002 P0018869188
7220-00002 Secondary mast lift chain system [2003-06-17]189
7230-00004 P0018791190
7230-00004 Secondary mast fork carriage [2003-06-17]190
7410-00025 P0009796192
7410-00025 Fork, carpet boom, lift hook [2003-06-17]192
7410-00167 P0018880194
7410-00167 Fork, carpet boom, lift hook [2003-06-17]194
7700-00006 P0018711196
7700-00006 Turret head/three-way fork unit [2003-06-17]196
7710-00007 P0017420198
7710-00007 Traversing function fork unit [2003-10-21]199
7710-00008 P0017427200
7710-00008 Traversing function fork unit [2003-09-25]201
7710-00009 P0017452204
7710-00009 Traversing function fork unit [2003-09-10]205
7710-00010 P0017478206
7710-00010 Traversing function fork unit [2003-08-20]207
7710-00011 P0017481210
7710-00011 Traversing function fork unit [2003-09-23]211
7720-00008 P0017496216
7720-00008 Swivel/rotation function [2003-06-17]217
9330-00020 P0018871220
9330-00020 Radio/recorder [2003-06-17]221
9360-00033 P0018739222
9360-00033 Extra lighting [2003-06-17]223
9370-00048 P0017589224
9370-00048 Extra warning lights/alarm [2003-06-17]224
9370-00055 P0018784225
9370-00055 Extra warning lights/alarm [2003-06-17]225
9400-00109 P0017939226
9400-00109 Extra electrical equipment [2003-08-21]227
9500-00487 P0017891228
9500-00487 Other extra equipment [2003-06-17]228
9500-00497 P0018070229
9500-00497 Other extra equipment [2003-06-17]229

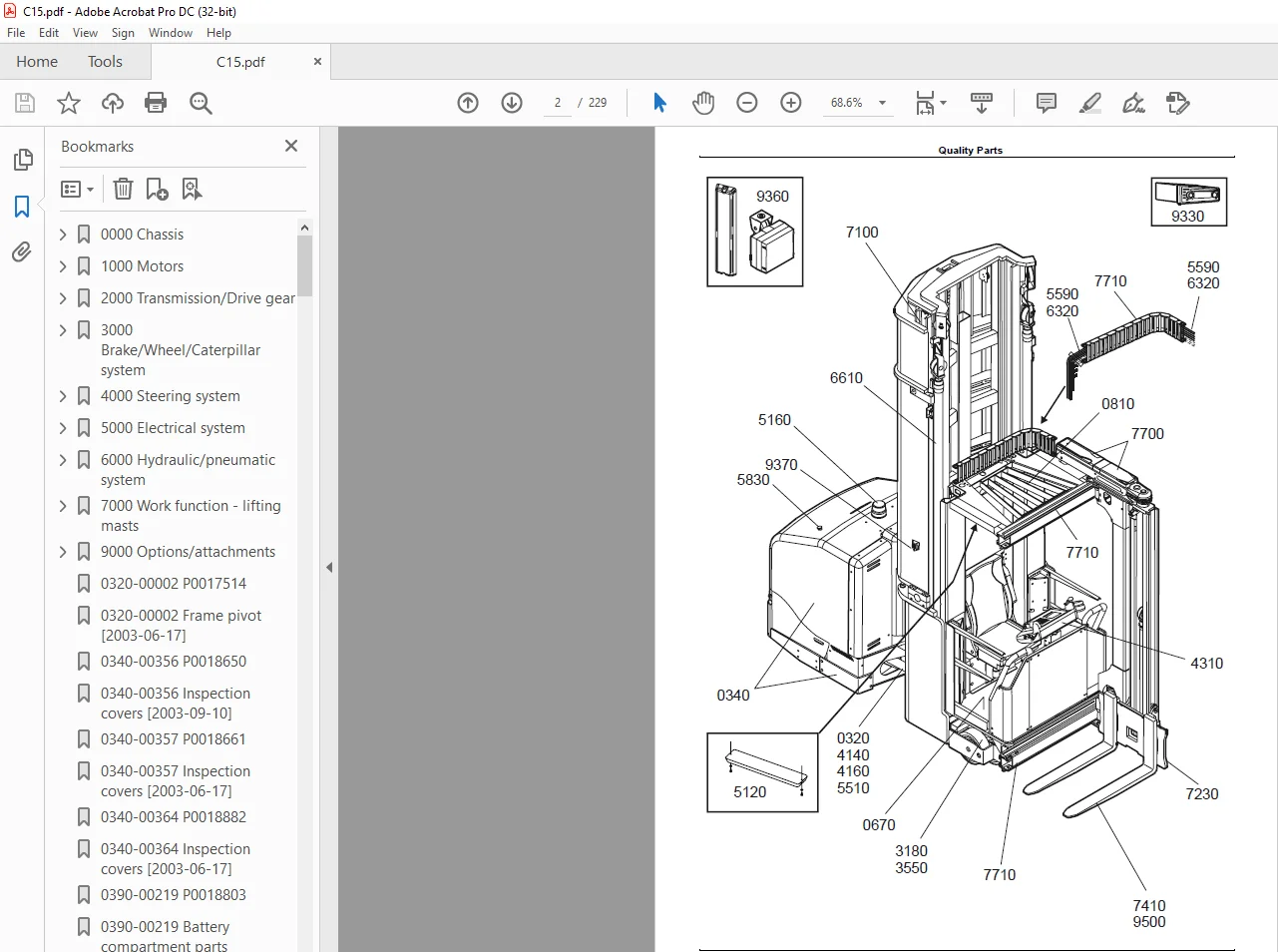

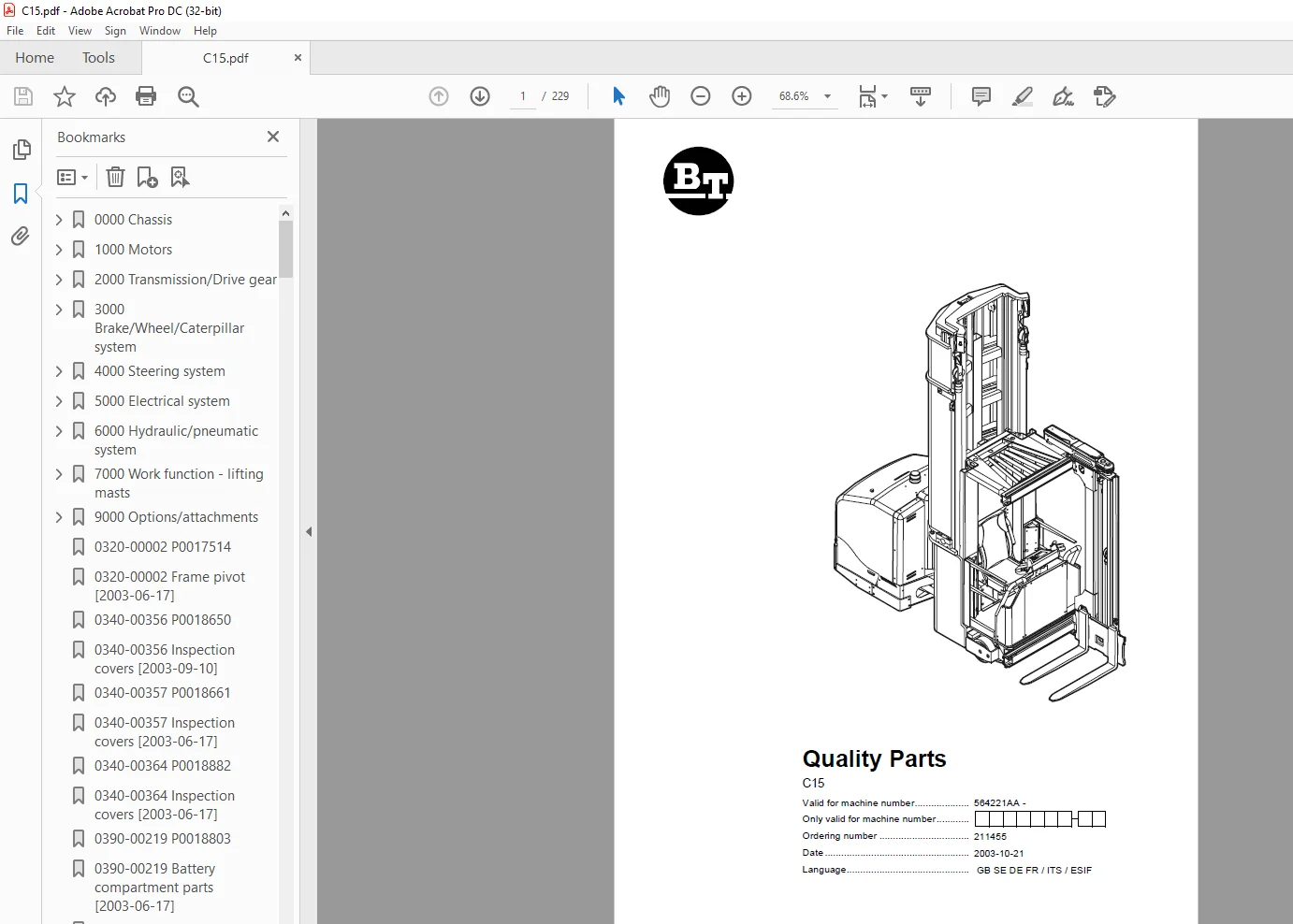

IMAGES PREVIEW OF THE MANUAL:
