BT Forklift LWE250 Quality Parts Manual – PDF DOWNLOAD

Description

BT Forklift LWE250 Quality Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Forklift LWE250 Quality Parts Manual – PDF DOWNLOAD

Language : English.German,French,Swedish
Pages :101
Downloadable : Yes
File Type : PDF

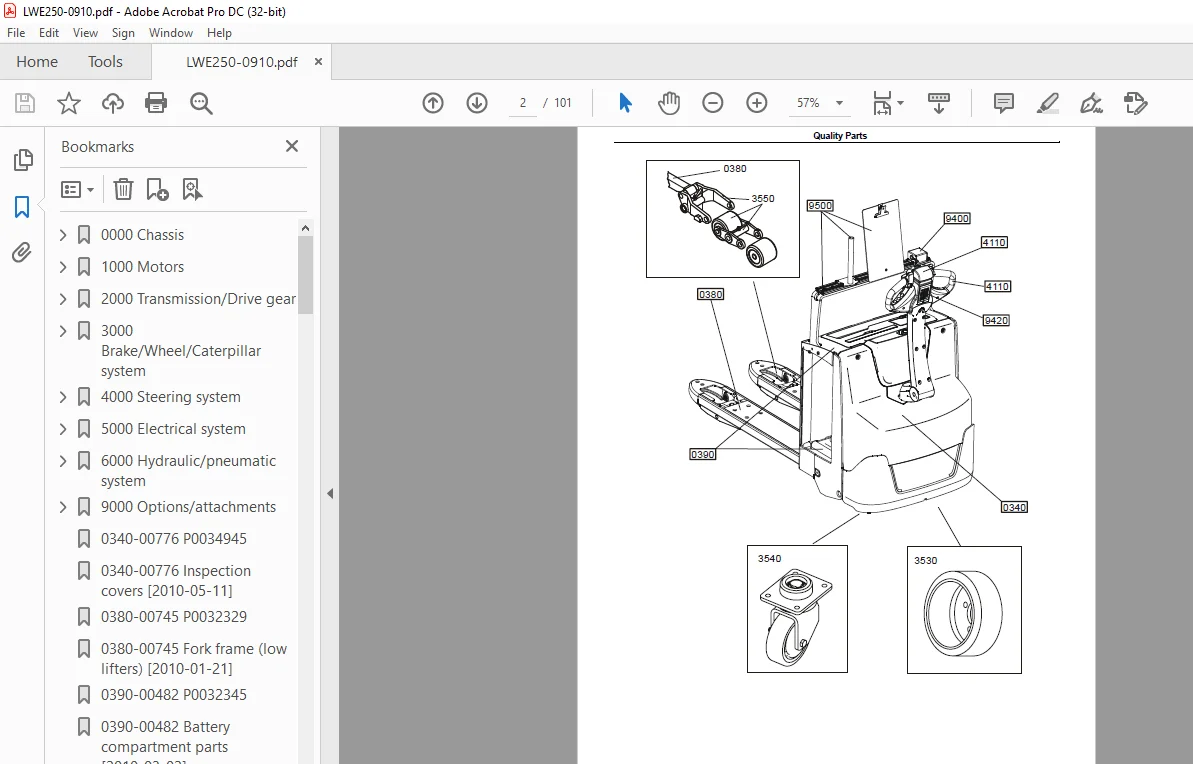

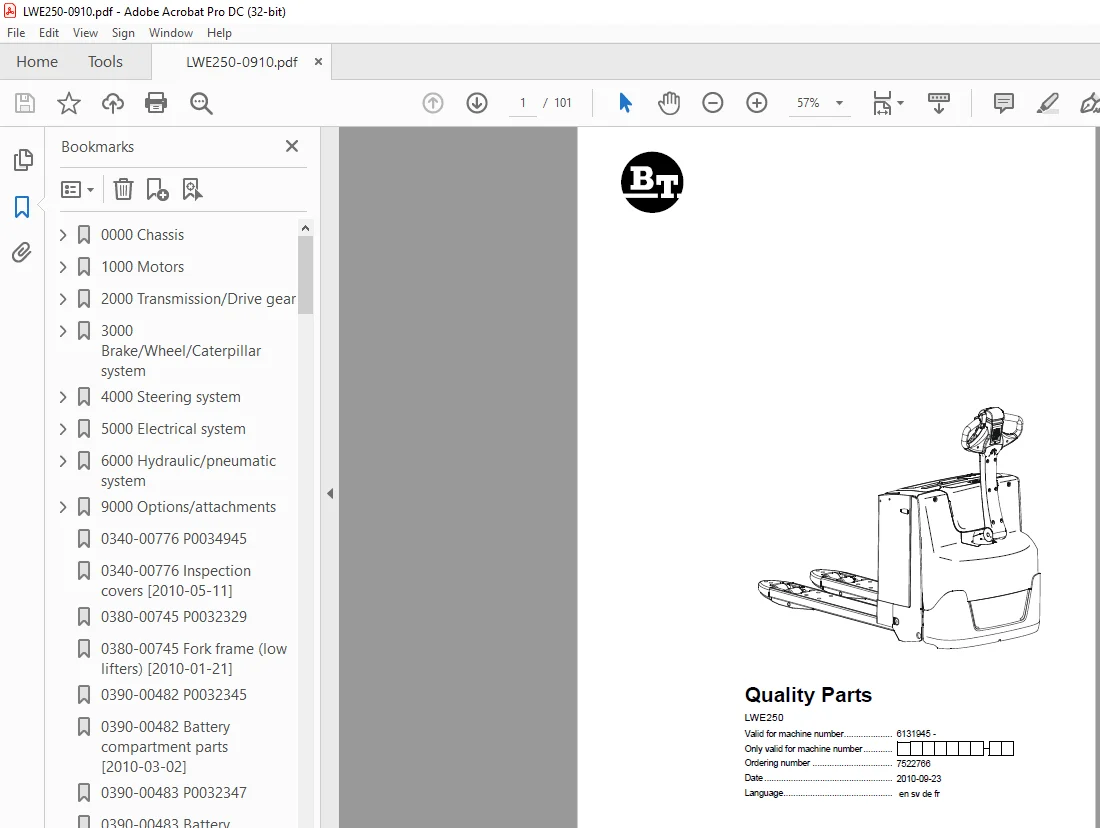

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Forklift LWE250 Quality Parts Manual – PDF DOWNLOAD

0000 Chassis 4
Chassi; Chassis; Châssis 4
1000 Motors 4
Motorer; Motoren; Moteurs 4
2000 Transmission/Drive gear 4
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 4
3000 Brake/Wheel/Caterpillar system 5
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 5
4000 Steering system 5
Styrsystem; Steuer-/Lenksystem; Système de direction 5
5000 Electrical system 6
Elektriskt system; Elektroanlage; Système électrique 6
6000 Hydraulic/pneumatic system 6
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 6
9000 Options/attachments 7
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 7
0340-00776 P0034945 8
0340-00776 Inspection covers [2010-05-11] 9
0380-00745 P0032329 10
0380-00745 Fork frame (low lifters) [2010-01-21] 11
0390-00482 P0032345 12
0390-00482 Battery compartment parts [2010-03-02] 13
0390-00483 P0032347 14
0390-00483 Battery compartment parts [2010-03-02] 15
0390-00572 P0034916 16
0390-00572 Battery compartment parts [2010-03-09] 17
0390-00573 P0034917 18
0390-00573 Battery compartment parts [2010-03-08] 19
0390-00574 P0034918 20
0390-00574 Battery compartment parts [2010-03-04] 21
0390-00647 P0036661 22
0390-00647 Battery compartment parts [2010-09-03] 23
0820-00336 P0034936 24
0820-00336 Finger/foot guards [2010-01-21] 25
0850-00495 P0031190 26
0850-00495 Signs, warnings, decals [2010-03-09] 27
1710-00150 P0034018 28
1710-00150 Electric pump motor [2010-01-20] 29
1760-00189 P0037323 30
1760-00189 Electric drive motor [2010-09-23] 30
2550-00112 P0036042 32
2550-00112 Mechanical drive gear unit [2010-09-23] 32
3180-00024 P0030567 34
3180-00024 Electrically controlled travel brake [2010-09-17] 34
3530-00139 P0030537 35
3530-00139 Drive wheel [2010-05-11] 35
3540-00108 P0030543 36
3540-00108 Support/castor wheels [2010-01-20] 37
3550-00481 P0032497 38
3550-00481 Fork/support arm wheels [2010-01-20] 39
3570-00077 P0030610 40
3570-00077 Wheel locating points [2010-01-21] 41
3570-00084 P0034594 42
3570-00084 Wheel locating points [2010-05-11] 43
3580-00063 P0032413 44
3580-00063 Guide rollers/wheels [2010-01-21] 45
4110-00512 P0030667 46
4110-00512 Steering arm/wheel/lever [2010-05-11] 47
4110-00513 P0030668 50
4110-00513 Steering arm/wheel/lever [2010-05-11] 51
4110-00570 P0032117 54
4110-00570 Steering arm/wheel/lever [2010-07-14] 55
5160-00172 P0036744 56
5160-00172 General alarm signals (audible/visual) [2010-06-03] 56
5190-00137 P0030586 57
5190-00137 Battery cut out connector/contactor [2010-01-25] 57
5390-00300 P0030580 58
5390-00300 Driving function harnesses/fuse [2010-01-25] 58
5460-00092 P0032392 60
5460-00092 Transistor panel [2010-05-11] 61
5590-00576 P0036748 62
5590-00576 Work function harnesses/fuse [2010-06-03] 63
5610-00033 P0030587 64
5610-00033 Pump contactor [2010-01-25] 64
5680-00171 P0032104 66
5680-00171 Battery/motor cables, fuse [2010-01-20] 67
5710-00134 P0030669 68
5710-00134 Drive/multi-function PCBs [2010-03-08] 68
5820-00276 P0031238 69
5820-00276 Lift/lowering/reach movement probes/sensors [2010-01-21] 69
5830-00200 P0030581 70
5830-00200 Safety probes/sensors [2010-01-25] 70
5830-00211 P0032079 71
5830-00211 Safety probes/sensors [2010-01-25] 71
6100-00312 P0034016 72
6100-00312 Hydraulic unit [2010-01-20] 73
6230-00207 P0030602 74
6230-00207 Hydraulic lines chassis [2010-01-20] 74
6230-00212 P0031246 76
6230-00212 Hydraulic lines chassis [2010-01-20] 77
6610-00250 P0030604 78
6610-00250 Main lift cylinders [2010-01-21] 79
6640-00003 P0034593 80
6640-00003 Balance/stabilizer cylinders [2010-01-20] 81
9380-00026 P0035819 82
9380-00026 Charger attachment [2010-03-09] 82
9400-00317 P0031234 84
9400-00317 Extra electrical equipment [2010-01-25] 85
9400-00318 P0031243 86
9400-00318 Extra electrical equipment [2010-03-08] 86
9400-00401 P0034924 88
9400-00401 Extra electrical equipment [2010-02-03] 89
9420-00015 P0012396 90
9420-00015 Truck log device, code locking device [2010-06-22] 90
9420-00098 P0026077 91
9420-00098 Truck log device, code locking device [2010-06-22] 91
9420-00139 P0033141 92
9420-00139 Truck log device, code locking device [2010-03-08] 92
9420-00146 P0034059 94
9420-00146 Truck log device, code locking device [2010-03-09] 95
9500-01073 P0031109 96
9500-01073 Other extra equipment [2010-03-10] 96
9500-01074 P0031110 97
9500-01074 Other extra equipment [2010-06-22] 97
9500-01075 P0031111 98
9500-01075 Other extra equipment [2010-01-25] 98
9500-01171 P0032417 99
9500-01171 Other extra equipment [2010-01-21] 99
9500-01172 P0032419100
9500-01172 Other extra equipment [2010-08-23]100
9500-01412 P0037659101
9500-01412 Other extra equipment [2010-09-23]101
