BT Forklift RRE180, RRE180C, RRE180E, RRE180EC Quality Parts Manual 6108964

Description

BT Forklift RRE180, RRE180C, RRE180E, RRE180EC Quality Parts Manual 6108964  – PDF DOWNLOAD

FILE DETAILS:

BT Forklift RRE180, RRE180C, RRE180E, RRE180EC Quality Parts Manual 6108964  – PDF DOWNLOAD

Language : English,German,French,Swedish
Pages :296
Downloadable : Yes
File Type : PDF

Valid for machine number 6108964 –
Ordering number 7517338
Language en sv de fr

TABLE OF CONTENTS:

BT Forklift RRE180  RRE180C  RRE180E  RRE180EC Quality Parts Manual 6108964  – PDF DOWNLOAD

0000 Chassis 6
Chassi; Chassis; Châssis 6
1000 Motors 7
Motorer; Motoren; Moteurs 7
2000 Transmission/Drive gear 7
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 7
3000 Brake/Wheel/Caterpillar system 8
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 8
4000 Steering system 8
Styrsystem; Steuer-/Lenksystem; Système de direction 8
5000 Electrical system 8
Elektriskt system; Elektroanlage; Système électrique 8
6000 Hydraulic/pneumatic system 10
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 10
7000 Work function – lifting masts 12
Arbetsfunktion – lyftstativ; Arbeitsfunktion – Hubgerüste; Fonction de travail – mâts de levage 12
9000 Options/attachments 13
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 13
0340-00686 P0032308 16
0340-00686 Inspection covers [2009-09-09] 16
0340-00703 P0033343 18
0340-00703 Inspection covers [2010-01-20] 19
0340-00709 P0033157 20
0340-00709 Inspection covers [2009-09-09] 21
0350-00141 P0032305 22
0350-00141 Support arms, stabilizers [2009-10-28] 22
0390-00521 P0033481 23
0390-00521 Battery compartment parts [2009-06-10] 23
0390-00548 P0034541 24
0390-00548 Battery compartment parts [2009-09-09] 25
0390-00549 P0034542 26
0390-00549 Battery compartment parts [2010-01-20] 27
0390-00550 P0034550 28
0390-00550 Battery compartment parts [2010-01-20] 29
0390-00560 P0034679 30
0390-00560 Battery compartment parts [2009-06-04] 30
0390-00562 P0034681 31
0390-00562 Battery compartment parts [2009-06-04] 31
0390-00586 P0035206 32
0390-00586 Battery compartment parts [2010-01-26] 33
0390-00597 P0035633 34
0390-00597 Battery compartment parts [2010-02-08] 35
0390-00620 P0036109 36
0390-00620 Battery compartment parts [2010-02-08] 37
0390-00622 P0036111 40
0390-00622 Battery compartment parts [2010-02-08] 41
0450-00098 P0032258 43
0450-00098 Motor fixing points [2009-09-09] 43
0510-00040 P0032690 45
0510-00040 Cabin fixing points [2009-09-09] 45
0510-00041 P0033164 46
0510-00041 Cabin fixing points [2009-09-09] 47
0620-00504 P0036057 50
0620-00504 Seat, cushions [2010-02-08] 51
0640-00132 P0033453 54
0640-00132 Driver controls ( mechanical ) [2009-09-09] 54
0640-00136 P0034365 55
0640-00136 Driver controls ( mechanical ) [2009-09-09] 55
0680-00368 P0034642 56
0680-00368 Internal fittings [2009-09-09] 57
0680-00370 P0034644 60
0680-00370 Internal fittings [2009-09-09] 61
0740-00023 P0034822 63
0740-00023 Mirrors [2009-09-09] 63
0810-00208 P0032310 64
0810-00208 Overhead guard/roof [2009-09-09] 64
0810-00233 P0034641 66
0810-00233 Overhead guard/roof [2010-01-20] 67
0810-00240 P0035140 70
0810-00240 Overhead guard/roof [2009-09-09] 71
0810-00243 P0035141 72
0810-00243 Overhead guard/roof [2009-09-09] 73
0810-00246 P0035651 74
0810-00246 Overhead guard/roof [2010-01-20] 75
0820-00302 P0032356 77
0820-00302 Finger/foot guards [2009-09-09] 77
0820-00305 P0032424 78
0820-00305 Finger/foot guards [2009-06-10] 78
0840-00228 P0030616 79
0840-00228 Driver protection [2009-06-10] 79
0840-00245 P0032149 80
0840-00245 Driver protection [2009-09-09] 80
0850-00502 P0032594 82
0850-00502 Signs, warnings, decals [2009-09-09] 83
0850-00503 P0032596 84
0850-00503 Signs, warnings, decals [2009-09-09] 84
1710-00141 P0031307 86
1710-00141 Electric pump motor [2009-06-10] 87
1730-00061 P0033337 88
1730-00061 Electric steering motor [2009-06-10] 88
1740-00049 P0034022 89
1740-00049 Electric fan motor, electric fan [2009-09-09] 89
1760-00171 P0032399 90
1760-00171 Electric drive motor [2009-06-10] 91
2550-00095 P0030289 92
2550-00095 Mechanical drive gear unit [2009-06-10] 93
3180-00026 P0032405 94
3180-00026 Electrically controlled travel brake [2009-06-10] 95
3180-00027 P0032955 96
3180-00027 Electrically controlled travel brake [2009-09-09] 96
3530-00143 P0031609 97
3530-00143 Drive wheel [2009-06-10] 97
3550-00492 P0033138 98
3550-00492 Fork/support arm wheels [2009-11-25] 99
4310-00078 P0031370100
4310-00078 Electric steering wheel/lever [2009-09-09]101
4310-00080 P0032654103
4310-00080 Electric steering wheel/lever [2009-09-09]103
4350-00018 P0031638104
4350-00018 Steering angle sensor [2009-09-09]104
5160-00146 P0031251106
5160-00146 General alarm signals (audible/visual) [2009-09-09]106
5190-00139 P0031508106
5190-00139 Battery cut out connector/contactor [2009-09-09]106
5190-00142 P0032073107
5190-00142 Battery cut out connector/contactor [2009-09-09]107
5200-00045 P0031314108
5200-00045 Instrument panel, display [2009-09-09]109
5200-00046 P0031398112
5200-00046 Instrument panel, display [2009-09-29]113
5200-00048 P0031624115
5200-00048 Instrument panel, display [2009-09-09]115
5280-00126 P0032634116
5280-00126 Level/position transducers/lamps [2009-09-09]116
5280-00161 P0035152118
5280-00161 Level/position transducers/lamps [2009-10-27]119
5280-00172 P0035576120
5280-00172 Level/position transducers/lamps [2009-11-24]121
5390-00311 P0032660123
5390-00311 Driving function harnesses/fuse [2009-09-09]123
5390-00317 P0033737124
5390-00317 Driving function harnesses/fuse [2009-09-09]125
5390-00318 P0033744126
5390-00318 Driving function harnesses/fuse [2009-09-09]126
5390-00319 P0033756127
5390-00319 Driving function harnesses/fuse [2009-09-09]127
5430-00150 P0033458128
5430-00150 Drive motor cables/resistors/fuses [2009-06-10]129
5460-00096 P0033855130
5460-00096 Transistor panel [2010-01-26]131
5590-00382 P0031270132
5590-00382 Work function harnesses/fuse [2009-09-09]132
5590-00398 P0032163134
5590-00398 Work function harnesses/fuse [2009-09-09]134
5590-00408 P0032380135
5590-00408 Work function harnesses/fuse [2009-09-09]135
5590-00409 P0032524136
5590-00409 Work function harnesses/fuse [2009-09-09]137
5590-00413 P0032656138
5590-00413 Work function harnesses/fuse [2009-09-09]139
5590-00429 P0033524140
5590-00429 Work function harnesses/fuse [2009-12-11]140
5590-00430 P0033523141
5590-00430 Work function harnesses/fuse [2009-09-09]141
5590-00438 P0033738142
5590-00438 Work function harnesses/fuse [2009-09-09]143
5590-00536 P0036108144
5590-00536 Work function harnesses/fuse [2010-02-08]145
5590-00538 P0036133146
5590-00538 Work function harnesses/fuse [2010-02-08]146
5680-00182 P0033449148
5680-00182 Battery/motor cables, fuse [2009-09-09]149
5680-00196 P0035191150
5680-00196 Battery/motor cables, fuse [2009-09-09]151
5680-00198 P0035629152
5680-00198 Battery/motor cables, fuse [2010-02-08]153
5680-00199 P0035630154
5680-00199 Battery/motor cables, fuse [2010-02-08]155
5680-00200 P0035631158
5680-00200 Battery/motor cables, fuse [2010-02-08]159
5680-00201 P0035632160
5680-00201 Battery/motor cables, fuse [2010-02-08]161
5710-00140 P0033840164
5710-00140 Drive/multi-function PCBs [2009-09-09]164
5710-00141 P0033854165
5710-00141 Drive/multi-function PCBs [2009-09-09]165
5820-00289 P0032034166
5820-00289 Lift/lowering/reach movement probes/sensors [2010-02-08]166
5830-00222 P0034077167
5830-00222 Safety probes/sensors [2009-09-09]167
5830-00247 P0035192168
5830-00247 Safety probes/sensors [2009-12-03]168
5850-00017 P0033525170
5850-00017 Positioning probes/sensors [2009-09-09]171
5850-00018 P0033526172
5850-00018 Positioning probes/sensors [2009-09-09]173
5850-00024 P0035579174
5850-00024 Positioning probes/sensors [2009-11-24]175
6110-00026 P0031616176
6110-00026 Hydraulic tank [2009-09-09]176
6120-00267 P0032255177
6120-00267 Hydraulic tank lines [2009-09-09]177
6120-00275 P0033522178
6120-00275 Hydraulic tank lines [2009-09-09]178
6130-00037 P0032253179
6130-00037 Filters and housing [2009-09-09]179
6140-00037 P0032249180
6140-00037 Hydraulic pump [2009-04-14]180
6210-00078 P0034690182
6210-00078 Main valve unit lift/reach/tilt [2009-09-09]183
6210-00079 P0034691184
6210-00079 Main valve unit lift/reach/tilt [2009-09-09]185
6220-00054 P0031703186
6220-00054 Control valve ( Other functions ) [2009-09-09]186
6220-00055 P0032549187
6220-00055 Control valve ( Other functions ) [2009-09-09]187
6220-00059 P0032663188
6220-00059 Control valve ( Other functions ) [2009-09-09]188
6220-00062 P0033047189
6220-00062 Control valve ( Other functions ) [2009-09-09]189
6230-00240 P0032675190
6230-00240 Hydraulic lines chassis [2009-09-09]190
6230-00279 P0035193192
6230-00279 Hydraulic lines chassis [2009-09-09]193
6320-00439 P0031705194
6320-00439 Mast hydraulic lines [2009-09-09]194
6320-00463 P0032553196
6320-00463 Mast hydraulic lines [2009-09-09]196
6320-00486 P0033496198
6320-00486 Mast hydraulic lines [2009-09-09]199
6320-00487 P0033497202
6320-00487 Mast hydraulic lines [2009-09-09]203
6320-00493 P0033680205
6320-00493 Mast hydraulic lines [2009-09-09]205
6320-00543 P0034434206
6320-00543 Mast hydraulic lines [2009-12-16]207
6320-00570 P0034858211
6320-00570 Mast hydraulic lines [2009-09-09]211
6370-00089 P0033381212
6370-00089 Mast hose reel/swivel joint [2009-09-09]213
6370-00090 P0033384216
6370-00090 Mast hose reel/swivel joint [2009-09-09]217
6370-00091 P0033390220
6370-00091 Mast hose reel/swivel joint [2009-09-09]221
6370-00092 P0033517224
6370-00092 Mast hose reel/swivel joint [2009-09-09]225
6610-00414 P0035545226
6610-00414 Main lift cylinders [2009-11-24]226
6620-00170 P0032504228
6620-00170 Free lift cylinders [2009-02-12]229
6650-00011 P0036163230
6650-00011 Reach/telescopic cylinders [2010-02-08]230
6660-00014 P0024167231
6660-00014 Tilt cylinders [2009-09-09]231
6660-00015 P0024168231
6660-00015 Tilt cylinders [2009-09-09]231
6660-00019 P0032555232
6660-00019 Tilt cylinders [2009-09-09]232
6670-00028 P0032554233
6670-00028 Other hydraulic cylinders [2009-09-09]233
7100-00131 P0031145234
7100-00131 Main mast [2009-02-12]234
7120-00540 P0031135236
7120-00540 Main lift chain system [2009-03-18]237
7130-00294 P0031702240
7130-00294 Main mast fork carriage [2009-02-12]240
7130-00296 P0031708242
7130-00296 Main mast fork carriage [2009-09-09]242
7130-00316 P0032843244
7130-00316 Main mast fork carriage [2009-02-12]245
7150-00040 P0032510247
7150-00040 Main mast guidance/dampers [2009-09-09]247
7190-00086 P0033650248
7190-00086 Main mast suspension [2009-09-09]248
7190-00093 P0034674250
7190-00093 Main mast suspension [2009-12-16]251
7410-00025 P0009796254
7410-00025 Fork, carpet boom, lift hook [2009-10-15]254
7410-00425 P0033674256
7410-00425 Fork, carpet boom, lift hook [2009-09-09]257
7410-00450 P0034859258
7410-00450 Fork, carpet boom, lift hook [2009-09-09]258
9170-00378 P0035204260
9170-00378 Separate sideshift/forkspread [2009-09-01]261
9300-00126 P0033340263
9300-00126 Extra electrical equipment [2009-09-09]263
9300-00133 P0035614263
9300-00133 Extra electrical equipment [2009-11-24]263
9330-00058 P0033572264
9330-00058 Radio/recorder [2009-09-09]265
9360-00084 P0032084266
9360-00084 Extra lighting [2009-09-09]267
9370-00122 P0030370268
9370-00122 Extra warning lights/alarm [2009-09-09]268
9370-00134 P0032235269
9370-00134 Extra warning lights/alarm [2009-09-09]269
9370-00140 P0033329270
9370-00140 Extra warning lights/alarm [2009-09-09]270
9380-00021 P0032673270
9380-00021 Charger attachment [2009-09-09]270
9380-00023 P0034661271
9380-00023 Charger attachment [2009-09-09]271
9390-00113 P0034823272
9390-00113 Positioning/TV equip, height preselector [2009-09-09]273
9400-00320 P0031265274
9400-00320 Extra electrical equipment [2009-09-09]274
9400-00419 P0036105276
9400-00419 Extra electrical equipment [2010-02-08]276
9420-00143 P0033808278
9420-00143 Truck log device, code locking device [2009-12-09]279
9420-00148 P0034496280
9420-00148 Truck log device, code locking device [2009-10-08]280
9420-00158 P0035174282
9420-00158 Truck log device, code locking device [2009-09-09]283
9500-00443 P0017242284
9500-00443 Other extra equipment [2009-02-17]284
9500-00868 P0027876286
9500-00868 Other extra equipment [2009-09-09]287
9500-01073 P0031109288
9500-01073 Other extra equipment [2010-01-21]288
9500-01169 P0032394289
9500-01169 Other extra equipment [2009-09-09]289
9500-01170 P0032396290
9500-01170 Other extra equipment [2009-09-09]290
9500-01174 P0032556291
9500-01174 Other extra equipment [2009-09-09]291
9500-01273 P0034821292
9500-01273 Other extra equipment [2009-09-09]293
9500-01274 P0034860295
9500-01274 Other extra equipment [2009-09-09]295
9500-01337 P0036107296
9500-01337 Other extra equipment [2010-02-08]296

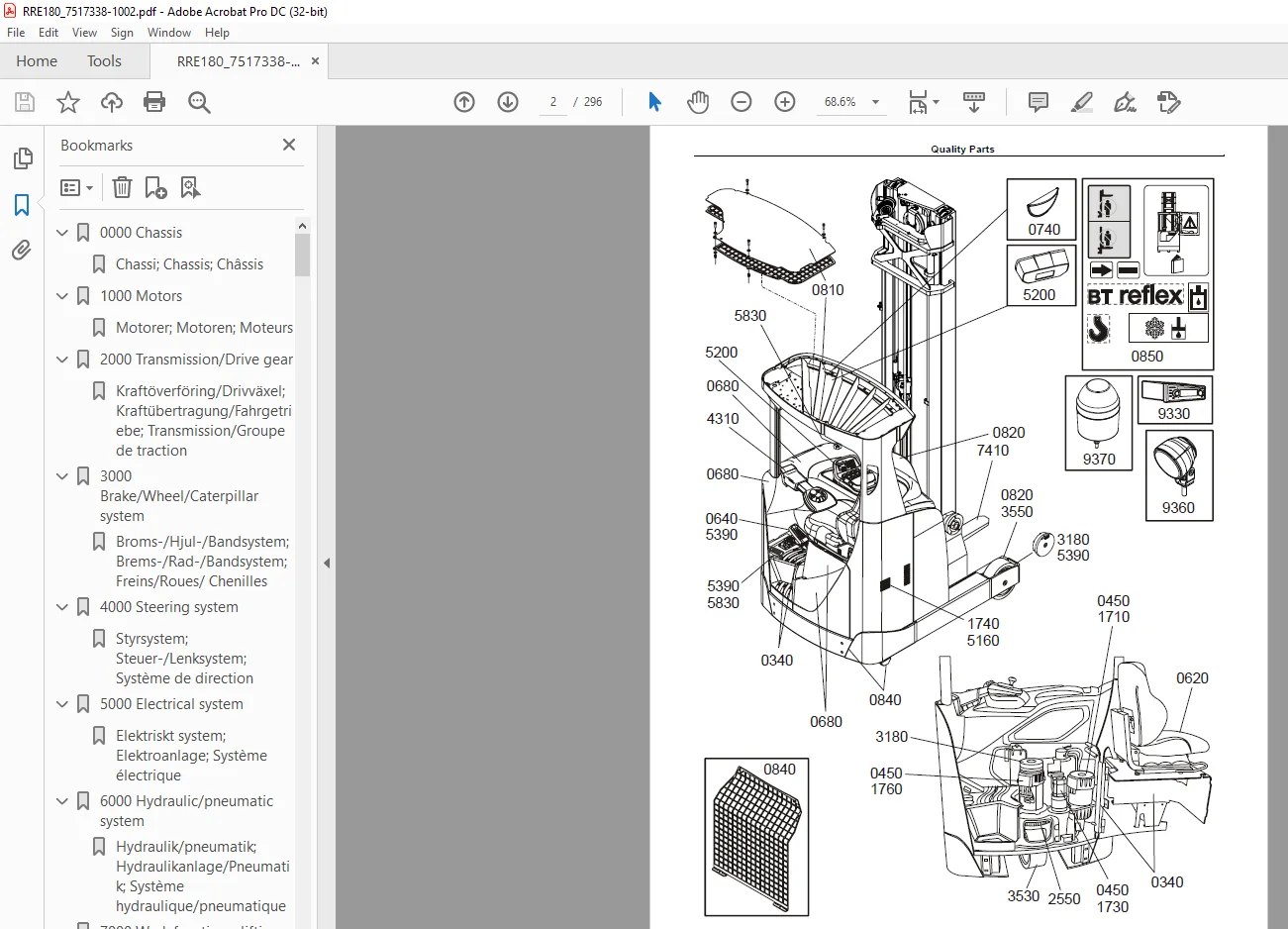

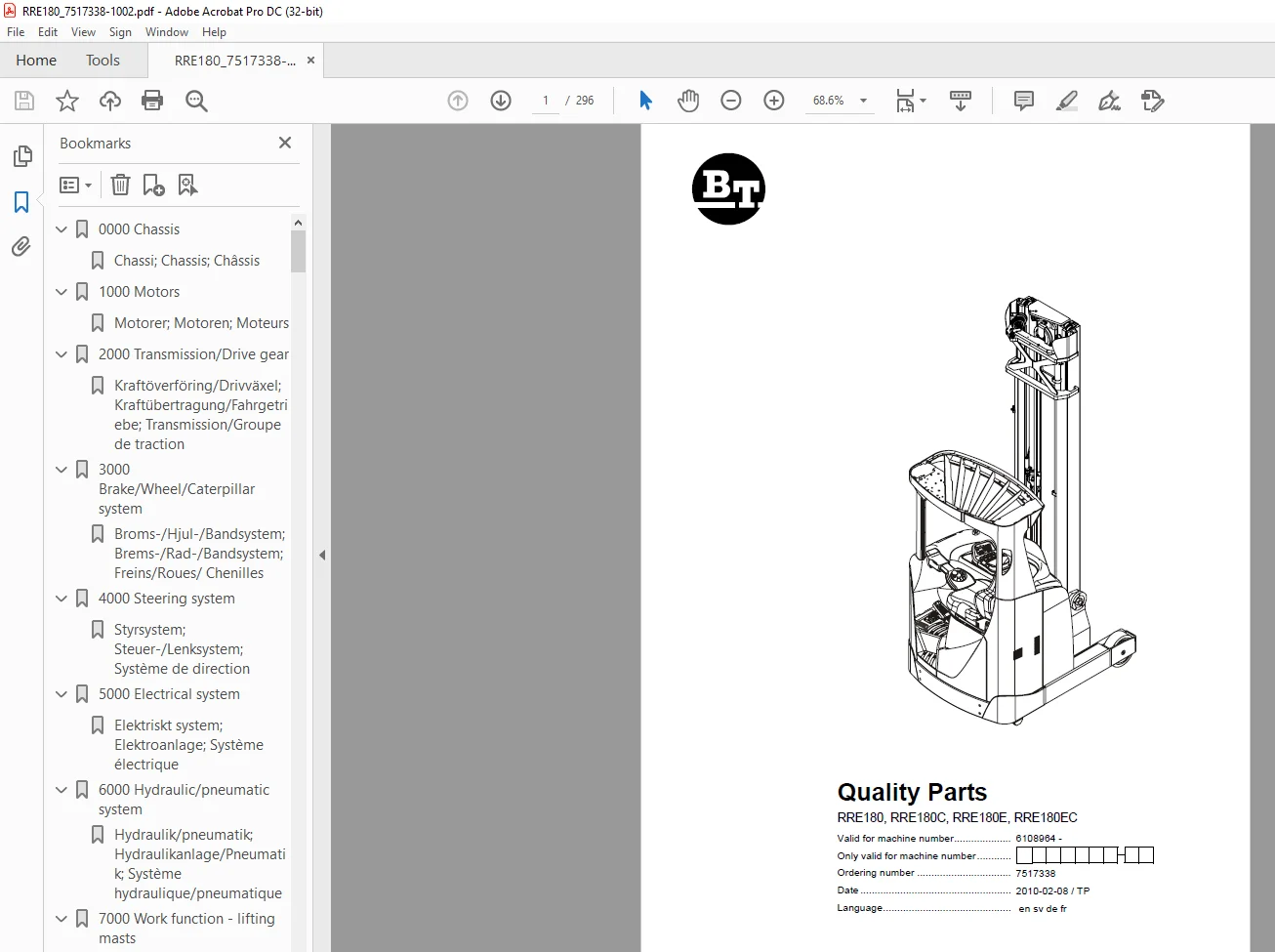

IMAGES PREVIEW OF THE MANUAL:

S.M 6/24
