BT P 24 Quality Parts Manual Digital PDF Download

Description

BT P 24 Quality Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT P 24 Quality Parts Manual- PDF DOWNLOAD

Language : English
Pages : 93
Downloadable : Yes
File Type : PDF
Size:4.55 MB/

TABLE OF CONTENTS:

BT P 24 Quality Parts Manual – PDF DOWNLOAD

0000 Chassis 4
Chassi; Chassis; Châssis 4
1000 Motors 4
Motorer; Motoren; Moteurs 4
2000 Transmission/Drive gear 5
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/ Groupe de traction 5
3000 Brake/Wheel/Caterpillar system 5
Broms-/Hjul/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 5
4000 Steering system 5
Styrsystem; Steuer-/Lenksystem; Système de direction 5
5000 Electrical system 5
Elektriskt system; Elektroanlage; Système électrique 5
6000 Hydraulic/pneumatic system 6
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 6
9000 Options/attachments 6
Tillbehör/extrautrustning; Zubehör /Zusatzausrüstung; Equipement supplémentaire/Options 6
0340-218 P0013932 8
0340-218 Inspection covers [2001-04-25] 9
0340-221 P001394510
0340-221 Inspection covers [2001-04-25]11
0380-127 P001237912
0380-127 Fork frame (low lifters) [2001-05-17]13
0390-089 P001233816
0390-089 Battery compartment parts [2001-04-02]16
0390-090 P001233917
0390-090 Battery compartment parts [2001-04-02]17
0390-095 P001243318
0390-095 Battery compartment parts [2001-04-02]19
0390-096 P001243120
0390-096 Battery compartment parts [2001-04-02]20
0390-117 P001411221
0390-117 Battery compartment parts [2001-04-26]21
0390-118 P001412622
0390-118 Battery compartment parts [2001-04-26]23
0400-020 P001124824
0400-020 Frame/chassis components [2001-04-02]25
0560-059 P001405026
0560-059 Platform incl fixing points [2001-04-25]27
0840-069 P001394728
0840-069 Driver protection [2001-04-26]28
0840-070 P001409530
0840-070 Driver protection [2001-04-25]30
0840-071 P001409631
0840-071 Driver protection [2001-04-25]31
0850-167 P001397732
0850-167 Signs, warnings, decals [2001-04-25]33
1710-042 P001410634
1710-042 Electric pump motor [2001-04-27]34
1730-009 P001255435
1730-009 Electric steering motor [2001-04-02]35
1740-010 P001415036
1740-010 Electric fan motor, electric fan [2001-04-26]37
1760-014 P001274938
1760-014 Electric drive motor [2001-04-02]39
2550-045 P001404142
2550-045 Mechanical drive gear unit [2001-04-26]43
3370-012 P001247446
3370-012 Electromagnetic parking brake [2001-04-02]47
3530-030 P001165348
3530-030 Drive wheel [2001-04-02]48
3540-030 P001241650
3540-030 Support/castor wheels [2001-04-02]51
3550-168 P001404052
3550-168 Fork/support arm wheels [2001-04-26]52
3580-026 P001403854
3580-026 Guide rollers/wheels [2001-04-26]55
4100-002 P001398256
4100-002 Mechanical steering system [2001-04-26]57
4110-137 P001099560
4110-137 Steering arm / wheel / lever [2001-04-26]61
4300-004 P001397864
4300-004 Electric steering system [2001-04-26]65
5160-032 P001144468
5160-032 General alarm signals (audible/visual) [2001-04-02]68
5190-030 P001206469
5190-030 Battery cut out connector/contactor [2001-04-02]69
5190-038 P001255870
5190-038 Battery cut out connector/contactor [2001-04-02]71
5310-057 P001237472
5310-057 Start/stop switch [2001-04-02]72
5460-044 P001408173
5460-044 Transistor panel [2001-04-26]73
5590-034 P001409074
5590-034 Work function harnesses/ fuse [2001-04-26]75
5600-001 P001244076
5600-001 Power system for working function [2001-04-02]76
5610-015 P000894577
5610-015 Pump contactor [2001-04-02]77
6100-096 P001410778
6100-096 Hydraulic unit [2001-04-26]79
6230-042 P001410880
6230-042 Hydraulic lines chassis [2001-04-26]81
6610-037 P001135482
6610-037 Main lift cylinders [2001-05-17]82
6680-007 P001233784
6680-007 Powertrak cylinder [2001-04-02]85
9420-015 P001239686
9420-015 Truck log device, code locking device [2001-04-02]86
9500-202 P001240487
9500-202 Other extra equipment [2001-04-02]87
9500-284 P001406488
9500-284 Other extra equipment [2001-04-26]89
9550-013 P001246890
9550-013 Battery changing equipment [2001-04-02]91
9999-007 P001372593
9999-007 Information [2001-05-08]93

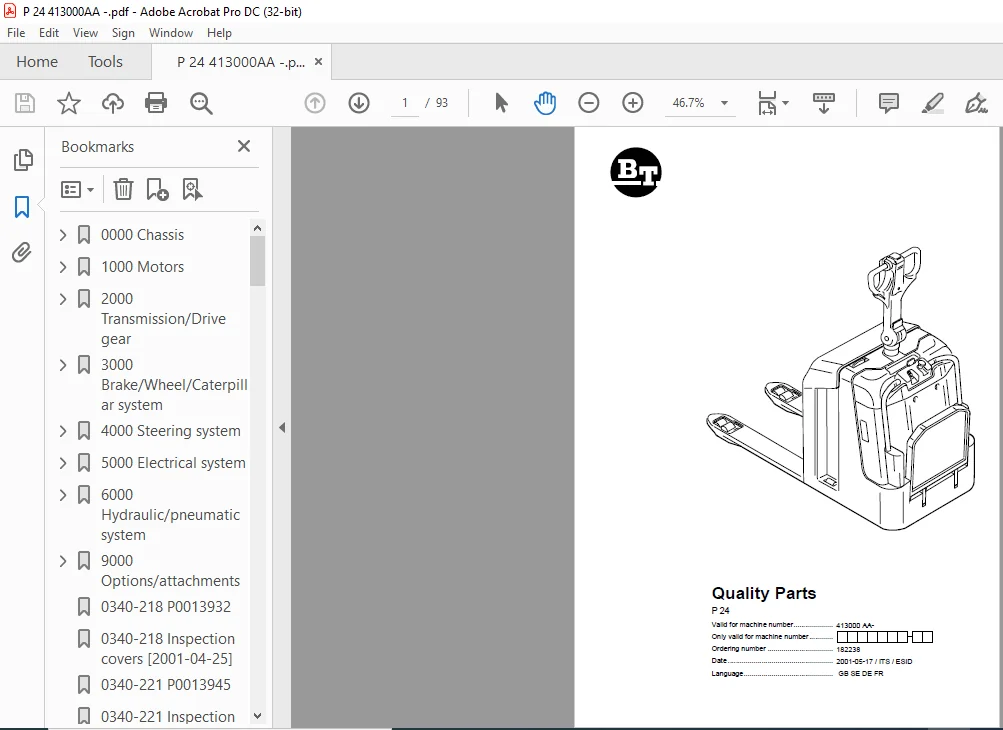

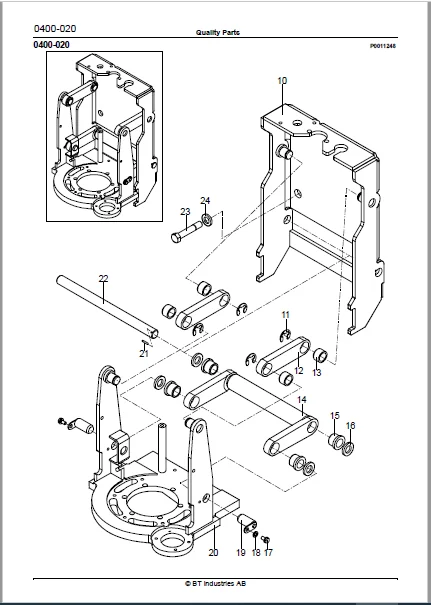

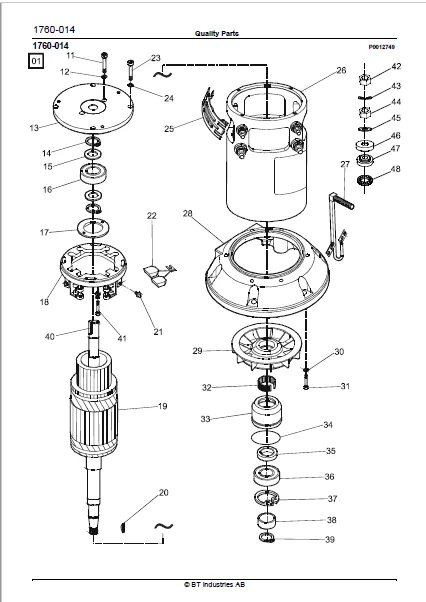

IMAGES PREVIEW OF THE MANUAL:
