BT Prime Mover HT60W Warehouse Electric Low Lift Truck Parts Manual PDF

Description

BT Prime Mover HT60W Warehouse Electric Low Lift Truck Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime Mover HT60W Warehouse Electric Low Lift Truck Parts Manual – PDF DOWNLOAD

Language : English
Pages : 101
Downloadable : Yes
File Type : PDF

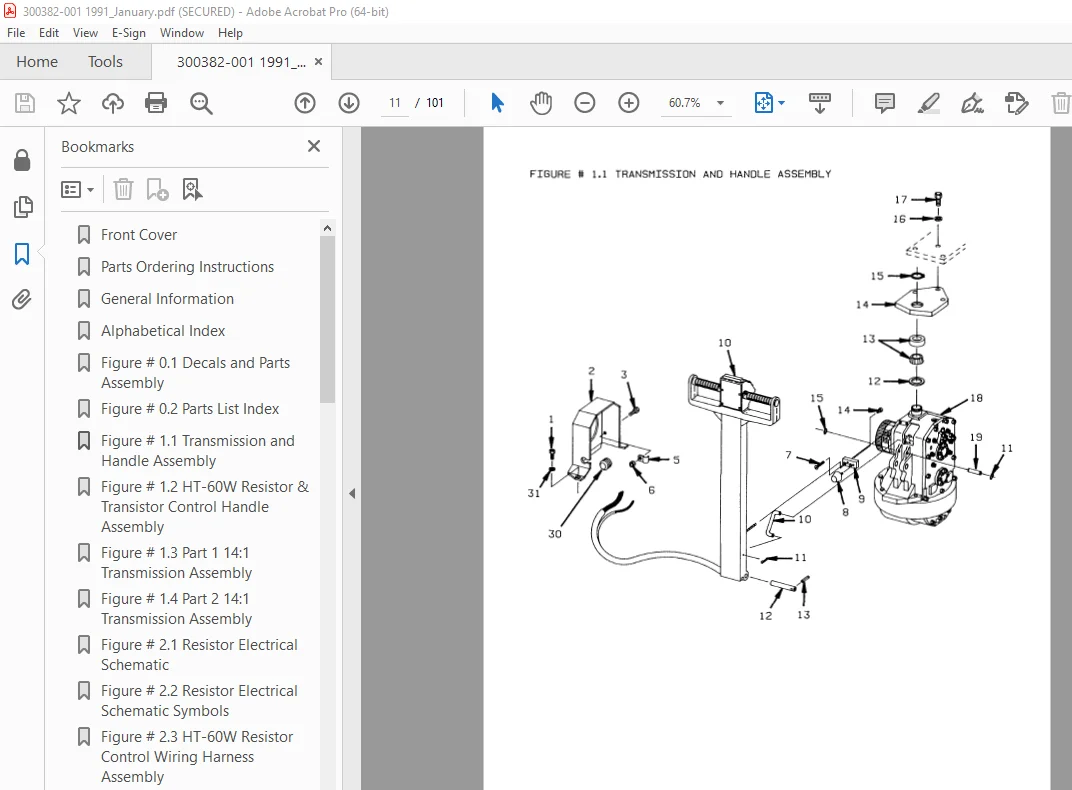

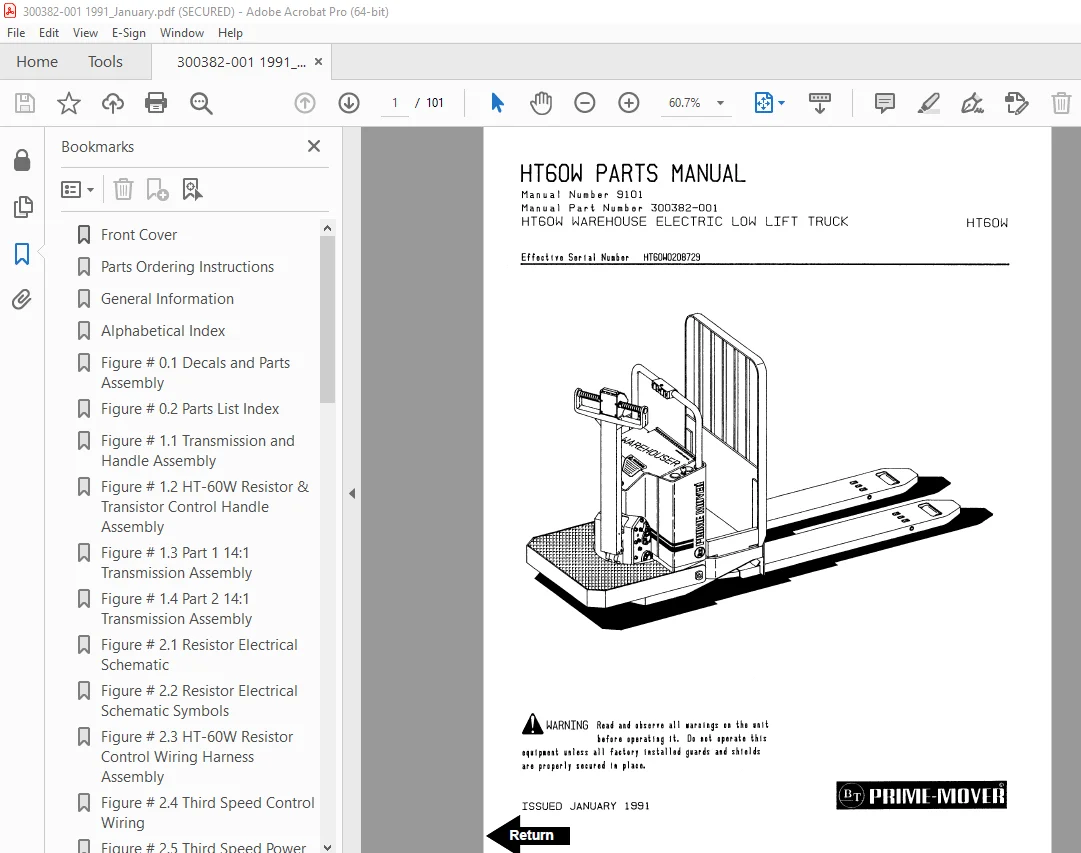

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime Mover HT60W Warehouse Electric Low Lift Truck Parts Manual – PDF DOWNLOAD

Manual Number 9101
Manual Parts Number 300382-001
Effective Serial Number HT60W0208729

Front Cover 1
Parts Ordering Instructions 3
General Information 4
Alphabetical Index 5
Figure # 0 1 Decals and Parts Assembly 7
Figure # 0 2 Parts List Index 9
Figure # 1 1 Transmission and Handle Assembly 11
Figure # 1 2 HT-60W Resistor & Transistor Control Handle Assembly 13
Figure # 1 3 Part 1 14:1 Transmission Assembly 15
Figure # 1 4 Part 2 14:1 Transmission Assembly 17
Figure # 2 1 Resistor Electrical Schematic 19
Figure # 2 2 Resistor Electrical Schematic Symbols 20
Figure # 2 3 HT-60W Resistor Control Wiring Harness Assembly 21
Figure # 2 4 Third Speed Control Wiring 23
Figure # 2 5 Third Speed Power Component Wiring 25
Figure # 2 6 Resistor Control Panel Assembly, 24 Volt 27
Figure # 2 7 Contactor Assembly, 24 Volt 29
Figure # 2 8 Forward & Rearward Contactor Assembly, 24 Volt 31
Figure # 2 9 Third Speed Contactor Panel Assembly 33
Figure # 2 10 Fourth Speed Control Wiring 35
Figure # 2 11 Fourth Speed Power Component Wiring 37
Figure # 2 12 Fourth Speed Contactor Panel Assembly 39
Figure # 2 13 Contactor Assembly 41
Figure # 2 14 Resistor Power Connector Assembly 43
Figure # 2 15 HT-60W Transistor Electrical Schematic 45
Figure # 2 16 HT-60W Transistor Electrical Schematic Symbols 46
Figure # 2 17 HT-60W Transistor Control Wiring Harness Assembly 47
Figure # 2 18 Transistor Power Component Wiring 49
Figure # 2 19 HT-60W Control Panel Assembly, 24 Volt 51
Figure # 2 20 Forward & Rearward Contactor Assembly, 24 Volt 53
Figure # 2 21 1A Contactor Assembly 55
Figure # 2 22 High Speed Contactor Assembly, 24 Volt 57
Figure # 2 23 Transistor Power Connector Assembly 59
Figure # 2 24 Hydraulic Pump Motor Assembly 61
Figure # 2 25 Drive Motor Assembly 63
Figure # 3 1 Hydraulic Schematic 65
Figure # 3 2 Hydraulic Schematic Symbols 66
Figure # 3 3 Resistor Hydraulic System 67
Figure # 3 4 Transistor Hydraulic System 69
Figure # 3 5 Pump and Motor Assembly 71
Figure # 3 6 Lift Cylinder Assembly 73
Figure # 4 1 Shielding Assembly 75
Figure # 4 2 Carrier Frame Assembly 77
Figure # 4 3 Caster Assembly 79
Figure # 4 4 Lift Frame Assembly 81
Figure # 4 5 Pallet Entry Rollers 83
Figure # 4 6 Skid Adapter and Package Guard Assembly 85
Figure # 4 7 Removable Load Backrest 87
Figure # 7 1 Special Tools and Lubrications 89
Numerical Index 92

DESCRIPTION:

BT Prime Mover HT60W Warehouse Electric Low Lift Truck Parts Manual – PDF DOWNLOAD

Manual Number 9101
Manual Parts Number 300382-001
Effective Serial Number HT60W0208729

PARTS ORDERING INSTRUCTIONS :
HOW TO ORDER:

• When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
• Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER:
Always order parts from the dealer who sold you your Prime-Mover. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
