BT Prime Mover OE-35 Electric Order Selector Parts Manual PDF

Description

BT Prime Mover OE-35 Electric Order Selector Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime Mover OE-35 Electric Order Selector Parts Manual – PDF DOWNLOAD

Language : English
Pages : 196
Downloadable : Yes
File Type : PDF

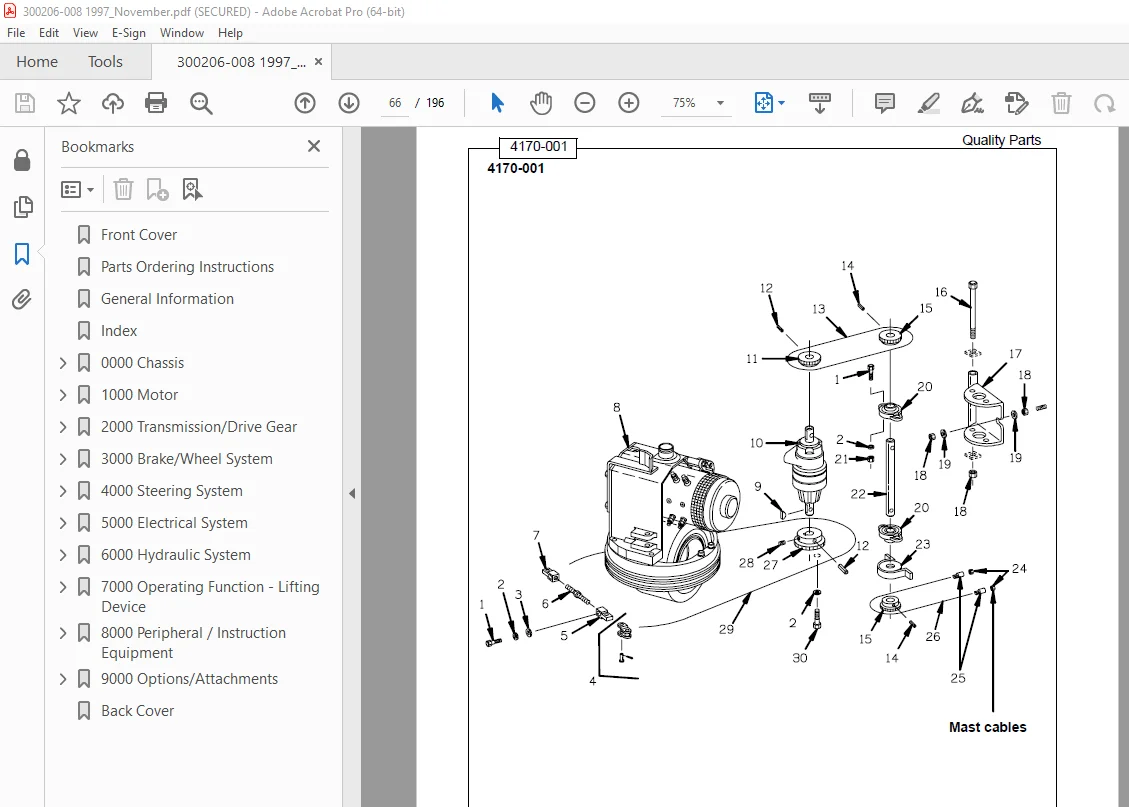

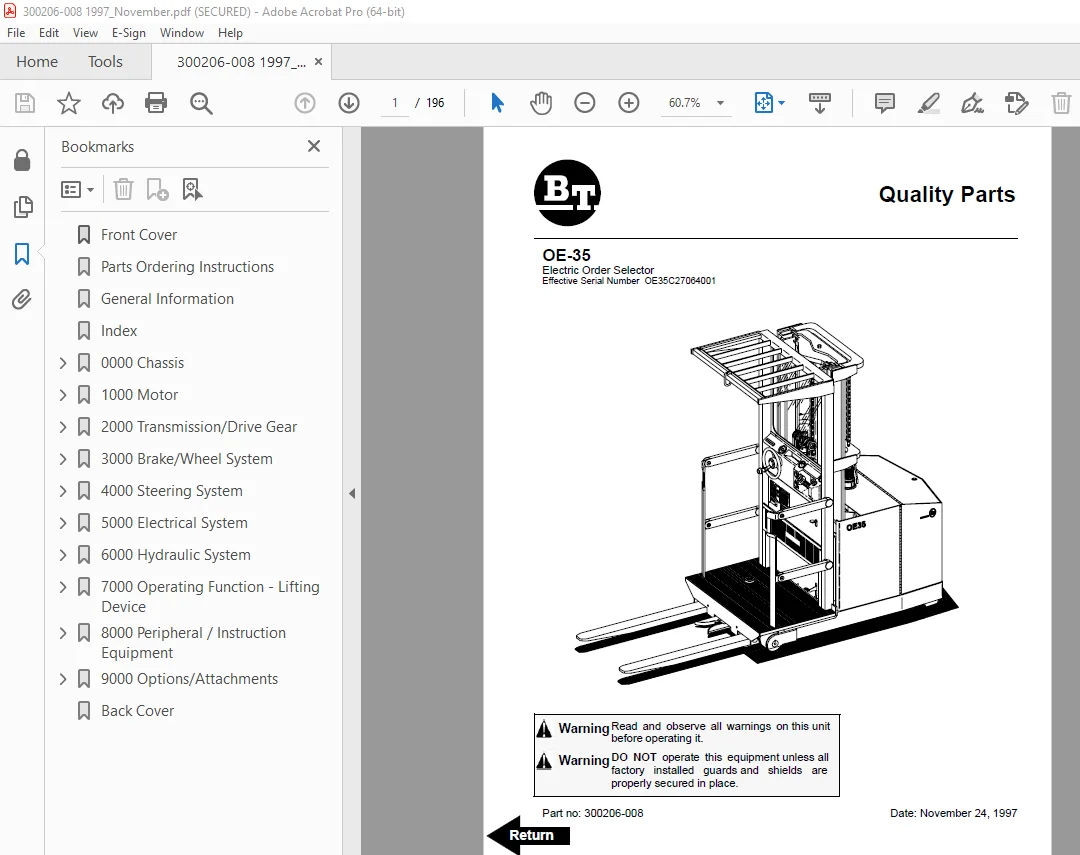

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime Mover OE-35 Electric Order Selector Parts Manual – PDF DOWNLOAD

Manual Parts Number 300206-008
Effective Serial Number OE35C27064001

Front Cover 1
Parts Ordering Instructions 2
General Information 3
Index 5
0000 Chassis 10
0300-004 Frame / chassis 11
0340-011 Inspection covers (Shields & guards) 13
0340-012 Inspection covers (Lift platform) 15
0340-017 Inspection covers (“EE” electrical box) 17
0390-006 Battery compartment parts 19
0560-001 Platform 21
0640-021 Driver controls (Brake pedal) 23
0640-022 Driver controls (Pallet clamp) 25
0640-023 Driver controls (Control handle) 27
0820-016 Finger / toe guards 29
0850-009 Signs, warnings 31
1000 Motor 10
1700-012 Drive motor (24 Volt) 33
1700-013 Drive motor (36 Volt) 35
2000 Transmission/Drive Gear 36
2550-011 Mechanical drive gear unit 37
3000 Brake/Wheel System 38
3150-000 Brake cylinder 39
3300-005 Parking brake system 41
3530-007 Drive wheel 43
3540-007 Support / swivel wheel 45
3550-010 Fork / support arm / outrigger wheel (Single) 47
3550-011 Fork / support arm / outrigger wheel (Tandem articulated) 49
3560-004 Stabilizer wheel (Spring loaded) 51
3580-001 Guide wheel 53
4000 Steering System 54
4130-000 Orbitrol unit / steering valve (Torque generator) 55
4150-000 Steering system pump (Pump and motor) 57
4150-001 Steering system pump (Steering pump) 59
4160-000 Servo motor / cylinder (N D C wire guidance) 61
4170-000 Steering chain / linkage / wire (Platform and mast) 63
4170-001 Steering chain / linkage / wire (Main chassis) 67
4170-002 Steering chain / linkage / wire (N D C Main chassis) 69
4180-008 Steering / radial bearing 71
5000 Electrical System 72
5120-002 Lights (work lights and fan) 73
5160-014 General alarm signal 75
5180-002 Current collector, cable drum 77
5190-019 Battery cut-out contactor / plug (Emergency disconnect contactor) 79
5190-020 Battery cut-out contactor / plug (Battery connector) 81
5230-006 Voltage / battery indicator (LX dash display) 83
5230-007 Voltage / battery indicator (Battery lift interrupt) 85
5230-008 Voltage / battery indicator 87
5290-000 Hourmeter / speedometer 89
5310-021 Start / stop switch 91
5320-001 Travel direction switch 93
5360-000 Relays, electrical modules (N D C wire guidance) 95
5390-024 Control cables / harnesses (Main chassis) 97
5390-025 Control cables / harnesses (Mast cables) 99
5390-026 Control cables / harnesses (Lift platform) 101
5390-027 Control cables / harnesses (N D C wire guidance) 103
5390-028 Control cables / harnesses (N D C wire guidance) 105
5400-004 Drive motor electrical system (contactor panel) 107
5410-000 SCR panel 109
5430-015 Motor cables, resistors 111
5440-002 Direction contactors (24 Volt) 113
5450-001 Speed contactors (1A) 24 Volt 115
5610-002 Pump contactors (Lift pump) 24 Volt 117
5610-003 Pump contactors (Lift pump) 36 Volt 119
5610-004 Pump contactors (Steering pump) 121
5760-000 Antennas (Wire guidance) 123
5810-014 Pump motor (Lift pump) 125
5810-015 Pump motor (Steering pump, 24 Volt) 127
5810-016 Pump motor (Steering pump, 36 Volt) 129
6000 Hydraulic System 130
6110-000 Hydraulic tank 131
6120-010 Hoses, pipes, connections, mounting points (Brake hose) 133
6125-022 Hoses, pipes, connections, mounting points (Two stage mast) 135
6125-023 Hoses, pipes, connections, mounting points (Three stage HIGH-VIS mast) 137
6125-045 Hoses, pipes, connections, mounting points (Control valve) 139
6130-010 Filters and housing 141
6140-008 Hydraulic pump (Lift pump and motor) 143
6140-009 Hydraulic pump (Lift pump) 145
6160-003 Control valve 147
7000 Operating Function – Lifting Device 148
7100-000 Mast (2 stage) 149
7100-001 Mast (3 stage) 151
7110-012 Mast sections (2 stage outer column) 153
7110-013 Mast sections (2 stage inner column) 155
7110-014 Mast sections (3 stage outer column) 157
7110-015 Mast sections (3 stage intermediate column) 159
7110-016 Mast sections (3 stage inner column) 161
7170-005 Lifting gear (3 stage mast) 163
7180-000 Slack chain / emergency brake 165
7310-021 Lift cylinder (two stage mast) 167
7310-022 Lift cylinder (three stage HIGH-VIS mast staging cylinder) 169
7310-023 Lift cylinder (three stage HIGH-VIS mast Free lift cylinder) 171
8000 Peripheral / Instruction Equipment 172
8200-000 Wire guidance 173
8210-000 Guidance communication loop 175
8510-000 Driver protection 177
8520-001 Access, safety equipment (Fire extinguisher) 179
8520-002 Access, safety equipment (Safety belt, tether) 181
9000 Options/Attachments 182
9360-000 Extra lights 183
9370-000 Warning lights /alarm (Alarm) 185
9370-001 Warning lights /alarm (Blue strobe light) 187
9370-006 Warning lights /alarm (Flashing light and strobe light) 189
9500-011 Extra mechanical equipment 191
9660-004 Electrical heater 193
9999-001 Special tools and lubrications 195
Back Cover 196

DESCRIPTION:

BT Prime Mover OE-35 Electric Order Selector Parts Manual – PDF DOWNLOAD

Manual Parts Number 300206-008
Effective Serial Number OE35C27064001

HOW TO ORDER:

• When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
• Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately.If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER:
Always order parts from the dealer who sold you your BT. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
