BT Prime-Mover RS Series Truck RS-20 RS-30 RS-40 Operating Maintenance & Parts Manual PDF

$20.95

BT Prime-Mover RS Series Truck RS-20 RS-30 RS-40 Operating Maintenance & Parts Manual – PDF DOWNLOAD

Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

BT Prime-Mover RS Series Truck RS-20 RS-30 RS-40 Operating Maintenance & Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime-Mover RS Series Truck RS-20 RS-30 RS-40 Operating Maintenance & Parts Manual – PDF DOWNLOAD

Language : English
Pages : 86
Downloadable : Yes
File Type : PDF

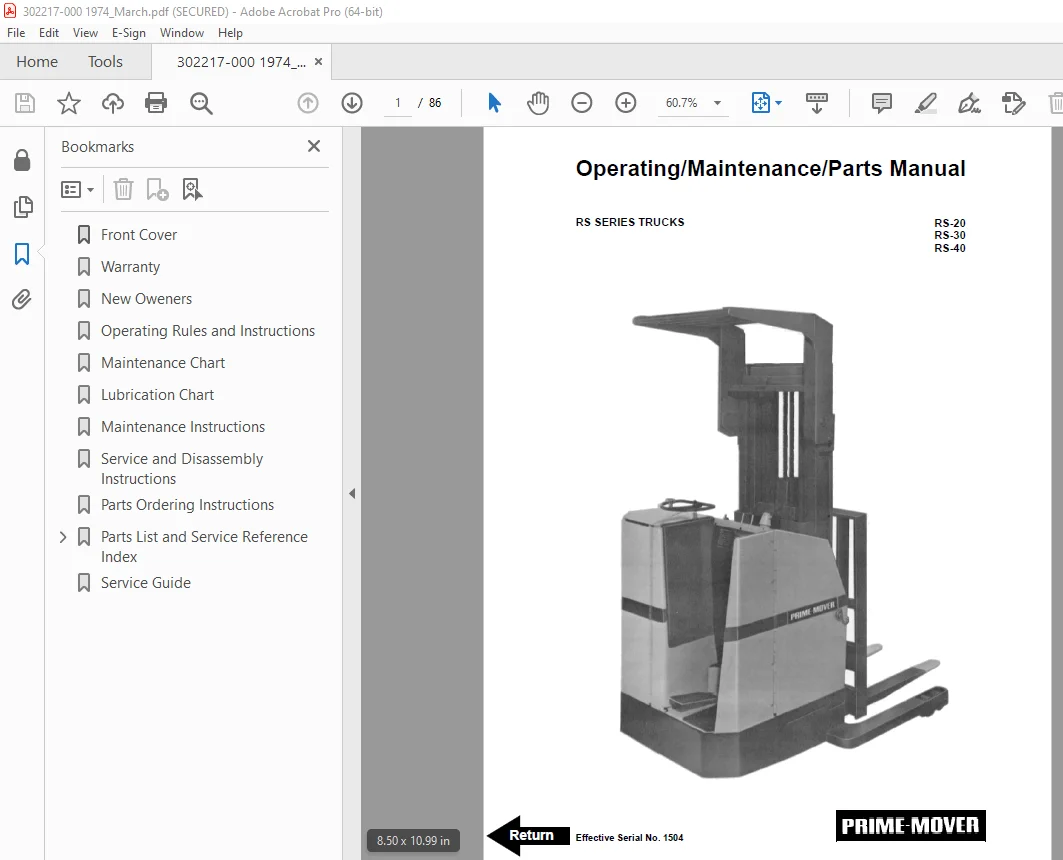

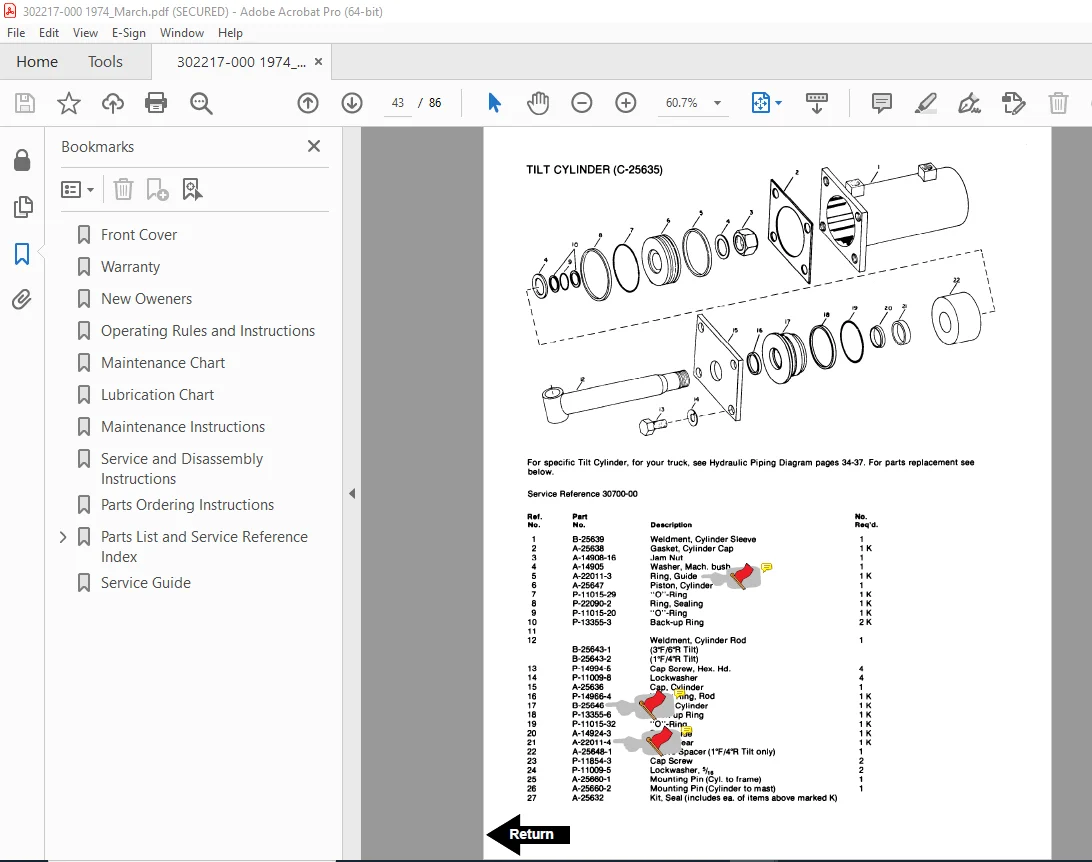

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime-Mover RS Series Truck RS-20 RS-30 RS-40 Operating Maintenance & Parts Manual – PDF DOWNLOAD

Front Cover 1
Warranty 2
New Oweners 3
Operating Rules and Instructions 4
Maintenance Chart 10
Lubrication Chart 11
Maintenance Instructions 12
Service and Disassembly Instructions 16
Parts Ordering Instructions 19
Parts List and Service Reference Index 20
Main Frame, Shielding, Misc 22
Drive Mounting 24
24 Volt Transmission Service Parts 26
Drive Motor Service Parts for D-25901 28
Drive Motor Service Parts for D-25968 29
Brake Linkage 30
Steering Linkage 31
Steering Assembly 32
Steering Reduction 33
Hydraulic Piping Single Pump 34
Hydraulic Piping Dual Pump 36
Hydraulic Control Valve 38
Hydraulic: Valve Mounting Reservoir Mounting Motor Mounting 40
Hydraulic Pump for P-25428 41
Motor for P-25428 42
Tilt Cylinder 43
Adjusting Linkage 44
Lift Cylinder – 3 Stage White 45
Lift Cylinder – Prime-Mover 47
Mast – 2 Stage Prime-Mover 49
Mast – 3 Stage Knickerbocker 53
Mast – 3 Stage White 55
G E SCR Elctrical Schematic Model EV-1 57
Electrical Schematic Symbols 58
Control Wiring for G E Model EV-1 59
Power Wiring for G E Model EV-1 61
G E Model EV-1 Control 63
Contactor Panel G E Model EV-1 64
Contactor Forward/Reverse, EV-1 65
Contactor 1A, P, and FW, EV-1 67
Control Handle, G E EV-1 69
Cold Storage Diagram/Components 70
Auxiliary Hydraulic Valve Parts Breakdown 72
Brudi Side Shifter 73
Hydraulic Cylinder for Brudi Side Shifter 74
Brudi Hose Reel Assembly for Prime-Mover Masts 75
Brudi Hose Reel 76
Gleason Hose Reel Assembly for 3 Stage Masts 77
Gleason Hose Reel 82
Service Guide 83

S.V 21/01/2025
